I need to verify with someone what I'm thinking about my power door locks. The passenger side lock works using either door switch. The driver side does not work using either door switch. I did find and print a wiring diagram for the system. I'm trying to eliminate having to pull the relay out because it really hard to get to. I think it working. From the diagram it looks to me like the relay has to be working. The switches just operate the relay only. It's the out put side of the relay that operates the solenoids. Both solenoids are tied together on the outgoing power. So it appears to me the problem must be wiring and or driver side solenoid. Does this make since to anyone?


Snoots

Full Access Member
Joined
Jan 23, 2013
Posts
8,158
Reaction score
15,957
Location
Georgia
First Name
Roger
Truck Year
1973
Truck Model
Jimmy Sierra
Engine Size
350
Time to get out the DMM or test light. If you hear the relay click with either switch, check the output wire. If you have voltage there when activating the switch then it's the solenoid.


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,473
Reaction score
3,063
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
Time to get out the DMM or test light. If you hear the relay click with either switch, check the output wire. If you have voltage there when activating the switch then it's the solenoid.
Exactly this^^^


Terry Wilkerson

Full Access Member
Joined
Dec 2, 2021
Posts
437
Reaction score
584
Location
Kansas
First Name
Terry
Truck Year
1986
Truck Model
GMC 1500
Engine Size
350
I bought a lock solenoid off an 87 corvette, same solenoid. Bench tested it and it works. Just had to swap the mounting brackets out. $6.00 No power to the driver side lock solenoid. I did use a meter to verify this. Relay clicks and both switches operate the passenger side lock. That makes me think that relay is working. I found a harness connection under the dash near the ac duct work. Maybe the problem is there. One more clue the non operating solenoid boot was completely melted. The original solenoid is froze up and won't move. It must have gotten really hot at some point. It's cold here in KC today so I think I'll come back to it tomorrow.


Snoots

Full Access Member
Joined
Jan 23, 2013
Posts
8,158
Reaction score
15,957
Location
Georgia
First Name
Roger
Truck Year
1973
Truck Model
Jimmy Sierra
Engine Size
350
Wires in the 'boot' area tend to break. PO probably just disconnected the harness after the meltdown. I'd pull the harness and boot off from the cab for a look see. ALWAYS tie a string to the connector so you can pull the harness back thru a lot easier.


Terry Wilkerson

Full Access Member
Joined
Dec 2, 2021
Posts
437
Reaction score
584
Location
Kansas
First Name
Terry
Truck Year
1986
Truck Model
GMC 1500
Engine Size
350
Sounds like a plan.
More to come.


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,338
Reaction score
3,571
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
And watch out for the sharp metal edges when working inside the doors of these trucks. Anytime I do anything inside the doors, my hands and fingers looked like I tangled with a bunch of raccoons.


Terry Wilkerson

Full Access Member
Joined
Dec 2, 2021
Posts
437
Reaction score
584
Location
Kansas
First Name
Terry
Truck Year
1986
Truck Model
GMC 1500
Engine Size
350

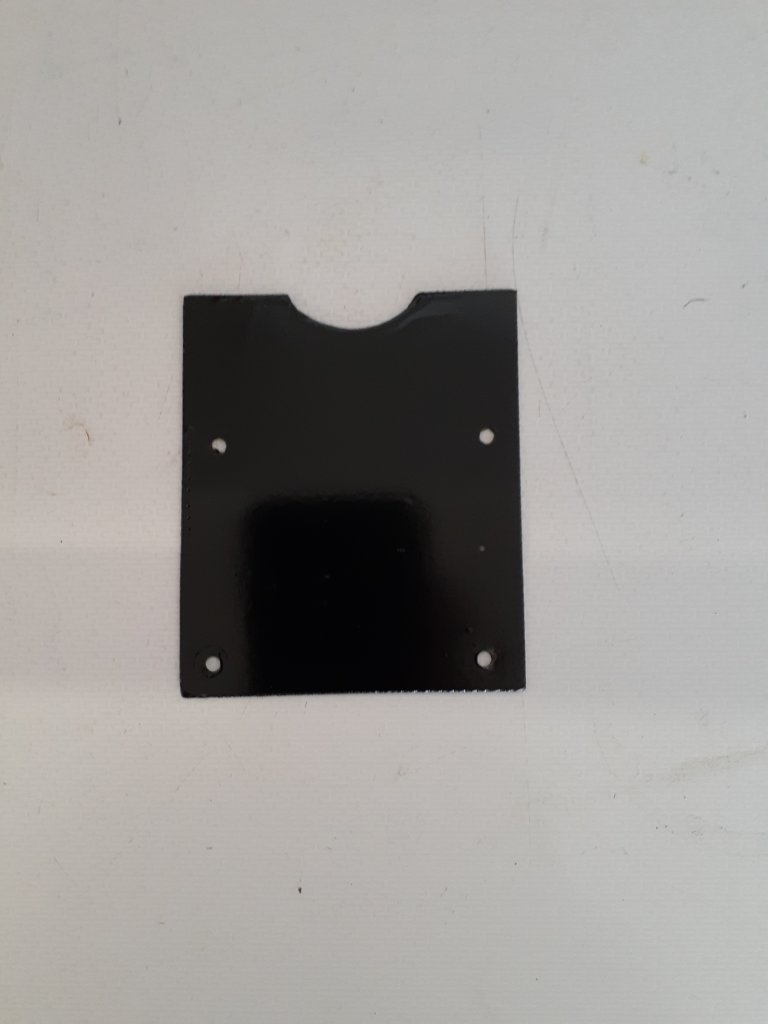

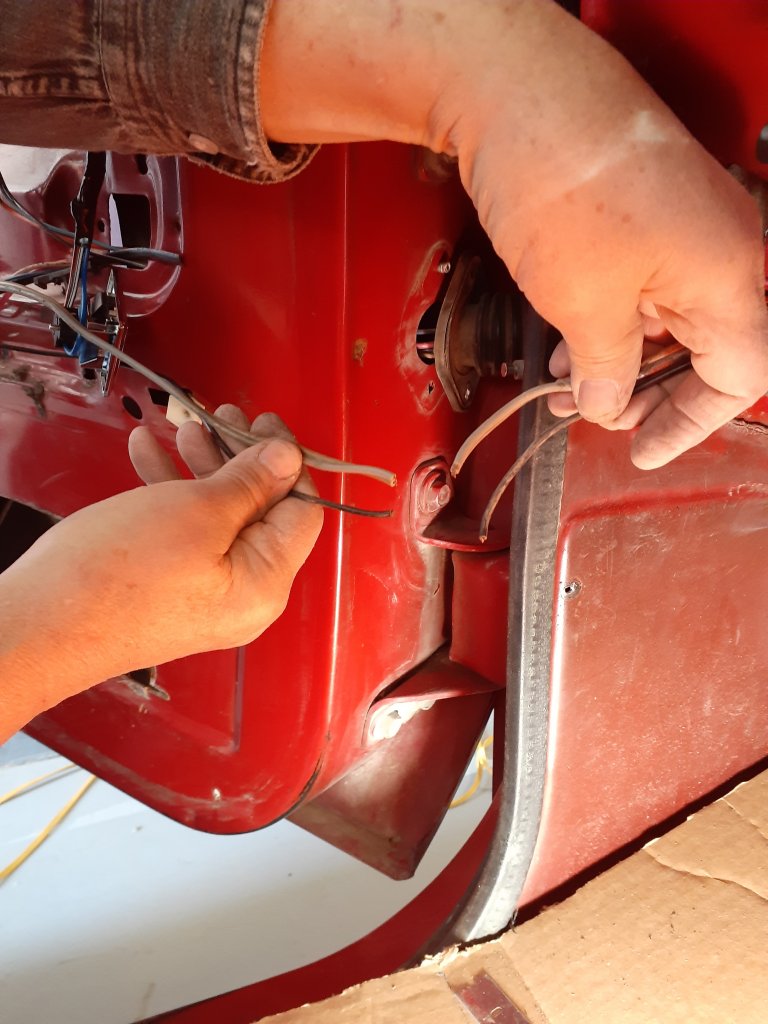

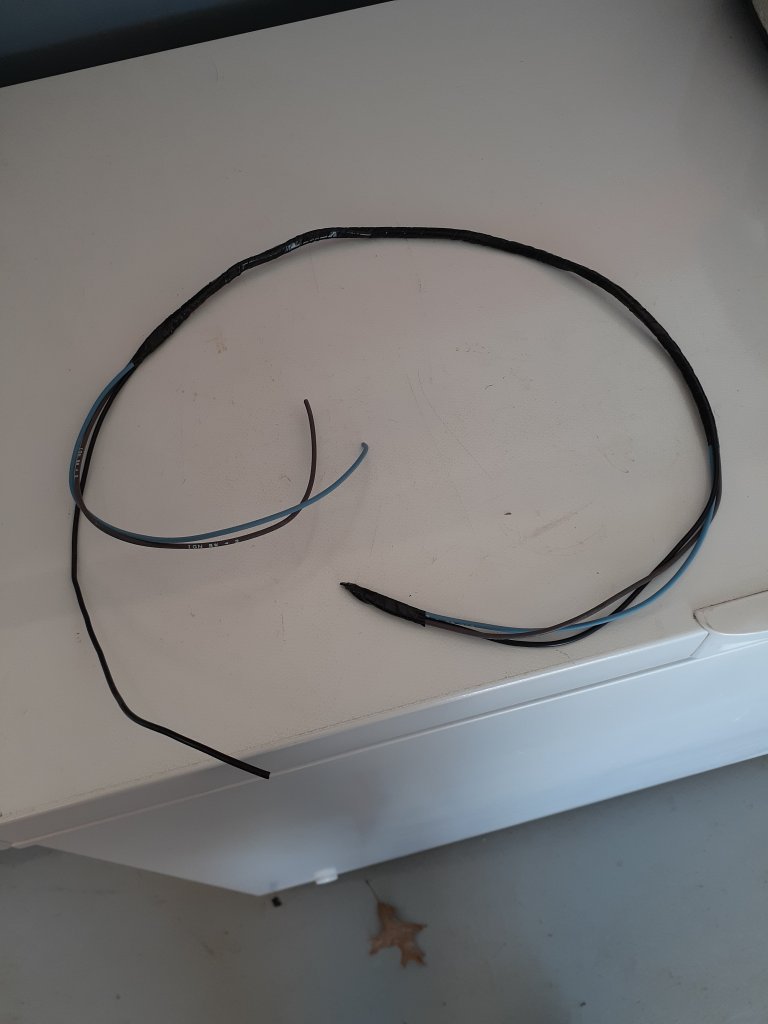

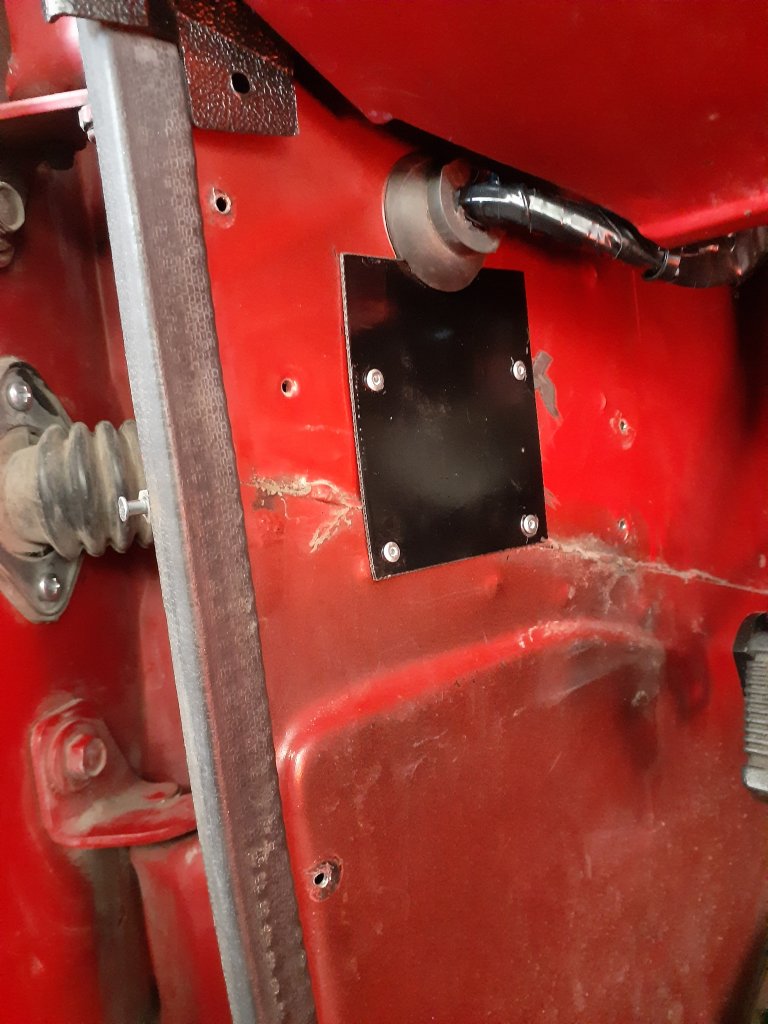

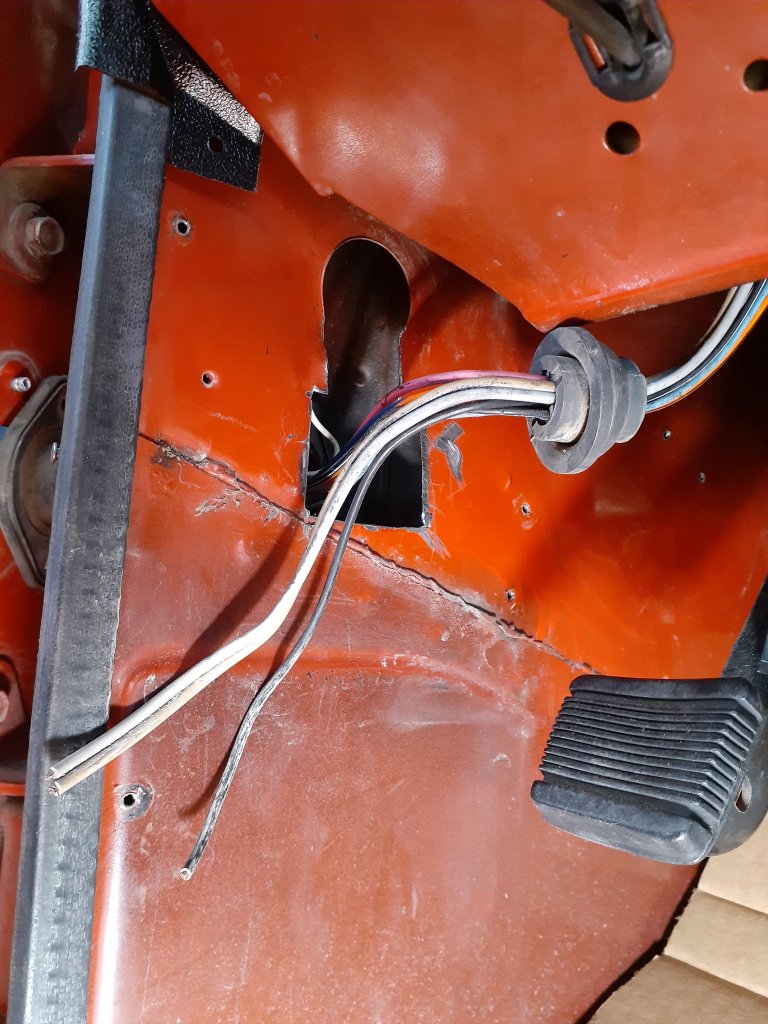

I did find both door lock wires broke in the door boot. Also found one of the window motor wires with cracked insulation. I cut the kick panel out to get access for the new wires. I pulled the three wires back out of the door and the kick panel. Made a short three wire harness. I pulled it into place thru the grommet and crimped it all together. I made a patch and pop riveted it in place.. Door locks work! Attached are some pics of the repair.
