New oilpan + one piece gasket help

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

labbetheking

Member
Joined
Jul 28, 2015
Posts
43
Reaction score
25
Location
Sweden
First Name
Daniel
Truck Year
1978
Truck Model
c10
Engine Size
350
So my -78 c10 have been sittning in the garage for 5-6 years now. All my 3 kids play icehockey on the winter and soccer on the summer so the time hasn't really been there for my project.

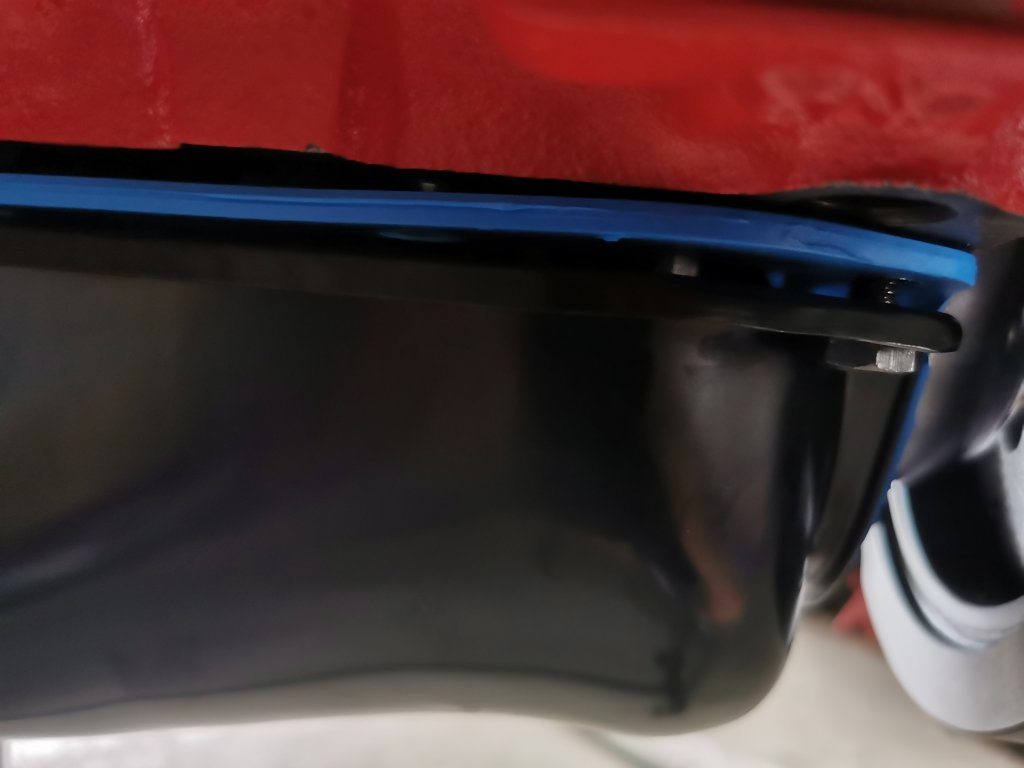

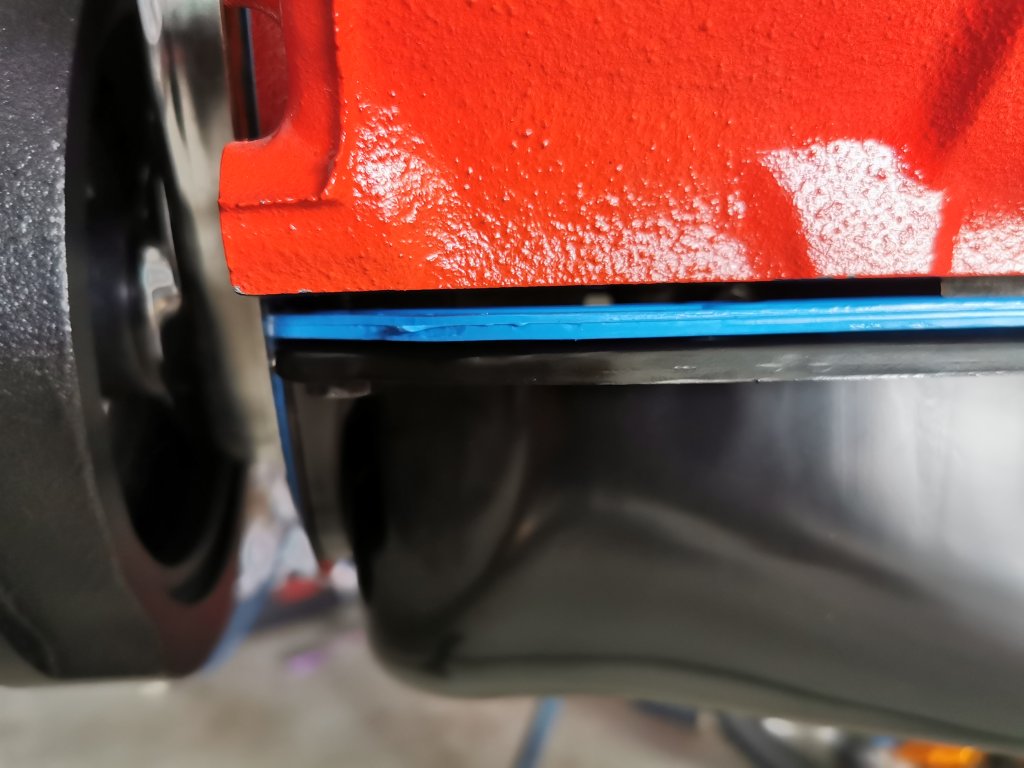

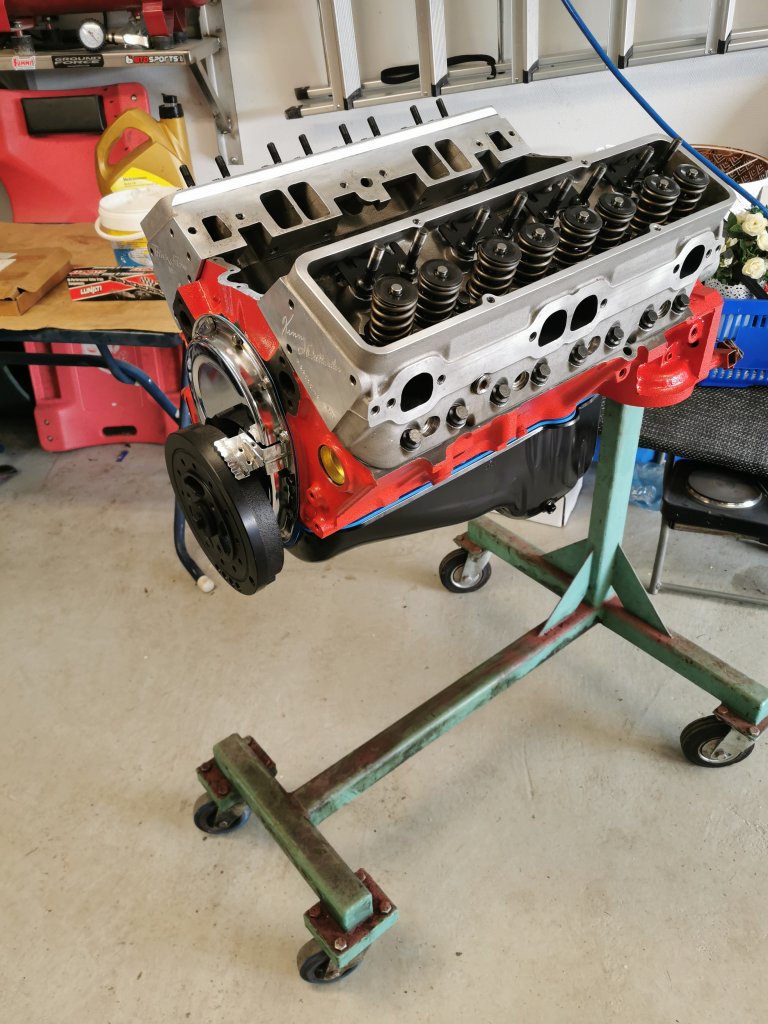

I'm building a stroker 383 for the truck and I've come down to the oil pan installation. As seen on the pictures the pan doesn't come any closer to the gasket when hand tightening those outer four bolts. Is it supposed to look like that at the start on these one piece gaskets or should i just put on my 4 piece gasket on instead?


Attachments

  • IMG_20220803_184114.jpg
    158.3 KB · Views: 73
  • IMG_20220804_104802.jpg
    101 KB · Views: 64
  • IMG_20220804_104817.jpg
    50 KB · Views: 69

PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,421
Reaction score
4,480
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
Uhhh yeah seems like your bottoming out on the pickup. Wrong baffle style? Wrong pickup?

Maybe contacting the rotating assembly. Maybe the threads are gummed up still? Put a ratchet on em, and if it doesn't snug up you've got somethin goin on.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,658
Reaction score
6,596
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Remove the oil pump and see it the pan closes the gap. If so you found the problem, likely the pickup tube is too long or it rotated causing the pickup to not sit parallel.


85K304SPD

Full Access Member
Joined
Mar 29, 2022
Posts
386
Reaction score
571
Location
Las Cruces, NM
First Name
Richard
Truck Year
1985
Truck Model
K30
Engine Size
383
I had the same problem on the last engine that I built. I wound up using the old 4 piece style with no problems. The one piece wouldnt go into the ends. Maybe it was just the gasket that I had, it came on a blown up motor that I bought that had a chrome oil pan, (with a big hole in the side of it). I have used them in the past on race car oil pans and they fit great. Just my experience.


labbetheking

Member
Joined
Jul 28, 2015
Posts
43
Reaction score
25
Location
Sweden
First Name
Daniel
Truck Year
1978
Truck Model
c10
Engine Size
350
Not touching the pump or the filter. It's just so tight on both ends. Guess i can tourqe it down so it sits tight all around but it just doesn't feel right. Is it possible i might have gotten the wrong gasket?


Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,135
Reaction score
4,984
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
Not touching the pump or the filter. It's just so tight on both ends. Guess i can tourqe it down so it sits tight all around but it just doesn't feel right. Is it possible i might have gotten the wrong gasket?
wrong gasket or wrong pan or both.

The rear main mounting surface for the pan is different between one piece and two piece rear main seal engines. If you have a two piece rear main pan, it will not fit a one piece rear main engine.

The front pan seal lip can be either a thin or thick gasket type. If you have a timing cover that uses a thin gasket, and you try to use a thick gasket, it will not fit. Alternatively if you have a thick style timing cover and you try to use a thin gasket, it won't seal at all and you will get a ton of oil leaking out the front of the pan.
https://help.summitracing.com/app/a...2/~/do-i-need-a-thin-or-thick-oil-pan-gasket?


labbetheking

Member
Joined
Jul 28, 2015
Posts
43
Reaction score
25
Location
Sweden
First Name
Daniel
Truck Year
1978
Truck Model
c10
Engine Size
350
Ok thanks for the info! Think i might have the wrong gasket since i have the "thinner" timing cover. Gona check if it sits good with my 4 piece gasket quz im not buying a other one piece from the US (to much $$)


matt4426

Full Access Member
Joined
Dec 28, 2021
Posts
64
Reaction score
100
Location
NE Ohio
First Name
Matt
Truck Year
79
Truck Model
K35
Engine Size
454
I used a fel-pro one piece on my engine. It fit tight like yours especially at the timing cover transition. I'm running an aluminum Cloyes cover with the retrofit roller button and using stock mark IV BBC pan. I put a little permatex ultra black on the corners & it pushed out nice when I tightened it down. Hopefully no leaks !!!


labbetheking

Member
Joined
Jul 28, 2015
Posts
43
Reaction score
25
Location
Sweden
First Name
Daniel
Truck Year
1978
Truck Model
c10
Engine Size
350

Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,135
Reaction score
4,984
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
This is the gasket and the oil pan i bought: https://www.summitracing.com/parts/FEL-OS34510T
and I got a 2-piece rear main.
So the "thick seal" it says on the description means it's for the wider timing chain cover?
Sorry if i'm dragging out on this but i just wana know what i did wrong

That oil pan is correct for that seal. I would put some rtv at the 4 corners and try to snug it down. Those are the correct part numbers for the combination you have.


labbetheking

Member
Joined
Jul 28, 2015
Posts
43
Reaction score
25
Location
Sweden
First Name
Daniel
Truck Year
1978
Truck Model
c10
Engine Size
350
Ok! thanks for the help boys


80BrownK10

Full Access Member
Joined
Oct 22, 2019
Posts
1,878
Reaction score
1,240
Location
Greenwood, SC
First Name
Nate
Truck Year
1980
Truck Model
K10
Engine Size
350
So my -78 c10 have been sittning in the garage for 5-6 years now. All my 3 kids play icehockey on the winter and soccer on the summer so the time hasn't really been there for my project.
I'm building a stroker 383 for the truck and I've come down to the oil pan installation. As seen on the pictures the pan doesn't come any closer to the gasket when hand tightening those outer four bolts. Is it supposed to look like that at the start on these one piece gaskets or should i just put on my 4 piece gasket on instead?
Are you sure it's the correct gasket? There two styles, one for the different pans the older style and newer style. There is different size humps for different year blocks.


80BrownK10

Full Access Member
Joined
Oct 22, 2019
Posts
1,878
Reaction score
1,240
Location
Greenwood, SC
First Name
Nate
Truck Year
1980
Truck Model
K10
Engine Size
350
Are you sure it's the correct gasket? There two styles, one for the different pans the older style and newer style. There is different size humps for different year blocks.
Well I'm late and I see that we already had this covered about a week ago!


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,956
Reaction score
23,467
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
For future reference, I believe '74 was the year of the change. But that only helps if you know what year your parts are... which is always a question with the venerable small block.
