Need help, '86 C10 AC condenser insulator.

[Lugnut]

Well I hit a deer on the way to work one morning a few months ago and I have been gathering parts to put everything back together. But I can't find this rubber mount that the AC condenser sits in and I am missing one. I was hoping that someone might have one laying around that I can buy. Part No. is GM-526182. Thanks

You must be registered for see images attach

You must be registered for see images attach

You must be registered for see images attach

You must be registered for see images attach



[Rusty Nail]

Dude!
@Lugnut

I can help you.

See I needed one of these for my truck - and came to the same conclusion you have.

AND THEN

I was at work one night and started pokin around an old GMT400 half ton half taken a part parts truck.

Will ya lookit there?

Same damn thing in those engine bays. Adjust your search parameters and try again.

OR !

go poke around under the hood of some old GMT400 beater and maybe you can get lucky too!

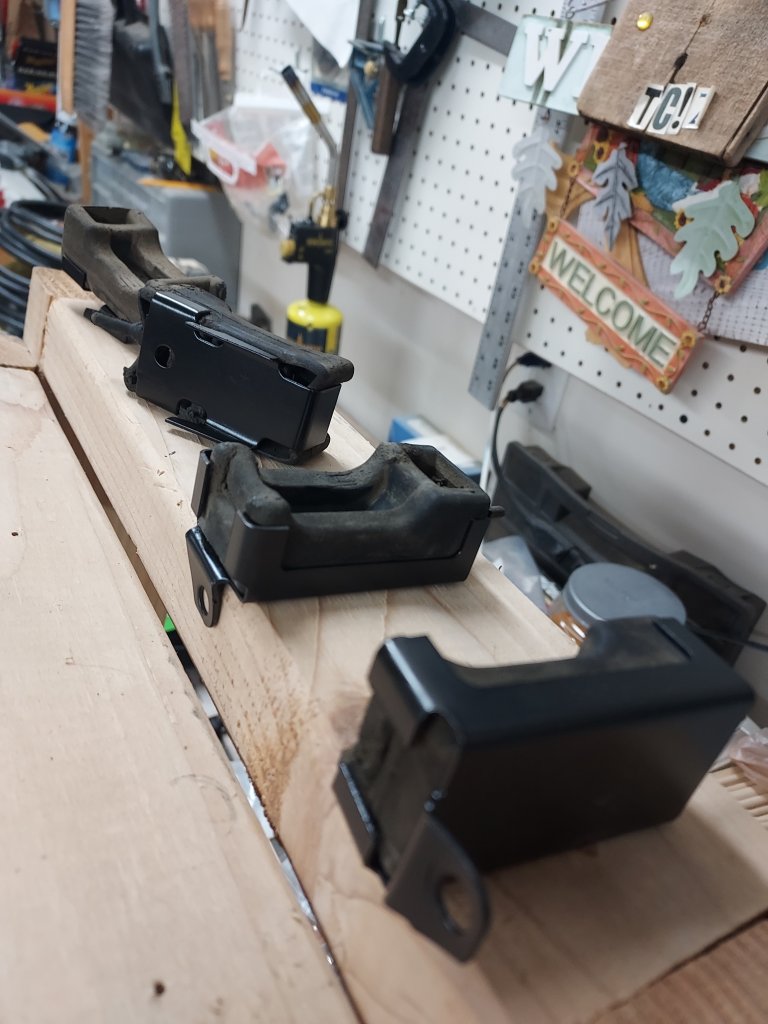

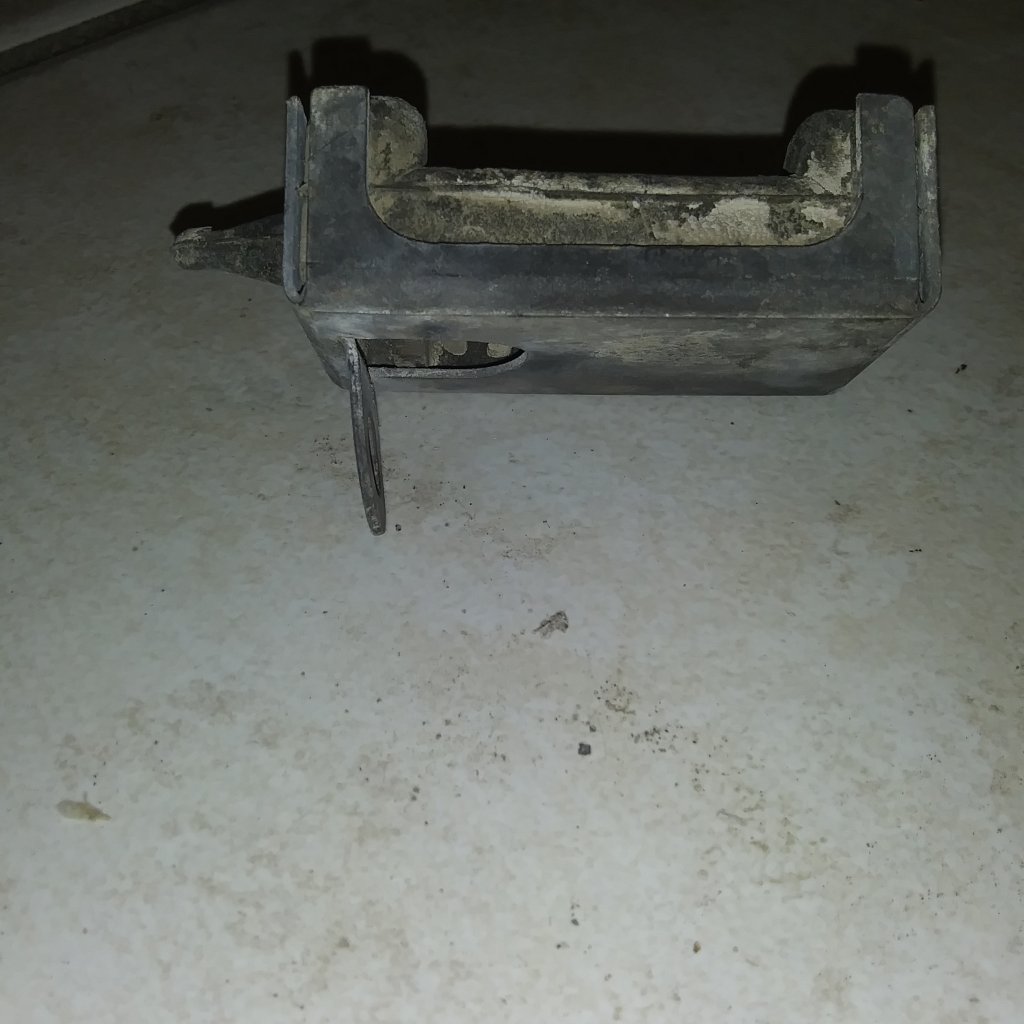

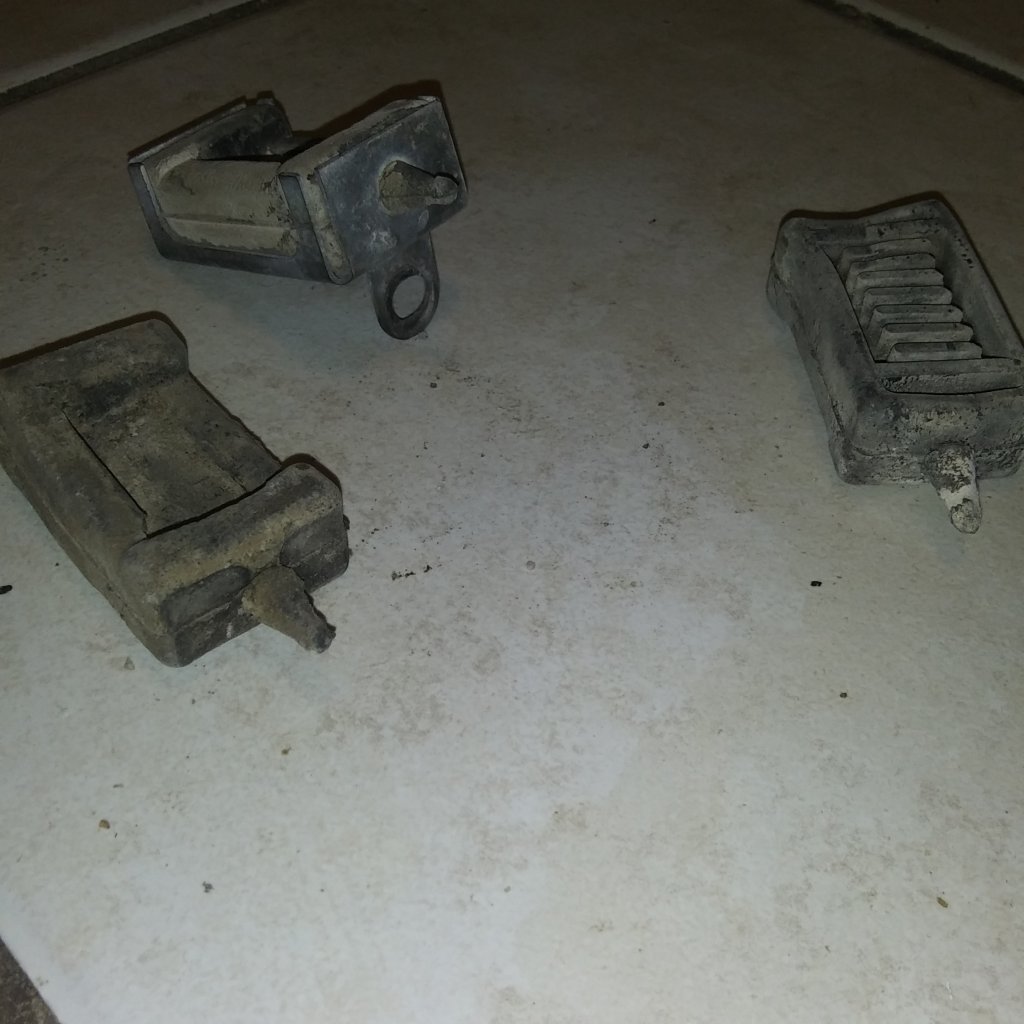

See attached pix.

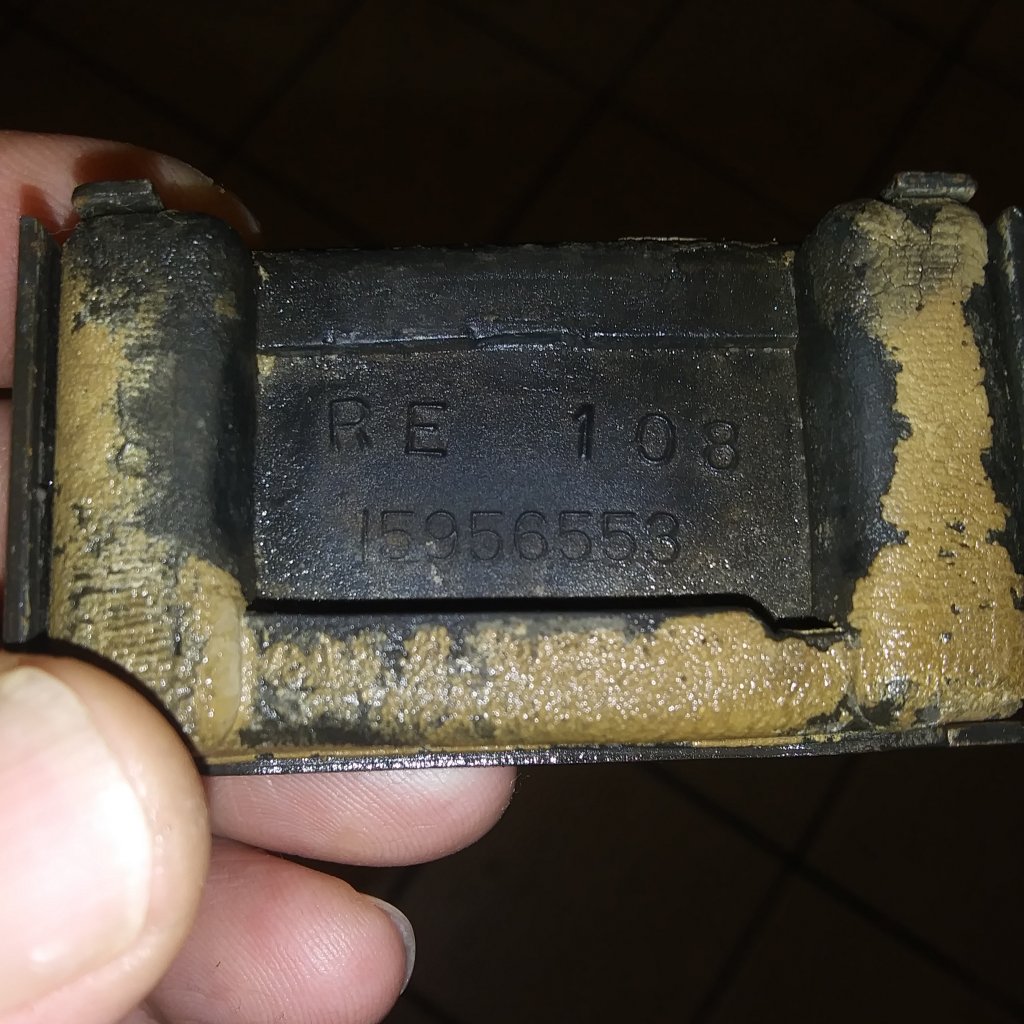

Try this part # winky face
15956553
It even has a cool metal bucket bracket with a bolt hole - AND a drain?!

xc_hide_links_from_guests_guests_error_hide_media

I could go on and on about GM parts interchangeablity....I sure like to sometimes.

Hit em with the winky face - one more time



[Lugnut]

Dude!
@Lugnut

I can help you.

See I needed one of these for my truck - and came to the same conclusion you have.

AND THEN

I was at work one night and started pokin around an old GMT400 half ton half taken a part parts truck.

Will ya lookit there?

Same damn thing in those engine bays. Adjust your search parameters and try again.

OR !

go poke around under the hood of some old GMT400 beater and maybe you can get lucky too!

See attached pix.

Try this part # winky face
15956553
It even has a cool metal bucket bracket with a bolt hole - AND a drain?!

xc_hide_links_from_guests_guests_error_hide_media

I could go on and on about GM parts interchangeablity....I sure like to sometimes.

Hit em with the winky face - one more time

Thanks, Rusty I will expand my search in the scrap yard to everything GM in a decade or so around '86, hopefully I will get lucky for once. Thanks again
