Making headers fit

Rich77

Full Access Member
Joined
Oct 14, 2019
Posts
57
Reaction score
18
Location
SE Wisconsin
First Name
Rich
Truck Year
1977
Truck Model
C10 Scottsdale
Engine Size
400
Hello All,

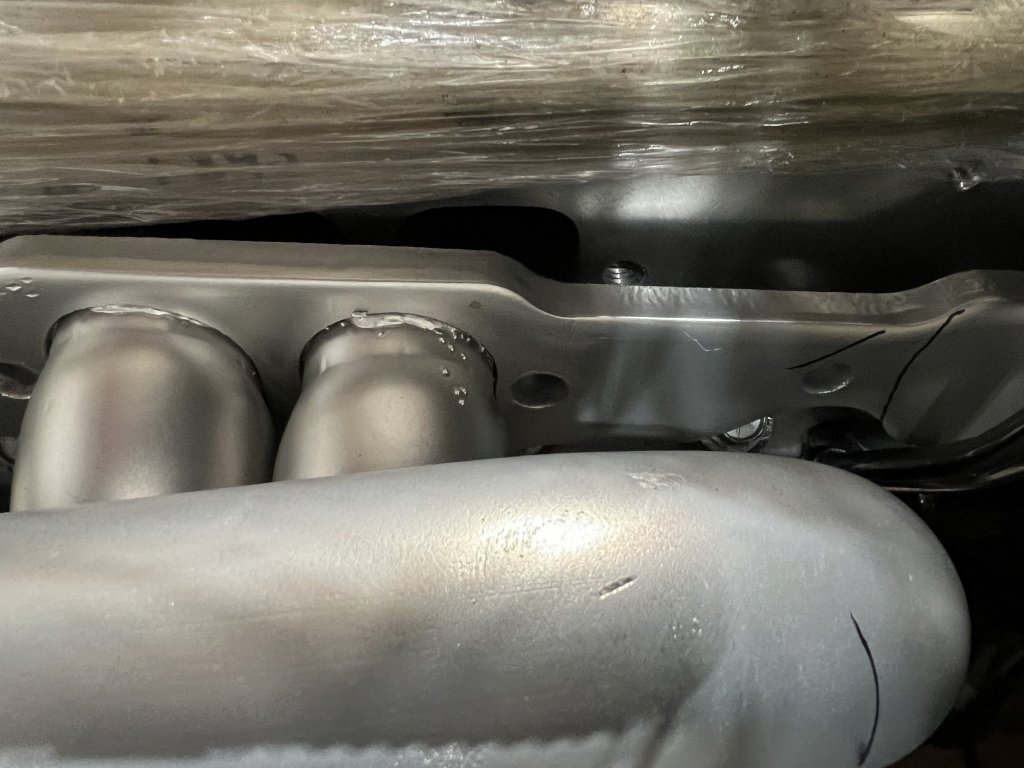

As you can see from the pic, my headers do not line up with my heads.
The headers are about 3/4” too short. Also the bolt holes don’t line up.
Are there adapter plates available?
Or should I cut the header flange into 2 or 3 sections?

Thanks


Attachments

  • E79EA05B-90A1-41F2-A75F-58E2191AE609.jpeg
    105.3 KB · Views: 39

Rickf

Full Access Member
Joined
Jul 29, 2017
Posts
239
Reaction score
188
Location
Grafton NH
First Name
Rick
Truck Year
1974, 1954 & a 1937
Truck Model
K20
Engine Size
350
That don't look right. I've never seen an adapter plate that would make those fit. Are they correct for the engine/heads? I'd find a SBC iron head to verify the spacing.


Originalthor

Full Access Member
Joined
Aug 22, 2021
Posts
296
Reaction score
741
Location
Saskatoon Saskatchewan
First Name
Scott
Truck Year
1989
Truck Model
Suburban
Engine Size
5.7
Do you have all the rest of the bolts in accept those 2? If you do thats pretty bad.
If not and there sitting in there **** eyed and making it look alot worse then it is I've had to cut the flanges before and heat and tweak the pipe before going on aluminum heads. Then reweld a little quarter inch piece back in.

Probably should of sent the headers back and reodered some different ones. For the time it took to modify them.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
3,675
Reaction score
3,910
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
350
Nothing you can do, they are either not for SBC or took some damage at some point (maybe in shipping) IDK, if you try to stretch them though mechanical means you'll just break them. If they are new I'd be demanding a refund. If they are used I'd stop now and get another set. If you are determined to make these work I think you'd end up having to make multiple cuts and welds to make it work and I'm betting you'll never get that cylinder to seal up properly after all that.


Rich77

Full Access Member
Joined
Oct 14, 2019
Posts
57
Reaction score
18
Location
SE Wisconsin
First Name
Rich
Truck Year
1977
Truck Model
C10 Scottsdale
Engine Size
400

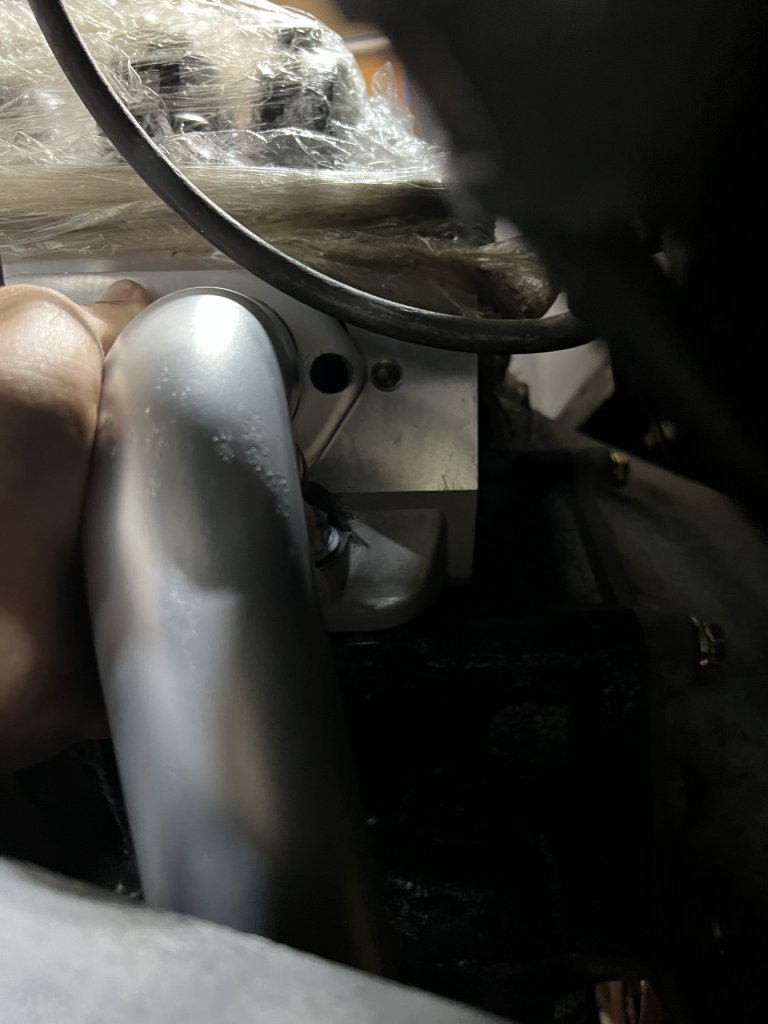

I only have one bolt, the farthest forward, in finger tight.
Only the farthest forward bolt hole and port line up. The middle 2 and end are off about 3/4”.
Yes, these are Hedmann SBC headers (69088).


Attachments

  • E3B5E23B-BF54-48B0-B817-DBB5A5809188.jpeg
    76.2 KB · Views: 23
  • 88AA1CB3-7A43-4C14-8792-BFF09F4FC59B.jpeg
    111.3 KB · Views: 22

RecklessWOT

Full Access Member
Joined
Feb 20, 2015
Posts
1,907
Reaction score
3,033
Location
New Hampshire
First Name
Kevin
Truck Year
1987
Truck Model
V10 Suburban Silverado
Engine Size
350 TBI
Looks like either they sent you the wrong headers, or the heads on your truck aren't the ones you think you have (maybe someone swapped them before you got the truck and here you were thinking it was stock the whole time). Those things are absolutely not correct for your application regardless of why. No adapter in the world could make those fit. I'd start with the company you bought them from, possible they sent you the wrong ones. If that checks out, maybe your engine isn't what you thought it was? Look for casting numbers and figure out what you really have.

Last edited:

Turbo4whl

Supporting Member
Supporting Member
Joined
Oct 30, 2019
Posts
1,881
Reaction score
3,487
Location
Downingtown, PA
First Name
Wayne
Truck Year
1974
Truck Model
Jimmy
Engine Size
350
I only have one bolt, the farthest forward, in finger tight.
Only the farthest forward bolt hole and port line up. The middle 2 and end are off about 3/4”.
Yes, these are Hedmann SBC headers (69088).

Take the one bolt out of the forward hole, move the header back and put that bolt in the rear hole. See what lines up.

The head may have one extra tapped hole forward.


eskimomann209

Full Access Member
Joined
Jan 9, 2019
Posts
1,831
Reaction score
1,958
Location
Modesto
First Name
Marcus
Truck Year
1973
Truck Model
C10
Engine Size
5.3
I’d cut em in two places. Send the two middle bolts in and heat and bend the outer ones out. If I HAD to use those for whatever reason


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
3,675
Reaction score
3,910
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
350
@Rich77 Something is wrong. If you bought them from Hedmann direct call them, or whoever you bought them from. Something is not right and if you start chopping them up to try to make them work you'll never get your money back if it doesn't work out and there are many, many headers that will bolt right up.


Turbo4whl

Supporting Member
Supporting Member
Joined
Oct 30, 2019
Posts
1,881
Reaction score
3,487
Location
Downingtown, PA
First Name
Wayne
Truck Year
1974
Truck Model
Jimmy
Engine Size
350
Send them back if they don't fit.

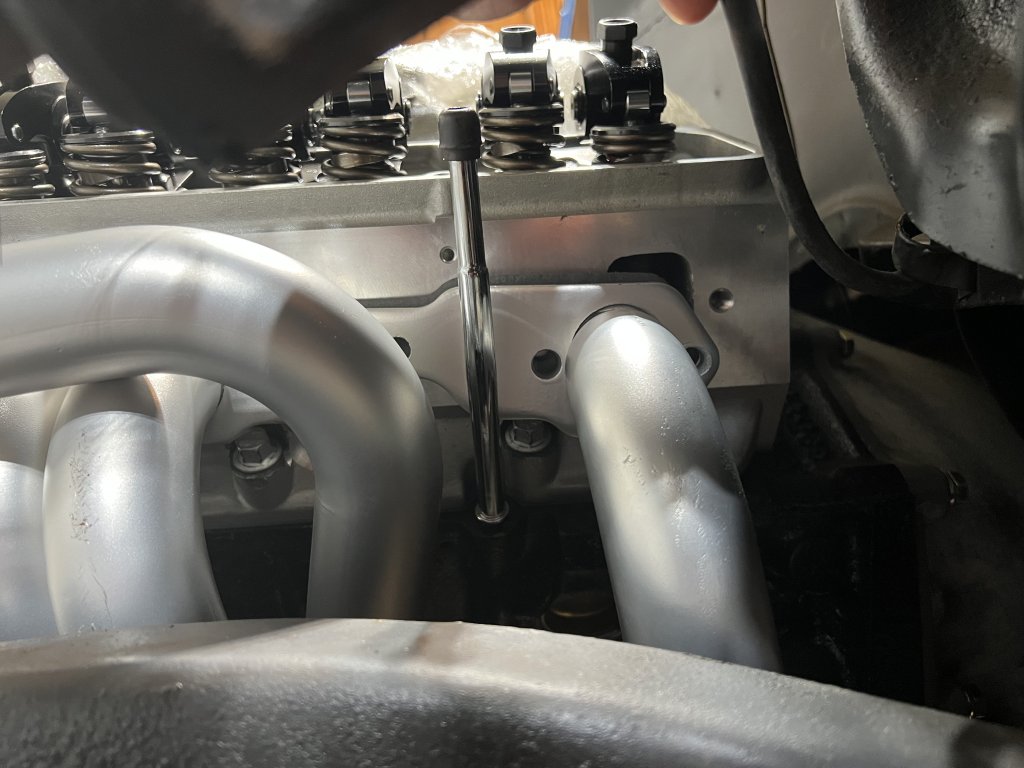

This shows the extra threaded bolt hole. Forward on the driver's side, at the back on the passenger side.

You must be registered for see images attach


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
3,675
Reaction score
3,910
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
350
Send them back if they don't fit.

This shows the extra threaded bolt hole. Forward on the driver's side, at the back on the passenger side.

You must be registered for see images attach
Wayne does have a really good point with that front bolt thing.


pnwnvrdn

Full Access Member
Joined
Nov 23, 2021
Posts
92
Reaction score
124
Location
South Puget Sound, Wa
First Name
Todd
Truck Year
1986
Truck Model
Silverado K10
Engine Size
SBC
Bolting to the extreme forward threaded boss in the head as pointed out is the obvious answer.
As for compatibility/wrong headers, size up/place exhaust manifold gaskets (header gaskets) against the head then the headers, for alignment/fitment. I doubt that is the issue though.


85K304SPD

Full Access Member
Joined
Mar 29, 2022
Posts
144
Reaction score
97
Location
Las Cruces, NM
First Name
Richard
Truck Year
1985
Truck Model
K30
Engine Size
383
Wrong hole. Hopefully you didn't ruin those headers. If Hedman built those for a SBC and they fit that poorly, in the correct holes, I am sure they will exchange them.
