Looking for advice 700r4 to nv3500

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Timmy

Junior Member
Joined
Oct 6, 2021
Posts
2
Reaction score
0
Location
west virginia
First Name
Tim
Truck Year
1986
Truck Model
k10
Engine Size
350
Currently have a 700r4 in my 86k10 4x4 would like to convert over to nv3500 looking for advice on which t case I would need? Any help appreciated!


Timmy

Junior Member
Joined
Oct 6, 2021
Posts
2
Reaction score
0
Location
west virginia
First Name
Tim
Truck Year
1986
Truck Model
k10
Engine Size
350

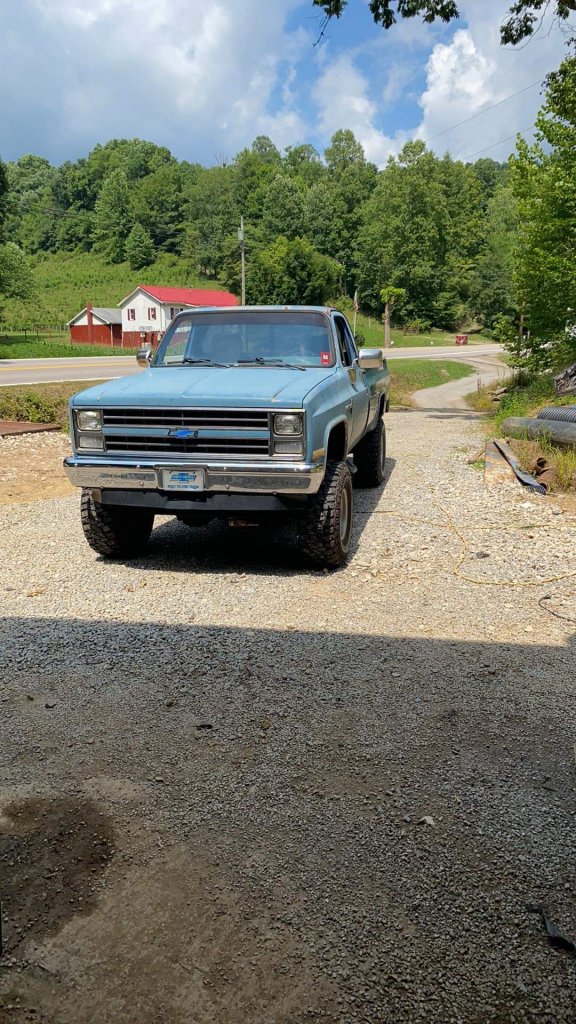

This is my square currently stripped down and being repainted and hopefully converted from a 700r4 to a nv3500 any help on what t case I would need would be appreciated!


Attachments

  • 56F62AA6-059E-46D8-AEBB-233FF3A70580.jpeg
    198.3 KB · Views: 48

CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,466
Reaction score
3,046
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
This is my square currently stripped down and being repainted and hopefully converted from a 700r4 to a nv3500 any help on what t case I would need would be appreciated!
Went from SM465 W/205 TC to NV3500 with a 208 in about 1996, IIRC I had to find a 208 with the correct splined input shaft. Had to have the rear driveshaft shortened & found a used DC shaft that fit the front. I was able to use a T case shifter from a mid 90's truck (driver side of trans tunnel) with a home made custom linkage that actually passed through the webbing (drilled hole) on top of the 3500. The clutch slave cylinder provision on the 3500 bell housing (on passenger side) was nearly touching the front shaft after install. A small 3.5" lift produced plenty of clearance.

When I swapped out the 3500 about a year & half later for a 700R4 I had to swap input shafts on the 208 which was a common easy to source part at the time. The driveshafts from the 3500/208 combo fit the 700R4/208 combo fine lengthwise.

I recommend getting new master and slave cylinders instead of pick-n-pull used ones. My used master cylinder leaked brake fluid on the brand new carpet I bought since I changed where all of the linkage holes on the tranny tunnel were.

I would also recommend using hard lines for the hydraulic clutch, I installed mine in the winter using plastic line and it worked fine until spring when it warmed up. The plastic line allowed enough flex that I could no longer disengage the clutch. I did get really good at shifting without using the clutch though.
