Just finished this upgrade.

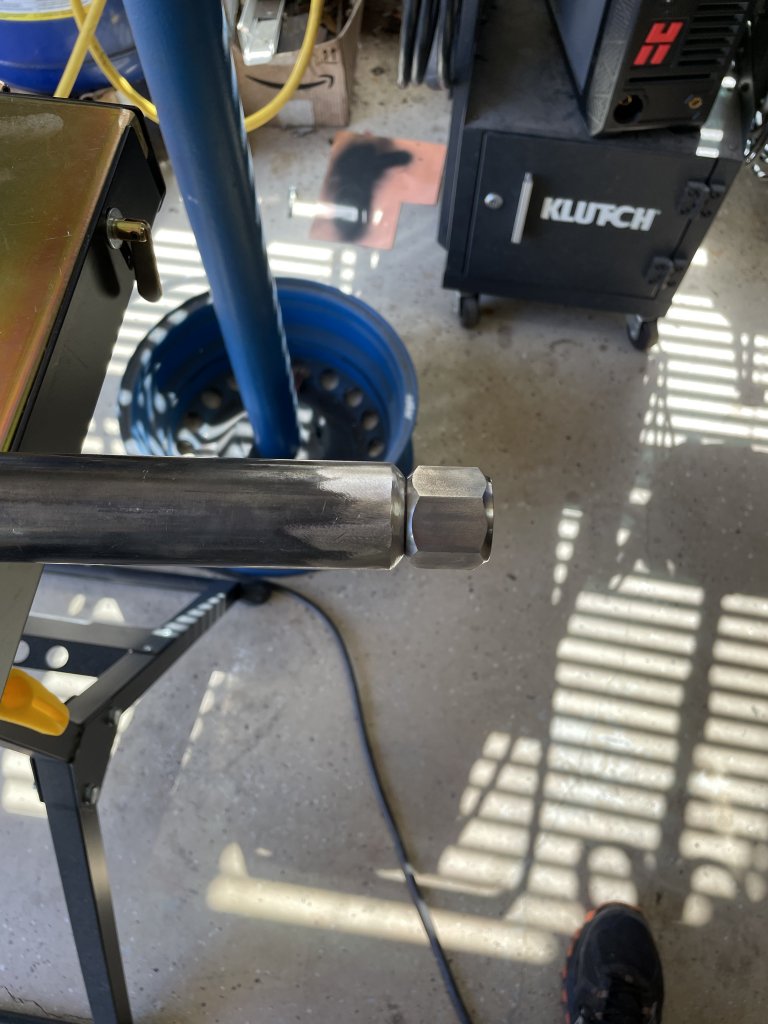

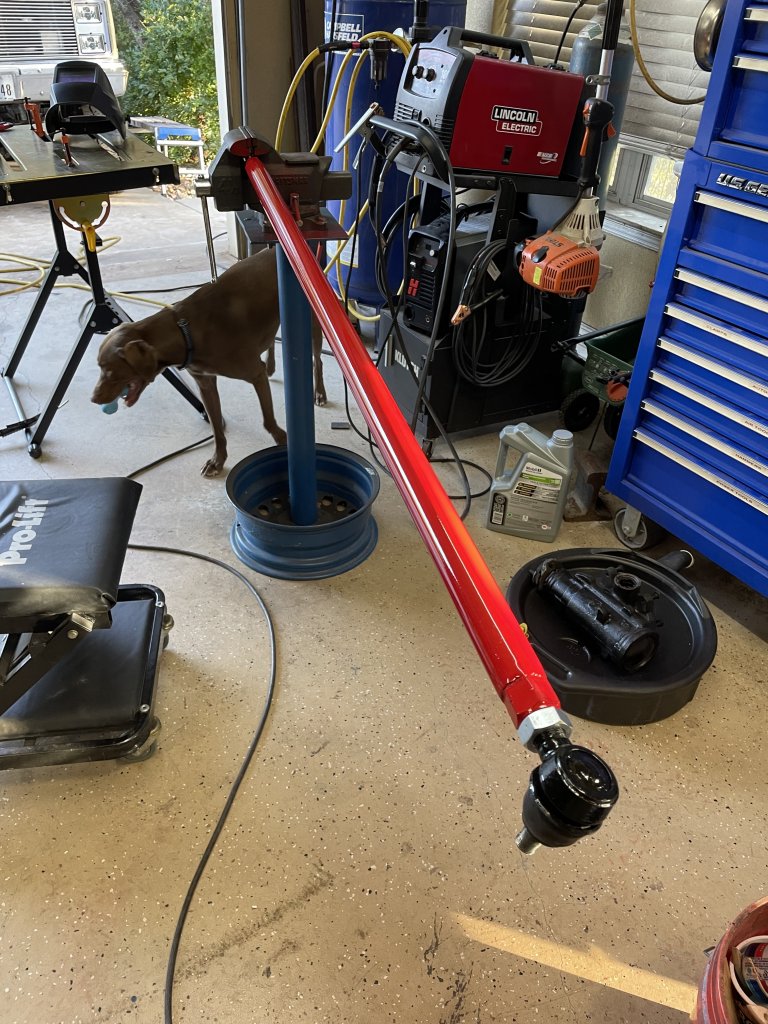

I built the tie rod out of 1.5” x .250 DOM with threaded inserts and HD Tie Rods (ES2010).

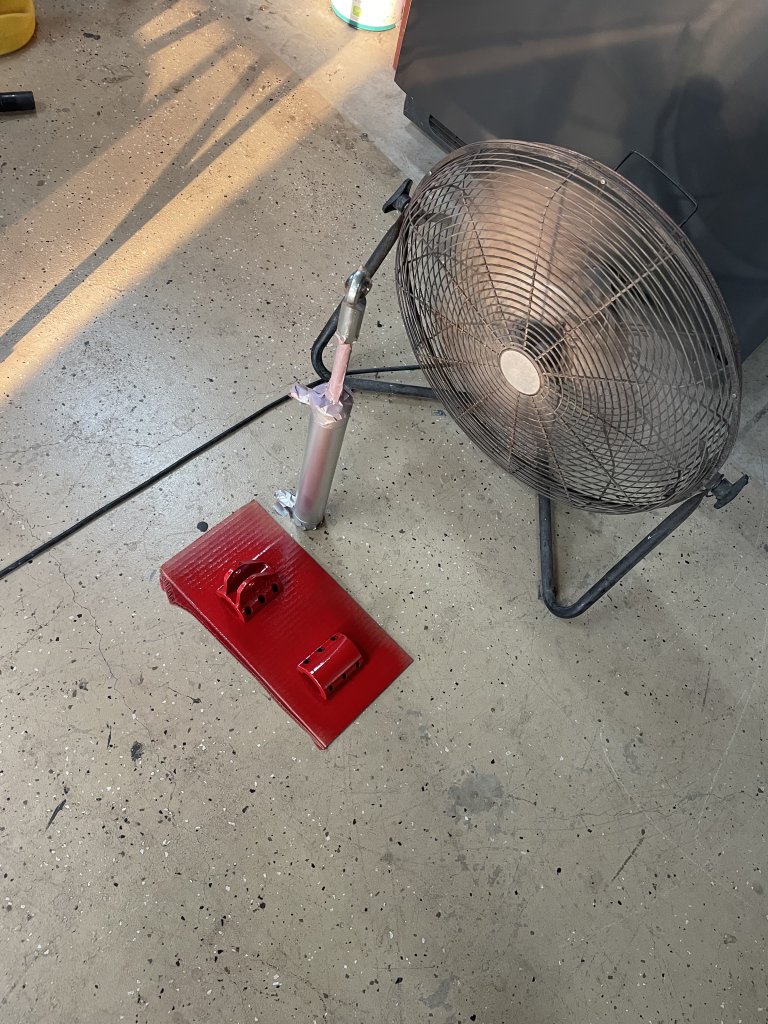

Got the ram kit from WTO.

1.5” ID tube clamp from Barnes.

The WTO kit came with hoses, hardware, ram, weld on tabs, and fittings.

I had already rebuilt and ported my gearbox back when I did crossover steering. I had the JIC6 fitting ready to go a capped off.

Steering is definitely lighter and takes a few miles to get used to after being stiff for ever.

To make bleeding the system quick and easy, I saved connecting the lines to the gearbox for last. I then used a syringe to fill the lines and the cylinder, then removed caps and connect to the box. I only had to move the tires lock to lock 4 or so times, too off the resi and was hood to go.

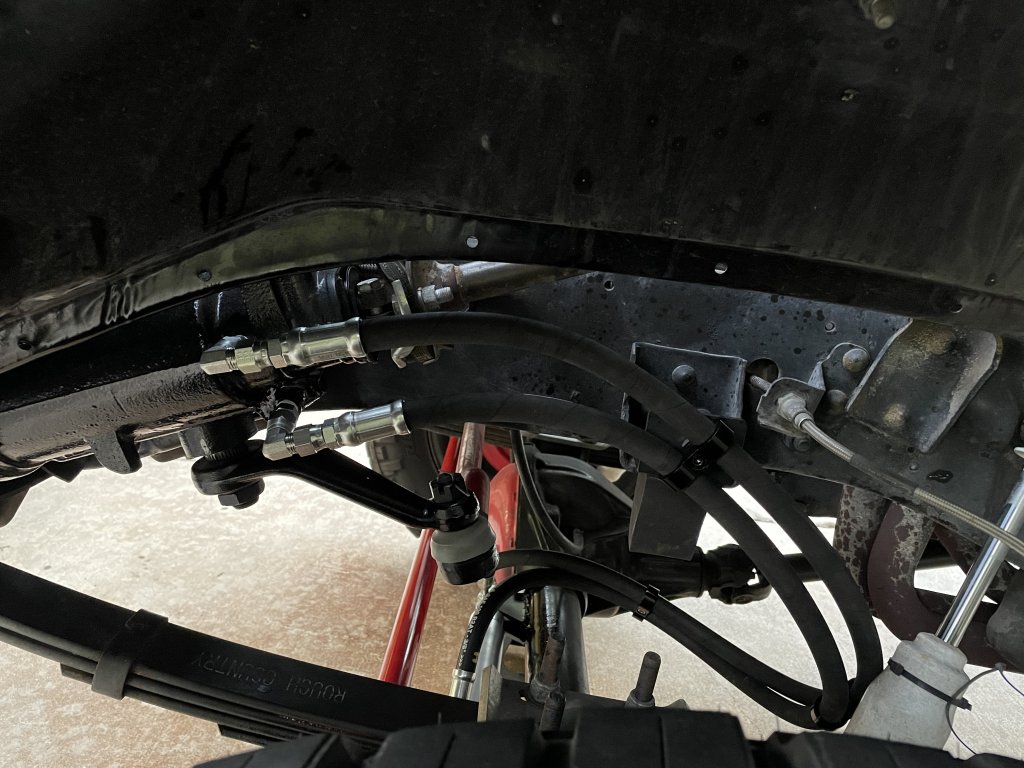

I finally found a use for the hose clamps I got from Amazon. Had to file them down to get a snug fit. Then made a bracket out of 1/8” angle to secure the hoses at the bump stop bracket.

All in, I’m about $600 at most.

I can finally palm the wheel lock to lock sitting on concrete with 35s and 30psi.


Attachments

  • 4559E917-60CE-4934-8216-82D86BC8BABB.jpeg
    118.3 KB · Views: 60
  • DD319362-3E34-4683-AC8E-A21D6D333BC3.jpeg
    145.2 KB · Views: 46
  • 647F1BC3-73EB-4DC2-ACB8-D04A2D31D25D.jpeg
    110 KB · Views: 49
  • 992E96CA-A40A-440D-A0F2-805709ED2BFB.jpeg
    212.4 KB · Views: 51
  • 22A71008-F1BF-4BE2-9E6A-003FDFF58757.jpeg
    207.4 KB · Views: 45

CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,473
Reaction score
3,067
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350

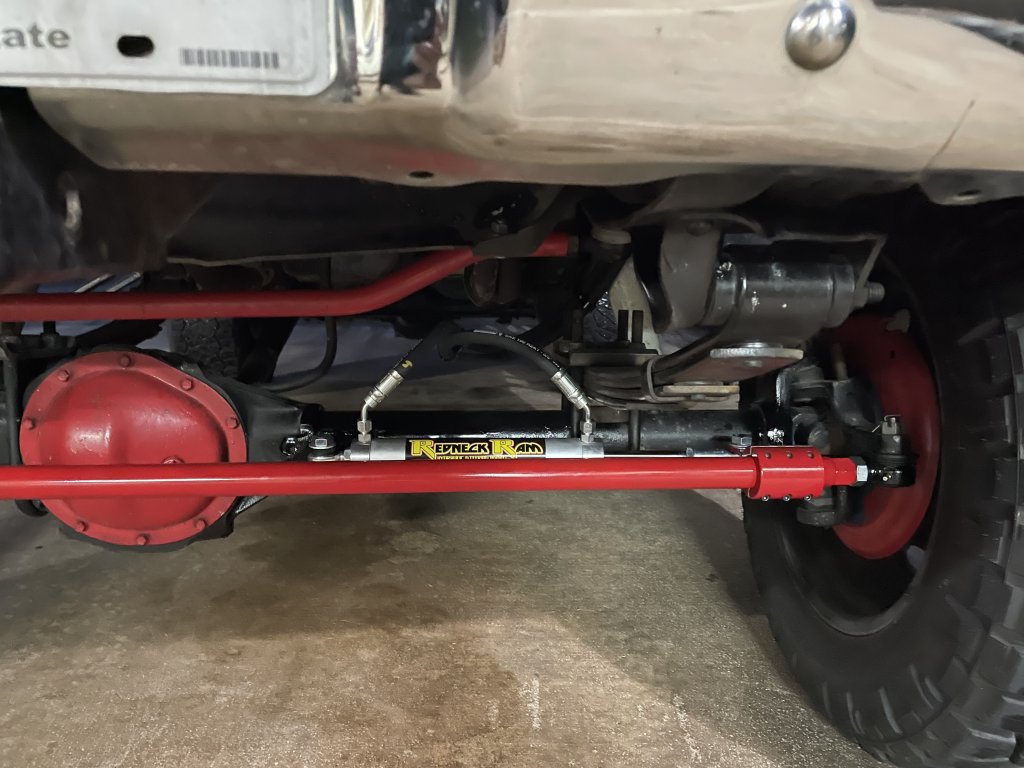

Cool project, it looks great. The ram sits nice & parallel to the tie rod too
