K10 vs k20 frames.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Moats31

Full Access Member
Joined
Jan 9, 2014
Posts
88
Reaction score
0
Location
Linesville, pa
First Name
David
Truck Year
83
Truck Model
C10 and k10
Engine Size
350
Are there any differences in these frames. I wanna use the k20 if it's the same as a k10.


83 gmc c10
- 350/a883

BUILT NOT BOUGHT


marks86

Full Access Member
Joined
Feb 2, 2011
Posts
1,513
Reaction score
88
Location
Latham, NY
First Name
Mark
Truck Year
1986
Truck Model
K30
Engine Size
12v Cummins
frames are identical

a 1 ton frame is different it is four inches wider in the middle of the frame


chengny

Full Access Member
Joined
Feb 22, 2012
Posts
4,086
Reaction score
1,008
Location
NH
First Name
Jerry
Truck Year
1986
Truck Model
K3500
Engine Size
350/5.7

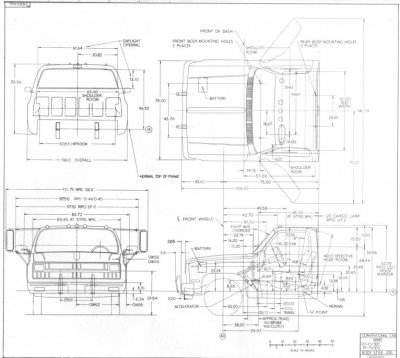

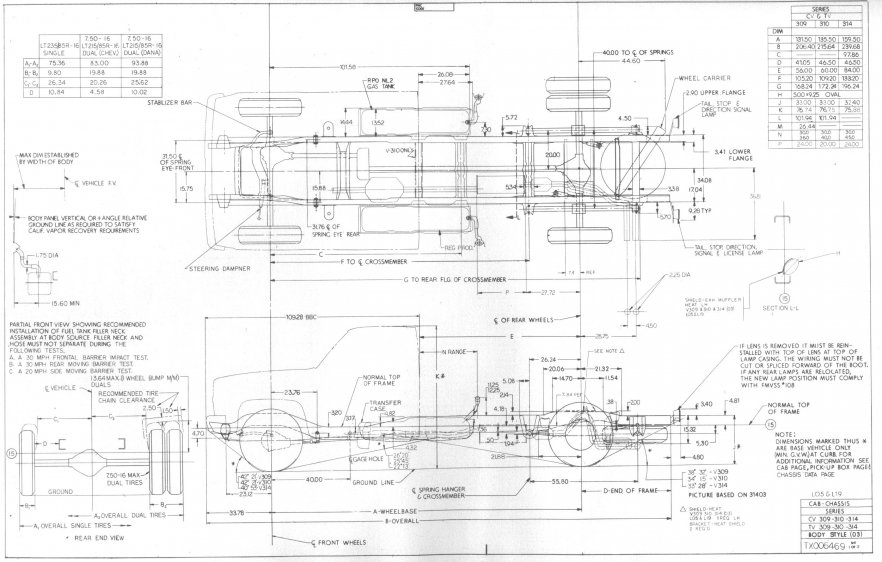

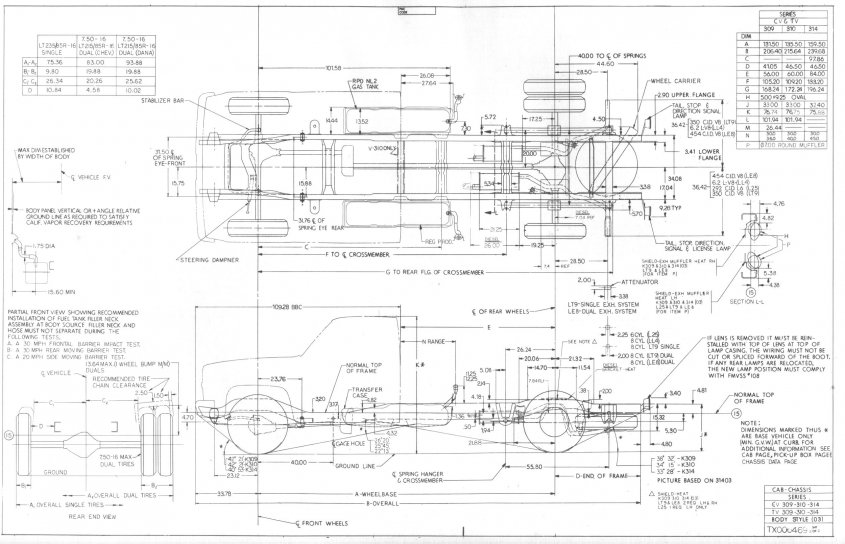

Frame and body dimensions:

From 'Chassis Layout and Body Builder's Instruction Drawings, Light and Medium Duity Models, Series 10/1500 Thru 70/7000', 1988.

The book was intended for aftermarket companies building e.g. utility bodies or other add-ons to the GM truck line.

These will be basically accurate for all trucks 1973-87/91, with the exception of the 73-77 Blazer floor tub change.

Note from Jerry: I have edited to show the frame and body dimensions for just the pickup/single cab/4WD version. If anyone needs other styles please bump this.


Attachments

  • Frame Dims 10-70.jpg
    Frame Dims 10-70.jpg
    98.3 KB · Views: 3,382
  • Frame Dims 10-70 2.jpg
    Frame Dims 10-70 2.jpg
    97.3 KB · Views: 5,381
  • Body dims 10-70.jpg
    Body dims 10-70.jpg
    90.1 KB · Views: 2,598
Last edited:

chengny

Full Access Member
Joined
Feb 22, 2012
Posts
4,086
Reaction score
1,008
Location
NH
First Name
Jerry
Truck Year
1986
Truck Model
K3500
Engine Size
350/5.7

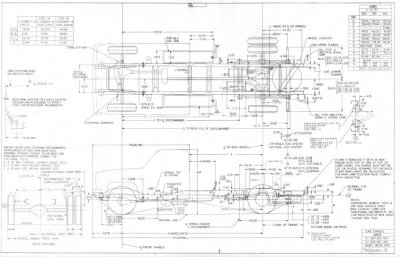

Bigger dwgs:

You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


Either way they can be downloaded and increased way up and still remain crisp and clear.

Last edited:

Moats31

Full Access Member
Joined
Jan 9, 2014
Posts
88
Reaction score
0
Location
Linesville, pa
First Name
David
Truck Year
83
Truck Model
C10 and k10
Engine Size
350
Bigger dwgs:



You must be registered for see images attach




You must be registered for see images attach




You must be registered for see images attach




Either way they can be downloaded and increased way up and still remain crisp and clear.


Thanks man. This is a huge help.


83 gmc c10
- 350/a883

BUILT NOT BOUGHT


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
I can't seem to get the big image or download it without signing up or doing something with the image host.

So is it true that the K10 and K20 are the same frame, including thickness of the rails. It's been said the K20 is 1/16 of an inch thicker. Some say yes, some say no. I'd like to know for certain one of these days.

And how about C10 vs C20.

It's a fact the 1 tons are very different.


Moats31

Full Access Member
Joined
Jan 9, 2014
Posts
88
Reaction score
0
Location
Linesville, pa
First Name
David
Truck Year
83
Truck Model
C10 and k10
Engine Size
350
Well I'm getting this k20 frame and I'll just measure them myself to make sure.


83 gmc c10
- 350/a883

BUILT NOT BOUGHT


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

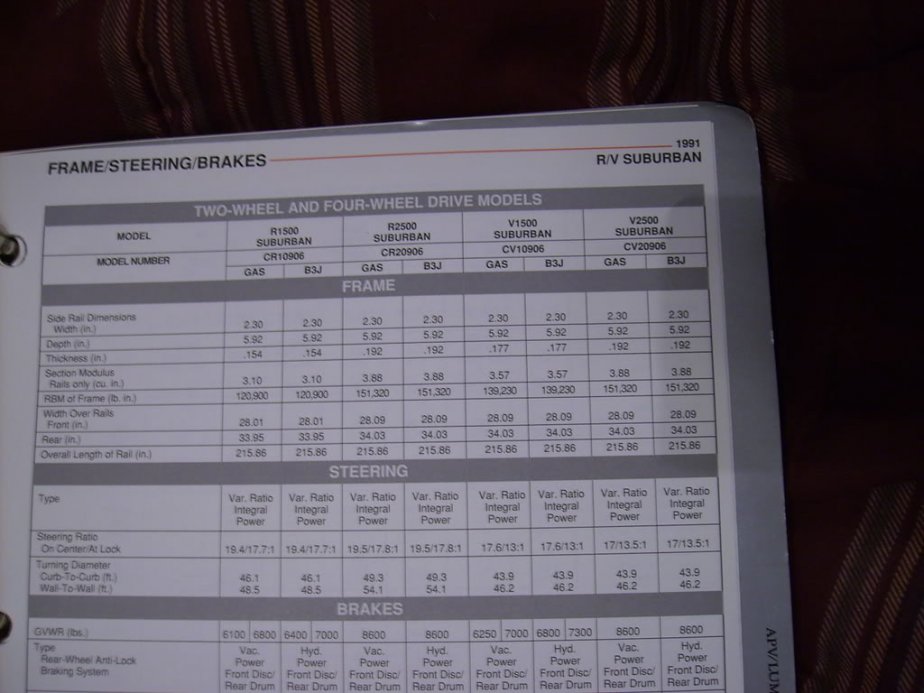

I couldn't find anything on the pickups, but there is a difference on the burbs. Take a look at post #5

http://www.pirate4x4.com/forum/chevy/857890-suburban-frame-strength.html

Great Info. That's worth keeping here for safe keeping.

Keep in mind, this is for 91 Suburban Frame Thickness Specs Only. I also notice the 2wd and 4wd 3/4 ton specs are identical, while 2wd and 4wd Burb frames are different specs. Makes me wonder if 3/4 ton Burb frames could be punched the same too and are used for either or 2wd and 4wd models. If this is the case, then a 3/4 ton 2wd Burb frame could be easily converted to 4wd. :shrug: That'll be the next thing I look into.


(Optional Off-Topic)
So if I buy a 3/4 2wd Burb, then I can get donor front hangers and such and convert to a 4wd. I think I'm about sick of these Yuppie boys wanting so damn much for a K5, I'm about to change from wanting a K5 or a K20 Burb, to just concentrate on a K20 Burb. For what I want to do with it, it's not going to be a daily driver and will be nothing but a Recreational Camping, Hunting, Fishing, Wheeling, Mudding and Off-Road vehicle, so MPG isn't going to matter. Only reason I really wanted a K5 was the idea of the removeable top. The mpg vehicle is likely to be the K10 with OEM TBI motor, A883 Trans, stock OEM tire size and no lift.


Attachments

  • Burb91FrameSpecs.jpg
    87 KB · Views: 528

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
On another note, doing a 1/2 ton to 3/4 conversion using a 1/2 ton 4wd frame, would still be good. On the Burbs anyway, you're talking a difference of .015 (15 Thousandths) of an inch. That's not even the thickness of a dime. Makes me wonder how much strength I'd actually be giving up? Couldn't be all that much. And still have the advantage of a little lighter weight, and should be a bit more flexible too. I also notice the RBM above and found a bit more info on frame info. Of course, this applies more to Heavy Trucks, but it does explain the Resisting Bending Moment.


Tips on truck frames

Published in: Trailer/Body Builders
Date: 6/1/2005
By: Rick Weber

RICHARD TONER has spent entire days giving a truck-frame seminar for the National Truck Equipment Association. He knows that much about truck frames.

Toner, president of Toner & Associates (Pentwater, Michigan) and the NTEA's first staff engineer, said the frame is "the backbone of the truck" because "it carries the loads we put on trucks."

He said most trucks use ladder-type frames with side rails and crossmembers, and the frames are subjected to three types of loads: vertical, torsional, and side.

Side rails support vertical and side loads such as engine, transmission, fuel tanks, battery boxes, suspensions, bodies, work equipment, and cargo. The crossmembers provide torsional rigidity and support components such as the engine, transmission, and radiator. In addition, he said the crossmembers prevent the side rails from twisting with side loads such as the fuel tank and battery box.

"A frame section supported at each end loaded in the middle is in compression at the top and in tension at the bottom," he said. "There is a neutral axis where there is no stress in the frame. Holes and welding at the neutral axis will not significantly affect frame strength. Holes and welding near the flanges can cause frame failure. Chassis manufacturers restrict the size and location of holes, and most also restrict welding on the frames."

He said moments are force, or weight, multiplied by distance. One pound times one foot is 1 ft-lb. One pound times 12" is 12 in-lb. They are both the same moment. He said moments on a truck frame can be measured from the front axle, the front end of the frame, or any other point as long as all forces are included. Up forces are positive and down forces are negative.

"The high-moment area is right behind the cab," he said. "And where do we like to put mounts? Right behind the cab. They're OK if you stay away from the flanges.

"Now you see tractors converted into dump trucks. A tractor frame is not a straight frame. They don't have the right crossmembers to be dump trucks. We seem to pay attention to side rails. We don't pay enough attention to crossmembers. With the same load, the maximum tractor moment is more than twice the straight truck."

He elaborated on some truck frame nomenclature, saying: a web is the vertical section of a frame rail; a flange is the horizontal section of a frame rail, located at the top and/or bottom of the rail; a centroid is the center of the material in a cross-section of the frame rail; and shear center is the point that takes a vertical load without collapsing the frame rail.

He said yield strength defines the material and is the maximum stress that the material will sustain without permanent distortion. It is related to ultimate strength.

"If it changes shape, you've exceeded the yield strength," he said.

He said typical values are: 35,000 psi for mild steel, 110,000 psi for alloy steel, and over 110,000 psi for heat-treated steel. When mixing materials of different yield strengths, the lowest value must be used for calculations.

"If I have a frame that is 50,000 psi and reinforcement that is 50,000 psi, use 50,000 yield strength," he said.

He said the section modulus defines the shape of the frame material in inches to the third power. It is related to the moment of inertia and stiffness. He said published literature can be as much as 30% too high.

"Information is getting better - I will say that," he said. "But don't trust them. It's not the engineers who are providing the bad information - it's the marketing guys. They can't sell a frame that is 30% less strong than it was last year."

Toner said ultimate/tensile strength is the maximum stress before failure by separating; dynamic loading is loads put into a frame from acceleration, braking, road irregularities, etc; and fatigue is the behavior of a material when subjected to cyclically applied stress, which can result in a crack and failure.

"Fatigue is what kills truck frames - not tensile strength or yield strength," he said. "Fatigue is when you bend something until it breaks. Every material has an elastic zone. If I bend the material and don't exceed the yield strength, it will come back. If I get past the yield strength, I've strained it. It doesn't go back to the original shape."

Toner said resisting bending moment (RBM) describes the ability of the frame to resist the moments from the load and truck components; section modulus describes the shape of the material; and yield strength describes the material strength.

Toner said the RBM is the product of the section modulus (SM) and the yield strength (YS) in inch-pounds and is a measure of the capability of the frame rail. He said some manufacturers of equipment such as cranes specify either a section modulus or RBM for the chassis frame. Chassis manufacturers supply frame information with RBM, section modulus, and yield strength in truck data books and body builders books.

So, RBM = SM x YS.

"Why is that important?" he asked. "It describes the maximum load the manufacturer says we can put on the frame in moments."

Reinforcements popular

He said reinforcements are popular because they're easy to put on. But "I'm not big on bolted reinforcements. If you weld it in, it'll be strong."

Moment of inertia is a mathematical representation of the shape of a frame rail, and is represented by "I." SM = I/d. And deflection = W x l3/k x E x I.

He said as wheelbases get longer, deflection becomes important. The rule of thumb is that with wheelbases under 160", design for strength; and with wheelbases over 160", design for deflection. For the same load, a 10% increase in wheelbase requires a 10% increase in RBM for strength and a 33% increase in moment of inertia for the same deflection.

"If you're going to lengthen the wheelbase on a chassis, never go beyond the wheelbase the chassis manufacturer recommends without taking a look at it and seeing what you're going to do," he said.

He said endurance limit is the maximum stress that a material can tolerate indefinitely without failure; fatigue strength is the stress level corresponding to a definite life; and stress concentration is a hole, weld, crack, notch, or other discontinuity that concentrates stress. An open hole concentrates stress from 2.5 to 3 times. A Grade 8 bolt reduces the concentration to 1.5 to 1.9.

"If I'm below, say, 45,000 psi in fully reversed bending stress, I can do it forever and it won't fail," he said. "If I'm above 60,000, then I have a finite life. You want to stay below the endurance limit."

Stress concentration is a sixth-power effect when the stress level is above the endurance limit. Doubling the stress decreases the life by a factor of 64, so a 300,000-mile truck becomes a 5,000-mile truck. Increasing the stress by 12% decreases the life by one-half. Decreasing the stress by 12% doubles the life.

"Truck frames are usually modified to change the chassis wheelbase for proper weight distribution," he said. "Frame modifications are more common on medium- and heavy-duty trucks, although some light-duty chassis are extended for applications such as car carriers. When possible, it is better to move the position of the rear axle than to cut and modify a frame."

He said fish plates are large flat plates bolted to the web of the frame rail, and are usually 3/8" to 1/2" thick and increase the section modulus considerably. The height of the fish plate often exceeds that of the frame rail. Fish plates are often installed between the rear of the cab and the end of the frame to handle the stresses imposed by a crane mounted directly behind the cab. The ends of the fish plates should be tapered to reduce stress concentration in this area. Fish plates should be bolted using the match-drilled technique so the fish plate and frame act as one. Rivets, brackets, and other components in the area where a fish plate is to be installed will have to be removed and reinstalled with the fish plate in place.

Frame splices

On frame splices, he said the general rule is that reinforcements should taper a minimum of two times the frame height. Volvo recommends a taper of 20-30 degrees; 20 degrees is 2.7 times the frame height, and 30 degrees is 1.7 times the frame height.

He said if the increased wheelbase is less than or equal to the maximum wheelbase manufactured by the chassis manufacturer with the frame on the vehicle, then follow these recommendations:

Single-member rail - the minimum reinforcement should equal the RBM of the original frame rail.

Multiple-member rail - the minimum RBM of the reinforcements should be equal to the RBM of the strongest single member. Splices should be staggered at least twice the height of the frame rail.

Toner's Frame-Splicing Commandments:

Don't go from stiff to flexible. Taper and stagger reinforcements.

Stay out of high moment areas or extend reinforcing to a lower moment area.

Match steels for yield strength as closely as possible.

Extend reinforcements a minimum of twice the frame height past the splice before beginning the taper.

The strength of a frame rail is in the flanges.

More steel is stronger than less steel.

Use a straight cut at the splice.

Toner said the purpose of body mounts is to attach the body to the truck frame without doing more harm than good and retain the body in all horizontal directions.

"Harm can be done by concentrating stress and not allowing the frame to flex," he said. "Rear mounts could be shear plates or some other rigid configuration that prevents movement. Front mounts should be flexible or placed to avoid stress concentrations and high moments."

He said mounts can be combined to take advantage of the best features of more than one type. Spacer strips used between the body and truck frame perform multiple functions: cushioning member, sacrificial wear member, and stress-spreading member. Rigid mounts should be used at the rear and flexible mounts at the front. The front mount should not be at the front of the body.

Toner said there are three basic types of body mounts: flexible, rigid, and combination. Rigid mounts should be used at the rear, and flexible mounts at the front.

He said that even though U-bolt body mountings are popular, they are among the least effective mounting systems.

"Are they bad by themselves? No," he said. "But they don't tend to stay tight."

He said if they are used, proper frame spacers must be used. Some of the problems are loosening, not preventing forward movement of the body, and frame damage. He said frame flanges should never be notched for a body mount.

"The body should not be rigid at the front," he said. "It is better to be mounted solidly at the rear and float at the front. Avoid high moment areas for the mounting brackets. Use existing frame holes when possible."

References

The Procedure Handbook of Arc Welding from The James F Lincoln Arc Welding Foundation. 216-383-2211. www.jflf.org.

Steel design software and manual from the Auto/Steel Partnership Program in Southfield, Michigan. 248-945-4777.

Government Printing Office for Safety Standards. www.gpo.gov. Code of Federal Regulations, Title 49 (pick year), Parts 500-599, Part 571 of Federal Motor Vehicle Safety Standards.


kickdeez

Full Access Member
Joined
May 23, 2014
Posts
300
Reaction score
51
Location
north carolina
First Name
kyle
Truck Year
1990
Truck Model
Suburban 2500
Engine Size
454 tbi
Great Info. That's worth keeping here for safe keeping.

Keep in mind, this is for 91 Suburban Frame Thickness Specs Only. I also notice the 2wd and 4wd 3/4 ton specs are identical, while 2wd and 4wd Burb frames are different specs. Makes me wonder if 3/4 ton Burb frames could be punched the same too and are used for either or 2wd and 4wd models. If this is the case, then a 3/4 ton 2wd Burb frame could be easily converted to 4wd. :shrug: That'll be the next thing I look into.


(Optional Off-Topic)
So if I buy a 3/4 2wd Burb, then I can get donor front hangers and such and convert to a 4wd. I think I'm about sick of these Yuppie boys wanting so damn much for a K5, I'm about to change from wanting a K5 or a K20 Burb, to just concentrate on a K20 Burb. For what I want to do with it, it's not going to be a daily driver and will be nothing but a Recreational Camping, Hunting, Fishing, Wheeling, Mudding and Off-Road vehicle, so MPG isn't going to matter. Only reason I really wanted a K5 was the idea of the removeable top. The mpg vehicle is likely to be the K10 with OEM TBI motor, A883 Trans, stock OEM tire size and no lift.


@HotRodPC are you "squarebody4x4" on Pirate4x4? I just responded to your post (at least i think it was you) about the R2500 and V2500 frame similarities. I thought it would be good to post here too.

The R2500 and V2500 suburbans do NOT have the same punched holes for motor mount frame brackets. I have a 1990 R2500 which was converted to 4wd by the previous owner. He left the original motor mount frame brackets in place, and fabricated an engine crossmember to work with the existing motor mount setup. I have decided to swap in a beefier crossmember than what was made, and have come to find that the 4wd motor mount frame brackets are completely different than the 2wd brackets. And there are not pre-punched holes for the 4wd brackets on my frame.


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
@HotRodPC are you "squarebody4x4" on Pirate4x4? I just responded to your post (at least i think it was you) about the R2500 and V2500 frame similarities. I thought it would be good to post here too.

The R2500 and V2500 suburbans do NOT have the same punched holes for motor mount frame brackets. I have a 1990 R2500 which was converted to 4wd by the previous owner. He left the original motor mount frame brackets in place, and fabricated an engine crossmember to work with the existing motor mount setup. I have decided to swap in a beefier crossmember than what was made, and have come to find that the 4wd motor mount frame brackets are completely different than the 2wd brackets. And there are not pre-punched holes for the 4wd brackets on my frame.

That makes perfect sense. Being the 4x4's have a straight axle suspension and don't have the same crosssection that the 2wd's have where the independent Upper and Lower Control Arms bolt to, and so do the engine mounts. The 4x4 mounts are somewhat suspended directly off the frame rails and DO NOT bolt to a cross section like the 2wd mounts do.

So you're saying even if I guy got the brackets from a 4x4 truck, they don't bolt in to the frame rails of a 2wd truck or Burb?


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

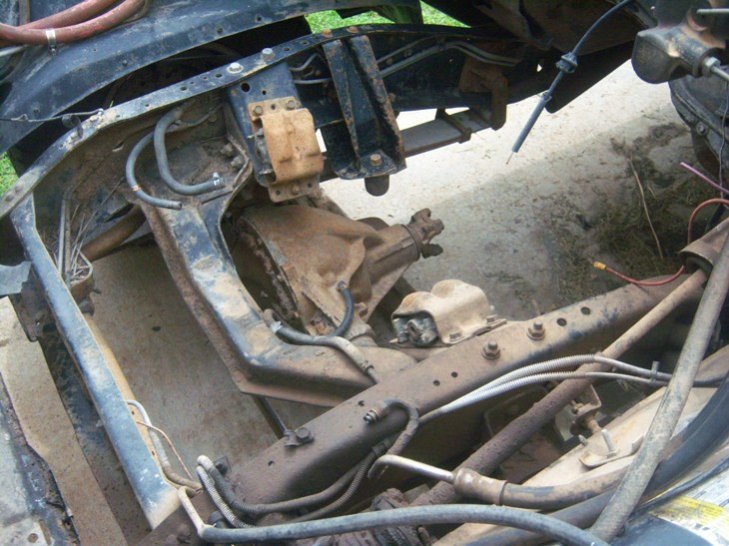

This is what K/V 1/2 ton engine mounts look like.


Attachments

  • 85ChevK10 006b.jpg
    85ChevK10 006b.jpg
    93.6 KB · Views: 712

kickdeez

Full Access Member
Joined
May 23, 2014
Posts
300
Reaction score
51
Location
north carolina
First Name
kyle
Truck Year
1990
Truck Model
Suburban 2500
Engine Size
454 tbi
That makes perfect sense. Being the 4x4's have a straight axle suspension and don't have the same crosssection that the 2wd's have where the independent Upper and Lower Control Arms bolt to, and so do the engine mounts. The 4x4 mounts are somewhat suspended directly off the frame rails and DO NOT bolt to a cross section like the 2wd mounts do.

So you're saying even if I guy got the brackets from a 4x4 truck, they don't bolt in to the frame rails of a 2wd truck or Burb?

That is correct. You have to drill holes in the frame to mount the 4wd frame brackets. I am getting ready to do this on my burb. I bought the off-road design high clearance crossmember, as well as their heavy duty motor mounts. I also bought a set of 4wd motor mount frame brackets off eBay. It's gonna be a serious pain in the ass to do with the motor still in the truck, but I think it can be done.


kickdeez

Full Access Member
Joined
May 23, 2014
Posts
300
Reaction score
51
Location
north carolina
First Name
kyle
Truck Year
1990
Truck Model
Suburban 2500
Engine Size
454 tbi
That makes perfect sense. Being the 4x4's have a straight axle suspension and don't have the same crosssection that the 2wd's have where the independent Upper and Lower Control Arms bolt to, and so do the engine mounts. The 4x4 mounts are somewhat suspended directly off the frame rails and DO NOT bolt to a cross section like the 2wd mounts do.

So you're saying even if I guy got the brackets from a 4x4 truck, they don't bolt in to the frame rails of a 2wd truck or Burb?

Some additional info I discovered during this process...The inside height of the 4wd frame where the motor mounts are located is approximately 5-5/8". The inside height of the 2wd frame where the motor mounts are located is approximately 5-1/4". The 4wd style motor mount brackets do not fit inside the 2wd frame. I am having to modify the factory 4wd brackets to work with my 2wd frame.
