I'm in need of help identifying Universal Joints.

Jonathonmb357

Full Access Member
Joined
Jan 13, 2022
Posts
80
Reaction score
63
Location
Fort Worth, Texas
First Name
Jonathon
Truck Year
1979
Truck Model
C30
Engine Size
292 cubic inch inline-six
I need some help with my 1979 C30. I's a cab and chassis with a 140" wheel base, and has a two-piece driveshaft.

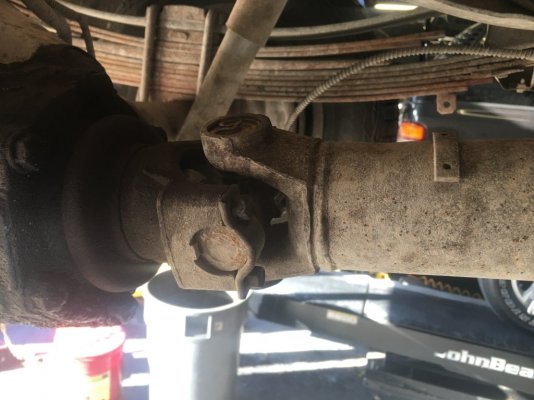

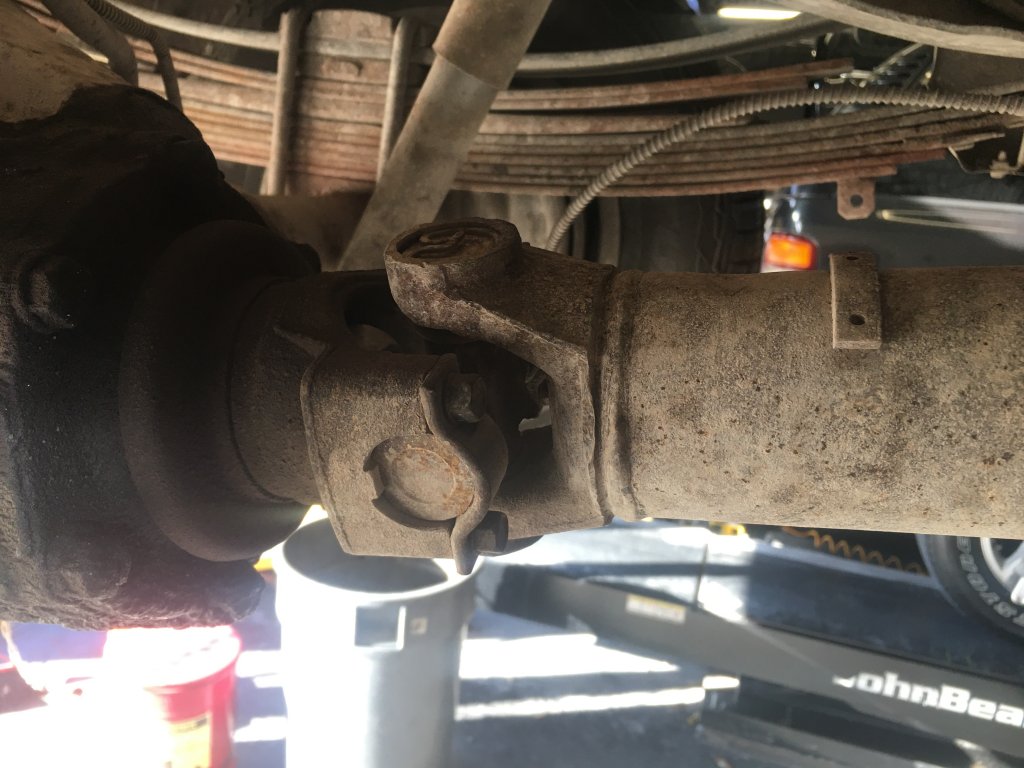

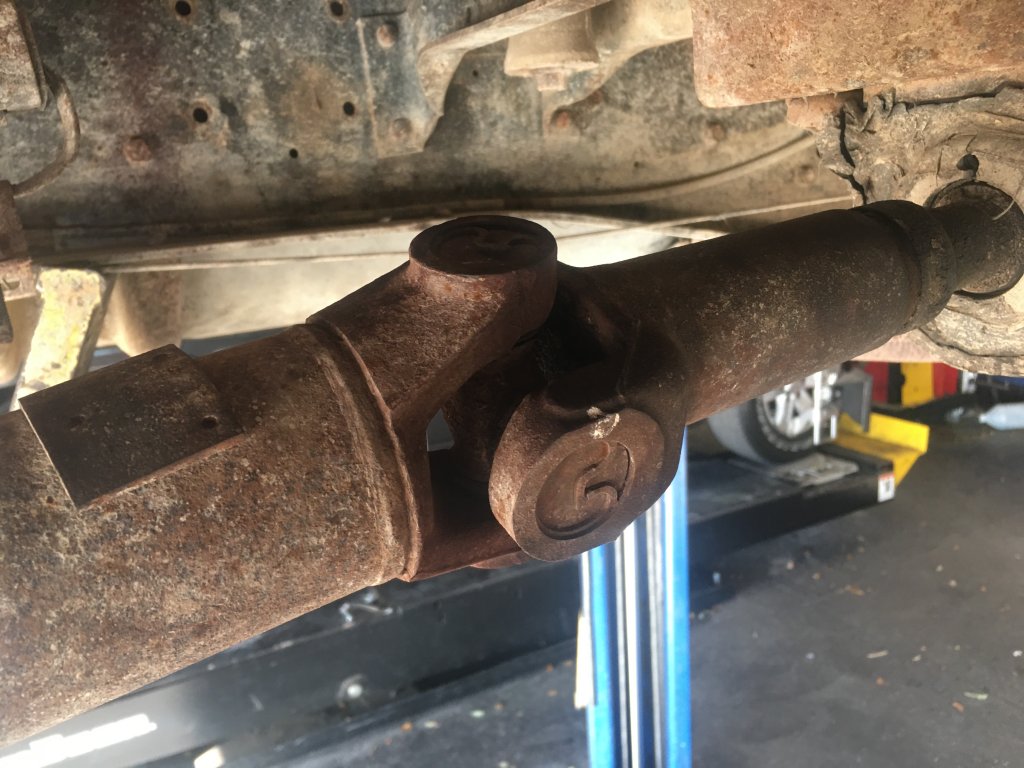

The center U-joint is in terrible shape and has a boat load of play, and I need some help identifying it please. It will be my first time attempting to replace them so that will be fun!

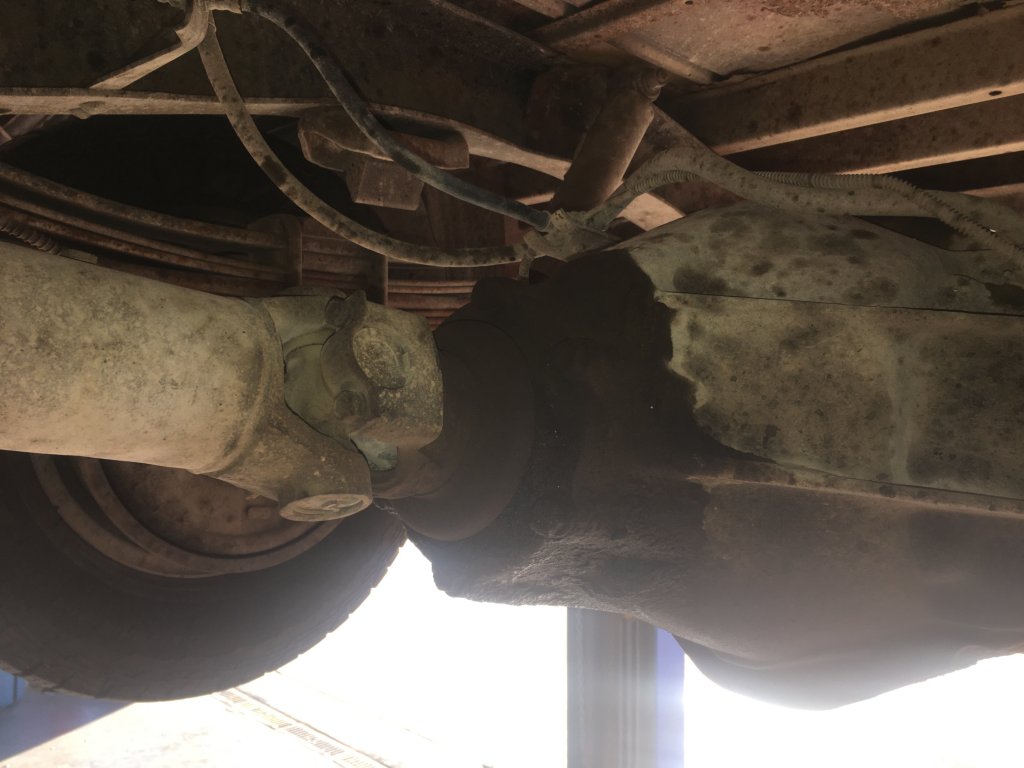

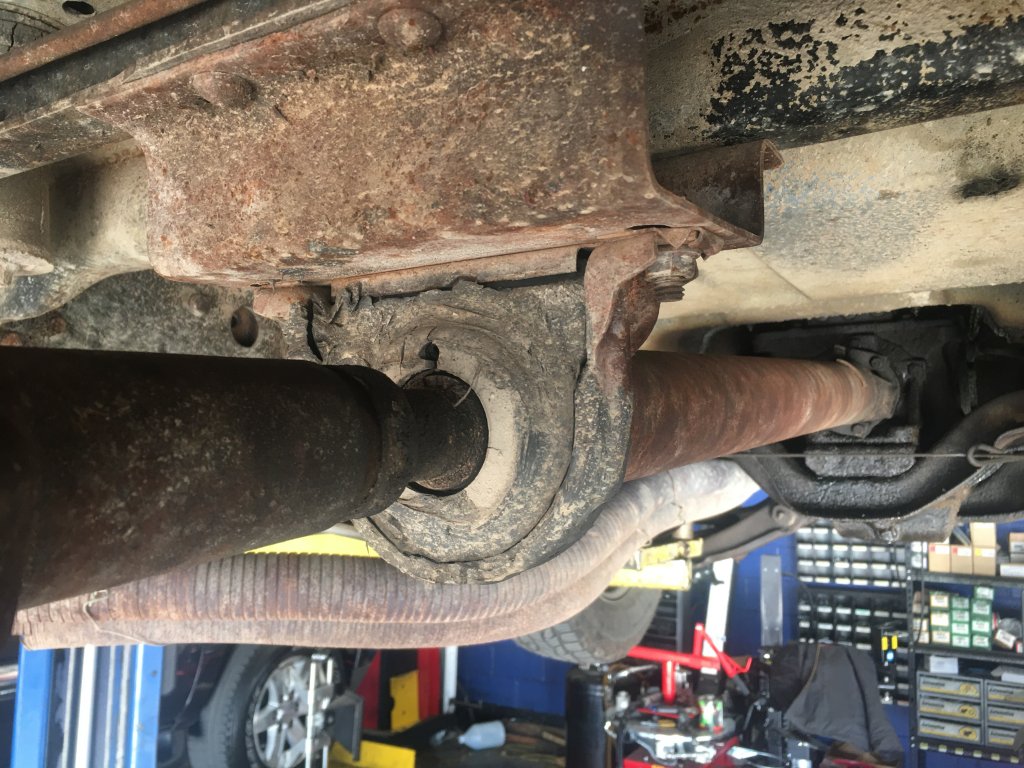

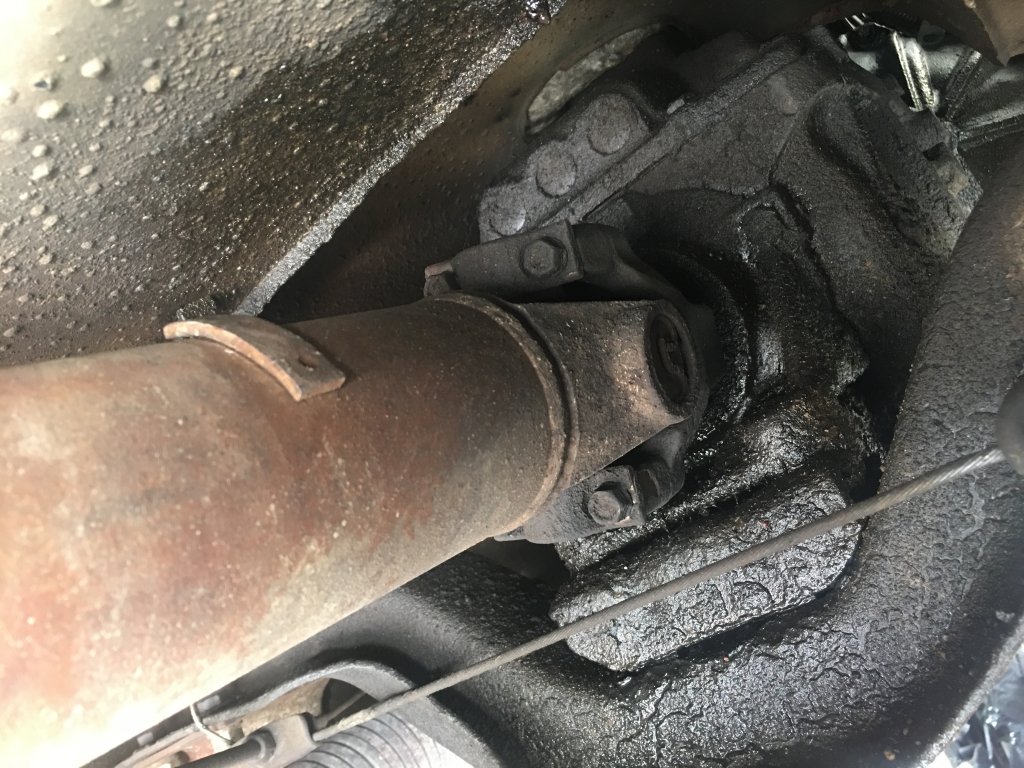

It seems that the u-joints at the transmission and the differential are the same, but the center is different. I plan to try to replace all three, the carrier bearing, and the leaky pinion seal while I have it apart.
I appreciate any advice!
