Ignition Switch (Tilt Column)

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

slammed84

Junior Member
Joined
Oct 16, 2024
Posts
28
Reaction score
56
Location
Oklahoma
First Name
Nick
Truck Year
1984
Truck Model
C10
Engine Size
350
I put an ignition switch on my truck years and years ago. Since then, it has always been tricky to get the switch to engage while the tilt is up in the highest setting.

So the other day I'm thinking....."maybe i should just replace the switch, or at least adjust it"....then I started looking at them online and noticed there is two different versions, one with tilt, one w/o tilt

Can anybody show an A/B picture of the different ignition switches? Now I'm wondering if I have the non-tilt version on my tilt column.......


Goldie Driver

Full Access Member
Joined
Mar 19, 2018
Posts
4,038
Reaction score
6,621
Location
Houston, Texas
First Name
Britt
Truck Year
1980
Truck Model
GMC K1500 Suburban
Engine Size
350
I put an ignition switch on my truck years and years ago. Since then, it has always been tricky to get the switch to engage while the tilt is up in the highest setting.

So the other day I'm thinking....."maybe i should just replace the switch, or at least adjust it"....then I started looking at them online and noticed there is two different versions, one with tilt, one w/o tilt

Can anybody show an A/B picture of the different ignition switches? Now I'm wondering if I have the non-tilt version on my tilt column.......
Did you have to flip the wire connectors 180 to get them to plug in ?

If not - you have the correct switch. :Big Laugh:


TotalyHucked

Full Access Member
Joined
Feb 24, 2020
Posts
3,579
Reaction score
11,505
Location
Auburn, Georgia
First Name
Zach
Truck Year
1985
Truck Model
Sierra 1500
Engine Size
5.3
My truck's the same way, I don't think it's the original cuz the key's not really worn enough for that. I just look at it as anti-theft lol. I just drop the wheel and it starts fine


legopnuematic

Licensed Junk Dealer
Supporting Member
Joined
Oct 27, 2016
Posts
2,449
Reaction score
6,215
Location
MO
First Name
Spencer
Truck Year
1971, 1̶9̶7̶4, 1976, 1979,1̶9̶8̶5, 2002
Truck Model
Dart Swinger, Sierra 10, C10 Cheyenne, C10 Big Ten, Silverado 10, Ram 2500
Engine Size
225/6, 350 c.i., 350 c.i., 5.9l Cummins
It could be the rack is broken or in the process of breaking.

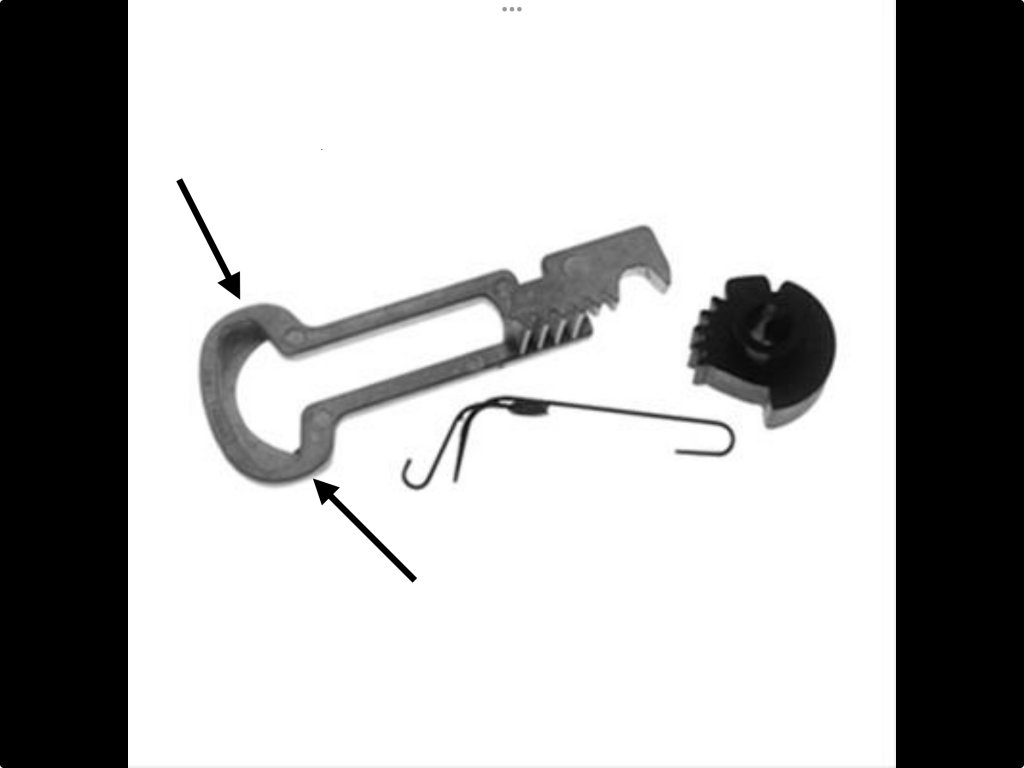

My 76 went from being able to star in any position, to mostly having to tilt down to crank, to neither when it finally broke. I thought it was the electrical switch at first, due to mileage and age, but it worked just fine with a mini prybar to slide it manually.

I believe it broke at one of the arrows, since these are pulling on the switch, when it would be to the broken side, it would flex enough to not pull it to crank, go the other way it was just rigid enough to pull it to crank.

As it sits now I have the switch hanging from under the dash and use a mini prybar to start it, the key just unlocks the column. Another thing in the list.


You must be registered for see images attach


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,187
Reaction score
7,990
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
On a similar note without hijacking the OPs thread I have a question. My manual trans, non-tilt (not that it matters) has become quite tight to turn the key when starting. IIRC doesn't the cylinder rotate and a rod pushes the actual ignition switch located lower on the column? I'm just wondering which part would cause the resistance.


JD Miller

Full Access Member
Joined
Sep 30, 2024
Posts
118
Reaction score
258
Location
Goober Idaho
First Name
JD
Truck Year
1981
Truck Model
K20 silverado
Engine Size
350
It could be the rack is broken or in the process of breaking.
You must be registered for see images attach

I had to replace that. Dang thing left me stranded at the post office. Had to tow my truck home


Attachments

  • img_1665-jpeg.jpg
    29.9 KB · Views: 11
Last edited:

slammed84

Junior Member
Joined
Oct 16, 2024
Posts
28
Reaction score
56
Location
Oklahoma
First Name
Nick
Truck Year
1984
Truck Model
C10
Engine Size
350
Did you have to flip the wire connectors 180 to get them to plug in ?

If not - you have the correct switch. :Big Laugh:
There's no telling, all I remember is having to drop the column, adjust it, bolt the column back up, try to start it, drop the column, adjust it, bolt the column back up, try to start it, drop the column........

I don't think I had to flip the harness, but man that was a long time ago, at least 15 years ago probably


slammed84

Junior Member
Joined
Oct 16, 2024
Posts
28
Reaction score
56
Location
Oklahoma
First Name
Nick
Truck Year
1984
Truck Model
C10
Engine Size
350
I'll drop the column today and post some pics this afternoon


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,688
Reaction score
3,706
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
On a similar note without hijacking the OPs thread I have a question. My manual trans, non-tilt (not that it matters) has become quite tight to turn the key when starting. IIRC doesn't the cylinder rotate and a rod pushes the actual ignition switch located lower on the column? I'm just wondering which part would cause the resistance.

Piece of trash in the cylinder
Dry cruddy grease in the rack assembly
Broken rack
Bent ignition rod
Worn out/damaged switch
Combination of all
IIRC manual columns have a button to push to allow the key to rotate? If so there could be an issue there too.

Pull the switch off of the column & cycle the key, if the resistance goes away issue is in the switch. If not the issue is in the cylinder/rack/rod mechanism

ETA: The bent design in the rod can be super sensitive to any unwanted bends, I do not recommend attempting to adjust it’s shape unless all else can be positively ruled out.


slammed84

Junior Member
Joined
Oct 16, 2024
Posts
28
Reaction score
56
Location
Oklahoma
First Name
Nick
Truck Year
1984
Truck Model
C10
Engine Size
350
You must be registered for see images attach


Well, I was able to make it worse, now it won't crank if the column is in either of the two highest settings. I didn't have the will to take it loose and start messing with adjusting it, sounds more like a weekend thing.

In a perfect world I would rip the column out and rebuild it. It needs gone through, the tilt ain't tilting that well anymore. Very stiff, doesn't try to spring into position anymore and I have to persuade it to move in either direction.


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,688
Reaction score
3,706
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
In a perfect world I would rip the column out and rebuild it. It needs gone through, the tilt ain't tilting that well anymore. Very stiff, doesn't try to spring into position anymore and I have to persuade it to move in either direction.
That is a big part of your problem I’d bet…

Does the movable part of the column have play in it?

When the tilt mechanism gets loose it is a big contributing factor to the rack breaking

You can unbolt the switch and let it dangle to the side to start the truck without the key for a while until you can repair the column. You will just need the key to unlock the wheel lock so it can turn. Take an Allen key or screwdriver and manually cycle the switch to start and kill the engine


slammed84

Junior Member
Joined
Oct 16, 2024
Posts
28
Reaction score
56
Location
Oklahoma
First Name
Nick
Truck Year
1984
Truck Model
C10
Engine Size
350
That is a big part of your problem I’d bet…

Does the movable part of the column have play in it?

When the tilt mechanism gets loose it is a big contributing factor to the rack breaking

You can unbolt the switch and let it dangle to the side to start the truck without the key for a while until you can repair the column. You will just need the key to unlock the wheel lock so it can turn. Take an Allen key or screwdriver and manually cycle the switch to start and kill the engine
To be honest, everything feels really tight on the column, almost too tight. The column is one of those things that I've never really been into past swapping a steering wheel. I'd rather find a decent used one and learn to rebuild it on the bench, then just swap it in.


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,688
Reaction score
3,706
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
To be honest, everything feels really tight on the column, almost too tight. The column is one of those things that I've never really been into past swapping a steering wheel. I'd rather find a decent used one and learn to rebuild it on the bench, then just swap it in.
Good luck Sir! Tilt column’s are tricky but kinda fun too

You must be registered for see images attach


GTX63

Full Access Member
Joined
Nov 27, 2022
Posts
924
Reaction score
3,757
Location
Tennessee
First Name
Ty
Truck Year
1985
Truck Model
K10
Engine Size
350
With tilt columns, I have rebuilt them in the truck and on a workbench over a large towel like pictured above. My experience has been- Tilt columns can be a beech; everything needs to be laid out in the order it was removed and one stripped screw or frozen pin holding the column collar can bring everything to a fast stop. I gave up on fixing the present issue and just tearing them down and rebuilding them, cuz I only want to do it once.


Steelbuddha

Junior Member
Joined
Mar 16, 2024
Posts
16
Reaction score
14
Location
Central North Carolina
First Name
Jonathan
Truck Year
1984
Truck Model
K20 (dump bed)
Engine Size
350
The rack and the sector gear can seem like it's working properly, but can still be in failure mode. Changing ignition switches won't help at all. My truck came home on a wrecker because of it. Your initial reaction is that it must be the ignition switch, and that makes good sense. In a 30-40-50-year-old truck, I think it's a safe bet to replace everything in the steering column that either moves or conducts electricity. Then you can forget about it and use it.

Also, if the tilt column hasn't gotten sloppy yet, it will. That's another thing to pay attention to while you're in there.
