Hey guys, first I’ve got to b!tch about the GM factory wiring diagrams. I’m a 20 year ASE master technician and I’ve never seen such a Sh!tty wiring schematic setup in my whole career. GM’s “better” idea of not showing each wire from start to finish is an absolute disaster. I’m trying to diagnose a simple ignition circuit and I’ve got literally 4 pages of diagram, 3 pages of notes with wire numbers and start and end positions and splice numbers etc and I still can’t follow the G.D. Power flow. Ok, rant over, now I need help.

My Dad’s 87 Jimmy. 350tbi. Turn key on, everything comes on as it should. Cel, seatbelt light, volt meter, key chime etc. turn key to start and just a quick click and only the IGNITION powered things go dead. Some lights work, headlights/park lights work. But no CEL, seatbelt light/chime, no volt meter. It’s like you shut the key off that’s it. I load tested battery and it’s good. Didn’t have time to dive in but that’s where I’m at.

Basically, I’m looking for someone who actually knows if ignition power goes through ignition switch first, then to fuse box, or other way around. Which wire etc. I need to understand the ignition system power flow so I can easily pinpoint where I need to look.
Thanks in advance.

Ben


WP29P4A

Full Access Member
Joined
Jul 18, 2021
Posts
866
Reaction score
1,469
Location
Nevada
First Name
Mike
Truck Year
1987
Truck Model
Sierra Classic V1500
Engine Size
350 TBI
Bad grounds do exactly what you are describing. Clean and tighten the connections from the battery to the engine, and make sure there is a ground from negative battery terminal to the fender or radiator support. Verify the ground strap from back of engine to firewall. You can use a set of jumper cables to set up a temporary ground to test with, if you want to do a quick test. Clip one end of the cable to the negative battery post and the other end to the engine, did anything change when you turn the key?

It's the most common solution to the problem you are describing and the cheapest and easiest thing to check for.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,698
Reaction score
11,151
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
I second Mike's thoughts, but will also add, you Ben may already know this with your experience, but GM side terminal battery terminals are notorious for hiding corrosion where you can't see it easy and not making proper contact. Given the single click, then loss of power I'd be looking at terminals, starter connections, and grounds. I have quite a bit of old GM experience at the shop and to be frank I have no idea if the ignition power hits the fuse box or the switch first. I've never needed to find out, but you could check to see if there is power at the fuse with the key off. If there is then it hits the fuse first. If it only gets power with the key on then switch has to be first. If I was a betting man I'd say key first. Good luck.


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,338
Reaction score
3,571
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
The old school electrical diagrams in the manuals leave much to be desired.

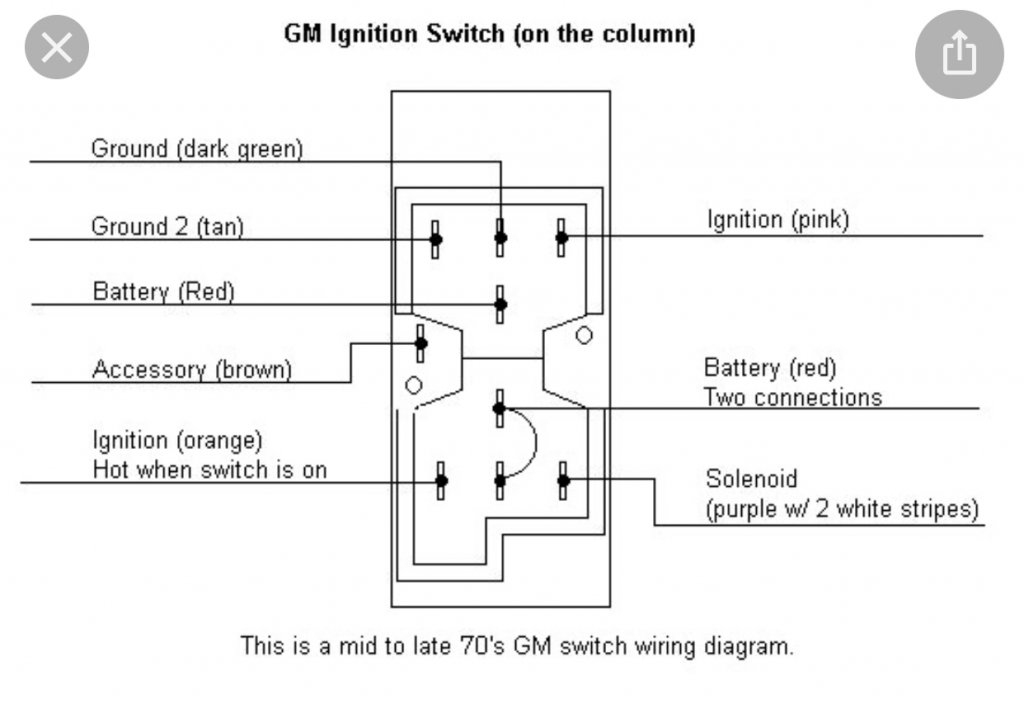

Power gone in thru the firewall bulkhead connector, goes to the ignition switch where it is “divided” by function. It then goes to the fuse box to power individual fuse buss bars.

One hood thing about GM wiring is they have kept the same color coding pretty much since the early 60s.

Assuming you don’t have a poor connection or similar problem, check for power on the orange wire from the ignition switch as you cycle the key. You may have a defective ignition switch.


Attachments

  • A6F4DFC3-7E63-488C-A622-A1A674679F35.jpeg
    64.9 KB · Views: 80

Itali83

Full Access Member
Joined
Feb 7, 2015
Posts
575
Reaction score
1,075
Location
Maine
First Name
Ben
Truck Year
1982, 1987, 1987
Truck Model
K10, 'burban C10, Jimmy
Engine Size
350, 6.2, 350
Found the problem. It was actually a poor connection at the positive terminal of the starter. Not the start terminal, but the battery terminal. I started poking around looking at things and found where I did and didn’t have power. I tested for power at the starter and when touching the actual stud, I had no power. But when touching the factory crimp terminal on the battery cable, had plenty of power. So I took the connection apart, wire brushed and truck started like new. It wasn’t corroded much at all. None of the green corrosion or anything like that. Just a light black coating on the terminal that was enough to break contact.

I’m really frustrated with the factory wiring diagrams because I had some time and really tried to make sense of the diagram and I could, sort of, but they really made thing much more difficult for people like me who need a clear picture of how wiring runs and not just a suggestion of where a wire starts and ends.

Anyway, just wanted to let you know I fixed the problem and how the system is split between battery power and ignition power.

Ben


wlwarnke

Full Access Member
Joined
Sep 14, 2021
Posts
132
Reaction score
183
Location
Helotes, TX
First Name
William
Truck Year
1983
Truck Model
K5
Engine Size
5.7
I hate the power feed on these trucks. Too many cables going down to the starter. When I added a 2nd battery, I rewired the entire power/charging setup. Now I only have 2 wires at the starter. Battery and Crank. Alternator output goes to the battery, alternator sense goes to bulkhead. Much cleaner and less cables to corrode or melt down at the starter.


wlwarnke

Full Access Member
Joined
Sep 14, 2021
Posts
132
Reaction score
183
Location
Helotes, TX
First Name
William
Truck Year
1983
Truck Model
K5
Engine Size
5.7

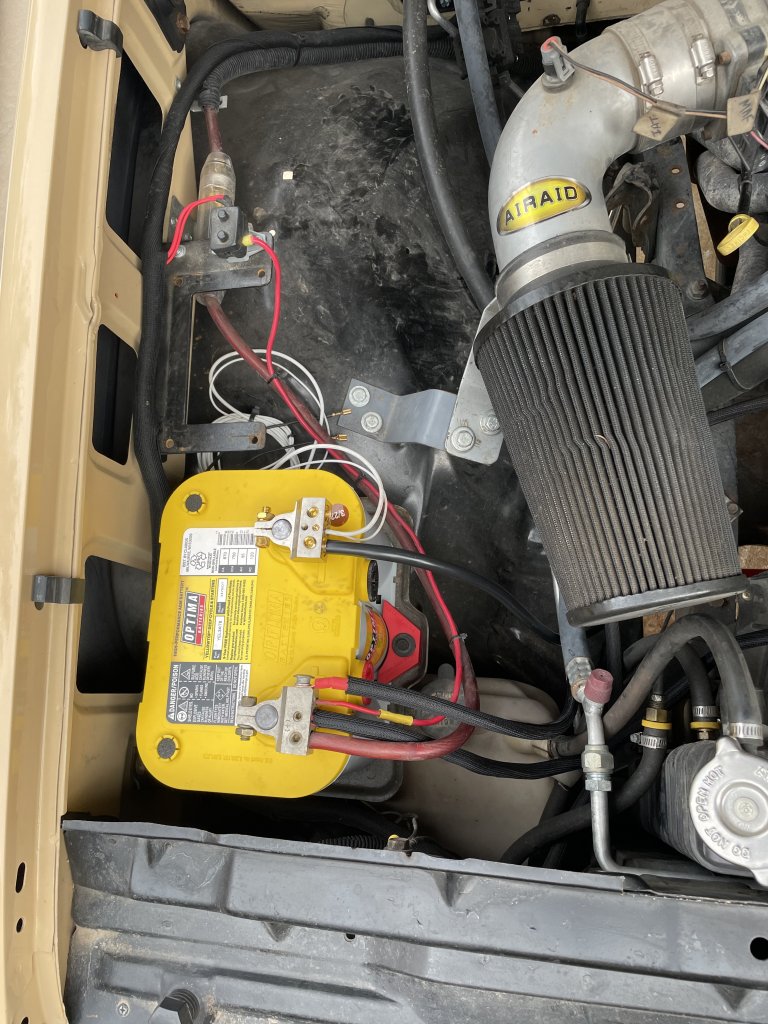

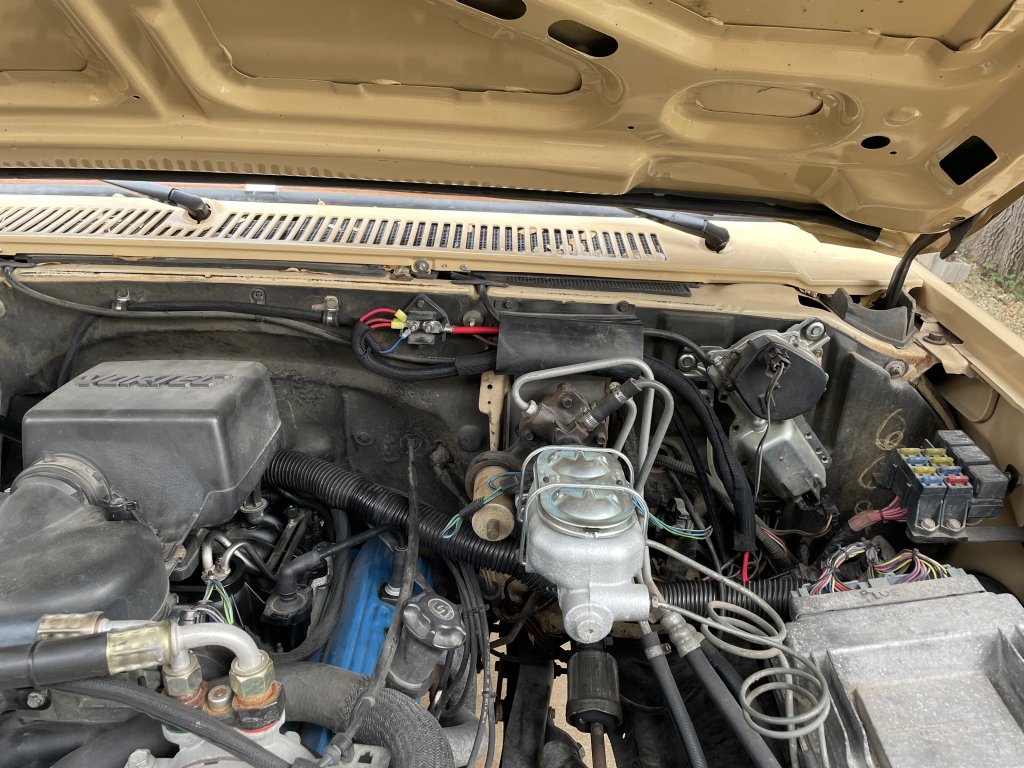

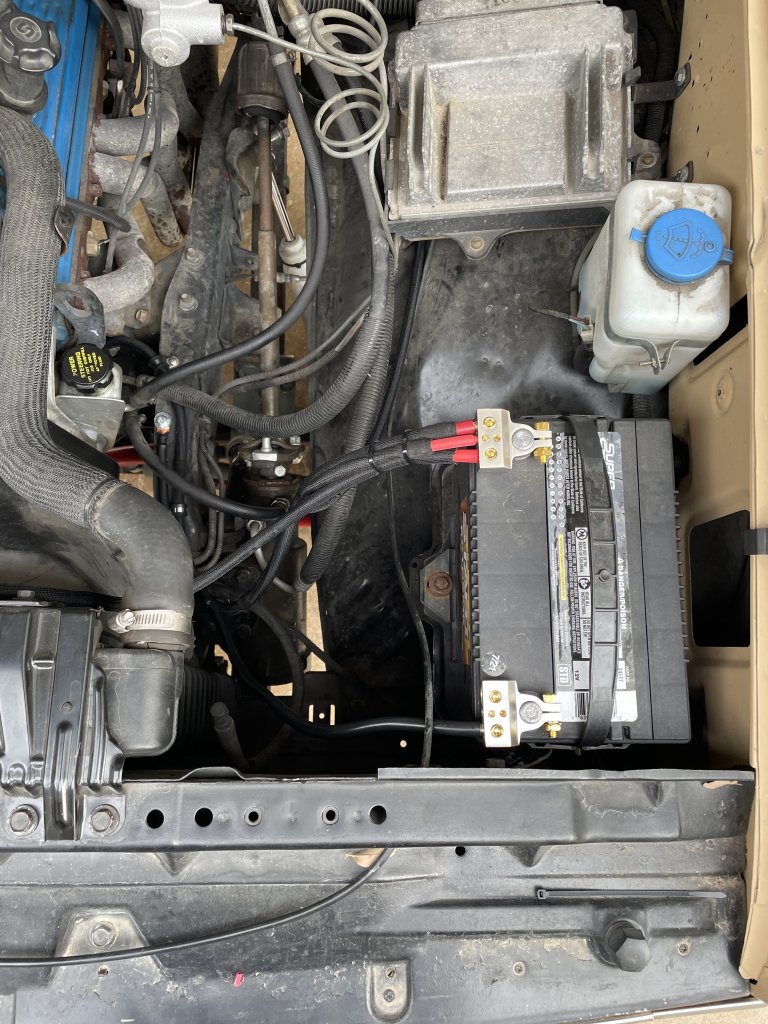

I also replaced the stock junction with a terminal block.


Attachments

  • 5F92BBAB-B9EF-447F-8EB8-D368182073AA.jpeg
    187.2 KB · Views: 74
  • 5AC6E020-80F4-4268-945C-62C95E15B430.jpeg
    178.8 KB · Views: 75
  • F90E051F-4830-47A3-9614-30D83D302996.jpeg
    194.8 KB · Views: 74

Itali83

Full Access Member
Joined
Feb 7, 2015
Posts
575
Reaction score
1,075
Location
Maine
First Name
Ben
Truck Year
1982, 1987, 1987
Truck Model
K10, 'burban C10, Jimmy
Engine Size
350, 6.2, 350
I’ve totally updated my suburban with extra grounds and power blocks under the hood and in the dash to basically bypass and supplement the factory firewall bulkhead and undersized charging/starting wiring.

Ben


Originalthor

Full Access Member
Joined
Aug 22, 2021
Posts
1,015
Reaction score
3,386
Location
Saskatoon Saskatchewan
First Name
Scott
Truck Year
1989
Truck Model
Suburban
Engine Size
5.7
Gm ignition switch is also not a very good design and can cause all sorts of weird problems. Also if you add any kind of a msd coil or super coil put it on a relay. Cause the ignition switch is the power to the coil.


You must be registered for see images attach
You must be registered for see images attach


WP29P4A

Full Access Member
Joined
Jul 18, 2021
Posts
866
Reaction score
1,469
Location
Nevada
First Name
Mike
Truck Year
1987
Truck Model
Sierra Classic V1500
Engine Size
350 TBI
I also replaced the stock junction with a terminal block.
You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach

I used this type of power distribution blocks, they seem to be good quality and work well. Client wanted to reduce the amount of cables tied to the battery.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,121
Reaction score
6,038
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach
