Hooking up the electric choke

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

plummrey

Full Access Member
Joined
Jan 8, 2023
Posts
90
Reaction score
48
Location
NC
First Name
christy
Truck Year
1984
Truck Model
c10
Engine Size
V8 5.0

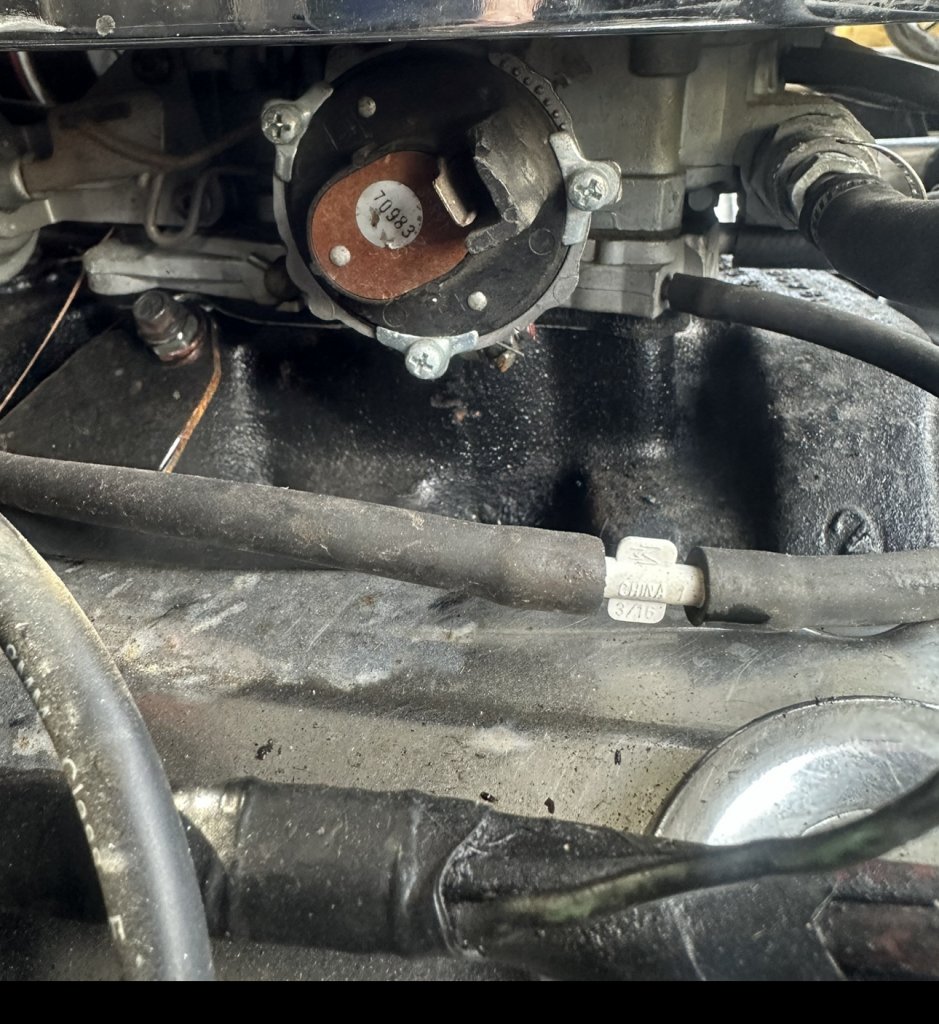

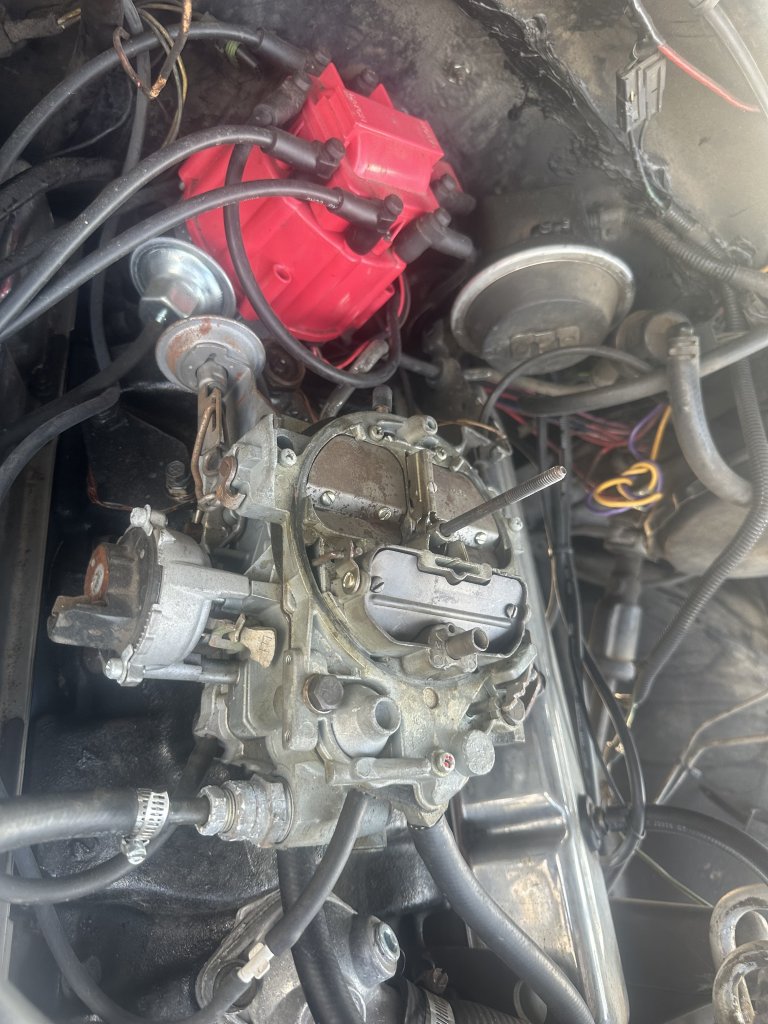

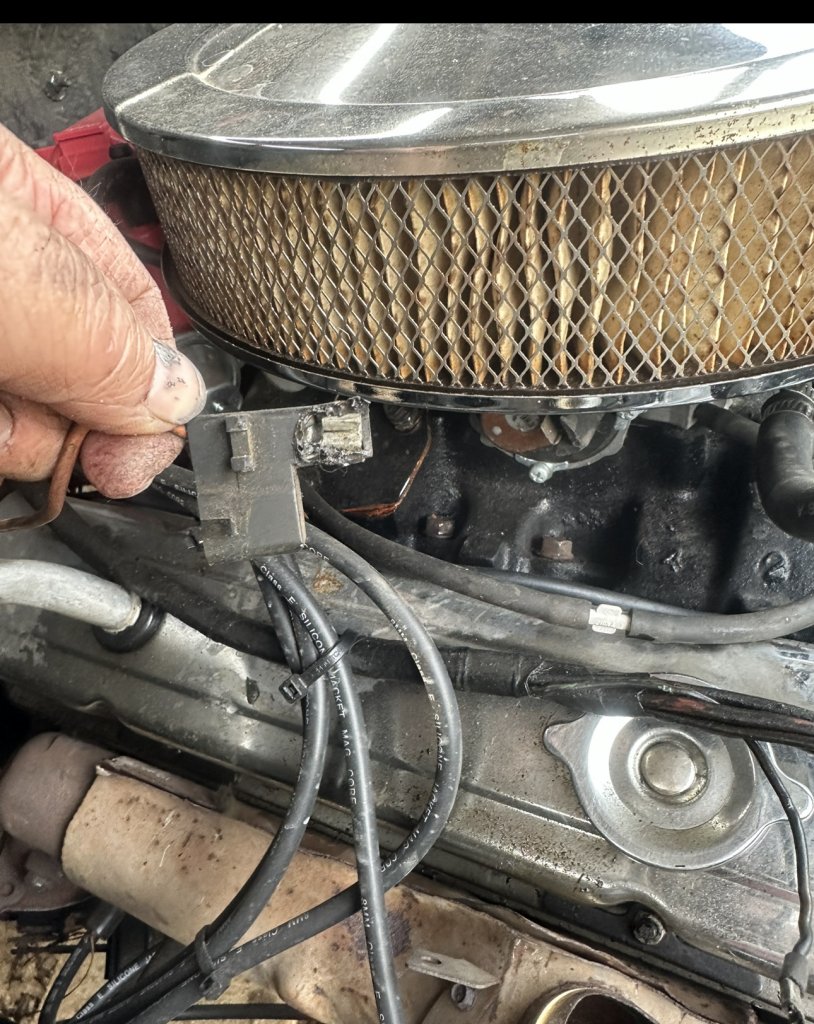

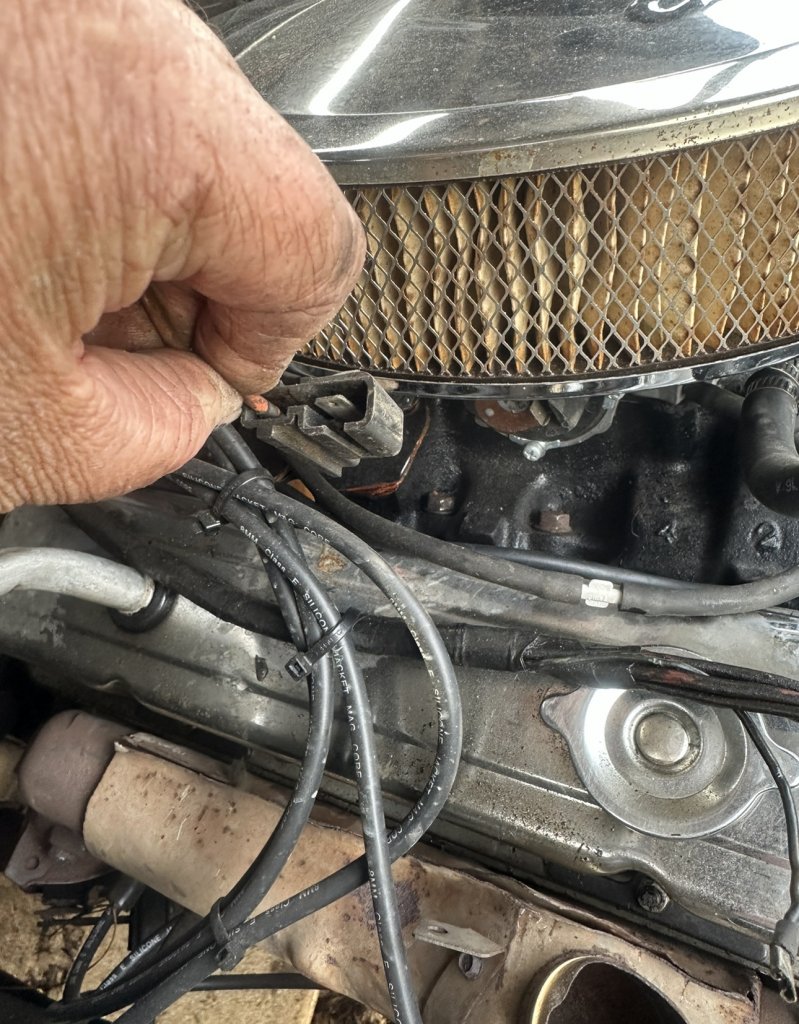

How do I hook it up, there’s a plug that wasn’t connected to anything, I have another plug for single terminal in a box. Pay no mind to that nasty filter :/


Attachments

  • CAC7F927-D61F-4492-85BA-52638280A015.jpeg
    214.3 KB · Views: 111
  • BC59E457-43C2-477F-BDBD-5670F7AFD41C.jpeg
    193.2 KB · Views: 69
  • 1054DC38-235B-4D3E-BD4E-74FB841AD5E3.jpeg
    199.4 KB · Views: 79
  • 2D3ADAAE-EB59-4F42-B7C4-1E06F5FE0304.jpeg
    152.5 KB · Views: 74

WebMonkey

Full Access Member
Joined
Jan 3, 2020
Posts
678
Reaction score
1,375
Location
Missouri Ozarks
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
350
just put +12v from anywhere you want on it.
(i'd use switched so it doesn't drain the battery of course)

good luck


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
3,939
Reaction score
5,691
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Nope choke should be 12v hot when the engine has oil pressure. Choke oil pressure switch is mounted on the block on the drivers side. See if one of your mystery plugs is 12v hot with engine running.

Last edited:

plummrey

Full Access Member
Joined
Jan 8, 2023
Posts
90
Reaction score
48
Location
NC
First Name
christy
Truck Year
1984
Truck Model
c10
Engine Size
V8 5.0

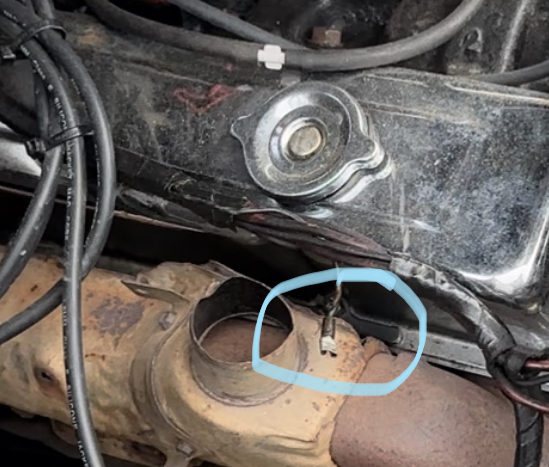

I was trying to find the Lt blue wire from the oil pressure switch to use, finally realized that this little fella is the end of that Lt blue wire but wasn’t thinking about the spade connector was probably for the old choke terminal, so didn’t think about that wire anymore until todays aha moment, had to make sure the color cause it’s discolored,,,I cut it off and attached the correct connector for choke that has the one terminal

I wanted that wire so the choke light will work with the oil pressure switch,, however Chegney has mentioned how that goes together


Attachments

  • IMG_0091.jpeg
    285.4 KB · Views: 58

plummrey

Full Access Member
Joined
Jan 8, 2023
Posts
90
Reaction score
48
Location
NC
First Name
christy
Truck Year
1984
Truck Model
c10
Engine Size
V8 5.0
Correction on users name, Chengny


Joshua Keith

Full Access Member
Joined
Aug 28, 2019
Posts
373
Reaction score
534
Location
Memphis
First Name
Joshua
Truck Year
1985
Truck Model
K10
Engine Size
350
I installed a tee fitting into the back of the engine with an oil pressure switch and a then the oil pressure gauge. I ran the choke wire to the oil pressure switch so that it’s only on when the engine is actually running. Edit: Oops late to the party.

Joined
Apr 24, 2023
Posts
38
Reaction score
80
Location
san diego
First Name
rob
Truck Year
1973
Truck Model
Cheyenne 20
Engine Size
350
Can i use a wire straight to the battery, temporarily or will it fry something? Also my choke has a wire connected to the body of the carb which i assume is ground, does that mean i need to connect the other terminal to the hot side of the battery?


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
3,939
Reaction score
5,691
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Can i use a wire straight to the battery, temporarily or will it fry something? Also my choke has a wire connected to the body of the carb which i assume is ground, does that mean i need to connect the other terminal to the hot side of the battery?
There is not near enough information here to give you a good answer. If I have to make assumptions I'm going to assume the wire connected to your choke is a positive lead that only has power when the engine is running. A pic of the wire and carburetor you are talking about would probably be helpful


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
3,939
Reaction score
5,691
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
No. Best to tap a switched ignition source at the fuse block.
If he needs a hot to the choke it's best to pull power through an oil pressure switch that will supply power only when the engine is running. Most if not all carbuerated squares were wired that way.


Joshua Keith

Full Access Member
Joined
Aug 28, 2019
Posts
373
Reaction score
534
Location
Memphis
First Name
Joshua
Truck Year
1985
Truck Model
K10
Engine Size
350
I believe my ignition source was the windshield wiper motor. It is best to run to an oil pressure switch if you can but isn’t necessary.


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
3,939
Reaction score
5,691
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350

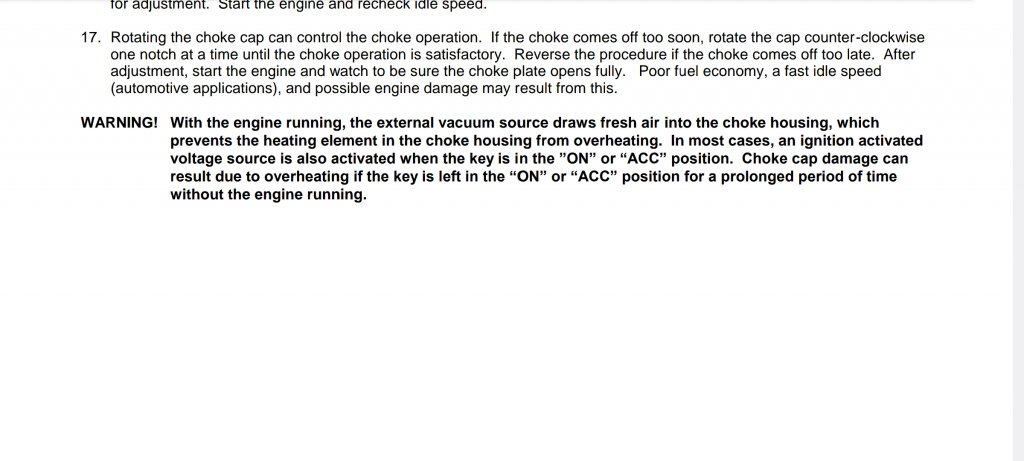

This is a quote from holley, I know the qjet has a vacuum passage into the choke housing so I am only assuming a similar situation. G bodies use the alternator to power the choke only when engine is running,squares use an oil pressure switch. Some people on other forums say they burnt up their heating element run just a keyed hot wire.I'm not going to try to outsmart their engineers. It's easy enough to do it,as GM designed it.


Attachments

  • Screenshot_2023-05-27_013437.jpg
    72.1 KB · Views: 37

Latest posts

Forum statistics

Threads
41,854
Posts
903,556
Members
33,367
Latest member
texdave
Top
