Help Identifying engine elements

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Jacksonrobinson

Junior Member
Joined
Jun 16, 2022
Posts
4
Reaction score
0
Location
Cleveland, TN
First Name
Jackson
Truck Year
1980
Truck Model
C10
Engine Size
305
Hello, new C10 owner, and I'm trying to do some engine clean-up. I need help identifying two engine elements, that both seem to be pulling vacuum. Please let me know what they are and if and where they need to pull vacuum from. I couldn't seem to find them on the vacuum diagram. I've also included my C10's vacuum diagram if it helps.

1980 Chevy C10 305 TBI

Thanks for your help.


Attachments

  • PXL_20220805_013832034~2.jpg
    171 KB · Views: 87
  • PXL_20220805_013859883~2.jpg
    205.6 KB · Views: 90
  • hoserouting.jpeg
    123.1 KB · Views: 91

matt4426

Full Access Member
Joined
Dec 28, 2021
Posts
64
Reaction score
100
Location
NE Ohio
First Name
Matt
Truck Year
79
Truck Model
K35
Engine Size
454

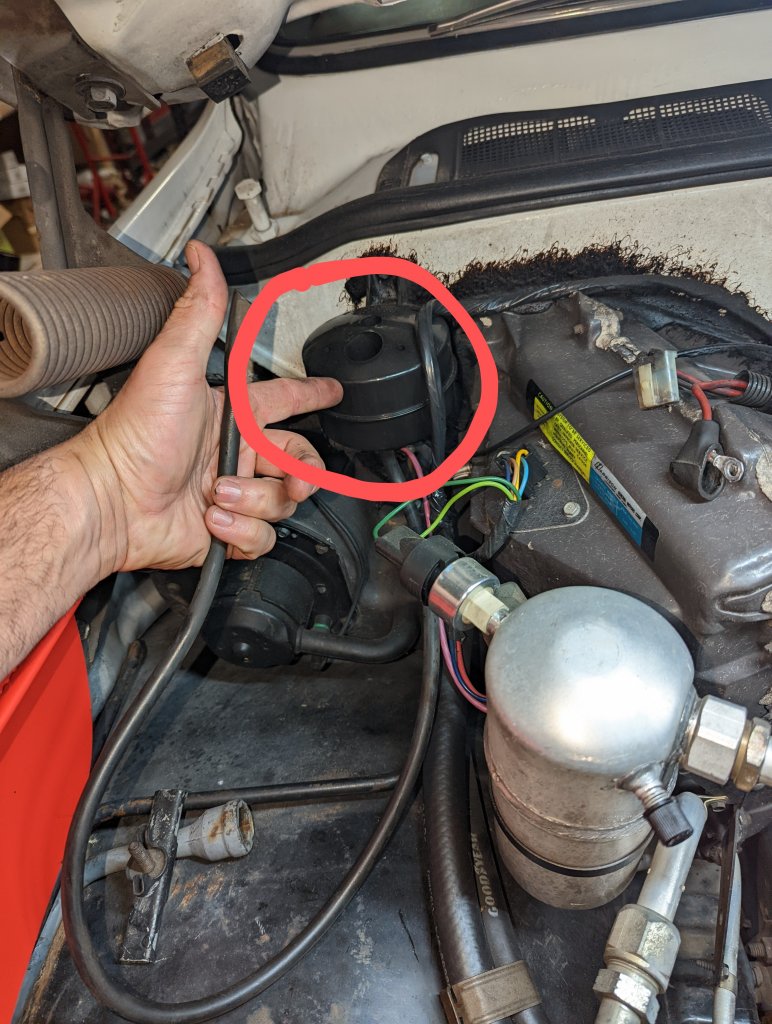

The thing in the first picture is the vacuum reservoir for the AC unit. The dampers are vacuum actuated. Not sure about the 2nd picture. Maybe vacuum switch/sensor for transmission?


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,421
Reaction score
4,480
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
Do you have a turbo 400 trans.


Jacksonrobinson

Junior Member
Joined
Jun 16, 2022
Posts
4
Reaction score
0
Location
Cleveland, TN
First Name
Jackson
Truck Year
1980
Truck Model
C10
Engine Size
305
The thing in the first picture is the vacuum reservoir for the AC unit. The dampers are vacuum actuated. Not sure about the 2nd picture. Maybe vacuum switch/sensor for transmission?
Ok thank you, do you know if the AC Vacuum reservoir needs port or manifold vacuum?

Thanks for your help.


saltdog

Supporting Member
Supporting Member
Joined
Aug 9, 2020
Posts
22
Reaction score
15
Location
US
First Name
Mike
Truck Year
1983
Truck Model
K20 Suburban
Engine Size
350

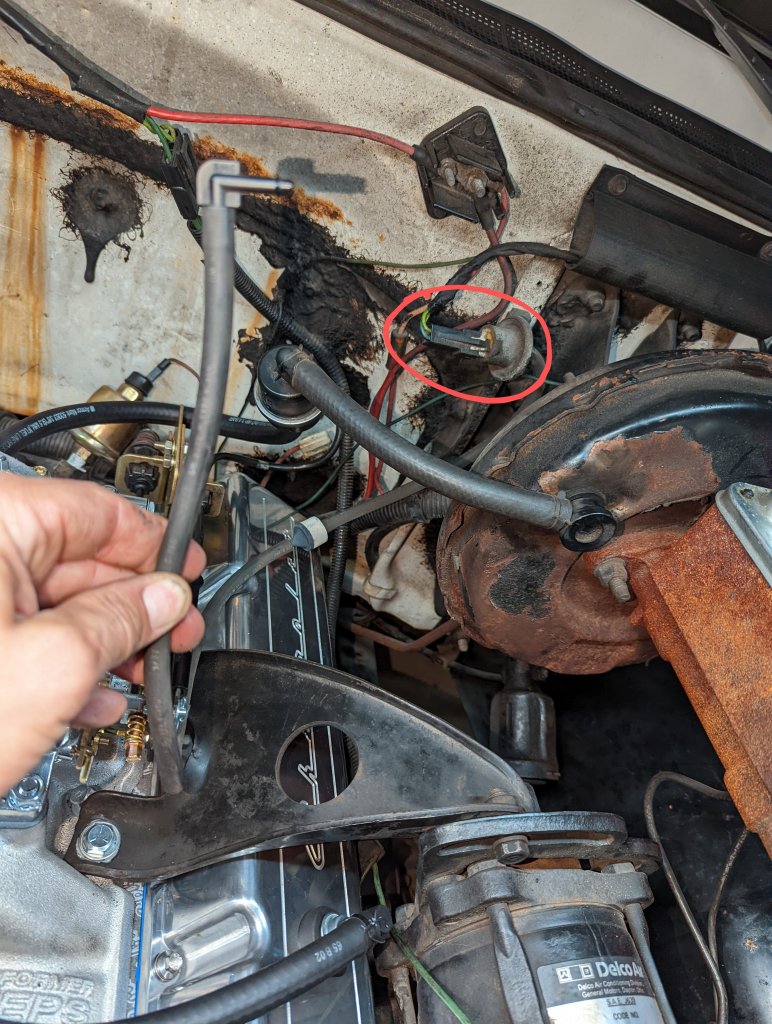

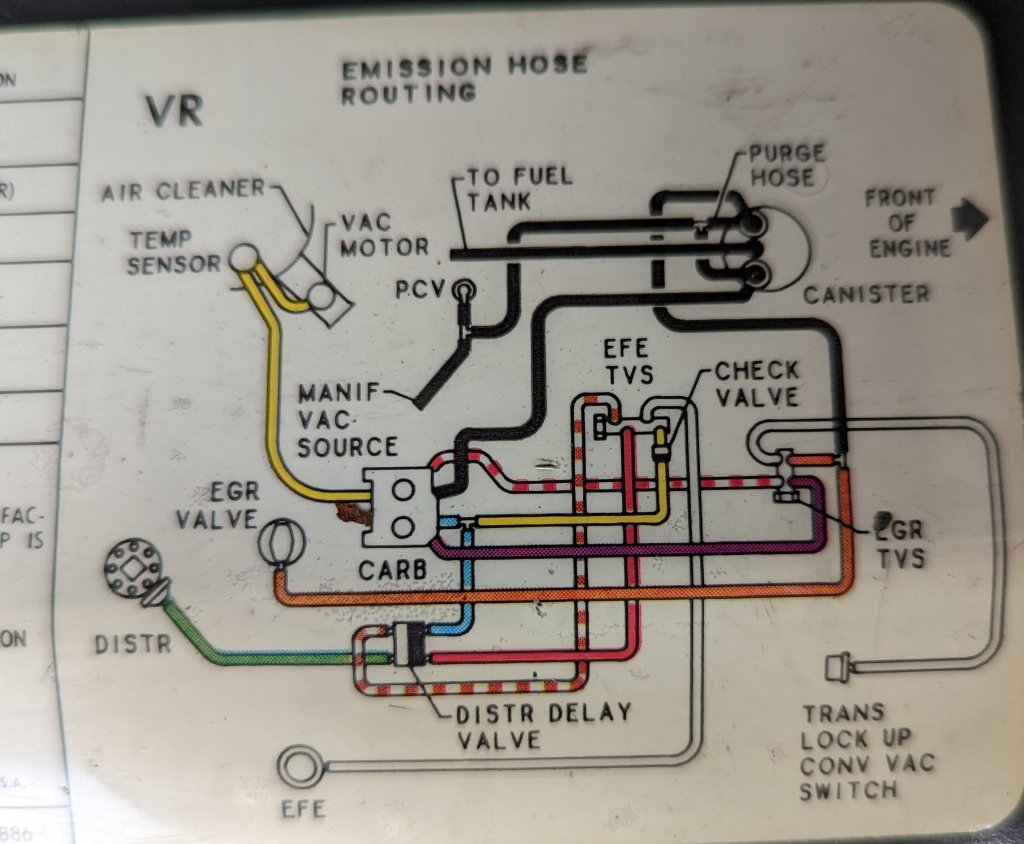

Second pic is the torque converter lockup switch, lower right in the diagram pic 3
