HeliCoil for aluminum Auto Trans thread repair.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
Hopefully this will add some hope for some of you. VAL has a stripped pan thread right on the corner bolt of his 700r4 from recently taking the pan off and on several times while diagnosing TCC lock up.

I have used many many HeliCoils for Automatic Transmission thread repair. I've also used one to repair and Edelbrock Torker ll intake manifold for a stripped out thermostat bolt. I've never had one come back failed and all have been a permanent fix and made the threads better than new.

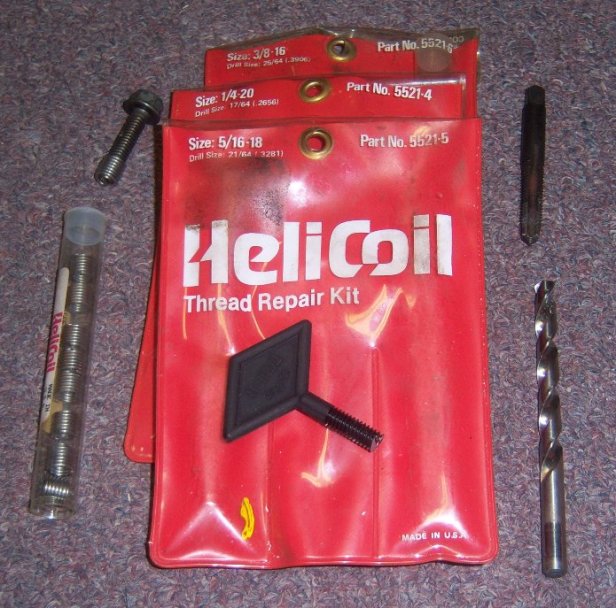

I suggest buying the complete HeliCoil Kit for the desired or needed thread pitch and size. Then I keep my kits together and DO NOT use the drill bit for anything else. The drill bits are the hardest thing to come by since they are always going to be a real wierd size uncommon bit, so it's not likely you'd have that bit in a common collection set of bits. So don't use the bit except for this purpose and then you won't wear it out near as soon and it will be ready when you need it. Once you buy the kit, you can buy just the HeliCoil refill pack and it's much cheaper than buying the whole kit.


Attachments

  • th350build 260.jpg
    th350build 260.jpg
    94.4 KB · Views: 351

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

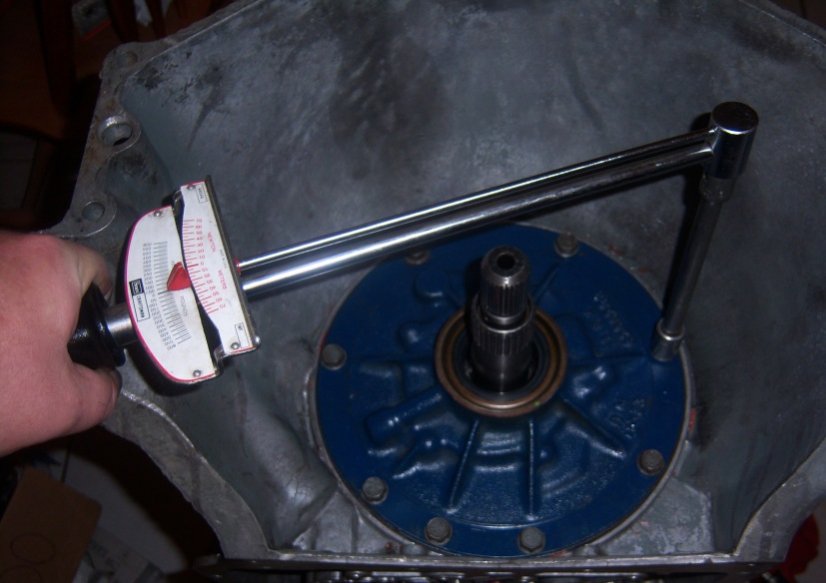

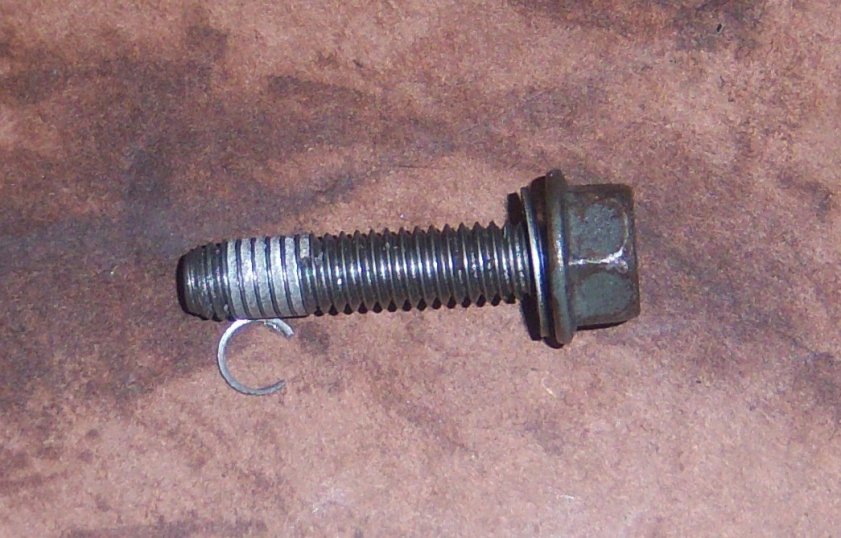

So here I was torquing down the front pump bolts on my bro's Th350 trans build for his El Camino. Didn't get even half the torque and it let lose. And here's what the bolt looked like when I pulled it out.


Attachments

  • th350build 252.jpg
    th350build 252.jpg
    65.5 KB · Views: 322
  • th350build 256.jpg
    th350build 256.jpg
    98.3 KB · Views: 354

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

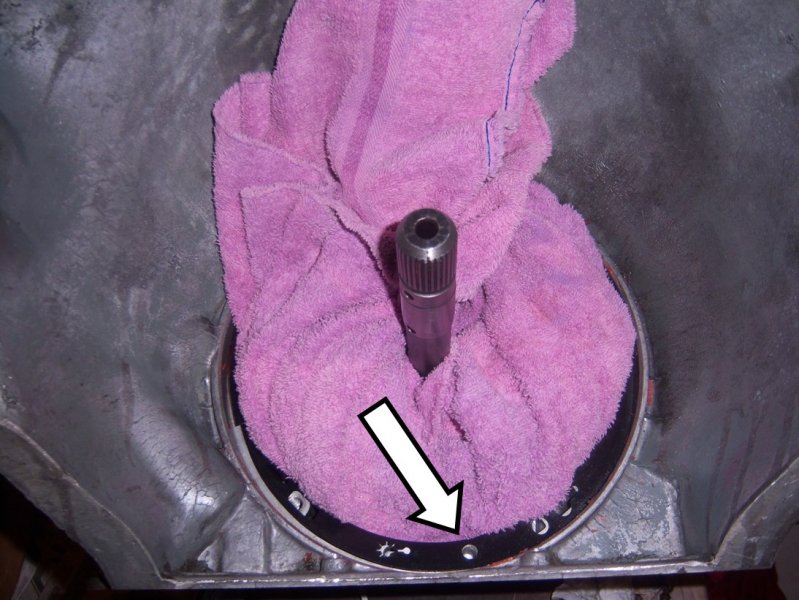

I pulled the pump off, but didn't want to have to pull the rest of the transmission apart, so I stuffed it full of a bath towel to catch and trap any shavings that might have jumped out of the hole. Remember, this is aluminum, so you can't use a magnet to suck out the shavings. Very critical to keep the shavings out of the transmission. This goes for it you're drilling out for a repair in the pump section or the valve body section. Pan section, you're probably OK, especially if you're drilling overhead. The shavings should fall to the ground, but be sure to wearing safety goggles.

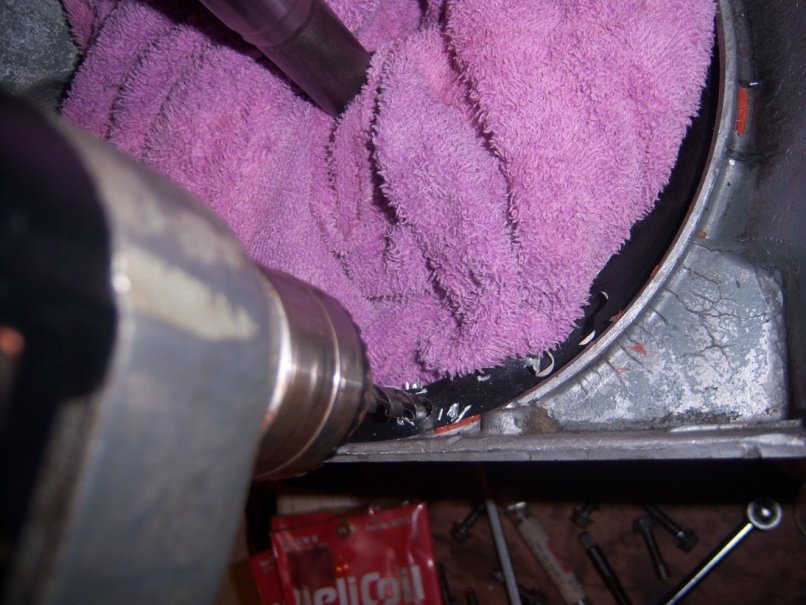

Carefully drill the hole only as deep as necessary with the supplied drill bit with your kit. BTW, the kit will tell you what size drill bit you need. So if you do eventually wear out the bit, you can go buy just the bit and replace the bit in your kit. I've had to do it before on one of my kits I used it so much.


Attachments

  • th350build 263.jpg
    th350build 263.jpg
    95.1 KB · Views: 253
  • th350build 264.jpg
    th350build 264.jpg
    94.4 KB · Views: 274

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

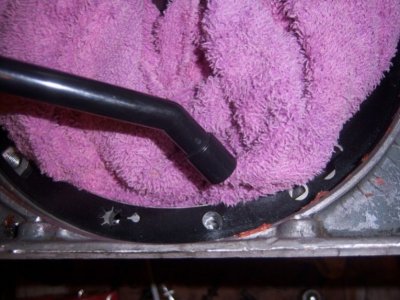

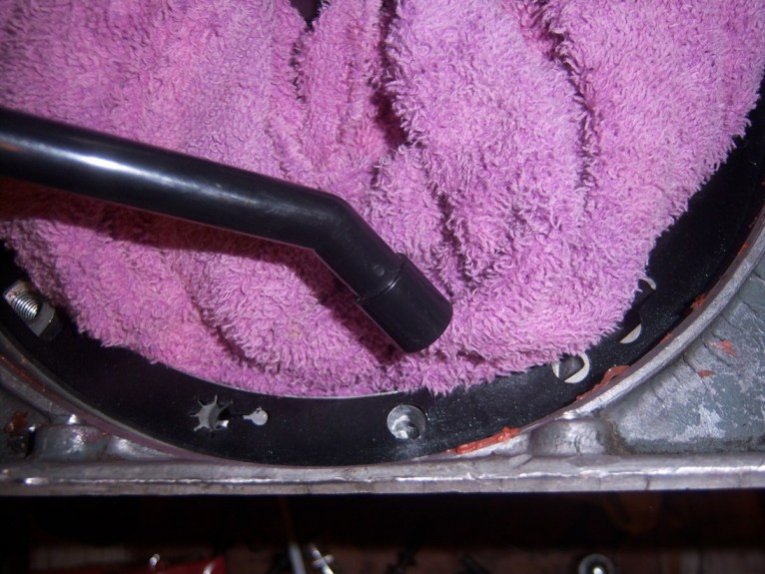

In this case, next step is to remove all the shavings. I used a shop vac with a small tool accessory kit to draw the shavings out of the hole. Using air to blow it out isn't a bad idea either if you can assure none of the shavings are going to get blown back into your project if it's critical like this is.

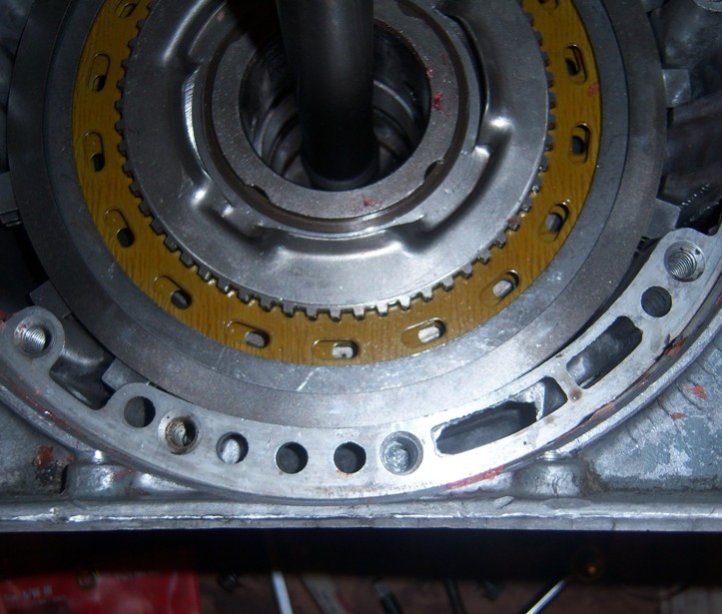

Here is the freshly drilled and cleaned out hole, now ready to run the tap that came with the kit to install the oversize thread insert.


Attachments

  • th350build 269.jpg
    th350build 269.jpg
    92.2 KB · Views: 298
  • th350build 270.jpg
    th350build 270.jpg
    80.9 KB · Views: 322

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

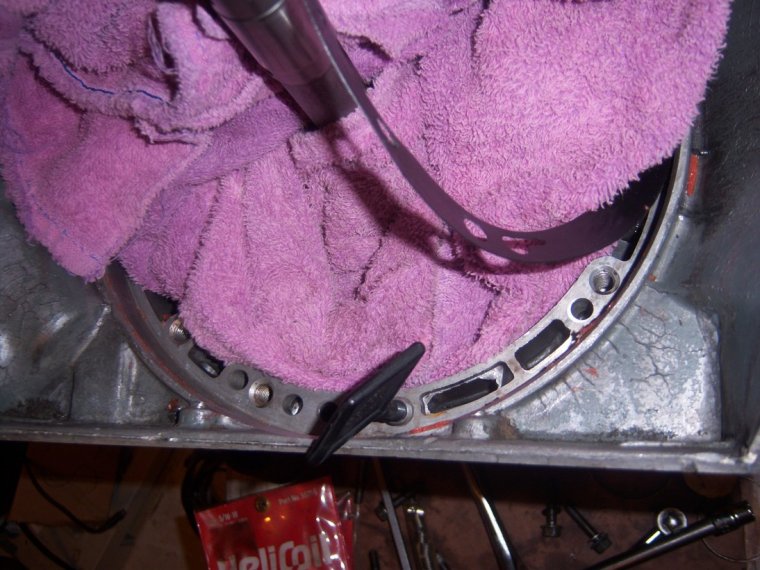

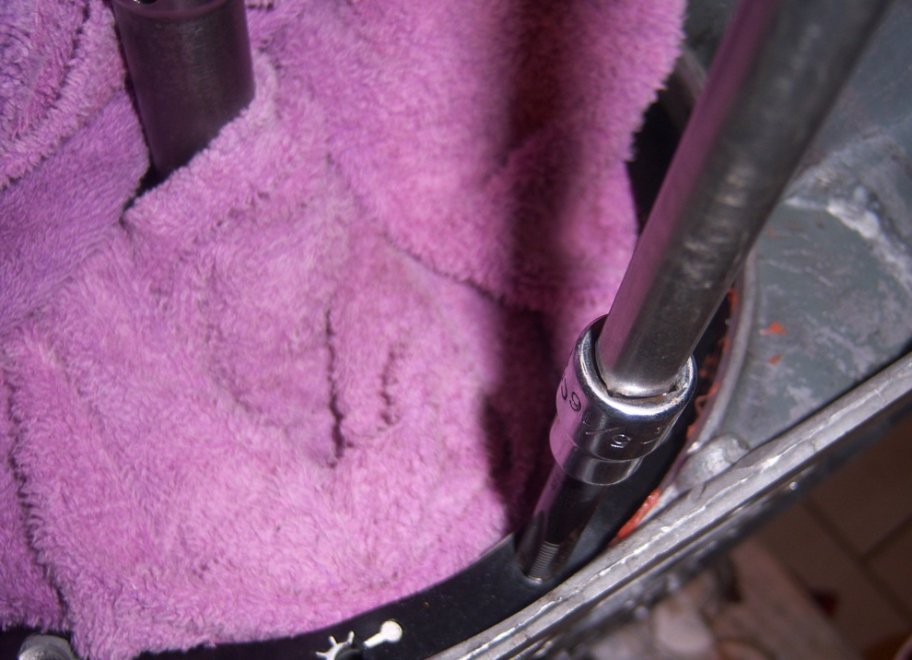

Keeping the towel or putting the towel back in the transmission tunnel because even the tap is cutting aluminum and does also make shavings. Once you get the hole tapped. Now spin a HeliCoil onto the installer tool. Be sure the run the Coil all the onto the tool as far as it'll go. If the Coil happens to be longer than you need, then pull a coil or 2 off the top of the complete coil, but not the bottom. Notice the bottom of the coil has a stop built into and that's for the installed tool to be able to push the coil threads.


Attachments

  • th350build 274.jpg
    th350build 274.jpg
    89.2 KB · Views: 266
  • th350build 276.jpg
    th350build 276.jpg
    95.9 KB · Views: 291

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

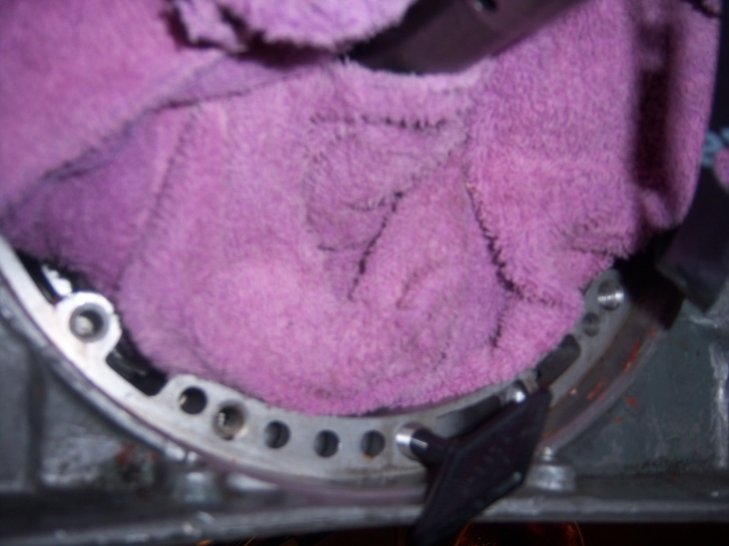

Here's a better angle of the Installer tool.


Attachments

  • th350build 276.jpg
    th350build 276.jpg
    95.9 KB · Views: 283
  • th350build 278.jpg
    th350build 278.jpg
    51.5 KB · Views: 290

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

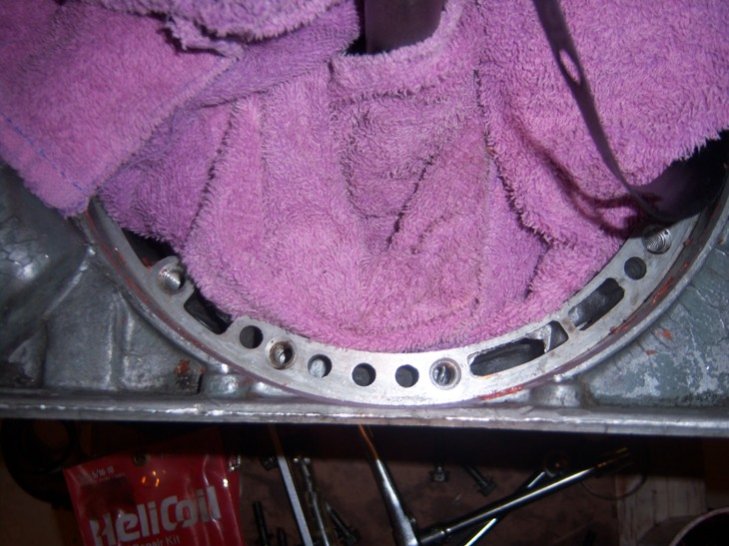

Once the Coil is bottomed out into the hole and threads you cut, or at least below flush of the surface where it's not sticking up past whatever you're bolting to, then you can back the installer tool out counter clockwise and the coil should stay in place.

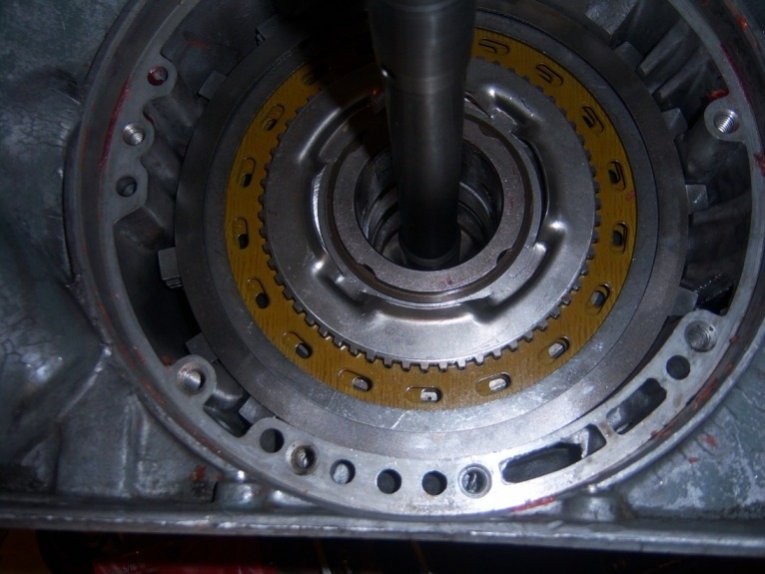

And there you have it. A brand new thread. As you thread the bolt into the new coil, it will push the tab on the coil out of the way. If it's a situation where there isn't enough room in the hole for that piece, then you get something and push that tab up and/or down til it breaks off, but I've always just left it it works as a lock for the threads and the bolt.


Attachments

  • th350build 283.jpg
    th350build 283.jpg
    81.5 KB · Views: 257
  • th350build 284.jpg
    th350build 284.jpg
    70.8 KB · Views: 239

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

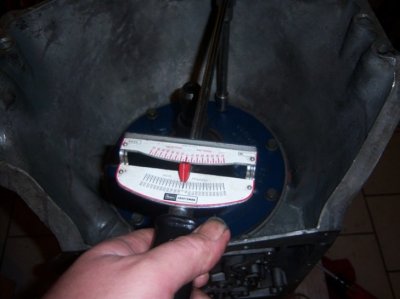

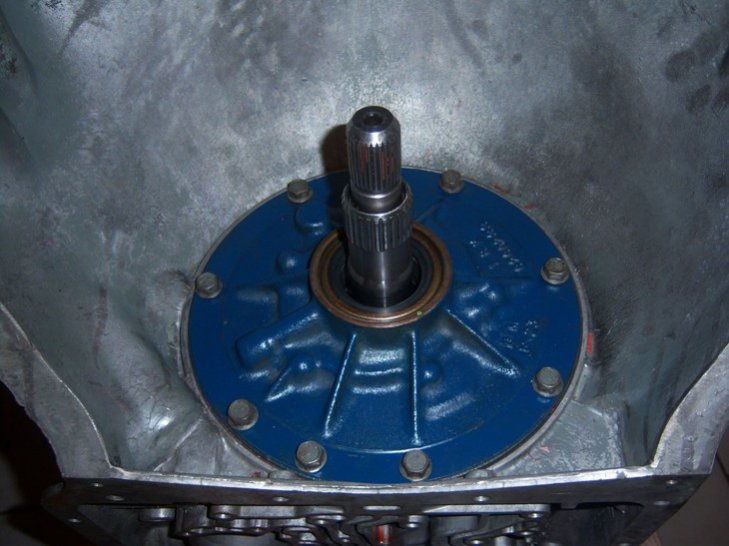

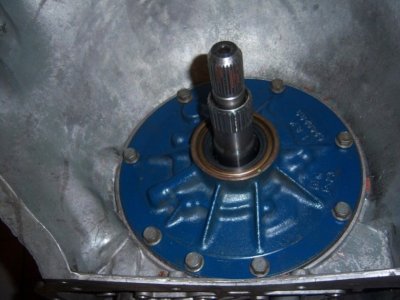

And now back to regularly scheduled programming. Installed the pump and torqued all the bolts. Rolled it over and installed the valve body and completed the install. The transmission worked fine and made several trips to and from TX and was working perfectly 2 years later when the car was hit and totalled and ended up in Chevy heaven.


Attachments

  • th350build 249.jpg
    th350build 249.jpg
    47.9 KB · Views: 274
  • th350build 285.jpg
    th350build 285.jpg
    83.5 KB · Views: 273
  • th350build 286.jpg
    th350build 286.jpg
    69 KB · Views: 250

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

VAL

Full Access Member
Joined
May 29, 2012
Posts
893
Reaction score
55
Location
TUCSON, ARIZONA
First Name
VAL
Truck Year
1986
Truck Model
K10 SILVERADO
Engine Size
5.7
Nice! Gonna order a set from amazon. I was just gonna tap it out to the next size, but something about not having all 16 pan bolts the same size, would just ******* Gnaw at me forever. OCD?:think:


350runner

Full Access Member
Joined
Feb 9, 2013
Posts
2,858
Reaction score
224
Location
tx
First Name
Ceasar
Truck Year
82
Truck Model
c10
Engine Size
350
Paint it bro
