Headlight Issues

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

1987square

Junior Member
Joined
Oct 29, 2024
Posts
2
Reaction score
0
Location
WI
First Name
Mike
Truck Year
1987
Truck Model
K2500
Engine Size
350

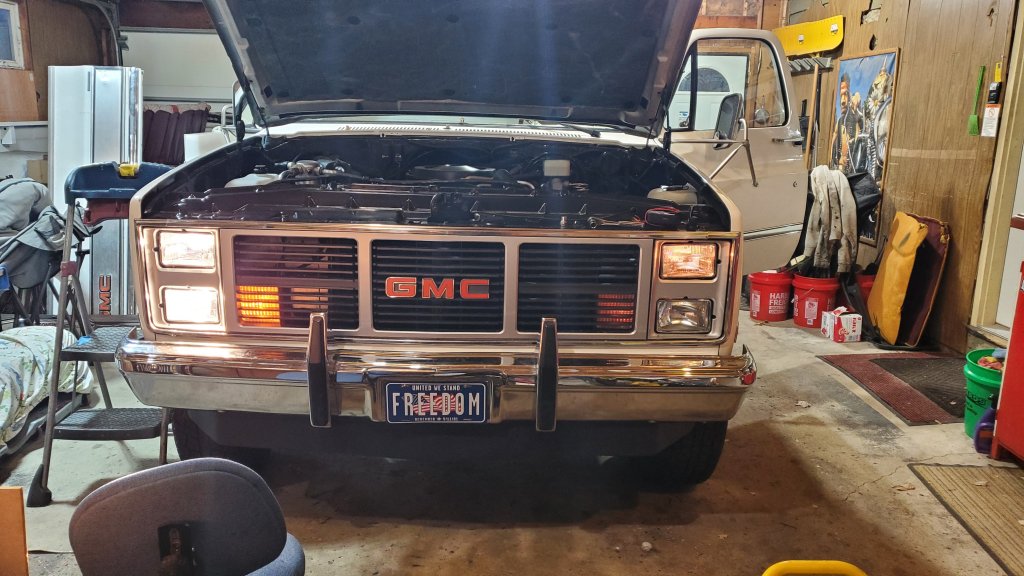

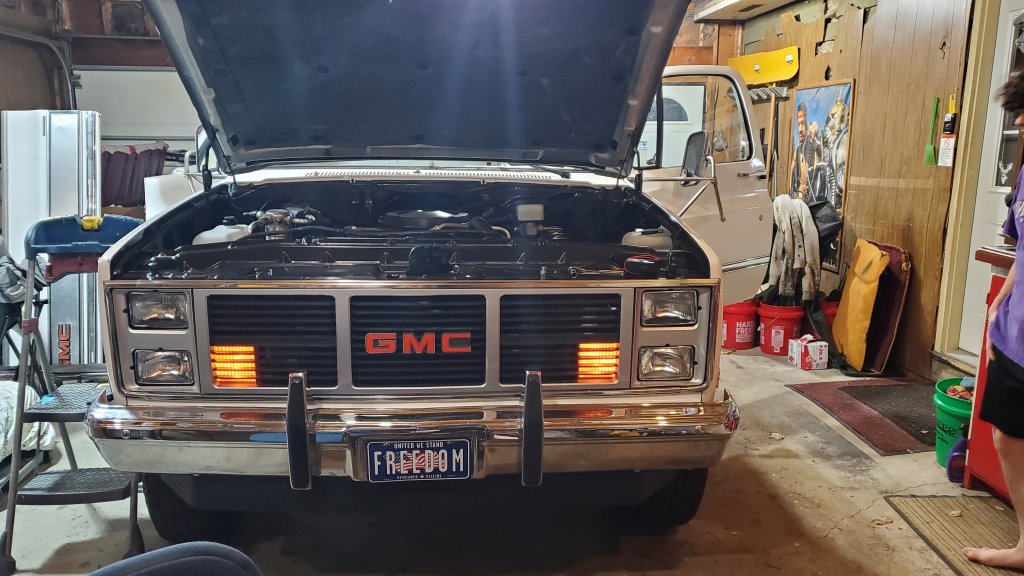

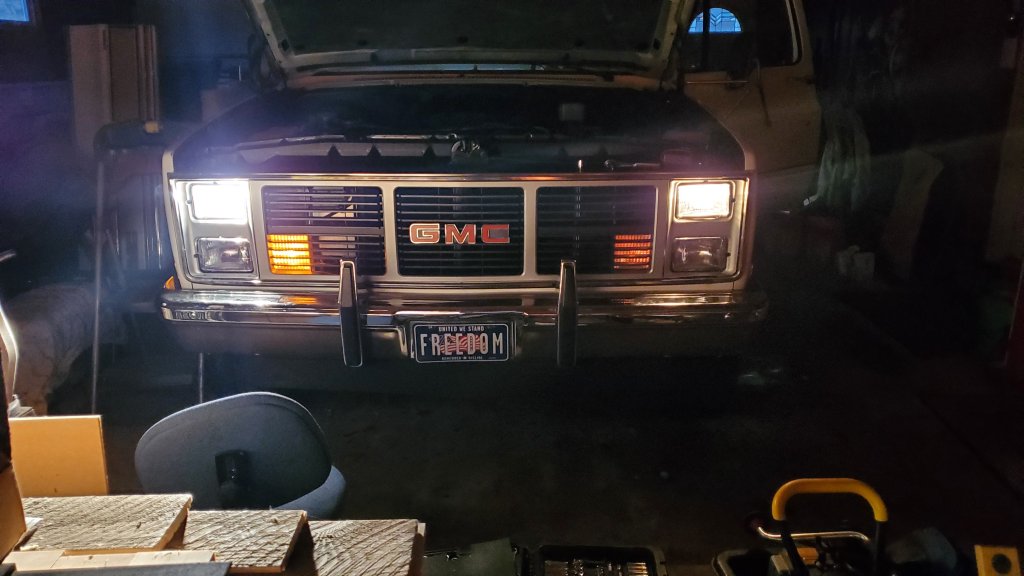

I've been replacing parts on this truck with my son. Putting it back together and having headlight issues, no wiring was replaced and all lights worked before. Not sure if this matters but the gas tanks and bed are not on the truck. Driving lights all work in 1st position. When pulling the light knob to the headlight or second position the driver's headlight and parking light are much dimmer than the passenger headlight. When turning on the brights, the drivers side headlight and parking light are very dim. Also, when in the brights position the left turn signal indicator is illuminated on the dash and won't turn off. I've cleaned all the grounds, and cleaned the connectors at the lights with no luck. Not sure what my next steps should be.


Attachments

  • 20241029_175549.jpg
    132.7 KB · Views: 13
  • 20241029_175654.jpg
    84.2 KB · Views: 13
  • 20241029_175735.jpg
    137.8 KB · Views: 15

PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,868
Reaction score
5,686
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,76,70,48
Truck Model
Suburban k10, bonanza k10, k30, k20, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350, 350
That's definitely a ground issue imo. Two headlight grounds on each side of the core support. Make sure the ground from the firewall to the engine block is good. Then there should be a ground from the core support to the frame on the passenger side. Then your battery should be grounded to the engine block. Check your tail light grounds too.

Sounds like a ground issue in the headlight system. Could be a headlight switch/connector issue too possibly.


Grit dog

Full Access Member
Joined
May 18, 2020
Posts
7,053
Reaction score
12,374
Location
Auburn, Washington
First Name
Todd
Truck Year
1986, 1977
Truck Model
K20, C10
Engine Size
454, 350
Agree with ground issue. And likely it’s something you removed. Since they worked before.


1987square

Junior Member
Joined
Oct 29, 2024
Posts
2
Reaction score
0
Location
WI
First Name
Mike
Truck Year
1987
Truck Model
K2500
Engine Size
350
Appreciate your responses and will work on this again this week and provide an update. Again, the bed is not on the truck thus the taillights are not hooked up at this time, hoping that is not an issue to try and resolve the headlight problem. Could anyone also post pictures of the ground locations so I can make sure I have all of mine hooked up properly. Also not sure if this is relevant but my truck has a dual battery setup.

Last edited:

PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,868
Reaction score
5,686
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,76,70,48
Truck Model
Suburban k10, bonanza k10, k30, k20, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350, 350
I can't say for sure but Id bet the tail lights are gonna need to be hooked up for the rest of the lights to work properly. When wiring or bulb issues arise on these trucks it always seems to make the lights act very strange.

If anything ground the tail light grounds and the check what it does after that.


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,548
Reaction score
8,976
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Do a volt drop test. Put a volt meter on the headlight ground,ground the other end to the battery negative,whatever the volt meter reads is the amount of voltage you are dropping through the ground. If you aren't dropping a volt or more ground is not your problem do the same thing but headlight positive and battery positive,same thing,look your volt drop. If that is confusing,put a clip on a long chunk of wire,clip it to negative battery post,touch it to headlight negative,did the bulb get bright? Do the same thing on the hot side,did the bulb get bright.

Last edited:

DougC10

Junior Member
Joined
Nov 13, 2024
Posts
10
Reaction score
0
Location
33433
First Name
Doug
Truck Year
1986
Truck Model
C10 Silverado 1500
Engine Size
305
I can't say for sure but Id bet the tail lights are gonna need to be hooked up for the rest of the lights to work properly. When wiring or bulb issues arise on these trucks it always seems to make the lights act very strange.

If anything ground the tail light grounds and the check what it does after that.

grounds everywhere, always full of hate :(


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,868
Reaction score
5,686
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,76,70,48
Truck Model
Suburban k10, bonanza k10, k30, k20, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350, 350
grounds everywhere, always full of hate :(
If ya ain't got em then nothin will work right!

I had one of the small bulbs sidemarker in the passenger tailight burn out "halfway" was black but still worked, made the drivers side brake light stay on full brightness and no signal and also no running light just full brake light. Changed the little bulb and everything was normal again.

Pissed me off because I had just fixed the wiring earlier that year and started doing weird crap like that, chased it for at least a month, all the bulbs were working right but the drivers side brake light was on. Checked the bulbs for funsies after chasing wiring, fixed it lol
