Grab handles on inside pillars

Ron Sebastian

Full Access Member
Joined
Nov 8, 2018
Posts
106
Reaction score
124
Location
Vero Beach
First Name
Ron
Truck Year
1987
Truck Model
Custom Deluxe V10
Engine Size
350

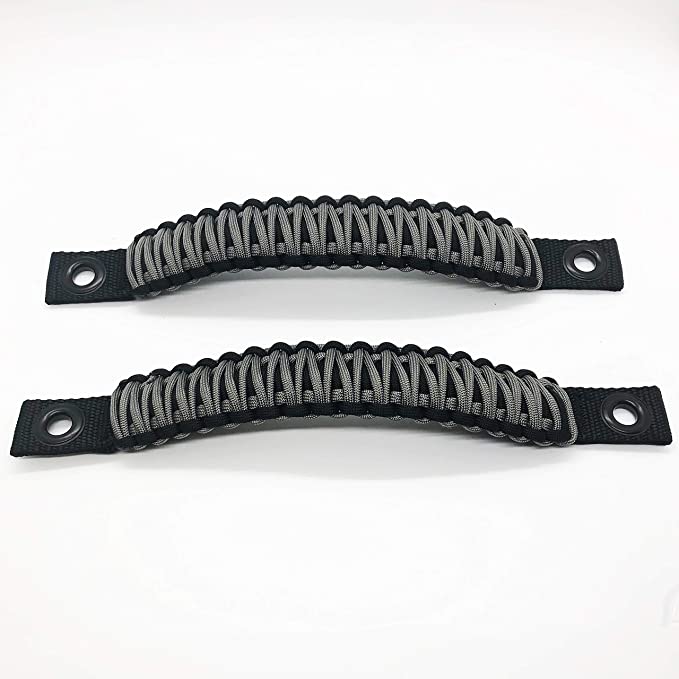

Thinking of bolting these in to the pillar to assist entry. Anyone else try this vs the big metal ones? Would it be possible to rivnut anchors into the pillar between the windshield and door frame or better along the roof closer to the windshield?


Attachments

  • grab handles.jpg
    grab handles.jpg
    38.3 KB · Views: 19
Last edited:

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
1,800
Reaction score
2,480
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
The metal is fairly thin. When I made my handles, I welded a B_U_N_G" to the pillar so the attachment bolts had something to grab to. The other issue is the way the pillar faces inward and forward. That makes the face point towards the glass. So unless you have your windshield out, It's almost impossible to drill or screw a bolt in straight.



Ron Sebastian

Full Access Member
Joined
Nov 8, 2018
Posts
106
Reaction score
124
Location
Vero Beach
First Name
Ron
Truck Year
1987
Truck Model
Custom Deluxe V10
Engine Size
350
The metal is fairly thin. When I made my handles, I welded a B_U_N_G" to the pillar so the attachment bolts had something to grab to. The other issue is the way the pillar faces inward and forward. That makes the face point towards the glass. So unless you have your windshield out, It's almost impossible to drill or screw a bolt in straight.

I saw your post and was hoping for a "no weld" solution. Thanks.


Old77

Super Moderator
Staff member
Super Moderator
Joined
Aug 19, 2010
Posts
27,022
Reaction score
4,766
Location
Kansas City, Mo
First Name
Jacob
Truck Year
1977/1991
Truck Model
C10 longbed/R3500 Dually
Engine Size
350/454
I saw your post and was hoping for a "no weld" solution. Thanks.
That's not likely. Can't see how you'd complete this project without welding especially to add rigidity to the A pillar which was never built for this intent. You gotta add strength to that attachment point without a doubt.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
1,800
Reaction score
2,480
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Also, its multi layers. Behind the initial metal there is another layer at an odd angle. You only have about 1/4 inch to play with. That's why the b_u_n_g idea allowed me to thread the hole and use a 3/8" bolt.

You could probably use a nutsert and a spacer but either way the glass is coming out.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
1,913
Reaction score
1,941
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
350
The metal is fairly thin. When I made my handles, I welded a B_U_N_G" to the pillar so the attachment bolts had something to grab to. The other issue is the way the pillar faces inward and forward. That makes the face point towards the glass. So unless you have your windshield out, It's almost impossible to drill or screw a bolt in straight.

@Ron Sebastian Take a look at SquareRoot's thread. There is his, build which is really the nicer one and my simplified version is later on in the thread. I won't not the grab handles in your picture personally. The pipe handle is the way to go.


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
2,200
Reaction score
1,509
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
I used those exact soft handles, right above my head on the roof and door line. Suburbans have some sandwiched body panels in that area.

I used 3/8 nutserts and it holds them perfect, I can't see any flex in the metal with all my weight. You just have to make sure you space the holes right, so there's some slack to get your hand in there but not so much it looks like a dumb floppy loop.


Backfoot100

Full Access Member
Joined
Aug 18, 2017
Posts
329
Reaction score
485
Location
Florida
First Name
Eddie
Truck Year
1986
Truck Model
C1500 Suburban
Engine Size
Carbed 350
I used those exact soft handles, right above my head on the roof and door line. Suburbans have some sandwiched body panels in that area.

I used 3/8 nutserts and it holds them perfect, I can't see any flex in the metal with all my weight. You just have to make sure you space the holes right, so there's some slack to get your hand in there but not so much it looks like a dumb floppy loop.
Good info. Where did you get the handles from if I may ask?


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
2,200
Reaction score
1,509
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350

Ron Sebastian

Full Access Member
Joined
Nov 8, 2018
Posts
106
Reaction score
124
Location
Vero Beach
First Name
Ron
Truck Year
1987
Truck Model
Custom Deluxe V10
Engine Size
350
Amazon 25.99

Bartact TAOGHRPBG - Wrangler JK Rear Side Sound Bar Paracord Grab Handles (Pair) - Made in USA - Black/Graphite​
