Gearing for performance TH700R4 + 3.73 ?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Logbed

Member
Joined
May 31, 2022
Posts
30
Reaction score
24
Location
Finland
First Name
Juha
Truck Year
1985
Truck Model
c10 Fleetside Silverado
Engine Size
305
Hi,
I have an '85 longbed 2wd that has a well built 305 with the basic upgrades (Edelbrock 500 carb, performer intake, performer plus cam, HEI and 1.5in long headers). Being adjusted in a hub dyno it pulled 190hp/4600 and 250ftlbs/3100 (at the hubs). The engine also has low mileage and budget-wise I'm not into a 350 or 383 build right now. The truck is pulling nicely once it gets to the powerband at 3000rpm, but the "launch" from the traffic lights, right from the 2000 stall speed is not so cheerful. What I was thinking was swapping the TH350 to a mildly prepped "stage1-rebuilt" TH700R4 with a higher stall torque converter and possibly also swapping the gear ratio from 3.4 to 3.7 as the differential will need shimming anyhow. The idea is mostly to have more crisp acceleration (with some wheelspin ;)) by the help the low first gear. Overdrive would be nice too, specially if I go with the lower diff gearing. Going from 3.4 to 3.7 I'd still have around 15% longer gearing overall with the 4th gear (not so important anyhow, I drive mostly in town and practically never faster than 55mph). (Edit: The tire size is 275/60R15. Tire height 28".)

Thoughts, experiences?

Last edited:

82sbshortbed

Fuckemall!!
Joined
Mar 1, 2018
Posts
14,646
Reaction score
48,566
Location
SE Texas
First Name
Doug
Truck Year
1982, 1984
Truck Model
1500 shortbed, 1500 longbed
Engine Size
454, 305
I've got almost that same set up on mine but, I have a 454 with 700r4, 2200 tc, Trutrac 8.5 10 bolt 3.73 posi rear end, 275/60/R15 tires.

Had a th350 behind the bbc but it was running 2800 at 55 so I switched to the 700r4 for od. Haven't gotten it back yet from the shop but should be this week. I think it'll be a nice setup when I get it back.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,659
Reaction score
6,602
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Had the same setup in an 85 el Camino. World Product 305 heads, 700 and 3:73 gears. Despite my comments about 305's, it ran pretty darn good. The 3:73 we're a perfect compliment to the 700.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,966
Reaction score
23,480
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
I agree, 3.73 should work pretty darn well.


Logbed

Member
Joined
May 31, 2022
Posts
30
Reaction score
24
Location
Finland
First Name
Juha
Truck Year
1985
Truck Model
c10 Fleetside Silverado
Engine Size
305
Had the same setup in an 85 el Camino. World Product 305 heads, 700 and 3:73 gears. Despite my comments about 305's, it ran pretty darn good. The 3:73 we're a perfect compliment to the 700.
Which model World Product heads did you have? How big and around where in the powerband was the power improvement compared to stock heads? Asking out of interest, maybe something to do during the next winter?

Right now my assumption is that I'd get more "0-60 performance" with drivetrain upgrades (3000 stall turbine, low first&second gears of the TH700R4 and 3:73 gearing) than what a heads upgrade could bring to me with the current drivetrain, am I right?


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,659
Reaction score
6,602
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Which model World Product heads did you have? How big and around where in the powerband was the power improvement compared to stock heads? Asking out of interest, maybe something to do during the next winter?

Right now my assumption is that I'd get more "0-60 performance" with drivetrain upgrades (3000 stall turbine, low first&second gears of the TH700R4 and 3:73 gearing) than what a heads upgrade could bring to me with the current drivetrain, am I right?

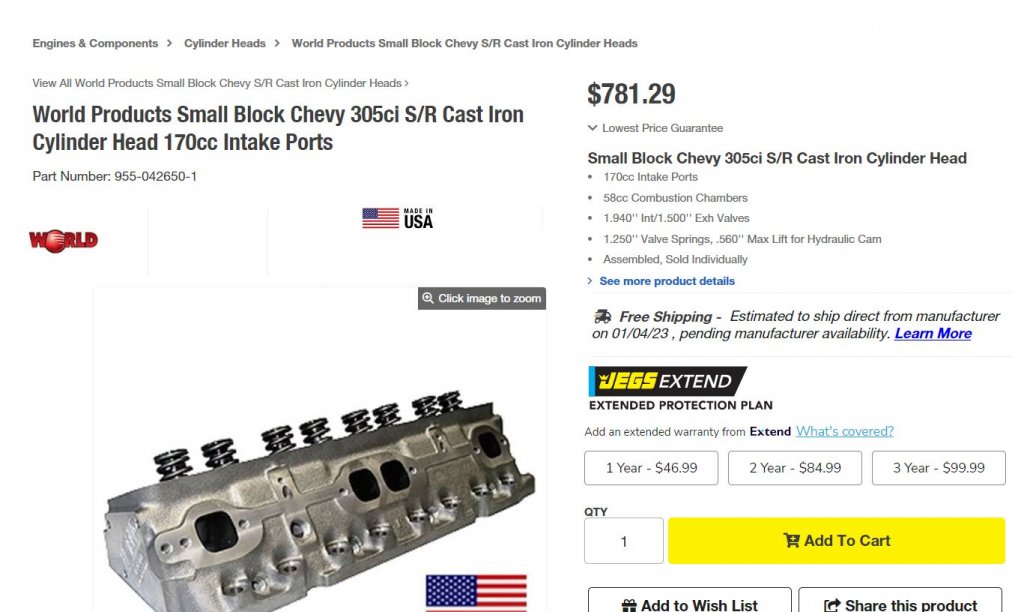

They were the Torquer SR 305 heads. My experience was 12-13 years ago. I see they still make them but at the current cost of $781.29 per head, NO way would I put that kind of money into a 305. Times have changed. In your case, I would do the trans swap (700) and gears (3:73) and call it good. It will completely change the nature of your truck.


Attachments

  • WP Heads.JPG
    WP Heads.JPG
    90.7 KB · Views: 33

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,966
Reaction score
23,480
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
They were the Torquer SR 305 heads. My experience was 12-13 years ago. I see they still make them but at the current cost of $781.29 per head, NO way would I put that kind of money into a 305. Times have changed. In your case, I would do the trans swap (700) and gears (3:73) and call it good. It will completely change the nature of your truck.

Holy crap those are expensive now!


Itali83

Full Access Member
Joined
Feb 7, 2015
Posts
575
Reaction score
1,075
Location
Maine
First Name
Ben
Truck Year
1982, 1987, 1987
Truck Model
K10, 'burban C10, Jimmy
Engine Size
350, 6.2, 350
You’re in the right track with your thinking about doing gearing and trans mods over a built 350/383 etc. I’m playing devils advocate and saying go 4.10’s. The overdrive and your overall driving style/needs (not much Highway or high speeds) I think the 4.10’s will just really give you the kick in the pants you’re looking for and won’t be terrible to live with.

Ben


Logbed

Member
Joined
May 31, 2022
Posts
30
Reaction score
24
Location
Finland
First Name
Juha
Truck Year
1985
Truck Model
c10 Fleetside Silverado
Engine Size
305
You’re in the right track with your thinking about doing gearing and trans mods over a built 350/383 etc. I’m playing devils advocate and saying go 4.10’s. The overdrive and your overall driving style/needs (not much Highway or high speeds) I think the 4.10’s will just really give you the kick in the pants you’re looking for and won’t be terrible to live with.

Ben
Thanks, 4:10 made me think, I'd still have 10% longer 4th than my current 3rd, but the 1st would be 30% shorter!

Last edited:

Logbed

Member
Joined
May 31, 2022
Posts
30
Reaction score
24
Location
Finland
First Name
Juha
Truck Year
1985
Truck Model
c10 Fleetside Silverado
Engine Size
305
How is it, if the quicker ratio, higher stall and lower 1st gear make the wheels spin, is it always going to be one wheel only unless I have a limited slip diff? And If I install limited slip kit, am I too modestly powered to spin both the wheels? (You wouldn't think a middle aged man has problems like this :D )


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,018
Reaction score
1,811
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
I’m not sure if you would have the power to break both wheels loose, but I think it would probably work because the rear of the truck is very light.

Also remember that when you spin both wheels you have to deal with the rear end swinging around to the right because you are no longer dragging one tire. With this amount of power it will probably be a slow turn, but may still be enough to bang into a curb or car that is on your right.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,966
Reaction score
23,480
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
How is it, if the quicker ratio, higher stall and lower 1st gear make the wheels spin, is it always going to be one wheel only unless I have a limited slip diff? And If I install limited slip kit, am I too modestly powered to spin both the wheels? (You wouldn't think a middle aged man has problems like this :D )

If you shock the driveline with enough horse torques, both tires will spin :)

With a one tire fryer, going straight or turning right will almost always spin just one tire. The trick is to kick it to the left and be prepared to steer into it.


Logbed

Member
Joined
May 31, 2022
Posts
30
Reaction score
24
Location
Finland
First Name
Juha
Truck Year
1985
Truck Model
c10 Fleetside Silverado
Engine Size
305
I’m not sure if you would have the power to break both wheels loose, but I think it would probably work because the rear of the truck is very light.

Also remember that when you spin both wheels you have to deal with the rear end swinging around to the right because you are no longer dragging one tire. With this amount of power it will probably be a slow turn, but may still be enough to bang into a curb or car that is on your right.
Not worried about the rear swinging, more like waiting for it, although like you said, I must be realistic with the power I have...
Off topic: Actually, right now there's 6" of new snow outside and my daily driver, a TT Quattro 3.2 with studded snow tires, had the ESP turned off like I have it most of the time. So today was all about avoiding curbs while drifting all four tires broken loose and pointing somewhere else than where the car was going ;)
