Gear ratio for 14 bolt an dana 44

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Elton Youngblood

Junior Member
Joined
Apr 7, 2021
Posts
9
Reaction score
7
Location
Mo
First Name
Elton
Truck Year
1978
Truck Model
C20
Engine Size
350

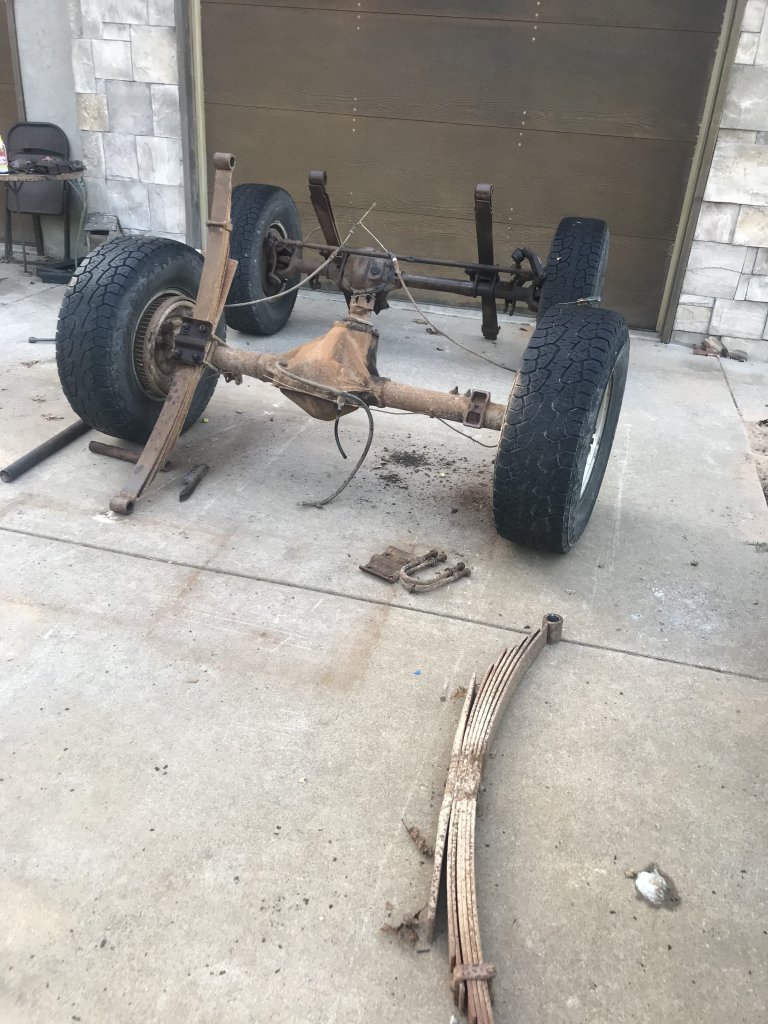

So I have a 75 suburban with a dana 44 an 14 bolt ff. I thought the gear ratio was marked on the gears?


Attachments

  • 859C9806-5F25-4087-AA77-4536BC81E8C4.jpeg
    140.2 KB · Views: 119
  • D83DF13B-BBBE-4791-A154-A1D995B9E0AC.jpeg
    163.3 KB · Views: 88
  • 887B62E2-7BA3-41FB-813F-B99B12468339.jpeg
    145.7 KB · Views: 87

Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,135
Reaction score
4,984
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
So I have a 75 suburban with a dana 44 an 14 bolt ff. I thought the gear ratio was marked on the gears?

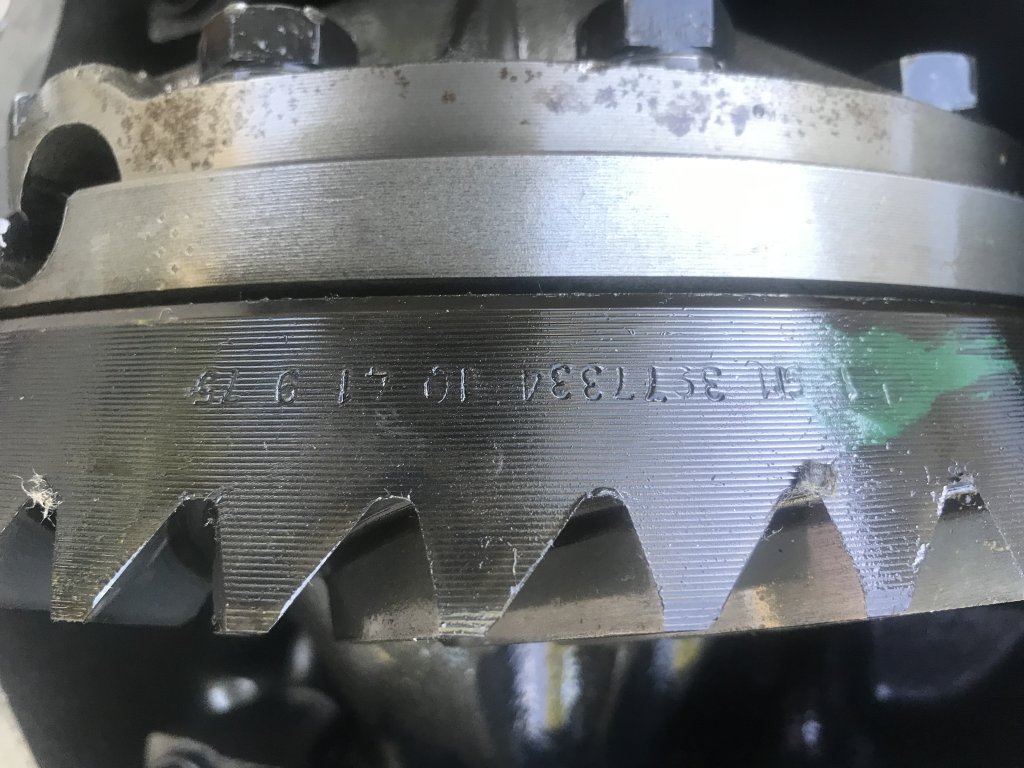

They are... the 10 41 is telling you that you have a 10 tooth pinion and 41 tooth ring gear, for a 4.10 gear ratio. The front ring gear will have similar markings to tell you what that ratio is.


Elton Youngblood

Junior Member
Joined
Apr 7, 2021
Posts
9
Reaction score
7
Location
Mo
First Name
Elton
Truck Year
1978
Truck Model
C20
Engine Size
350

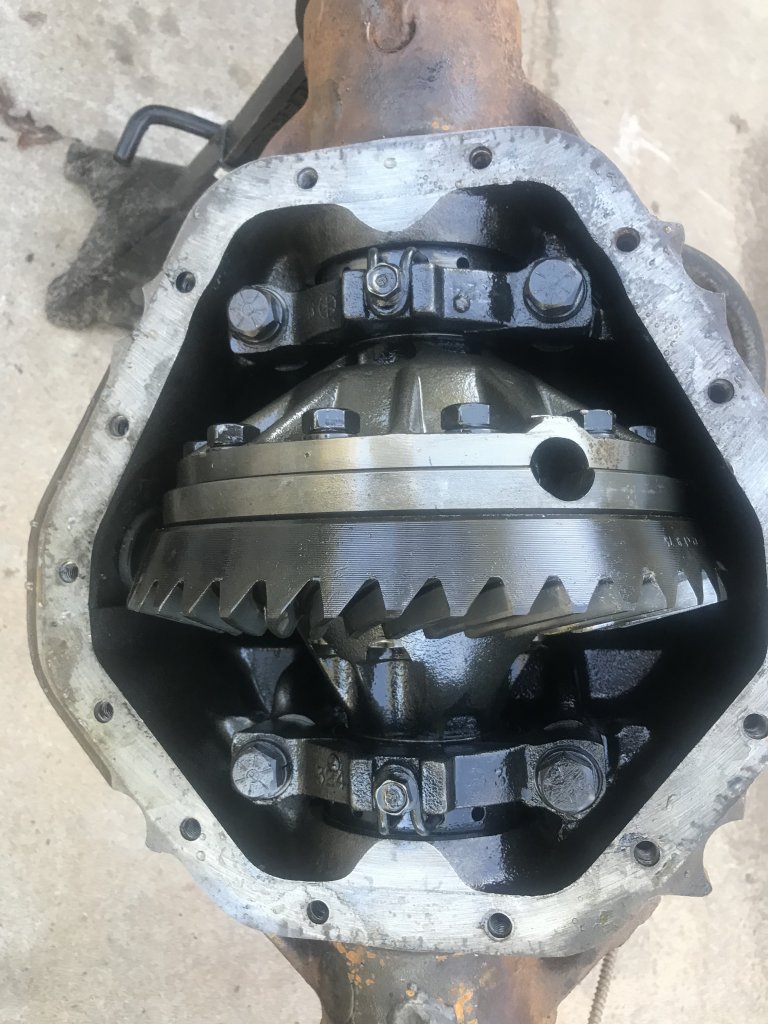

Perfect i guess I i was making it to difficult. Im also thinking this is a non locking 14bolt ?
