Fender and Hood panel fitment

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Joined
May 29, 2023
Posts
31
Reaction score
34
Location
Minnesota
First Name
Brian
Truck Year
1980/1984 Frankenstein
Truck Model
K10 Silverado
Engine Size
305
This is one of my next to dos. Figure out how to bridge that grand canyon gap.

You must be registered for see images attach


HotWheelsBurban

Full Access Member
Joined
Mar 31, 2023
Posts
2,350
Reaction score
5,509
Location
Houston, Texas
First Name
Carol
Truck Year
1990
Truck Model
R2500 Suburban
Engine Size
350
Looks like the hood is on a little bit cockeyed. The rear corner on the driver's side is too close; that may bind up when it's being opened and closed. There should be some adjustment in the hood hinges bolt holes?

Joined
May 29, 2023
Posts
31
Reaction score
34
Location
Minnesota
First Name
Brian
Truck Year
1980/1984 Frankenstein
Truck Model
K10 Silverado
Engine Size
305
Here is the other side.


You must be registered for see images attach



You must be registered for see images attach


waterpirate

Full Access Member
Joined
Jan 2, 2019
Posts
919
Reaction score
2,188
Location
delaware
First Name
Eric
Truck Year
1987
Truck Model
v10
Engine Size
5.7 tbi
Bent hinges are my guess. Remove the hood pins prior to trying to r&r hinges and attempt a re fitment. If you are comfortable with the idea, remove the pins and grab the hood while partially open and give it a shove to the driver side to try and tweak what you have back a closer fir before you start loosening bolts.
Eric


dhenderz

Full Access Member
Joined
Nov 30, 2018
Posts
191
Reaction score
228
Location
Michigan
First Name
Dennis
Truck Year
1977
Truck Model
K10
Engine Size
327
I would start with loosening the bolts holding the hinge to the hood, on both side (with some extra hands). There is adjustment in the holes that will allow you to 'twist' the hood some to try and align it better with the fenders.


HotWheelsBurban

Full Access Member
Joined
Mar 31, 2023
Posts
2,350
Reaction score
5,509
Location
Houston, Texas
First Name
Carol
Truck Year
1990
Truck Model
R2500 Suburban
Engine Size
350
Here is the other side.


You must be registered for see images attach



You must be registered for see images attach
That side looks better but is still too tight on the front. Panels that close in primer, will chip with more paint on them.


hoagster

Full Access Member
Joined
May 16, 2017
Posts
1,381
Reaction score
3,425
Location
California
First Name
Mike
Truck Year
1973, 2000
Truck Model
K10, 1500
Engine Size
5.3l
I would start with loosening the bolts holding the hinge to the hood, on both side (with some extra hands). There is adjustment in the holes that will allow you to 'twist' the hood some to try and align it better with the fenders.
Not a one person job!! and take the lock pins out of the equation. little bit at a time you get it!

Joined
May 29, 2023
Posts
31
Reaction score
34
Location
Minnesota
First Name
Brian
Truck Year
1980/1984 Frankenstein
Truck Model
K10 Silverado
Engine Size
305
So far I have loosened all of the bolts and while I can make the worse side look better, the other side now does not line up with the front grill area so I push it back to get that in line and the whole thing goes back to how it was. Makes me think the hinges might be bent or installed wrong on the truck itself.


DanMcG

Full Access Member
Joined
Jun 28, 2014
Posts
1,076
Reaction score
1,891
Location
Central NY
First Name
Dan
Truck Year
1978 1985
Truck Model
k10 k10
Engine Size
400 350
How's the gap between the hood and the cowl? if thats even , you might need to move the core support towards the passenger side.
It also looks like the drivers fender is to tight to the cowl. Shime that out and it will lessen the difference on the drivers side.

Joined
May 29, 2023
Posts
31
Reaction score
34
Location
Minnesota
First Name
Brian
Truck Year
1980/1984 Frankenstein
Truck Model
K10 Silverado
Engine Size
305
How's the gap between the hood and the cowl? if thats even , you might need to move the core support towards the passenger side.
It also looks like the drivers fender is to tight to the cowl. Shime that out and it will lessen the difference on the drivers side.

The back on the cowl is straight

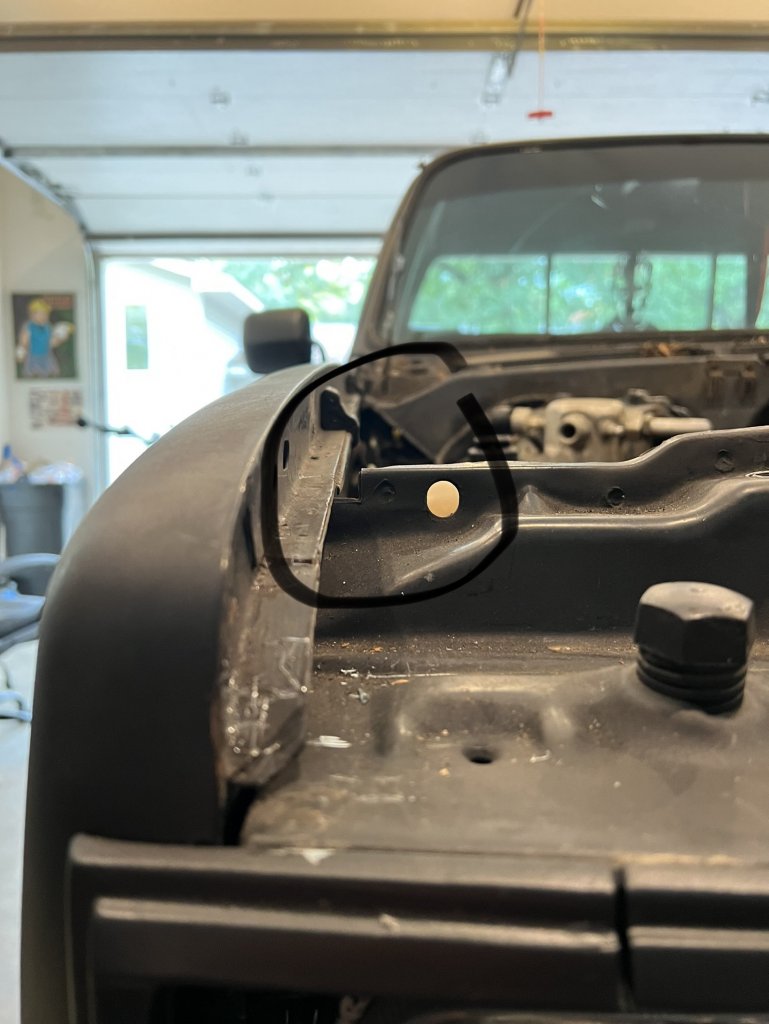

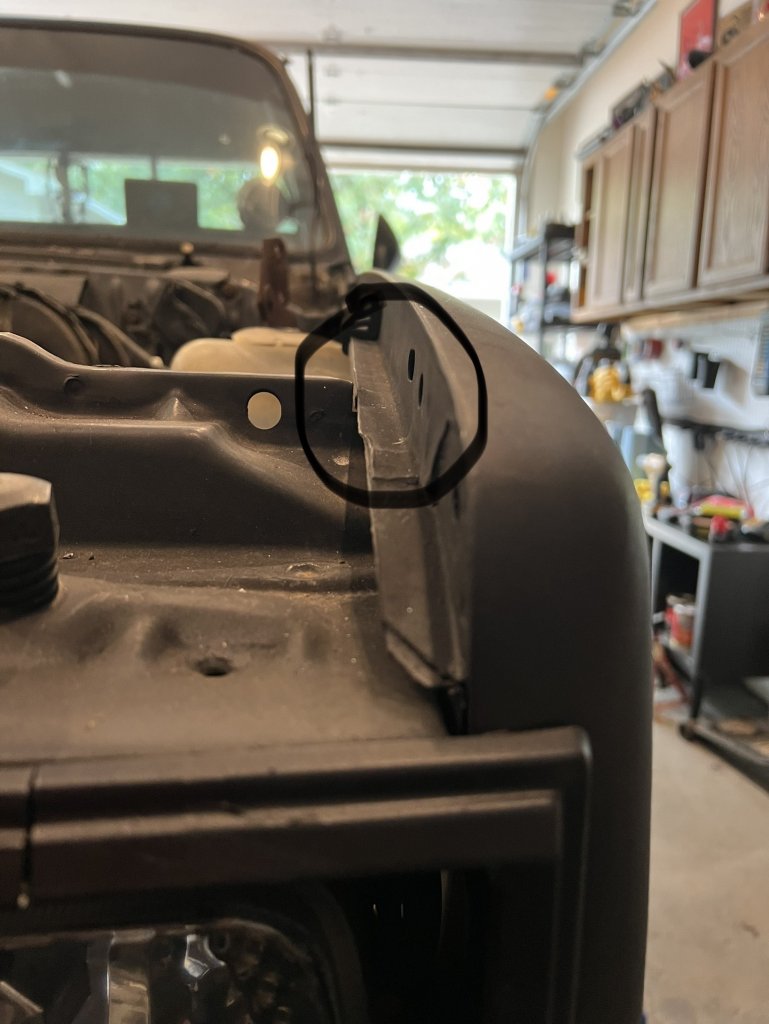

You might be onto something. I just noticed the differences between the two sides of the support.


Attachments

  • IMG_7566.jpg
    92.9 KB · Views: 56
  • IMG_7567.jpg
    92.1 KB · Views: 54
