Emissions after MSD Ignition/EFI

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

scenic760

Full Access Member
Joined
Jan 12, 2021
Posts
311
Reaction score
198
Location
SoCal
First Name
Chris
Truck Year
1981
Truck Model
Suburban K10
Engine Size
350

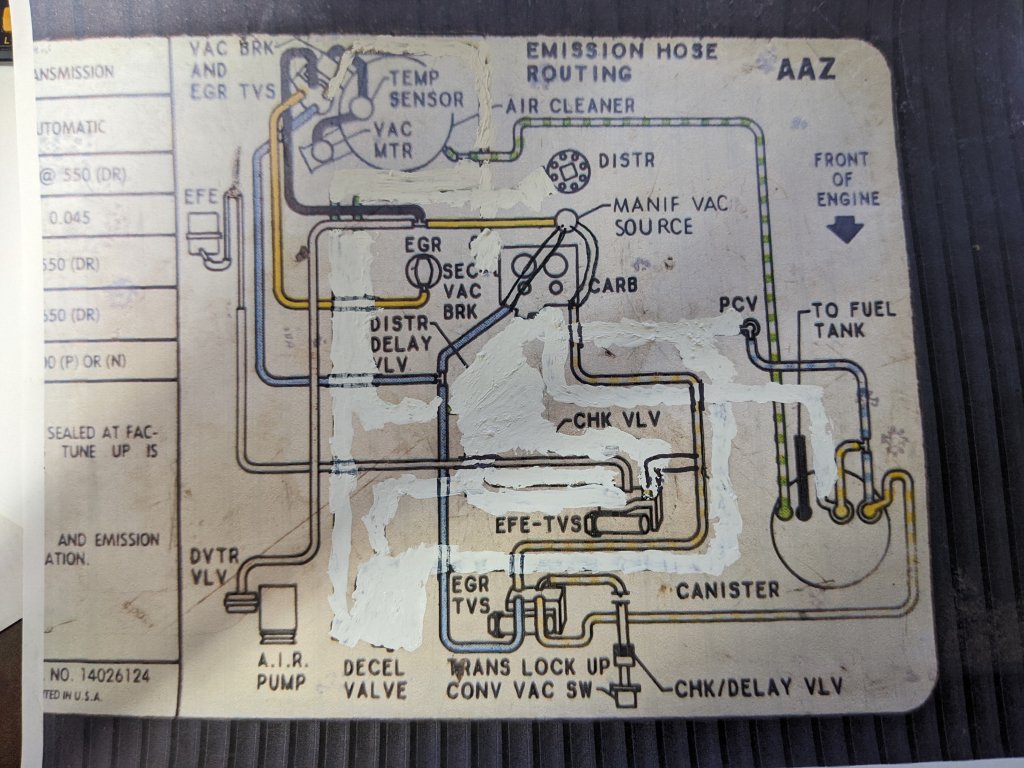

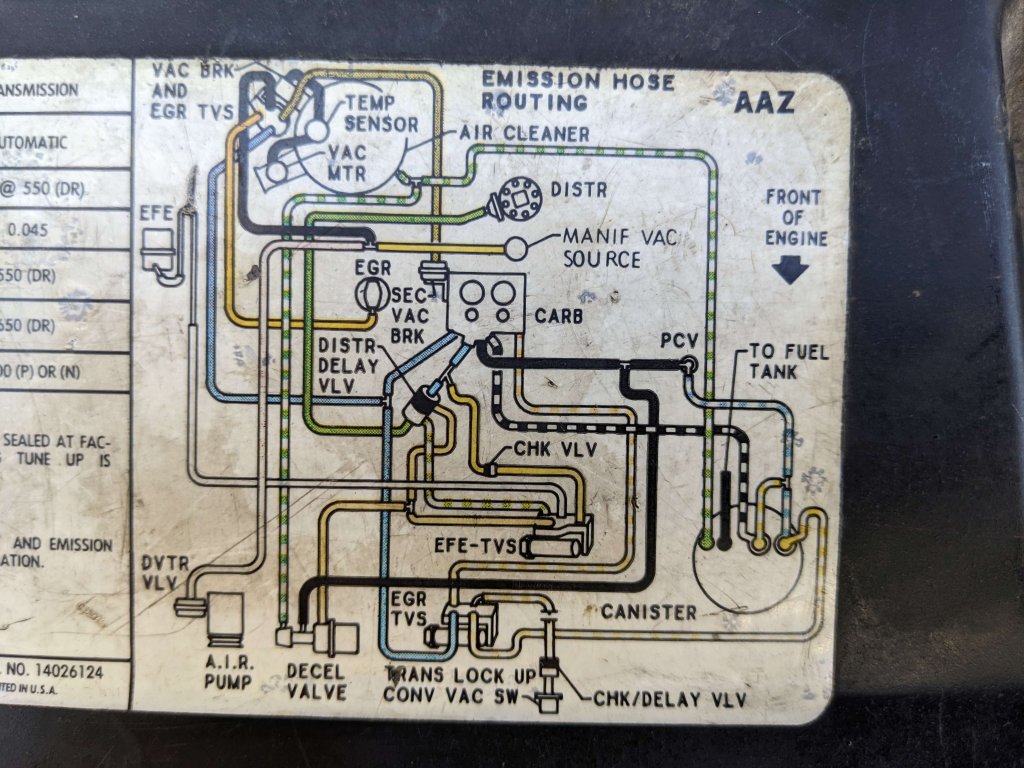

Hopefully someone can take a look at this and let me know if it makes sense as I know very little about this stuff!

So I'm using an Atomic EFI system, MSD 6AL box and MSD 85551 distributor. All of the items have a CARB exemption so in theory I should be able to pass smog check with all the items installed...theoretically.

I was going back through trying to decipher all the emission hose/vacuum routing and it seems to me that a decent portion of the stuff gets deleted by using the EFI and electronic spark control?

It looks like EFI knocks out the need for the vac lines to carb and I can grab vacuum sources from the manifold for the EGR and EFE TVS valves? In addition I think the EFI/6AL would eliminate the need for a decel valve?

Does this look correct? If it does, hopefully the smog guys sees it that way too!!


Attachments

  • PXL_20220314_184832731.jpg
    161.1 KB · Views: 87
  • PXL_20220314_181027494.jpg
    178.4 KB · Views: 78
Last edited:

scenic760

Full Access Member
Joined
Jan 12, 2021
Posts
311
Reaction score
198
Location
SoCal
First Name
Chris
Truck Year
1981
Truck Model
Suburban K10
Engine Size
350
Well after doing some reading it looks like I already have a flaw in my plan...it seems as though the EGR will need ported vacuum..which the Atomic does have a provision for...


Frankenchevy

Proverbs 16:18
Joined
Jan 3, 2018
Posts
5,904
Reaction score
7,249
Location
USA
First Name
Jeremy
Truck Year
Square
Truck Model
CUCV
Engine Size
Small
You may want to reach out to a smog referee. In my experience, they can be helpful.


scenic760

Full Access Member
Joined
Jan 12, 2021
Posts
311
Reaction score
198
Location
SoCal
First Name
Chris
Truck Year
1981
Truck Model
Suburban K10
Engine Size
350
You may want to reach out to a smog referee. In my experience, they can be helpful.

I always thought that you had to make an appointment with one AFTER you failed a smog test? Can you just cold call them for questions?

Also with a new engine, wouldn't it need to be broken in to pass?


scenic760

Full Access Member
Joined
Jan 12, 2021
Posts
311
Reaction score
198
Location
SoCal
First Name
Chris
Truck Year
1981
Truck Model
Suburban K10
Engine Size
350
You may want to reach out to a smog referee. In my experience, they can be helpful.
I just got off the phone with the referee call center and they were definitely nicer than I thought they would be!

She told me that if I'm doing a "direct replacement" which is what an engine rebuild would be vs doing an "engine change" I do not need a referee, just a regular smog test.

I guess that puts me back to hoping I get it right...


scenic760

Full Access Member
Joined
Jan 12, 2021
Posts
311
Reaction score
198
Location
SoCal
First Name
Chris
Truck Year
1981
Truck Model
Suburban K10
Engine Size
350

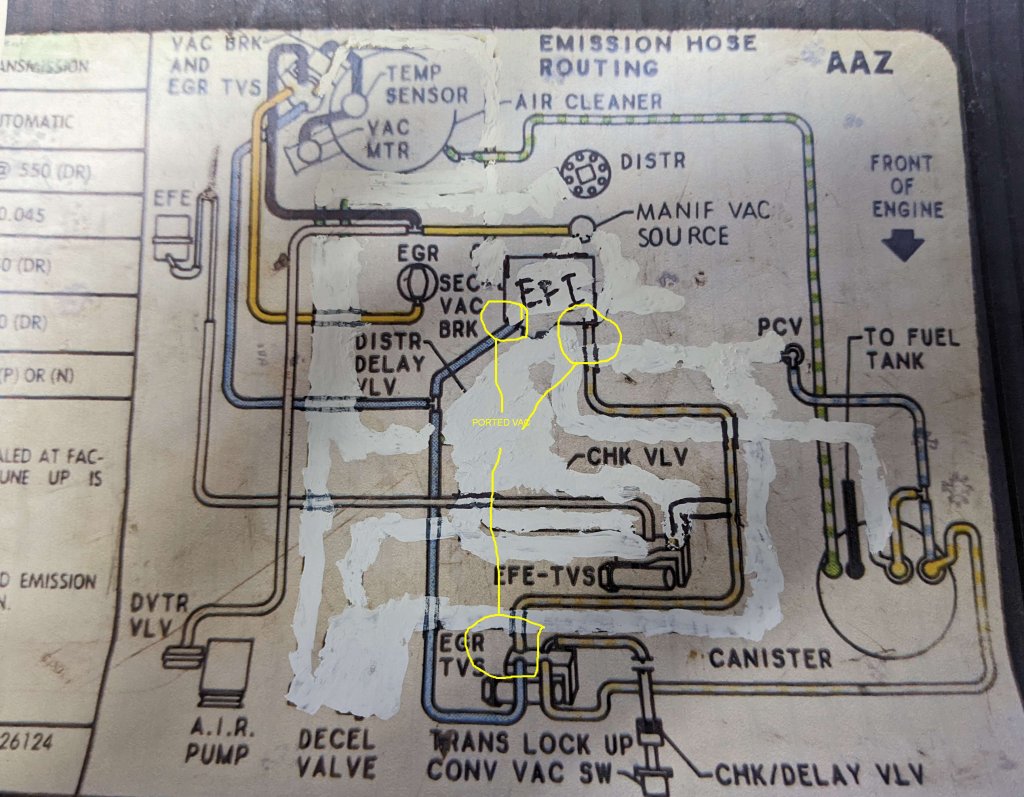

Yet another question....it looks like both of the vacuum sources to the EGR TVS are needing ported vacuum? The EFI only has one ported source so hopefully it's acceptable to just run one line and tee off connections?
