Hey, I looked around here off and on for months but couldn’t find anything useful (I’m sure what I need is here somewhere but I couldn’t find it.)

So about 9 months ago I purchased my 1981 K10. I bought it for a daily driver and my plan was to restore it while daily driving it but that didn’t pan out now I have another daily driver and the truck will be pulled in the garage for the winter so I can work on it and get it back into its glory days..

Anyhow when I bought the truck it came with two new doors from Arizona that are factory Power Windows and my truck is crank windows. Id like to switch over to the new doors and use the power windows but i’m not sure where to start with the conversion, not all the wires are there, i’m not sure how I’d go about hooking wires up in my truck or what wires/harnesses I would need to get. One window needs both glass pieces swapped in and the other just needs the vent window put in. Any help would be greatly appreciated!

The truck also sadly had a 5.3 vortec swapped in by the previous owner not sure if that will change anything with the conversion. Thanks!


Corvette Ed

Full Access Member
Joined
Nov 29, 2020
Posts
2,384
Reaction score
9,006
Location
East Tennessee
First Name
Eli
Truck Year
79
Truck Model
C10
Engine Size
250
Welcome to the forum. The 5.3 shouldn’t have anything to do with your conversion. I’m sure some other member can help. I sure wish the previous owner of mine had swapped my 6 for a 5.3. Good luck.


Doppleganger

Supporting Member
Supporting Member
Joined
May 24, 2019
Posts
6,316
Reaction score
23,871
Location
OH-MI: Just like it sounds
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
5.7
Going power locks too?

You must be registered for see images attach


Doppleganger

Supporting Member
Supporting Member
Joined
May 24, 2019
Posts
6,316
Reaction score
23,871
Location
OH-MI: Just like it sounds
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
5.7
LMC sells a HD power window/relay harness that is wired wrong. This is the correct diagram the fella who figured it out posted on another site. I think you could just make your own.

You must be registered for see images attach


Roboo

Junior Member
Joined
Jan 2, 2022
Posts
3
Reaction score
0
Location
United States
First Name
Colby
Truck Year
1981
Truck Model
K10
Engine Size
5.3
LMC sells a HD power window/relay harness that is wired wrong. This is the correct diagram the fella who figured it out posted on another site. I think you could just make your own.

You must be registered for see images attach
Thanks!


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
1,676
Reaction score
2,189
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
I did this conversion about 25 years ago on my 81 GMC. I used a factory power window/door lock setup from a wrecked 86 Silverado.

It’s a fairly easy swap, but time consuming. Definitely use the LMC harness!! I did my own relay conversion many years later (adding express power down feature on both doors) the windows are much faster than they ever were with the factory setup. Not to mention the wiring is 40 years old, no doubt it’s brittle. If any of the wiring was questionable at the time of installation I would have addressed it then. The wires were cracked and just about broken where they went thru the door boot.


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
1,676
Reaction score
2,189
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
I just re-read the comments on this thread, did LMC correct whatever problem was with their harness? What was the problem? Since the OP has doors with wiring, but no cab harness, does the LMC harness include everything but the motors/actuators?


TPISly-C10

Full Access Member
Joined
Apr 1, 2019
Posts
515
Reaction score
622
Location
Boucherville QC Canada
First Name
Sly
Truck Year
1986
Truck Model
C-10 shortbox
Engine Size
LQ4 6.0L

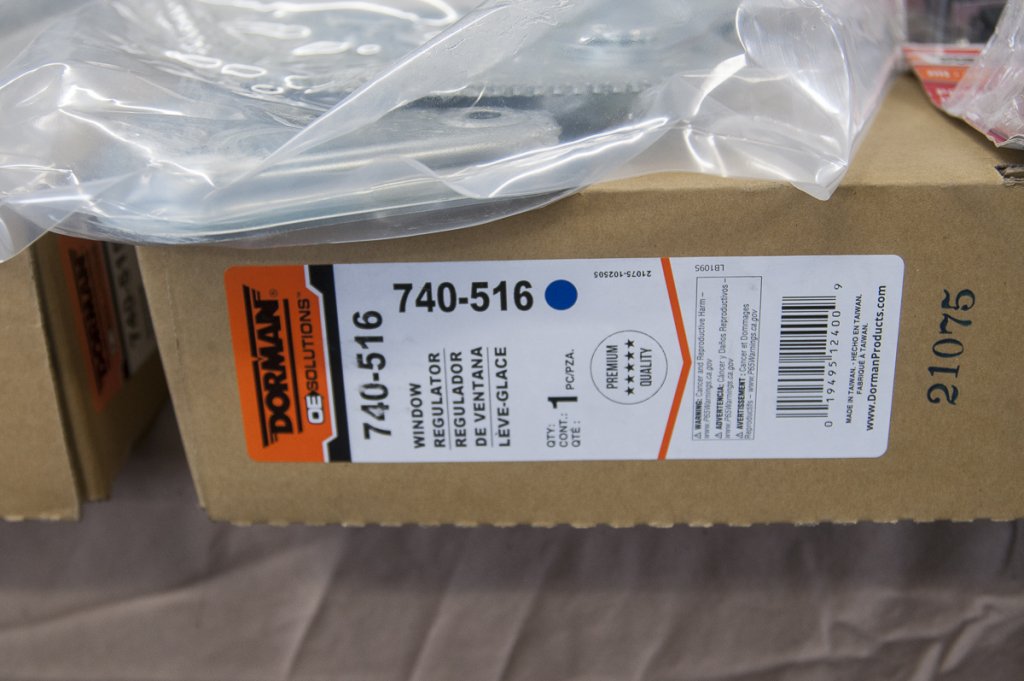

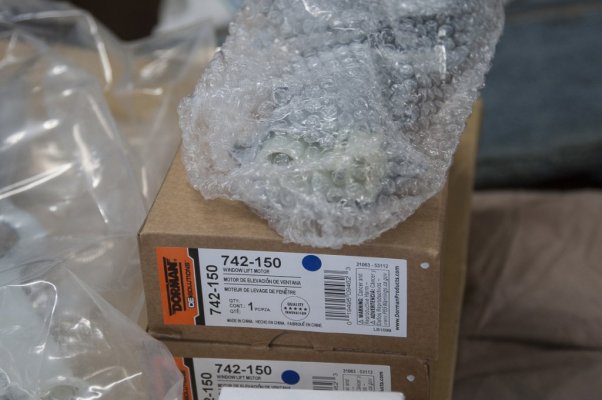

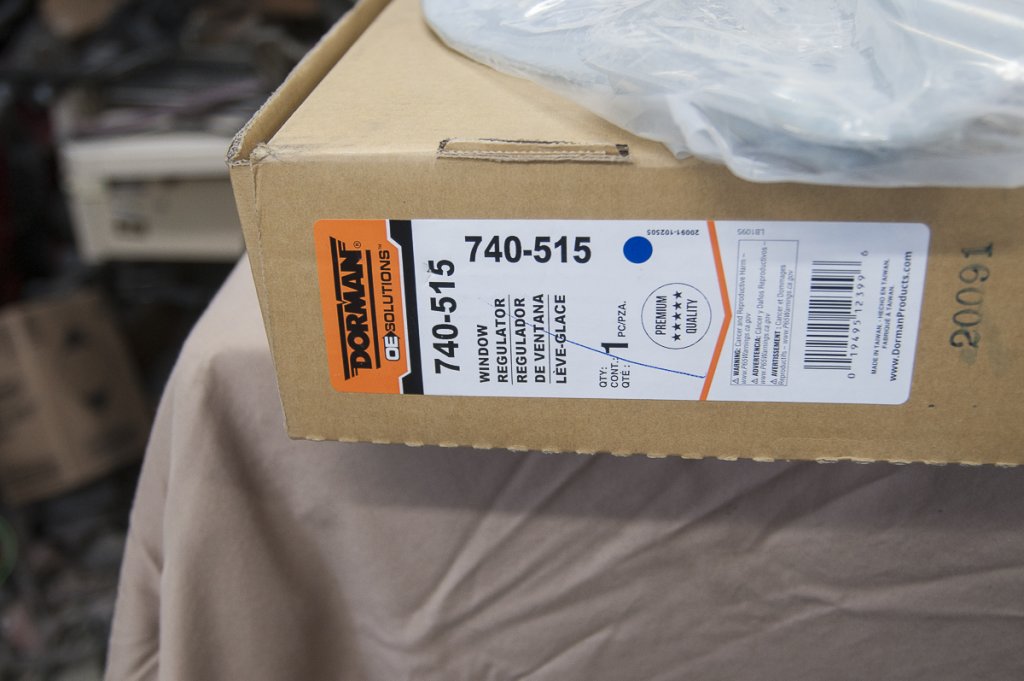

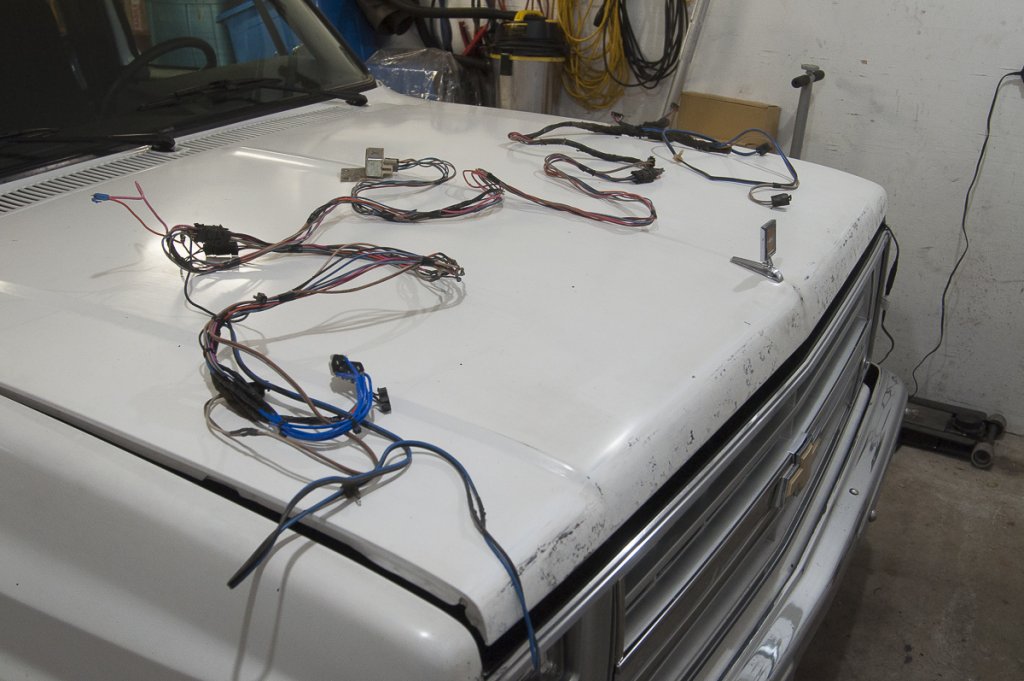

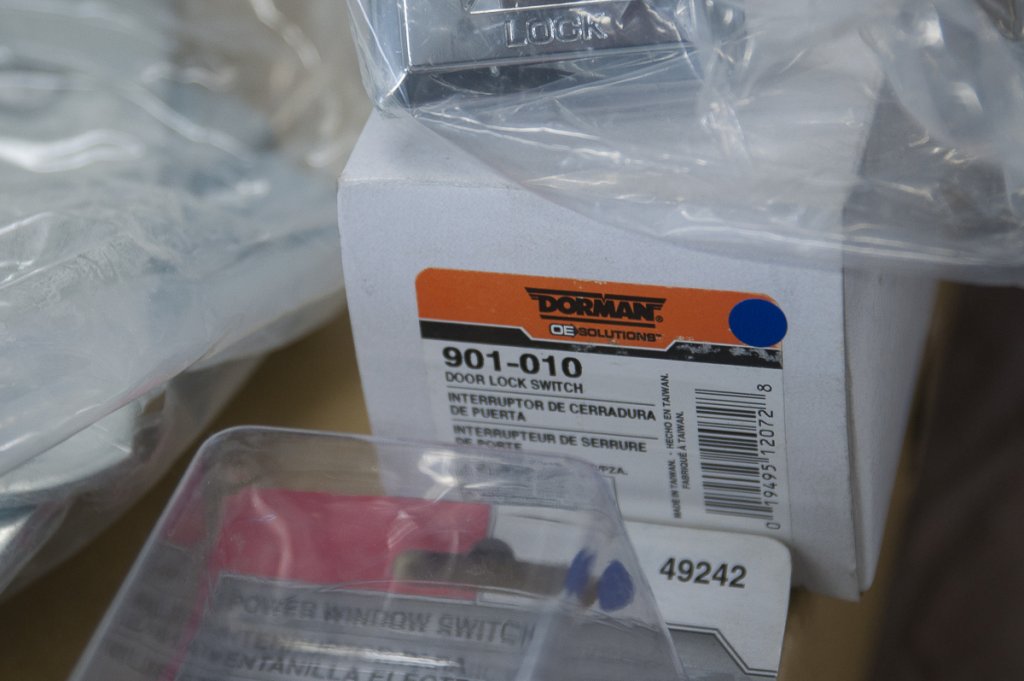

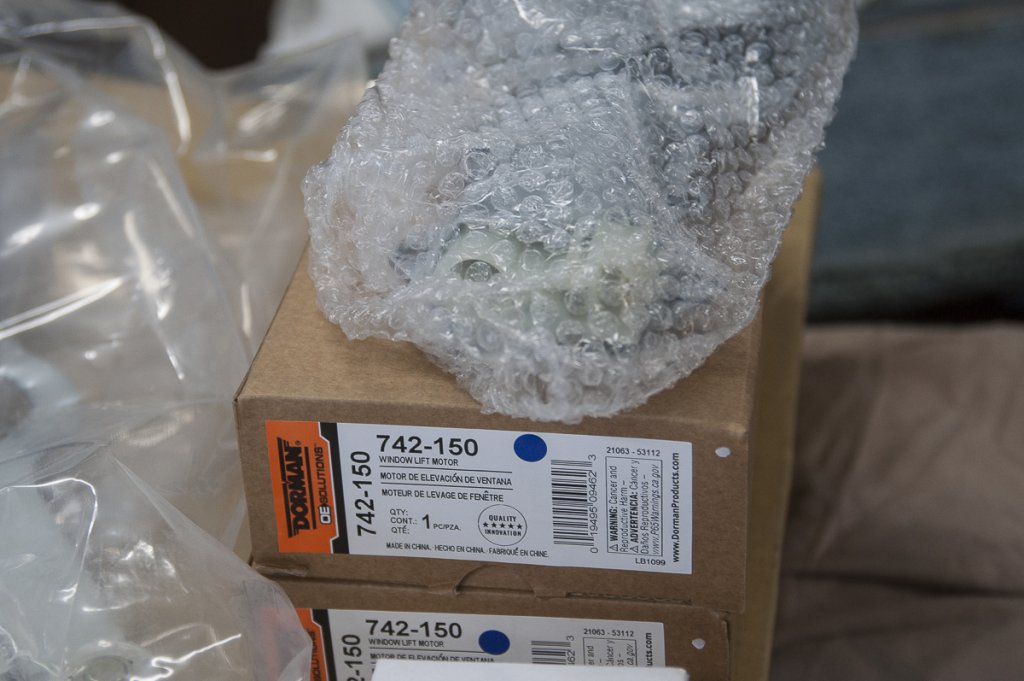

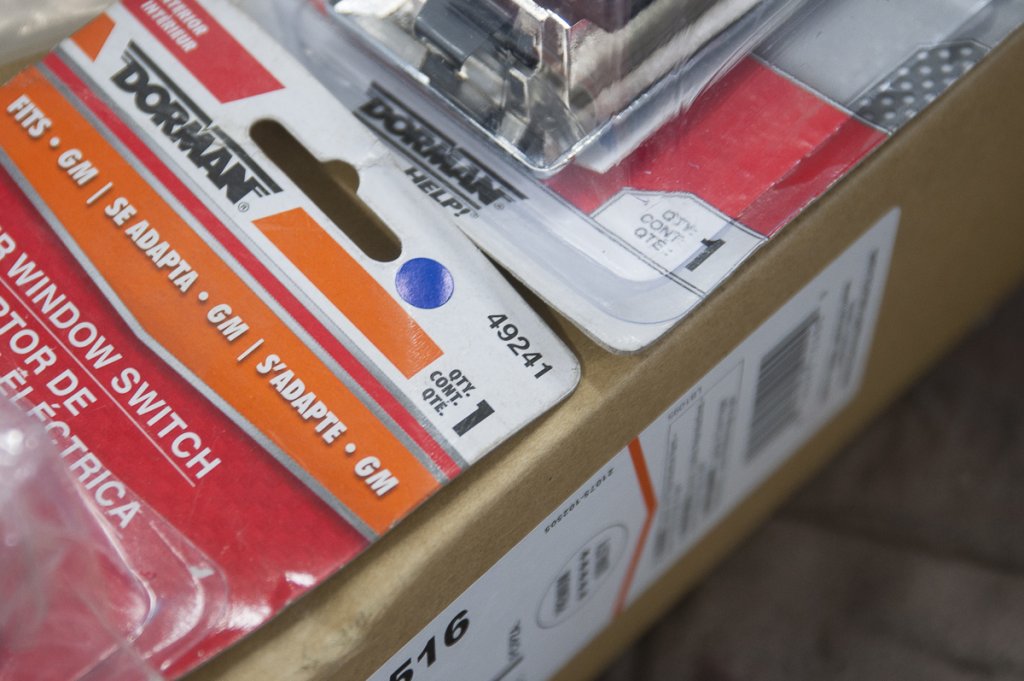

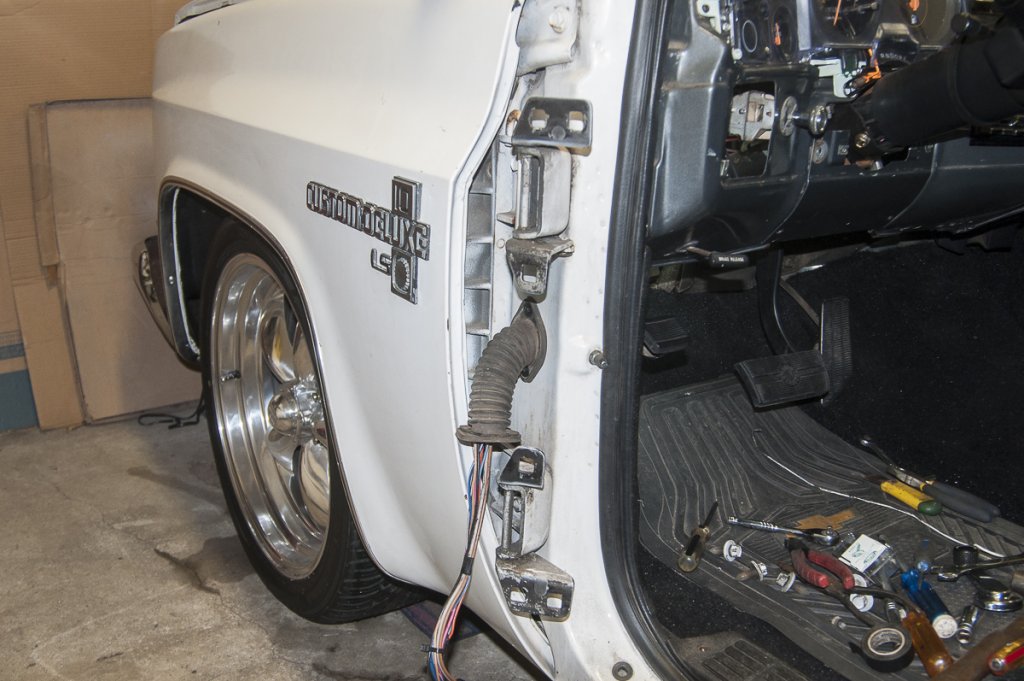

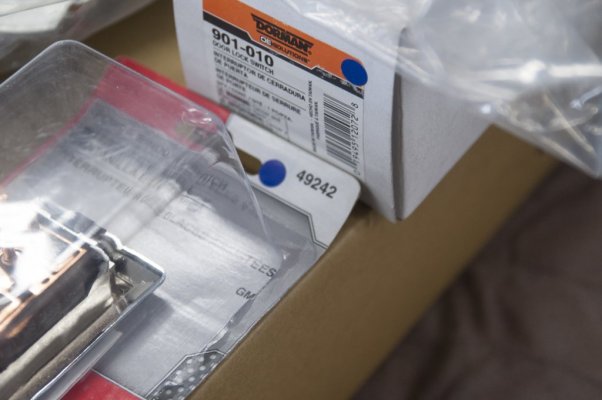

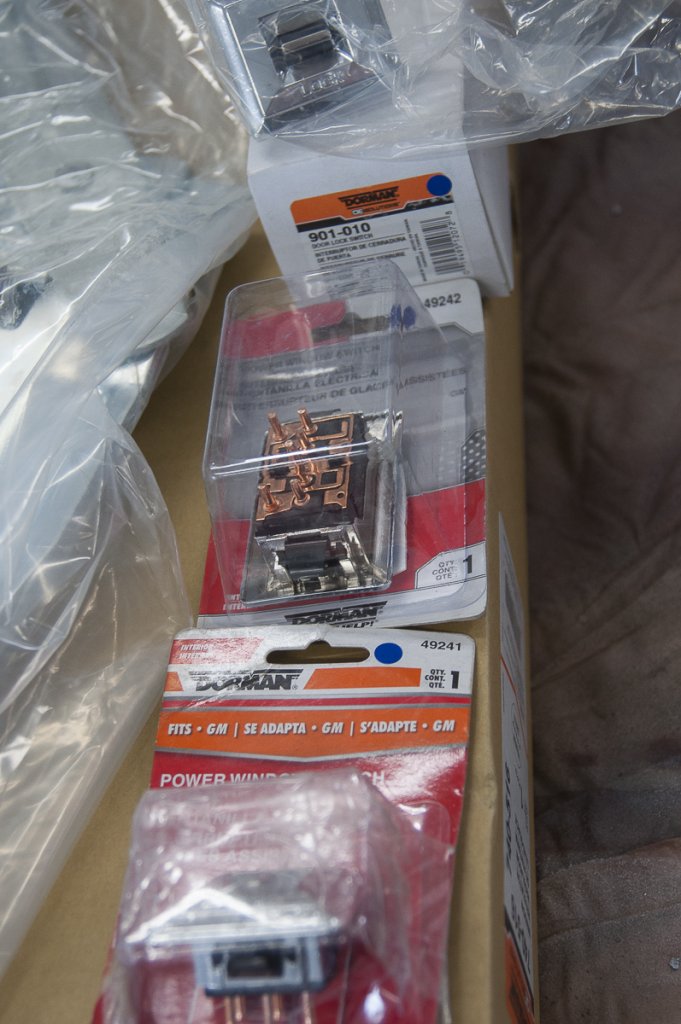

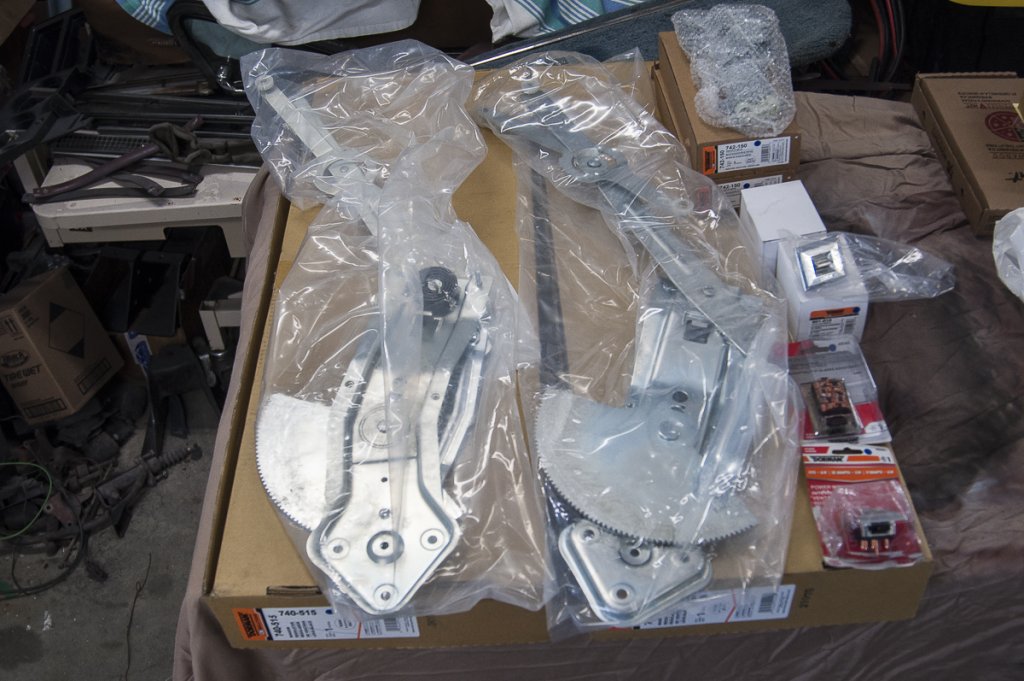

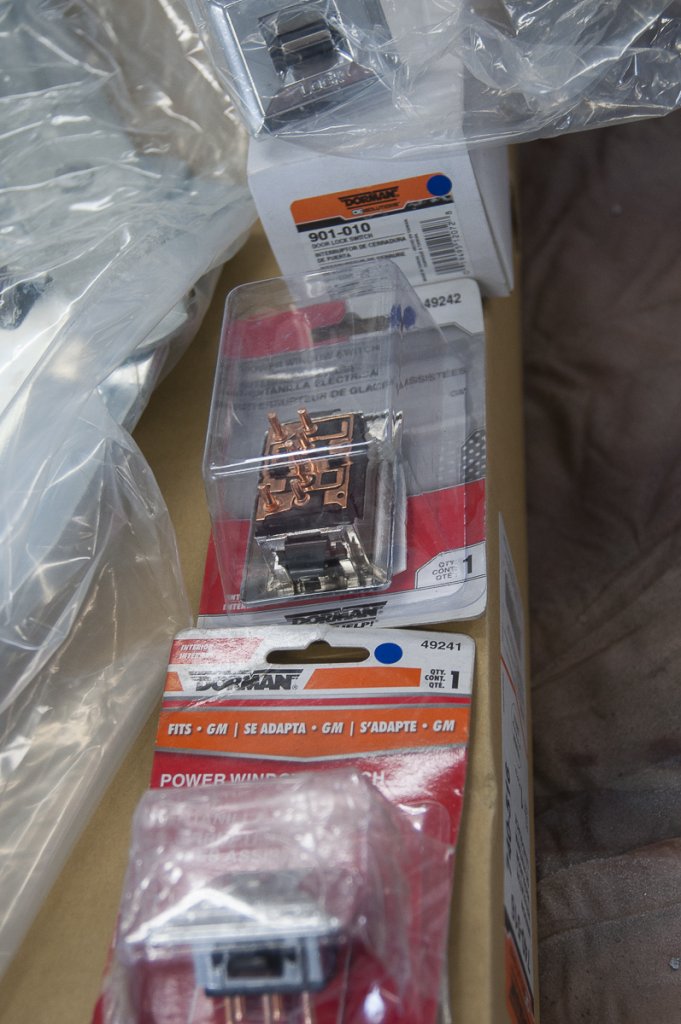

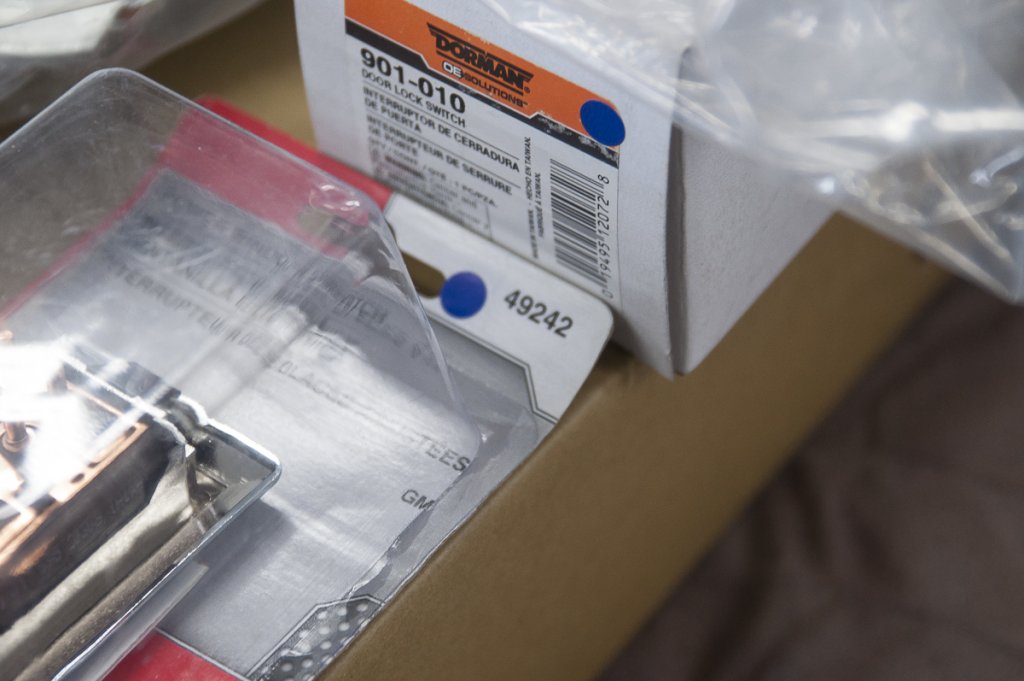

did this few week ago! use all dorman product for my project swap part, that a used harness, door lock and rubber boot from a Suburban at the yrad U pull :)


Attachments

  • _DSC5176.jpg
    112.9 KB · Views: 33
  • _DSC5177.jpg
    77.3 KB · Views: 35
  • _DSC5178.jpg
    109.8 KB · Views: 37
  • _DSC5179.jpg
    83.6 KB · Views: 32
  • _DSC5191.jpg
    108.6 KB · Views: 29

TPISly-C10

Full Access Member
Joined
Apr 1, 2019
Posts
515
Reaction score
622
Location
Boucherville QC Canada
First Name
Sly
Truck Year
1986
Truck Model
C-10 shortbox
Engine Size
LQ4 6.0L
;)


Attachments

  • _DSC5172.jpg
    130 KB · Views: 32
  • _DSC5173.jpg
    87.5 KB · Views: 28
  • _DSC5174.jpg
    93.8 KB · Views: 25
  • _DSC5175.jpg
    99.9 KB · Views: 29
  • _DSC5207.jpg
    121.7 KB · Views: 29

TPISly-C10

Full Access Member
Joined
Apr 1, 2019
Posts
515
Reaction score
622
Location
Boucherville QC Canada
First Name
Sly
Truck Year
1986
Truck Model
C-10 shortbox
Engine Size
LQ4 6.0L

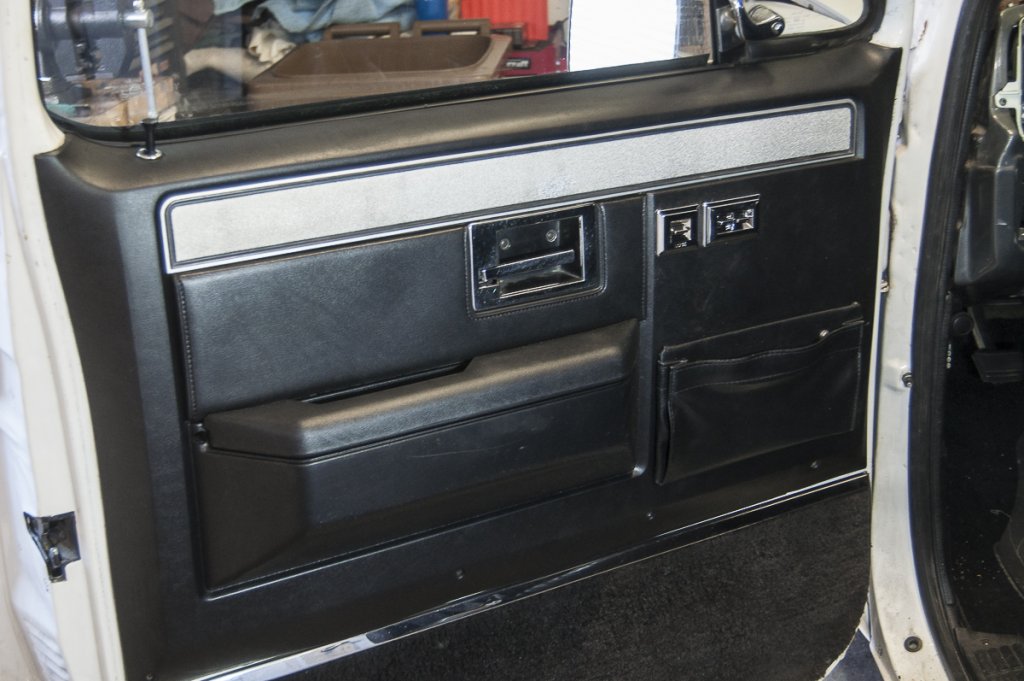

work great and fast no need to add relay kit ;)


Attachments

  • _DSC5213.jpg
    108.1 KB · Views: 25

TPISly-C10

Full Access Member
Joined
Apr 1, 2019
Posts
515
Reaction score
622
Location
Boucherville QC Canada
First Name
Sly
Truck Year
1986
Truck Model
C-10 shortbox
Engine Size
LQ4 6.0L

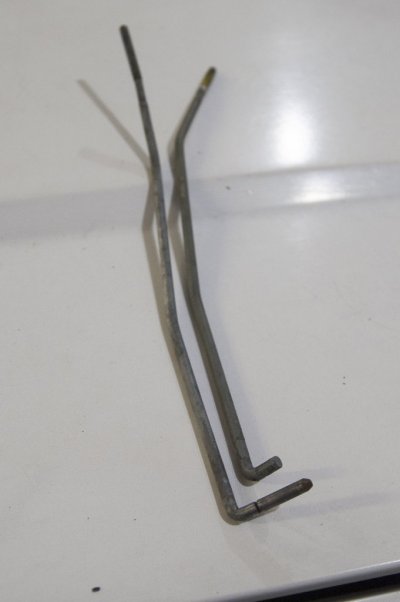

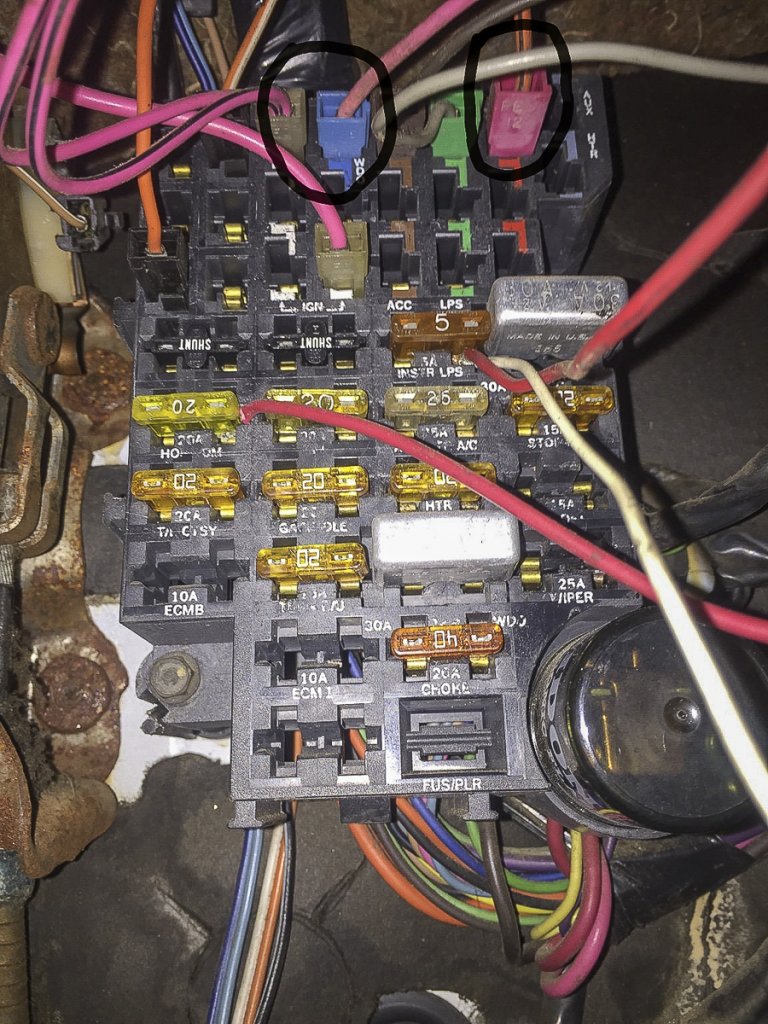

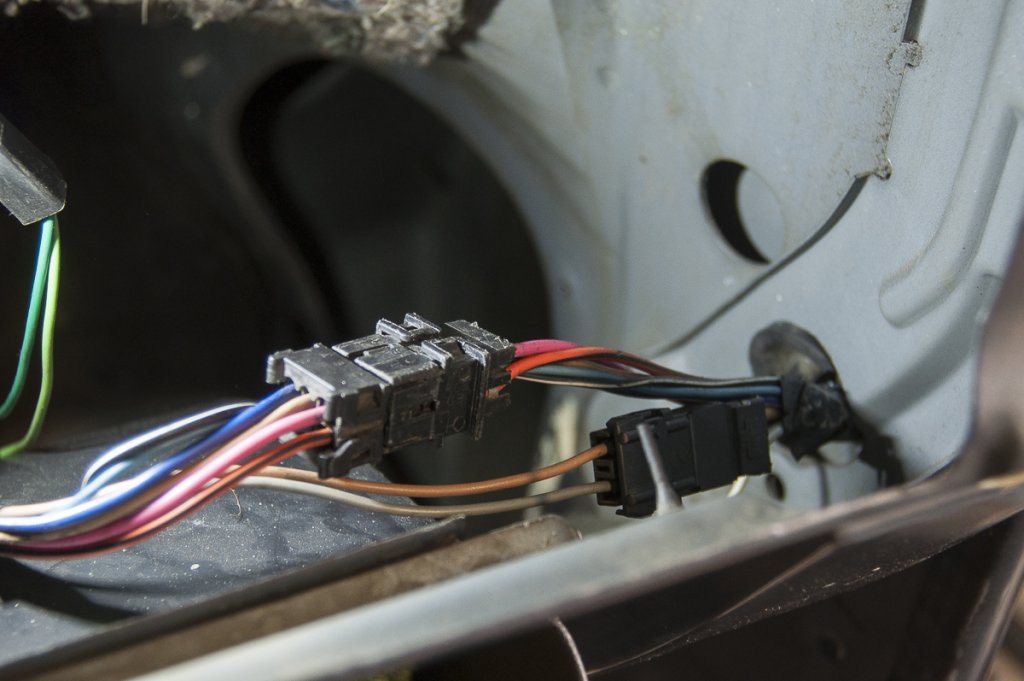

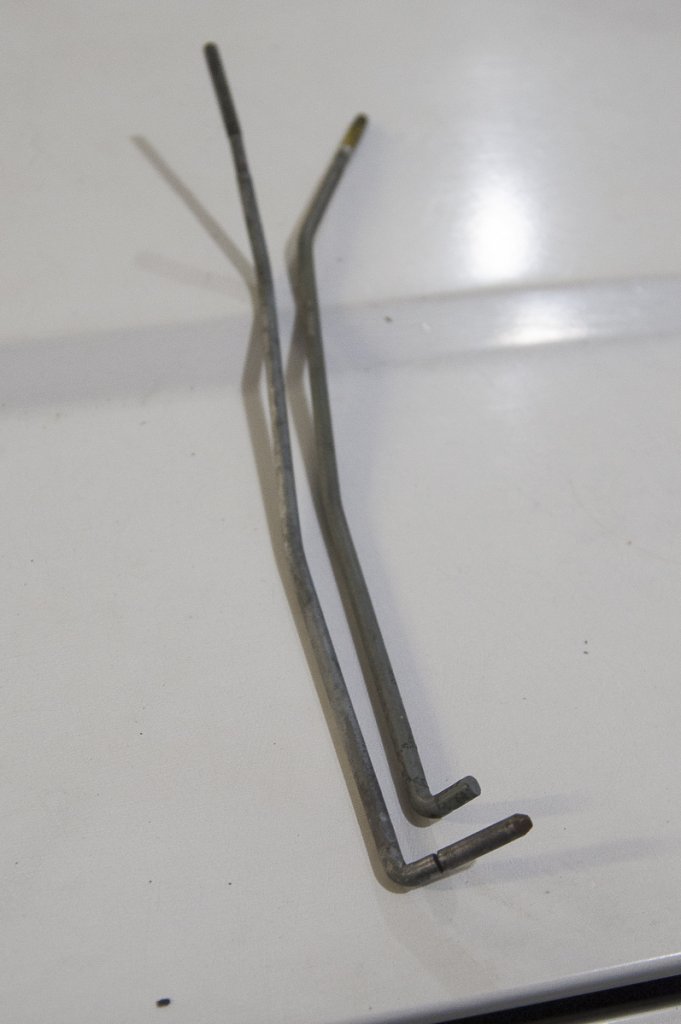

eazy plugs and play :)...and don't forget door locking rod from your donor you gonna need it ;)


Attachments

  • Wdo:courant direct location.jpg
    Wdo:courant direct location.jpg
    207.2 KB · Views: 30
  • _DSC5196.jpg
    84.6 KB · Views: 25
  • _DSC5204.jpg
    55.9 KB · Views: 27

hoagster

Full Access Member
Joined
May 16, 2017
Posts
808
Reaction score
1,399
Location
California
First Name
Mike
Truck Year
1973, 1994
Truck Model
K10, 2500 suburban
Engine Size
5.3l, 7.4l
eazy plugs and play :)...and don't forget door locking rod from your donor you gonna need it ;)
Will this setup work with a 73 fuse box?


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
7,695
Reaction score
4,339
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
I mean, you dont NEED To use a relay kit but the reason its done is to enhance the lifespan of the switches and to provide less potential for things like voltage drop and increased lengths of high amperage runs which is only a good thing for the long run. If you dont want to mess with it now and make it future-yous problem, thats fine. (We all do this in some way)


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
1,676
Reaction score
2,189
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
Will this setup work with a 73 fuse box?

I’m not a square body expert, so I might be wrong. I don’t think power windows were available until much later in the production run. I remember somebody here doing a window conversion and finding out the cab and doors weren’t marked for the wiring boots.

You could use a typical 5 pin relay instead of the factory part. Instead of power coming off the fuse in the fuse box, use any run/accessory powered spot in the fuse box to trigger the relay
