Dash Alignment

maxtwms

Full Access Member
Joined
Jan 29, 2014
Posts
170
Reaction score
33
Location
Alabama
First Name
Max
Truck Year
1985
Truck Model
K10
Engine Size
305
Hey Guys - I may be poor at search function but I cant be the only person to experience this. The top/left side of my dash and instrument gauge bezel have large gaps in them. This is the case on my K10 and K5. Pretty sure the dash is new on the K10 and original on the k5. Does anyone have any tips to get these to fit nicely? Every squarebody Ive worked on has had issues with the screws in this left side location. I know they're not going to be perfect but there has to be some improvement...Any help is appreciated. Ill try to get pictures today


maxtwms

Full Access Member
Joined
Jan 29, 2014
Posts
170
Reaction score
33
Location
Alabama
First Name
Max
Truck Year
1985
Truck Model
K10
Engine Size
305
Doesn't look that bad in the picture but I'm sure some of you can relate.. maybe I need some nut clips on the padded part of the dash for the screws to grab onto? There's certainly something missing.
You must be registered for see images attach


Sent from my SM-G988U using Tapatalk


Jeff Lewis

Junior Member
Joined
Aug 2, 2019
Posts
18
Reaction score
15
Location
Missouri
First Name
Jeff
Truck Year
1986
Truck Model
Silverado
Engine Size
3.2
Aftermarket. Thats the best you can do. Doesn't fit exactly. Don't worry....Be Happy.


Raider L

Full Access Member
Joined
Sep 1, 2020
Posts
1,757
Reaction score
821
Location
Shreveport, LA
First Name
William
Truck Year
1974
Truck Model
C10
Engine Size
355
@maxtwms,

I don't know, man. It seems that with the padding like it is from the factory, after many years sitting in the sun, I think you should expect some shrinkage. Mine isn't exactly tight.
You must be registered for see images attach
The inside curvature of the dash where the panel of the gauge cluster just sits up against a kind of a flange with the nut plates on it. Mine just screws up against that flat lip the dash has surrounding the opening for the cluster panel. It looks kinda dark in the photo but it's sitting up against that lip.


86 SCOTTSDALE

Full Access Member
Joined
Apr 10, 2019
Posts
353
Reaction score
264
Location
Oakham MA
First Name
Armand
Truck Year
1986
Truck Model
K10
Engine Size
305
I found a slightly longer screw worked better in that position.


Jwernatl

Full Access Member
Joined
Oct 5, 2020
Posts
190
Reaction score
109
Location
Senoia, GA
First Name
John
Truck Year
1987
Truck Model
V10
Engine Size
5.7ltr
Doesn't look that bad in the picture but I'm sure some of you can relate.. maybe I need some nut clips on the padded part of the dash for the screws to grab onto? There's certainly something missing.
You must be registered for see images attach


Sent from my SM-G988U using Tapatalk

Mine was same - my aftermarket I ordered was not the best - I hate it. I used the right screws and clips.

It's just not the same. Nobody knows it except me.


AyWoSch Motors

The Parts Guy
Joined
Nov 6, 2020
Posts
2,019
Reaction score
4,454
Location
New Mexico
First Name
Ayden
Truck Year
1986
Truck Model
K1500 Sierra Classic
Engine Size
305ci V8
Doesn't look that bad in the picture but I'm sure some of you can relate.. maybe I need some nut clips on the padded part of the dash for the screws to grab onto? There's certainly something missing.
You must be registered for see images attach


Sent from my SM-G988U using Tapatalk

I have 4 Squarebodys, all of them original dashes and gauges bezels, non of them fit right. They all look like yours or worse.
I think it's a case of they never fit quite right, but after 30 to 40 years in the sun, the vinyl just shrinks a bit, and makes it worse.
If it's old, and the vinyl is hard, you could take a dremel and grind away some of the material at the corner of the dash and smooth it down, so that the bezel sits a little deeps and straighter, or you could file down the edge of the bezel to make it a little smaller. Not enough to notice. And you could try a longer screw, but dont torque it down too hard, you'll strip out the plastic hole it goes into. I've made that mistake.


Rudy Mienert

Junior Member
Joined
May 10, 2021
Posts
12
Reaction score
7
Location
Staten Island
First Name
Rudy
Truck Year
1978
Truck Model
Blazer
Engine Size
350
Mine was same - my aftermarket I ordered was not the best - I hate it. I used the right screws and clips.

It's just not the same. Nobody knows it except me.

Which aftermarket did you get?...Im searching for a nice pad, and don't want to be disappointed.


86c10twotone

Member
Joined
Jun 3, 2021
Posts
49
Reaction score
47
Location
MD
First Name
Roy
Truck Year
86
Truck Model
Silverado
Engine Size
305

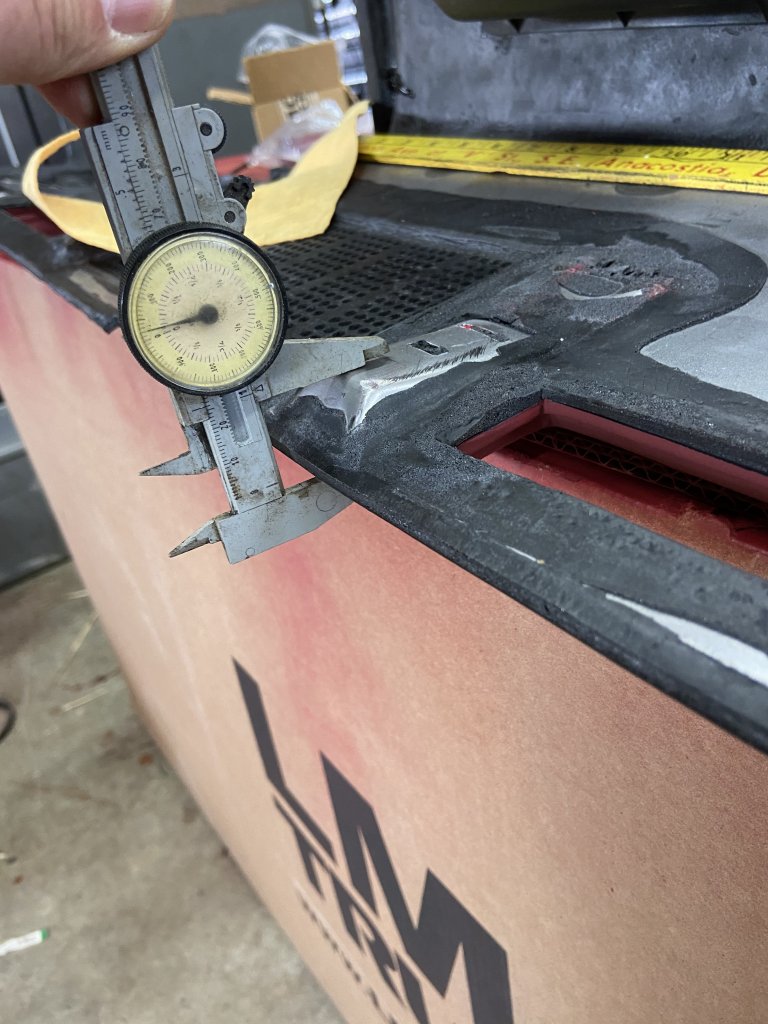

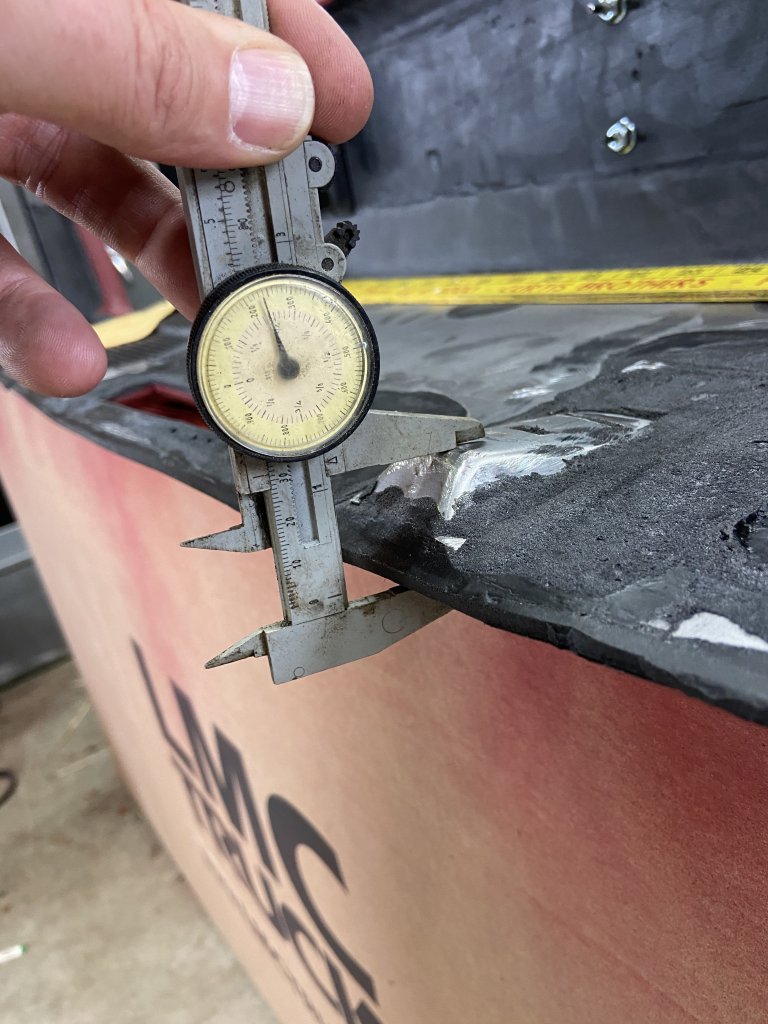

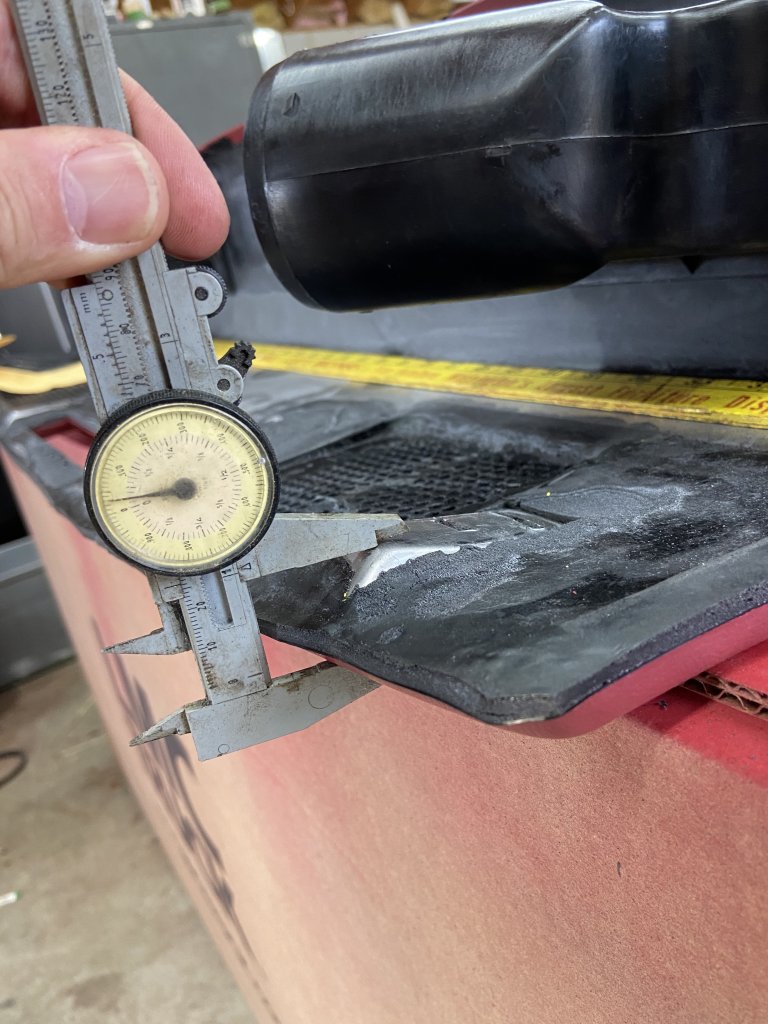

Trying to install a new pad today from LMC and the clip area to the right side of the right defrost vent is to high causing the dash to sit up high in that area .


Attachments

  • B6FD8318-88F3-422F-8B82-51CC185EAF08.jpeg
    135.2 KB · Views: 12
  • C3B78BD4-C25F-430D-A67C-70116719DC3B.jpeg
    131.5 KB · Views: 14
  • C0B18CB5-611D-42E5-9F53-6D2F8E22347E.jpeg
    136.3 KB · Views: 12

TPISly-C10

Full Access Member
Joined
Apr 1, 2019
Posts
515
Reaction score
621
Location
Boucherville QC Canada
First Name
Sly
Truck Year
1986
Truck Model
C-10 shortbox
Engine Size
LQ4 6.0L

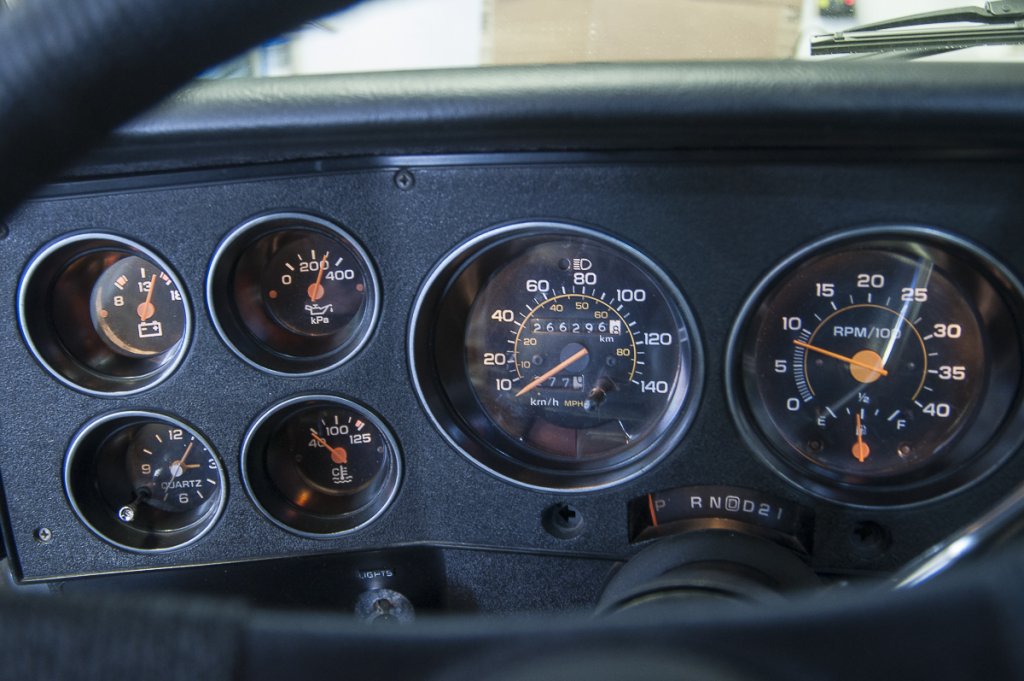

the most important is to aling the 2 top long center scew, after that check fit with a another long screw on top left and secure backing speed clip that the best i can do with mine to fit ok ish ;)


Attachments

  • _DSC5292.jpg
    113.6 KB · Views: 11

86c10twotone

Member
Joined
Jun 3, 2021
Posts
49
Reaction score
47
Location
MD
First Name
Roy
Truck Year
86
Truck Model
Silverado
Engine Size
305
How much did you have to trim across the front where it hits the windshield rubber? Does it sit under the crown of the rubber or just but up to it ?
