Connecting with a laptop with Tuner Pro RT and DIY cable.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Georgeb

Full Access Member
Joined
Apr 30, 2015
Posts
3,259
Reaction score
214
Location
Wisconsin
First Name
George
Truck Year
2003
Truck Model
K10 Burb Z71
Engine Size
5.3
I wanted to connect my laptop to my truck and do some diagnostics and it was suggested to make a cable and do it so I poked around on the internet a bit.
I was pointed towards this thread.
http://www.gearhead-efi.com/Fuel-Injection/showthread.php?719-Uber-easy-DIY-USB-ALDL-Cable

This led me to buy this adapter:
http://www.ebay.com/itm/Arduino-FT2...main_0&hash=item3cbfdfc861&afsrc=1&rmvSB=true

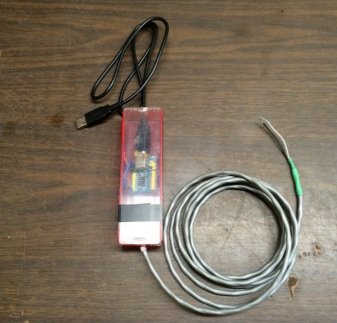

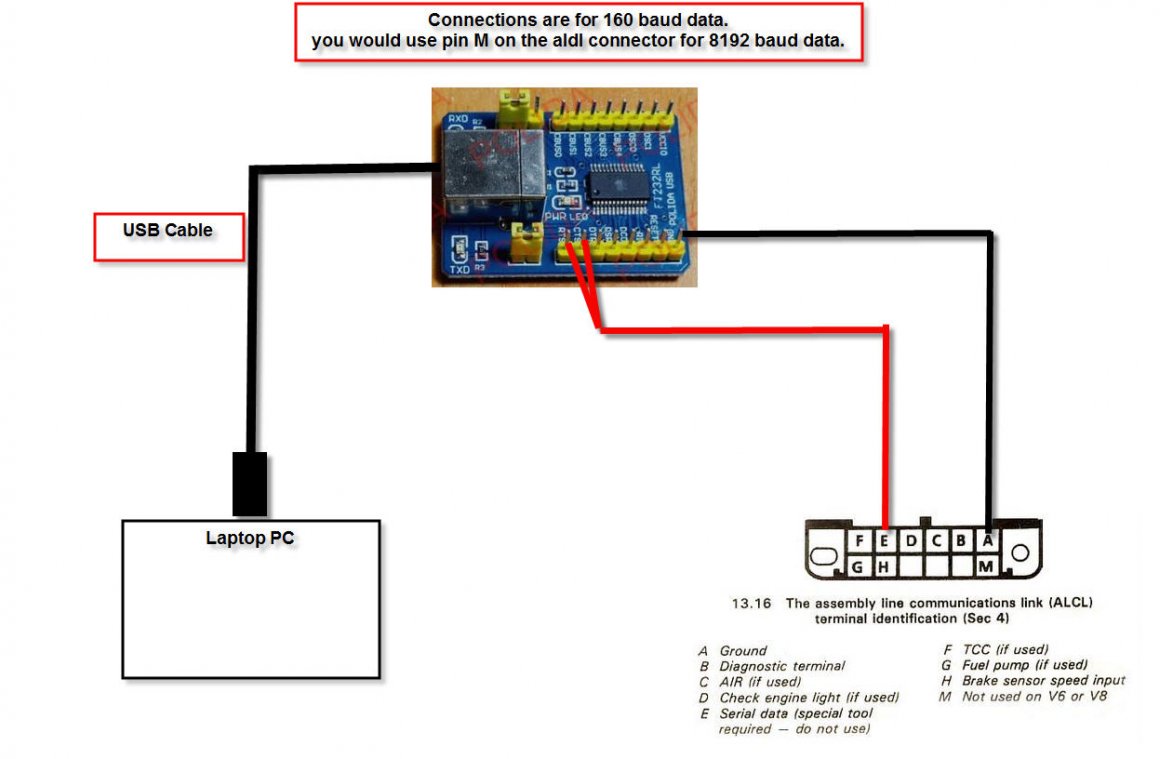

Then I made my cable like as seen in the images below:

Then I needed this driver to operate the adapter and found
I needed to use the CFA_2.08.14_WHQL_Modified.zip
Open and run it then follow the USB Module Driver_ Tutorial_windows_7 from the same page if you are running Windows 7. You can get the driver and tutorial here:
https://forum.crystalfontz.com/show...dows-7-2008-and-64-bit-support-fix-(temporary)

I wanted to use Tuner Pro RT because I could log live data and burn chips later on so I got the software from here:.
http://www.tunerpro.net/downloadApp.htm

I downloaded Tuner Pro RT and then I needed to do the cable installation so I followed these instructions:
http://www.gearhead-efi.com/Fuel-Injection/showthread.php?1557-Cable-Installation-to-TunerPro-RT

Then I needed to figure out how to work Tuner Pro RT so I read this a couple times.
http://www.gearhead-efi.com/Fuel-In...er-Tutorial!-New-users-this-is-a-must-read!-)

Then I needed the .adx and .xdf and .bin files to load into Tuner Pro RT so it knew how to read my ECM chip so I got the info off my ECM as seen below:

And I went here:
http://www.gearhead-efi.com/Fuel-In...o-Definition-Files-Wiring-Diagrams-Tuner-Info!

And looked for my part number ECM which was 1227747 so it took me here:
http://www.gearhead-efi.com/Fuel-Injection/showthread.php?304-1227747-ECM-Information-42

And I selected the most current versions of the .adc and .xdf files and saved them to my PC in a folder I created in my C: drive so I could find them later.

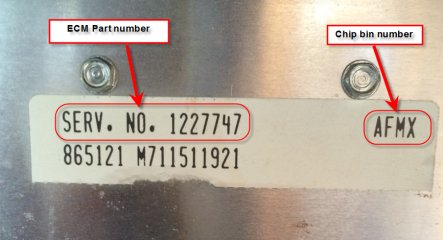

But I didn’t find my ECM bin file which was AFMX so one of the guys on the site pointed me towards one that will work so I saved it to my PC in the same folder. They are really helpful over there too! I ended up using this one for my truck which worked fine for logging data and doing general diagnostics.

You will need to create an account on the Gearhead site to download stuff and I would suggest doing some reading here and there to gain some knowledge. Getting to the point of connecting to your truck is fairly easy and it only cost me $10.00 to make the cable. The software was free. The next level of tuning and burning chips is still way over my head but as time allows I will dabble in that too.

Here are a few of the threads that helped me get started:
http://www.gearhead-efi.com/Fuel-In...tion-Writeups-Articles-and-How-to-New-and-Old
http://www.gearhead-efi.com/Fuel-Injection/showthread.php?3256-Tuner-Pro-FAQ-and-Tutorials
http://www.gearhead-efi.com/Fuel-In...tion-Writeups-Articles-and-How-to-New-and-Old

There is much, much more on that site so look around!
