Clutch arm spring attachment

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

arpaulus

Junior Member
Joined
Dec 13, 2021
Posts
10
Reaction score
3
Location
sidney ohio
First Name
rick
Truck Year
1973
Truck Model
c30
Engine Size
350

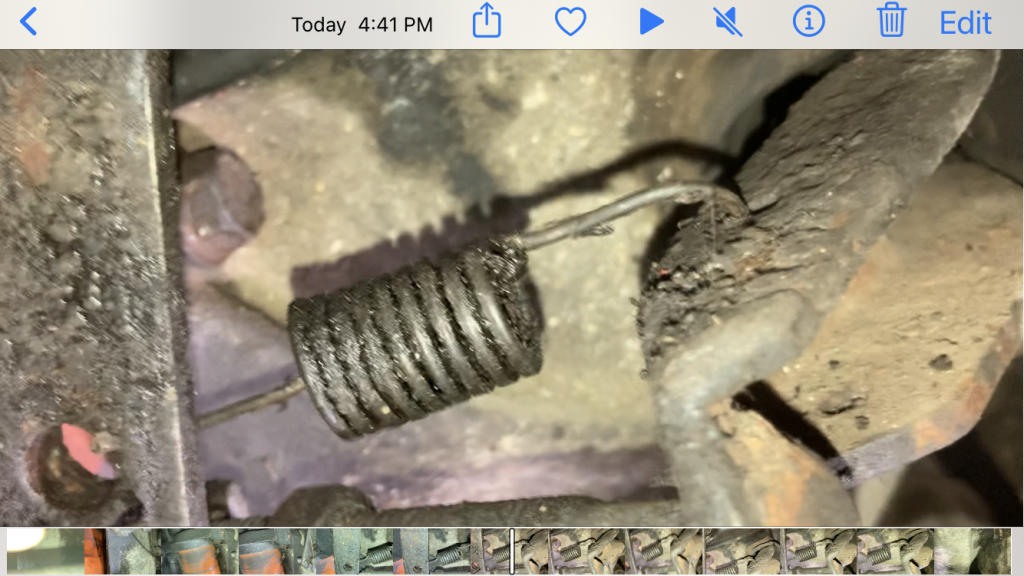

Attached is what I believe is the way the spring for the clutch arm is attached not sure it’s on a 1973 C30 1 ton Chevy dump truck
Can somebody shoot me a picture of theirs? Or show me a diagram?


Attachments

  • C9ED983D-F226-4F53-8993-3C23C62CCCF3.png
    800.2 KB · Views: 68

AyWoSch Motors

The Parts Guy
Joined
Nov 6, 2020
Posts
4,647
Reaction score
13,474
Location
New Mexico
First Name
Ayden
Truck Year
1986
Truck Model
K1500 Sierra
Engine Size
350ci V8
Attached is what I believe is the way the spring for the clutch arm is attached not sure it’s on a 1973 C30 1 ton Chevy dump truck
Can somebody shoot me a picture of theirs? Or show me a diagram?
I can tomorrow, its dark right now.

I have a 75 blazer with a 454 and a SM465, not sure it will be the same, but I will send pics anyway.



@Powerhouse Ranch
Here we go again, hahaha.


Powerhouse Ranch

3G Connoisseur
Joined
Jan 6, 2021
Posts
1,453
Reaction score
2,516
Location
PA
First Name
Luke
Truck Year
1980 & 1988
Truck Model
C25 & V15
Engine Size
454 & 350
I can tomorrow, its dark right now.

I have a 75 blazer with a 454 and a SM465, not sure it will be the same, but I will send pics anyway.



@Powerhouse Ranch
Here we go again, hahaha.

ain't that the truth! Let me see if i still have the picture of Ayden's life saving spring i got on my Jimmy (350 with SM465)

You must be registered for see images attach


Here you go. I was told they go to the motor mount, as pictured. Depending on my exhaust system, i may have to relocate it though


arpaulus

Junior Member
Joined
Dec 13, 2021
Posts
10
Reaction score
3
Location
sidney ohio
First Name
rick
Truck Year
1973
Truck Model
c30
Engine Size
350
Thank you , that spring is alot longer than mine but thank you for trying


Powerhouse Ranch

3G Connoisseur
Joined
Jan 6, 2021
Posts
1,453
Reaction score
2,516
Location
PA
First Name
Luke
Truck Year
1980 & 1988
Truck Model
C25 & V15
Engine Size
454 & 350
Thank you , that spring is alot longer than mine but thank you for trying

keep in mind it is stretched out. i see you have a C30, 2wd. My 80 is 2wd with SM465 and i'm not entirely sure as to where the spring is hooked on top of my head, but it isn't the motor mount, that's a 4wd thing. Shorter may work somewhere. I'll have to crawl under and peak, but i have bezels to send out first


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,121
Reaction score
6,037
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
keep in mind it is stretched out. i see you have a C30, 2wd. My 80 is 2wd with SM465 and i'm not entirely sure as to where the spring is hooked on top of my head, but it isn't the motor mount, that's a 4wd thing. Shorter may work somewhere. I'll have to crawl under and peak, but i have bezels to send out first
youre missing a spring
You must be registered for see images attach

I am too but there is supposed to be one that pulls the fork thing back like we both have(not sure on the spring in OE sense or where it hooked, but there is also supposed to be a spring yanking the .... pivot? back toward the fork I think.. maybe it was just back toward the rear.. someoen had a proper setup but we are both not good examples for proper lol
