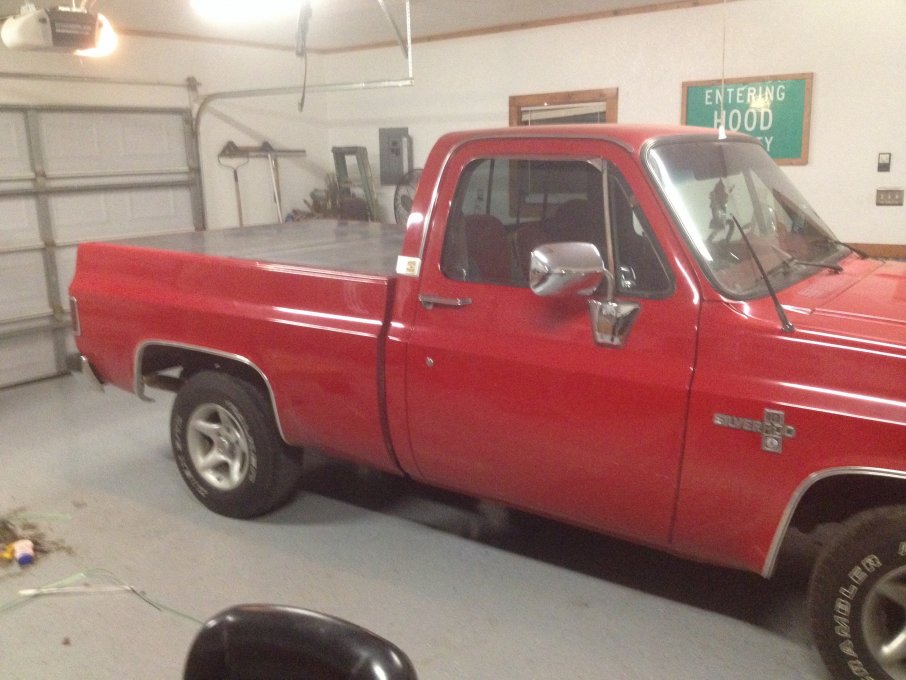

Here's the day one start of a flush mount bed cover build. The frame is made of 16 gauge 1 inch square tubing. The hinge is a 1 inch piano hinge. The sheets for the cover are 16 gauge 4x8 sheets of steel. It still has a ways to go. I plan on putting 2 inch flatbar around the edge and gas struts to help lift (it weighs about 200 lbs). Will try to update pics next weekend when further along. Material cost less than $200.


Attachments

  • image.jpg
    96.4 KB · Views: 698
Last edited by a moderator:

Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7

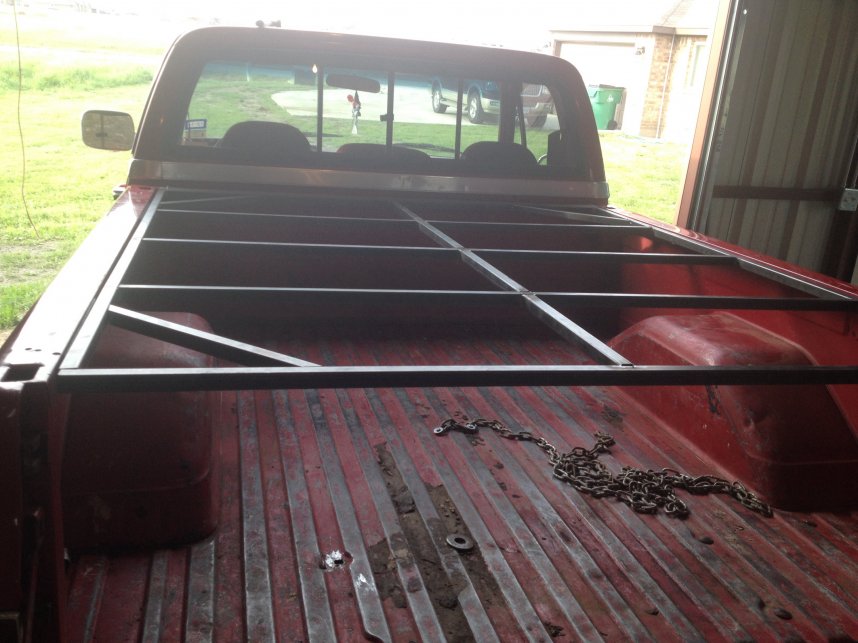

Here's a pic of the frame


Attachments

  • image.jpg
    93 KB · Views: 1,003

Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7

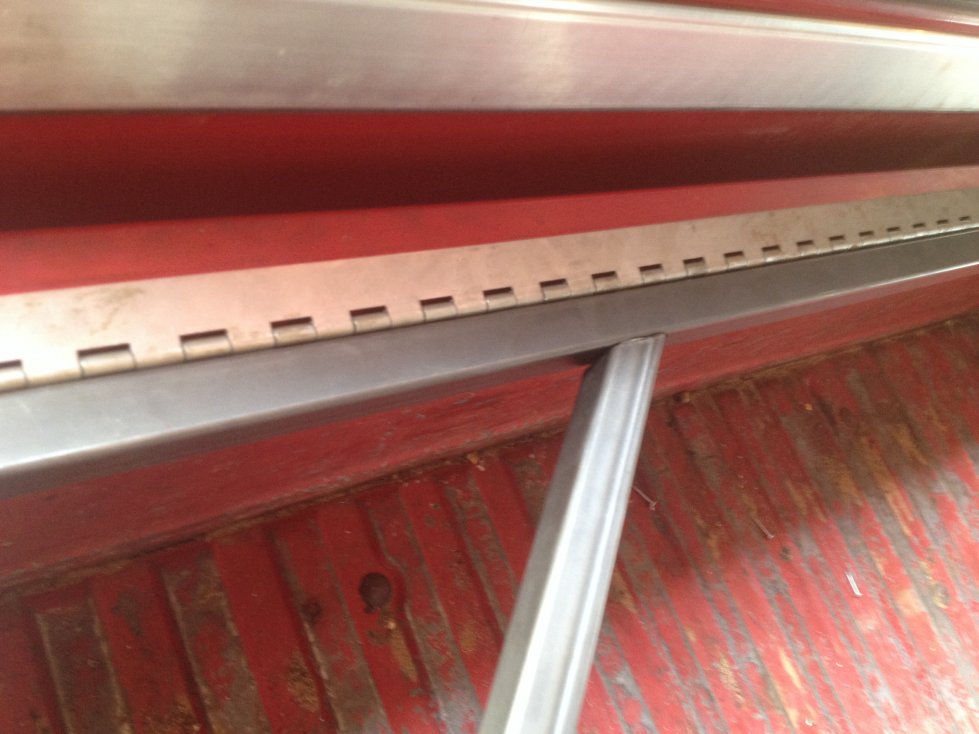

And a pic of the hinge


Attachments

  • image.jpg
    91.1 KB · Views: 390

Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7

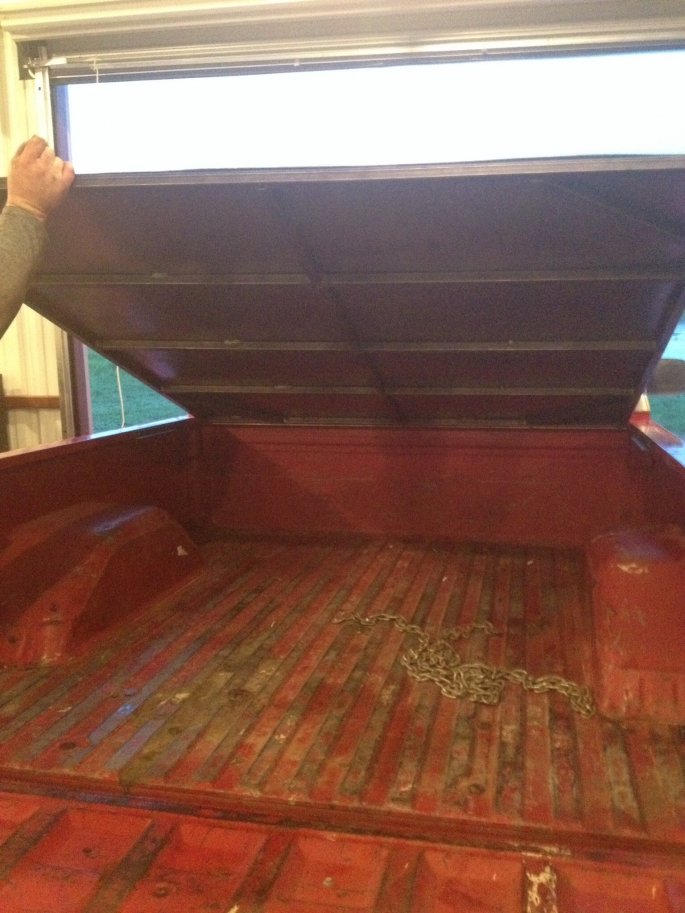

The under side


Attachments

  • image.jpg
    96.8 KB · Views: 375

Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7

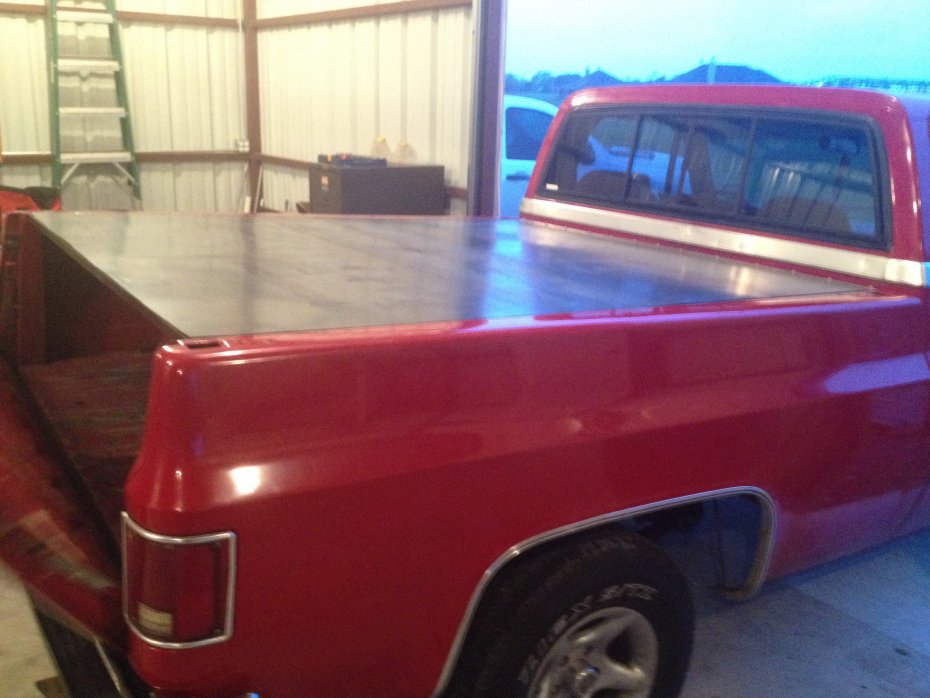

Rear view


Attachments

  • image.jpg
    96.5 KB · Views: 770

Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7
I am planning on putting the 1/8 inch by 2 inch flatbar half overlapping the bed and the rest overlapping the bed cover. I will put a self adhesive rubber seal under the flatbar where it sits on the bed to make it weather proof. I forgot to mention the cover rests on 1 inch angle iron bolted to the inner lip of the bed rail. When finished I plan on painting. I am undecided on painting it red to match the truck or painting it black. Maybe even rhino lining it when I do the bed ( as you can see from the pics the bed needs it). Any suggestions?


350runner

Full Access Member
Joined
Feb 9, 2013
Posts
2,858
Reaction score
224
Location
tx
First Name
Ceasar
Truck Year
82
Truck Model
c10
Engine Size
350
Dude this is looking cool

Sent from my LG-LS980 using Tapatalk


89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,613
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
Bed cover build

That is phucking awesome


Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7
Thanks fellas, it's really not even that much work. The plate material is thick enough to weld with a wire welder but thin enough to cut with a metal blade and jigsaw. Hoping to finish it up next weekend exept paint. Going shopping for gas struts today. I couldn't find a flush mount for our trucks and the over the rails hard covers cost twelve hundred so I figured what the hell, I'd give it a shot.


smurph20

Full Access Member
Joined
Jul 13, 2011
Posts
2,063
Reaction score
23
Location
Clyde, Arkansas 72717
First Name
Brad
Truck Year
1986
Truck Model
K20
Engine Size
350/SM465/NP208/4.10's
I built one for my S10 I had and it worked great but like you said it is heavy. The lil extra weight gave my truck a lil better ride due to loading the springs a lil.


Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7

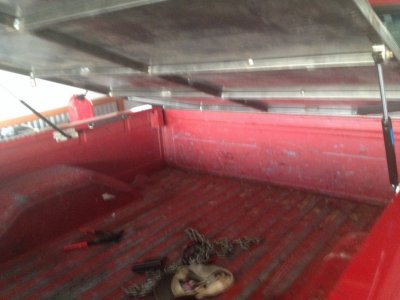

Heres the gas lift supports. The cover is now easy to open. All that's left is the flatbar edging. I bought the rubber seals today to put in with the flatbar.


Attachments

  • image.jpg
    96.9 KB · Views: 414

Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7
And you are correct smurph, the extra weight seems to be a benefit. I hope it helps with gas mileage too!


Hoodbj

Full Access Member
Joined
Dec 29, 2013
Posts
209
Reaction score
11
Location
Texas
First Name
Billy
Truck Year
1987
Truck Model
R10
Engine Size
5.7
So what do y'all think , painted black, painted red or rhino lined? Still undecided


DoubleDingo

Full Access Member
Joined
Jul 3, 2012
Posts
10,018
Reaction score
14,161
Location
Right where I am
First Name
Bagoomba
Truck Year
1981, 1965
Truck Model
81-C20 Silverado Camper Special-TH400-4.10s; 65-C20 with 4:57 gears and Borg Warner Overdrive
Engine Size
Carb'ed Vortec 350; 1972 L48 350
So what do y'all think , painted black, painted red or rhino lined? Still undecided

Looks good. I would go with black to contrast the red.


John81287

Full Access Member
Joined
Mar 19, 2013
Posts
636
Reaction score
3
Location
Mchenry,IL
First Name
John
Truck Year
1987
Truck Model
V20
Engine Size
5.0
Bed cover build

I think black rhino lined so it looks like a tonneau but it clearly isnt
