Another charging issue on a 83' Diesel Sub

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

bigjeepinmike

Junior Member
Joined
Apr 6, 2023
Posts
4
Reaction score
0
Location
wa
First Name
mike
Truck Year
1983
Truck Model
suburban
Engine Size
6.2d
Sorry to beat a dead horse but i searched around to cover all the basics on my non charging sub.

A little background on the new to me Sub. Its a 1983 k20 Suburban with the 6.2 diesel, banks kit, etc. Its in remarkable condition having been stored indoors since 2005. I bought it from a fellow who went blind. He had issues with the headlights so he took the dash apart to replace switch, and then the switch plug. I confirmed with schematics that all was wired correctly, phew. Truck runs great but I noticed it wasnt charging too. Deduced that it was the fusible link shared by both circuits. Replaced the light feed and alternator sensing wire fusible links with their own properly sized link. That was a dang contortion act! Lights work, no dash lights though, dome lights work though under dash light stays on but dims when the door is shut. Figure its another problem to deal with in future.

Not charging still. Batteries were trickled charged. Battery wire shows battery voltage, sensing wire shows battery voltage, brown keyed wired has shown anywhere from 6.8-10.4v. Now if I jump pin one and two she starts charging at 14v, remove jump, nothing. What does this tell me? Is the internal regulator bad? Is the brown keyed voltage too low? If it is, where does the brown wire go after it enters the cab? I have a schematic i downladed but because its broken into multiple pdfs im having a bear of a time tracking it beyond the bulkhead. Thanks for your input.


Attachments

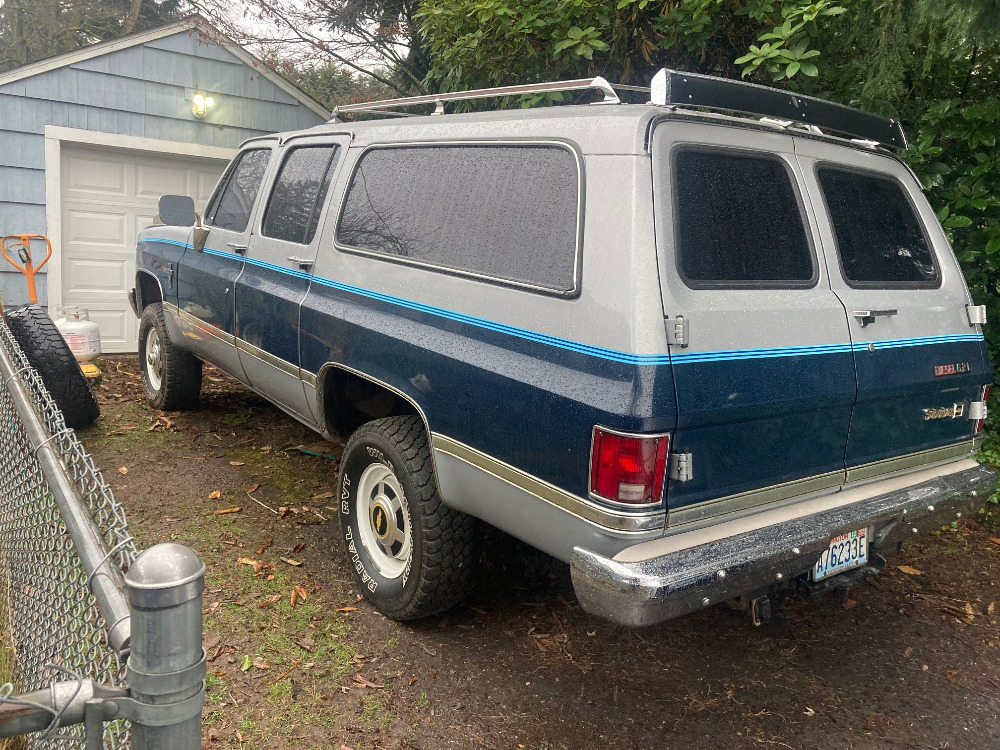

  • pickle.jpg
    376.1 KB · Views: 32

SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,698
Reaction score
11,151
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
@bigjeepinmike The alternator and internal regulator are fine. You proved that when you jumped the terminals.

Both #1 & #2 terminals need to have 12 volts at them. #1 terminal (I'm sorry I don't remember the color, but may well be brown as you said) should have keyed on 12 volts. You have less than that. Is 6.8 - 10.4 enough to get it charging I don't really know, but from what you have said it looks like it's not. I would be tracing that wire. There are wiring diagrams in the reference section on this forum.


bigjeepinmike

Junior Member
Joined
Apr 6, 2023
Posts
4
Reaction score
0
Location
wa
First Name
mike
Truck Year
1983
Truck Model
suburban
Engine Size
6.2d
Update, bad alternator. Regulator would draw key wire voltage down to 3.4v when i would connect sensing wire. Was weird but charging now!
