Hi, I have a '87 stepside that I am putting back in order. When I got it it ran like crap but with the help and info on these forums it is coming around. It is running a lot better but the service engine light came on and I have code 13 and 42 coming up. The code 13 I understand, there is no O2 sensor that I can see on the exhaust. A previous owner put headers on the truck and there is no place to put a sensor. I guess I could get a weld on bung and put one on but I can't seem to find the wire that it would connect to. I am thinking that the ECM needs the O2 sensor to function properly? This Fuel Injection is a whole new thing for me, but getting a crash course in it now.
The code 42 is Ignition control open/short/component failure. I am thinking that maybe this is from when I disconnected the distributor control to set the timing and did not clear the code.


1987 GMC Jimmy

Automobile Hoarder
Joined
Jan 23, 2016
Posts
5,848
Reaction score
2,387
Location
Mississippi
First Name
Jesse
Truck Year
1987
Truck Model
V1500 Jimmy
Engine Size
350
Hi, I have a '87 stepside that I am putting back in order. When I got it it ran like crap but with the help and info on these forums it is coming around. It is running a lot better but the service engine light came on and I have code 13 and 42 coming up. The code 13 I understand, there is no O2 sensor that I can see on the exhaust. A previous owner put headers on the truck and there is no place to put a sensor. I guess I could get a weld on bung and put one on but I can't seem to find the wire that it would connect to. I am thinking that the ECM needs the O2 sensor to function properly? This Fuel Injection is a whole new thing for me, but getting a crash course in it now.
The code 42 is Ignition control open/short/component failure. I am thinking that maybe this is from when I disconnected the distributor control to set the timing and did not clear the code.

Yes, you always need to reset the computer after adjusting timing. That'll get rid of the 42. The O2 sensor is important. You're right on about the weld on bung, but you gotta either find the wire or rewire it from the ECM harness using a pinout diagram. It was likely cut, but it's probably dangling around down there where the manifold or Y-Pipe would have been. I believe it's purple, by the way. You'll also need to get a three wire heated sensor since there's a deficit of immediate back pressure that the factory manifolds had to help heat things up, and you need to get to closed loop as soon as possible. It's simple to do. You just need the factory sensor wire, a 12V wire from somewhere under the hood for the heater element, and a ground wire.

Last edited:

Inchief

Junior Member
Joined
Feb 1, 2017
Posts
18
Reaction score
9
Location
FL
First Name
Jim
Truck Year
1987
Truck Model
1500
Engine Size
5.3 Vortec
Thanks for the info. I just ordered a 3 wire O2 sensor and bung so will get it in a day or two. I have not located the purple wire yet but it's gotta be in there someplace just gotta root around some more.


smoothandlow84

I'd rather be draggin' frame
Joined
Jan 4, 2015
Posts
2,121
Reaction score
784
Location
Arizona
First Name
Steve
Truck Year
1984 Frame...87 motor and 700r trans
Truck Model
1500 r10 pavement scraper
Engine Size
350 TBI

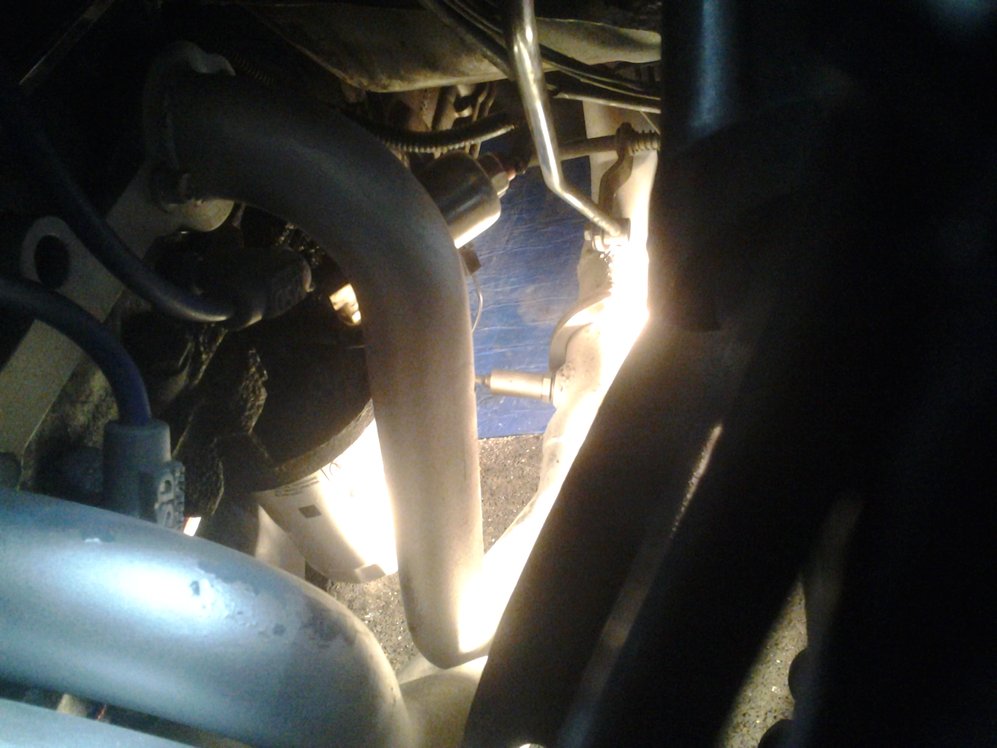

Hmmmm...interesting. I installed long tube headers, welded in a bung, installed the o2 sensor but ditched all of the emissions equipment ( except the egr) but still have my single wire o2 sensor...no codes...and truck runs fantastic. Why would he need a three wire heated o2 sensor when a single non heated o2 was factory installed?
