80's Wiper technology sux

LateOnTheBrakes

5.3-Swapped 86 CUCV
Joined
Feb 2, 2020
Posts
330
Reaction score
76
Location
Virginia
First Name
Joshua
Truck Year
1986
Truck Model
CUCV
Engine Size
5.3
I wish I could figure out what is going on with my wipers. I only have one speed and it is pretty slow. I've tried the stalk with the delay and without it. Only one speed. Any thoughts on where to start? Is there a motor resistor like the blower?


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
1,634
Reaction score
1,686
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
350
I wish I could figure out what is going on with my wipers. I only have one speed and it is pretty slow. I've tried the stalk with the delay and without it. Only one speed. Any thoughts on where to start? Is there a motor resistor like the blower?
No no motor resistor except what's inside the motor. Go to the motor. Disconnect the wiring. With the switch on the dash off and the ignition on, check each terminal on the wiring harness end with a test light for power. Note any wires that have power. Now switch wipers to low, see which wires have power, then check it on high. I cannot remember if squares have one wire that is always powered or not, so there maybe one always powered. Setting that wire aside. You should see power to one of the wires on low, and on a different wire on high. If you don't get that it's in the switch, wiring or bulk head connector. If you do get that then it is either the motor or the ground. Wiper motors have rubber mounts and a little metal tab for the ground at one of the bolts. Those ground tabs are notorious for not providing a good enough ground even if it looks ok. Don't guess or over look this, because lots of folks think the ground is ok and go after something else. Take a length of wire attach it to the negative battery terminal and to the metal housing of the wiper motor. See if that makes it work properly. If you determine it isn't the motor or the ground then we can work with the rest of the system.


LateOnTheBrakes

5.3-Swapped 86 CUCV
Joined
Feb 2, 2020
Posts
330
Reaction score
76
Location
Virginia
First Name
Joshua
Truck Year
1986
Truck Model
CUCV
Engine Size
5.3
Thanks for the detailed reply. It's not the bulkhead connector, I just did a painless wiring harness last year. I don't see where it would ground through a tab. I also don't understand why there are two connectors that go into the wiper motor for a total of five wires.
You must be registered for see images attach

Last edited:

Snoots

Supporting Member
Supporting Member
Joined
Jan 23, 2013
Posts
6,089
Reaction score
9,965
Location
Georgia
First Name
Roger
Truck Year
1973
Truck Model
Jimmy Sierra
Engine Size
350
IIRC, wiper motors need a ground wire. They (some of them) do not ground to the chassis because they have rubber mounts at the firewall.


gmbellew

Full Access Member
Joined
May 27, 2018
Posts
313
Reaction score
224
Location
Kansas city
First Name
glen
Truck Year
1990
Truck Model
suburban 1500
Engine Size
350
delay and low use the same power wire. high uses a different power wire. there is an onboard circuit breaker in the motor that can get week and cause issues. the top plug is for the park switch, if I recall correctly. it can also get out of adjustment. you can get a rebuild motor for about $100 I believe. if you are getting power everywhere. there is a delay module at the base of the steering column. if you unplug either end of the harness you can bypass the module and see if you get low and high. delay obviously won't work with it bypassed.


LateOnTheBrakes

5.3-Swapped 86 CUCV
Joined
Feb 2, 2020
Posts
330
Reaction score
76
Location
Virginia
First Name
Joshua
Truck Year
1986
Truck Model
CUCV
Engine Size
5.3
delay and low use the same power wire. high uses a different power wire. there is an onboard circuit breaker in the motor that can get week and cause issues. the top plug is for the park switch, if I recall correctly. it can also get out of adjustment. you can get a rebuild motor for about $100 I believe. if you are getting power everywhere. there is a delay module at the base of the steering column. if you unplug either end of the harness you can bypass the module and see if you get low and high. delay obviously won't work with it bypassed.
Park switch? Like to tell the wipers they are at the bottom? Only one speed works. I don't feel a good click for the high speed function. The mist function also doesn't work. I have to turn the switch off at the right time for the wipers to stop at the bottom of the windshield.

From what I can tell the army truck didn't have the delay function and the current wiper motor is painted green.


Attachments

  • Wipers.pdf
    14.1 KB · Views: 12

gmbellew

Full Access Member
Joined
May 27, 2018
Posts
313
Reaction score
224
Location
Kansas city
First Name
glen
Truck Year
1990
Truck Model
suburban 1500
Engine Size
350
all that stalk does is work the switch that is in the steering column. replacing it requires taking off the steering wheel and getting into the steering column. if your wipers are not parking and only one speed works, I would lean toward needing a new motor unless you see a wiring issue. I'd take off the access panel at the base of the steering column and see if you get power like you should. if all is good there, you probably need a new motor. if all is not good there, you probably need a new switch.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
1,634
Reaction score
1,686
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
350
Thanks for the detailed reply. It's not the bulkhead connector, I just did a painless wiring harness last year. I don't see where it would ground through a tab. I also don't understand why there are two connectors that go into the wiper motor for a total of five wires.
You must be registered for see images attach
Typically there is a ground tab on one of the three ears. If that is missing or gone you need to make some sort of ground wire. It can run from any of the metal screws to a good ground on the bulk head.

The connector on the left in your picture turns to washer pump on, the one on the right is for the motor it's self.


gmbellew

Full Access Member
Joined
May 27, 2018
Posts
313
Reaction score
224
Location
Kansas city
First Name
glen
Truck Year
1990
Truck Model
suburban 1500
Engine Size
350

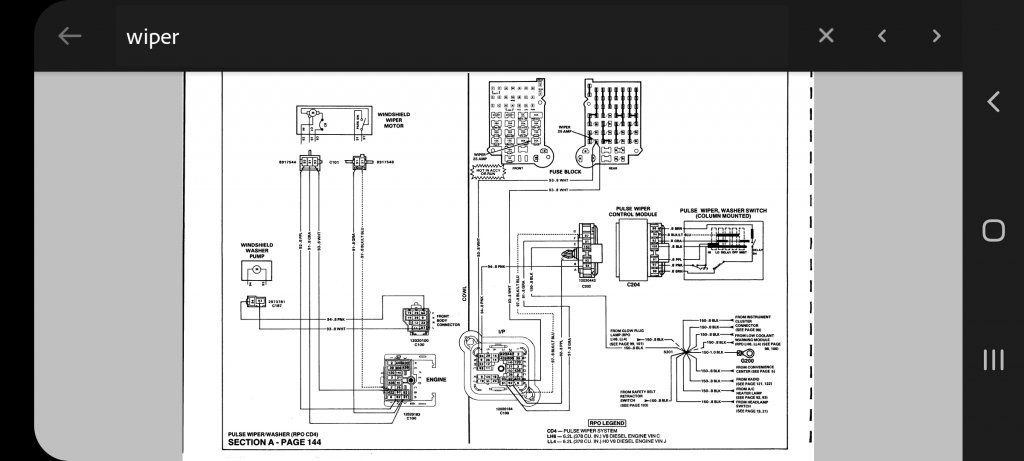

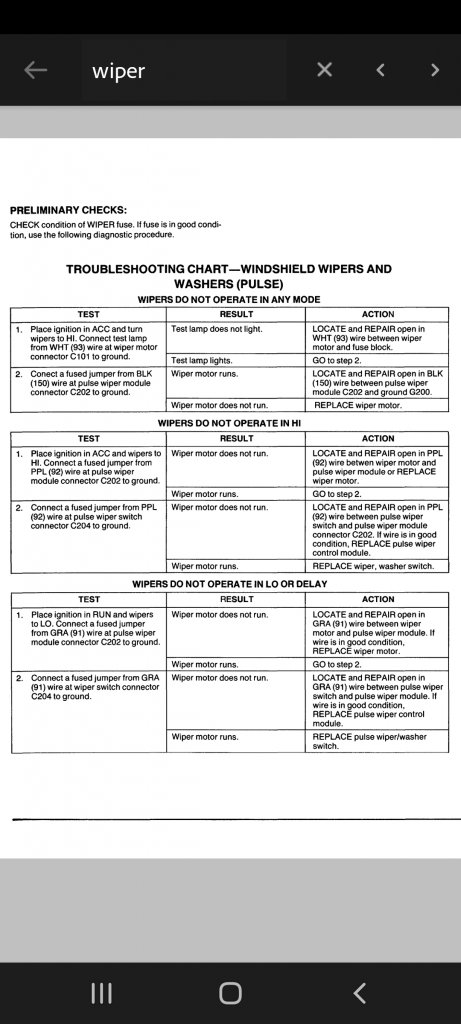

from the 1990 wiring manual...may be a little different depending on your year, potentially.
