6.2 diesel loosing 12v on the IP shutoff solenoid

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Dieselbrent

Junior Member
Joined
Nov 10, 2018
Posts
17
Reaction score
4
Location
South carolina
First Name
Christopher
Truck Year
1988
Truck Model
Chevy
Engine Size
5.9L Cummins
I am in need of some help. I have e 1987 chevy 6.2 diesel and I am loosing 12 volts to the fuel shutoff on the injection pump. It runs for 30 seconds then cuts off. The solenoid reads 11 or 12v when running then it instantly goes to 2 volts and shuts-off. I am looking for a injection pump wiring harness and I can't find one anywhere on the web.


Attachments

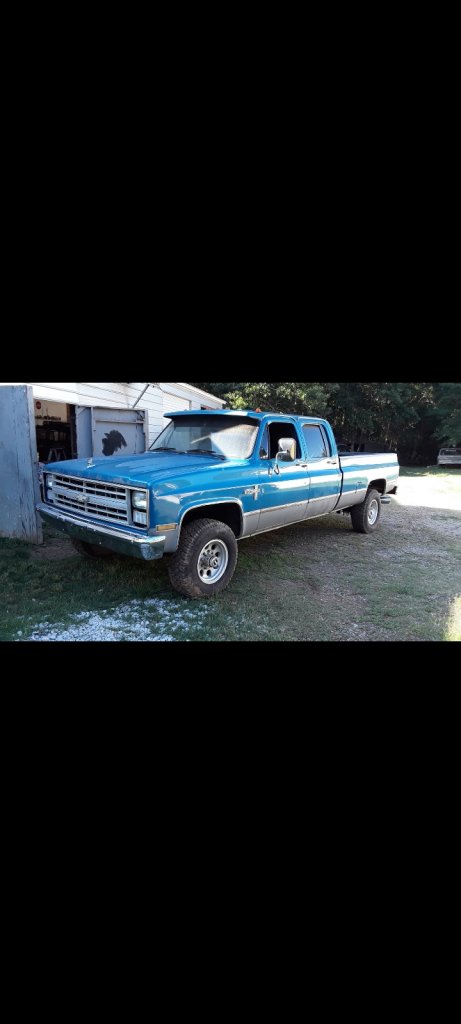

  • Screenshot_20220816-002009_Photos.jpg
    45.2 KB · Views: 47

Snoots

Full Access Member
Joined
Jan 23, 2013
Posts
8,158
Reaction score
15,957
Location
Georgia
First Name
Roger
Truck Year
1973
Truck Model
Jimmy Sierra
Engine Size
350
Check your oil pressure sender. If they think you don't have enough OP the computer will shut off the fuel pump.


Itali83

Full Access Member
Joined
Feb 7, 2015
Posts
575
Reaction score
1,075
Location
Maine
First Name
Ben
Truck Year
1982, 1987, 1987
Truck Model
K10, 'burban C10, Jimmy
Engine Size
350, 6.2, 350
Check your oil pressure sender. If they think you don't have enough OP the computer will shut off the fuel pump.
6.2 diesel. No computer. Oil pressure sensor has nothing to do with shutoff solenoid.

Ok, that out of the way, I’d be checking the single wire that goes to the shut off solenoid itself. It’s the pink wire on top of injection pump. If you haven’t noticed, these motors shake a little bit…. I’d be looking for it chaffing on the motor somewhere first. Along the intake, a bracket etc etc. it’s in a small wire loom where there is a chance of it chaffing. It still has a chance of it chaffing closer to the firewall when it joins the big harness too. Start there and report back

Ben


Blue Ox

Turning Diesel Fuel Into Fun
Joined
Mar 27, 2018
Posts
4,831
Reaction score
10,631
Location
LI-NY
First Name
Derek
Truck Year
MCMLXXXV
Truck Model
K20HD
Engine Size
6.2L
You probably mixed up the wires for the shutoff solenoid and the cold advance solenoid. Fat red wire goes to the terminal on top of the pump cover. Small green goes to the one on the side of the cover.


Dieselbrent

Junior Member
Joined
Nov 10, 2018
Posts
17
Reaction score
4
Location
South carolina
First Name
Christopher
Truck Year
1988
Truck Model
Chevy
Engine Size
5.9L Cummins
Okay I traced the red wire down and it was in great condition. I am now looking at the relay for the glow plugs. Maybe that is causing it to somehow loose power. And I'll work back from there. I also looked at all my plugs on the top of the injection pump. Everything is in the correct order. I appreciate all the advice and help. I will give an update when I put the glow plug relay on. One side goes to battery and other goes to the glow plug and to the shutoff solenoid. So I am hoping this helps my electrical short and the decreasing voltage.


Itali83

Full Access Member
Joined
Feb 7, 2015
Posts
575
Reaction score
1,075
Location
Maine
First Name
Ben
Truck Year
1982, 1987, 1987
Truck Model
K10, 'burban C10, Jimmy
Engine Size
350, 6.2, 350
You can always unhook the red wire and put a jumper directly from the battery to rule out a faulty shut off solenoid. Be 100% sure it’s a power supply problem and not a solenoid problem.

Ben


Rickf

Full Access Member
Joined
Jul 29, 2017
Posts
463
Reaction score
546
Location
Grafton NH
First Name
Rick
Truck Year
1974, 1954 & a 1937
Truck Model
K20
Engine Size
350
Don't forget about where the harness goes thru the firewall or the switch on the steering column.


Dieselbrent

Junior Member
Joined
Nov 10, 2018
Posts
17
Reaction score
4
Location
South carolina
First Name
Christopher
Truck Year
1988
Truck Model
Chevy
Engine Size
5.9L Cummins
Okay thank you for the help. I will check on all that.


Dieselbrent

Junior Member
Joined
Nov 10, 2018
Posts
17
Reaction score
4
Location
South carolina
First Name
Christopher
Truck Year
1988
Truck Model
Chevy
Engine Size
5.9L Cummins
I checked the injection pump with a jumper and the solenoid was good. I loose the wire in the firewall.
