Anyone who has legible visor labels with the 4x4 Shift and Transfer Case Instructions, please post a good legible picture along with your Transmission and Transfer Case model combinations. (Example, Th350/NP203, SM465/NP205, 700r4/NP241C etc)


1987 GMC Jimmy

Automobile Hoarder
Joined
Jan 23, 2016
Posts
5,841
Reaction score
2,345
Location
Mississippi
First Name
Jesse
Truck Year
1987
Truck Model
V1500 Jimmy
Engine Size
350
Good thinking. Here's mine. Also, I'm not an expert on t-cases, but would this be the same or similar for NP205's and NP231's since they're also part-time and have shift on the fly capability?

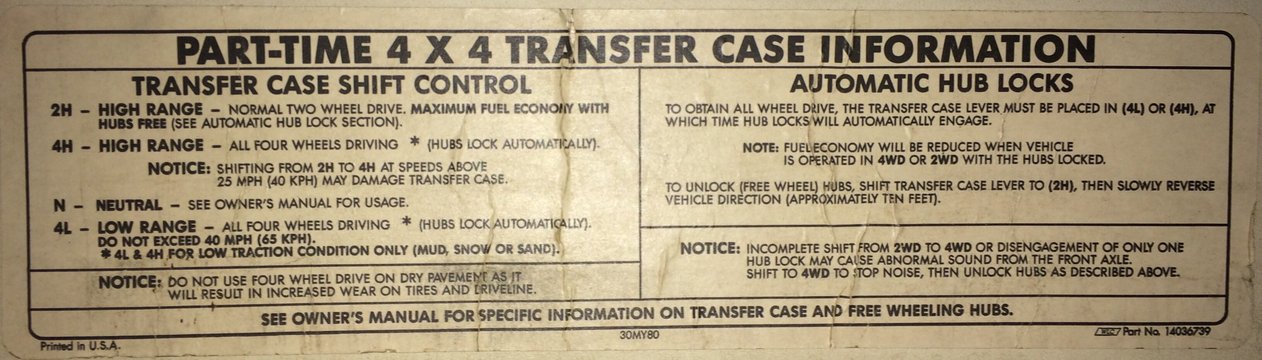

700R4/NP208/Automatically Locking Hubs:


Attachments

  • image.jpg
    122.3 KB · Views: 322
Last edited:

GregL

Full Access Member
Joined
Mar 10, 2016
Posts
334
Reaction score
194
Location
Palm Springs, CA.
First Name
Greg
Truck Year
1977
Truck Model
K 20
Engine Size
350
Can anyone post a good quality pic of a 203 instruction sticker? I want to download it and have a new one printed.
Thanks, Greg


theblindchicken

Full Access Member
Joined
Oct 24, 2013
Posts
1,518
Reaction score
256
Location
SoCal
First Name
Christian
Truck Year
1974
Truck Model
K10 5" lift + 2" BL
Engine Size
350-4, 0.030" over
NP203 Fulltime 4wd Shifting Visor Label

NP203 Fulltime 4wd Shifting Visor Label

Overall size: 4-3/8" Tall x 4-1/2" Wide

attachment.php

attachment.php

attachment.php


1987 GMC Jimmy

Automobile Hoarder
Joined
Jan 23, 2016
Posts
5,841
Reaction score
2,345
Location
Mississippi
First Name
Jesse
Truck Year
1987
Truck Model
V1500 Jimmy
Engine Size
350
Ooh, I better get the measurements on mine. I'll just add it to the original post.


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
46,431
Reaction score
7,273
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB / 86 K5
Truck Model
Silverado / Silverado
Engine Size
454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
Ooh, I better get the measurements on mine. I'll just add it to the original post.

A Mod or myself will probably have to add that to your original pic post. Just post the measurements here and one of us will take care of it, then delete your measurement post. :cheers:


theblindchicken

Full Access Member
Joined
Oct 24, 2013
Posts
1,518
Reaction score
256
Location
SoCal
First Name
Christian
Truck Year
1974
Truck Model
K10 5" lift + 2" BL
Engine Size
350-4, 0.030" over
Engine Starting Procedure Label: 1974 K10 with 350-4bbl, TH350, NP203, 4.11:1 axles.
You must be registered for see images attach
You must be registered for see images attach


Joshua Keith

Full Access Member
Joined
Aug 28, 2019
Posts
297
Reaction score
367
Location
Memphis
First Name
Joshua
Truck Year
1985
Truck Model
K10
Engine Size
350
Anyone have a pic of their NP208 manual locking hub sticker?


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
6,541
Reaction score
3,829
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
You must be registered for see images attach

not for a np208, a sticker, or at all what you wantewd, but you are seeking the label for how to or you are trying to restore? If restore, i can check visor on the truck cab I think my np208 came from(but not for sure, ill look)


Joshua Keith

Full Access Member
Joined
Aug 28, 2019
Posts
297
Reaction score
367
Location
Memphis
First Name
Joshua
Truck Year
1985
Truck Model
K10
Engine Size
350
@AuroraGirl No, I’m looking for the How to engage the 4 wheel-drive sticker. When you’re able to switch from 2H to 4H and how to switch into 4L. Someone on here has to still have it on their visor.


Ellie Niner

Full Access Member
Joined
Aug 7, 2021
Posts
296
Reaction score
430
Location
Tucson, AZ
First Name
Tory
Truck Year
1986
Truck Model
K10 Silverado
Engine Size
LE9 305
@AuroraGirl No, I’m looking for the How to engage the 4 wheel-drive sticker. When you’re able to switch from 2H to 4H and how to switch into 4L. Someone on here has to still have it on their visor.
Until you get a copy of the sticker... it's very much the same as for the automatic hubs, other than you can omit the don't exceed 25mph when shifting from 2H to 4H; you can shift back and forth at any speed (as long as you're driving in a straight line) once your manual hubs are locked in. Shift in and out of 4L only from a complete stop. And of course the part about reversing to unlock them can be omitted.

Now that I'm thinking about it, did they ever use a NP208 with manual hubs from the factory?


Joshua Keith

Full Access Member
Joined
Aug 28, 2019
Posts
297
Reaction score
367
Location
Memphis
First Name
Joshua
Truck Year
1985
Truck Model
K10
Engine Size
350

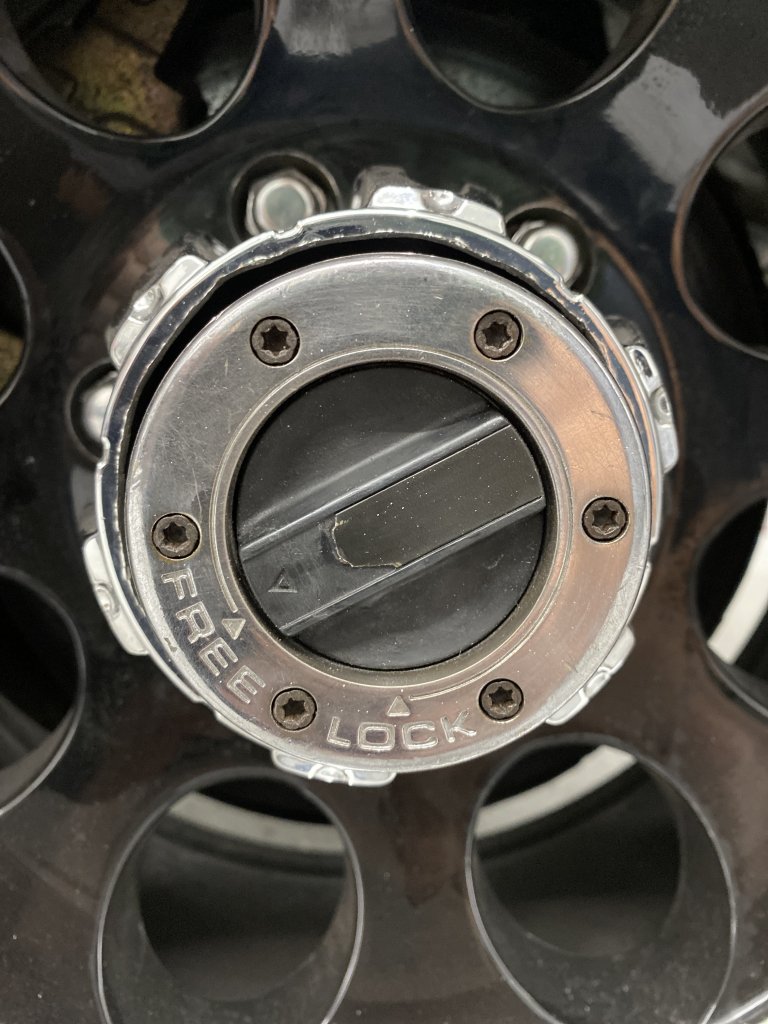

@Ellie Niner Thanks for the info. Honestly I have no idea about the manual locking hubs being oem or not. My k10 has these and I just assumed they were from the factory.


Attachments

  • image.jpg
    129.9 KB · Views: 11

Joshua Keith

Full Access Member
Joined
Aug 28, 2019
Posts
297
Reaction score
367
Location
Memphis
First Name
Joshua
Truck Year
1985
Truck Model
K10
Engine Size
350
@Ellie Niner just checked my RPO code list and they were from the factory.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
6,541
Reaction score
3,829
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
@Ellie Niner just checked my RPO code list and they were from the factory.
what axle is that? they kinda look like warn hubs on my k10 but without the sticker that says warn

You must be registered for see images attach


not the best pic but its jsut a thought. thats a dana 44 from 78 which If Im to believe the 79 Ordering guide means that The 1/2ton d44 and 10 bolts were semi float and the 3/4ton front axles were full float. if this kept up through the 80s, the 10 bolts in the front of half tons would be semi and the 10 bolts on the 3/4tons would be fullfloat and maybe the auto locking hubs which I have no knowledge of work only on one or the other or isnt up to GMs idea for strength in its application so its limited to the half ton, or something. Just floating(ha) ideas.
You must be registered for see images attach

My k10 there is definitely a 90s child for the parts on it because it hasnt been tagged since 2000 and the hubs were Not locking from factory with a NP203 they were just full time. so the warn obviously is aftermarket and it would be likely the same design for many years so its appears to be aftermarket unless GM Used warn for 10bolts(Yours?) or dana-spicer hubs on a d60(?) look like warn lol
