1991 electric suburban Speedometer into a 77 K10 square ls swap

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

jfkelley

Full Access Member
Joined
Apr 14, 2019
Posts
65
Reaction score
15
Location
Oklahoma City
First Name
John
Truck Year
1976
Truck Model
K10
Engine Size
350
Hello All !..I have searched and searched the internet for my answer & I find myself coming back to this forum looking for help and its been very helpful ....Can anyone show me how to repin a 91 suburban speedometer to work on my 77 Chevrolet for my VSS . I did a LS engine swap from a 2003 Silverado 5.3/4l60E/ with an NP241C …I have an INCOMPLETE 91 Suburban Cluster with JUST the speedometer from a 91 Suburban..I wanted to know if I can swap the Water and Volt gauges into the 91 Cluster or Vice Versa …?...Oil Gauges has the copper line running to the gauge …Thanks In advance


jfkelley

Full Access Member
Joined
Apr 14, 2019
Posts
65
Reaction score
15
Location
Oklahoma City
First Name
John
Truck Year
1976
Truck Model
K10
Engine Size
350
You must be registered for see images attach

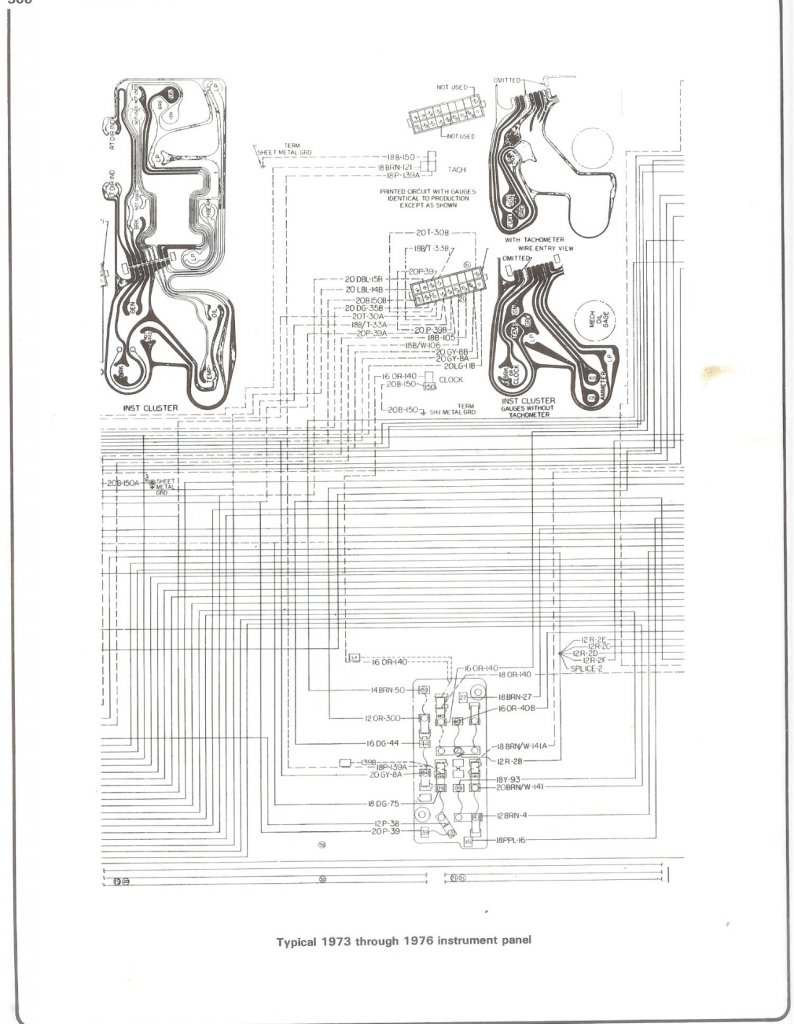

On the 76 Schematic I’m looking at I see the following and I really had to squint

DK Green - Temp
Tan - Fuel
Oil Mechanical
Cluster lights- Grey
Ignition -Pink
Light Blue - Left indicator
Dark Blue Right indicator
Fuel Sending Unit is it Tan or pink ?


Attachments

  • IMG_0893.jpeg
    130.4 KB · Views: 42
