10 Bolt Rear Axle Oil Change w/ Factory Limited Slip

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
10 Bolt Rear Axle Oil Change w/Limited Slip

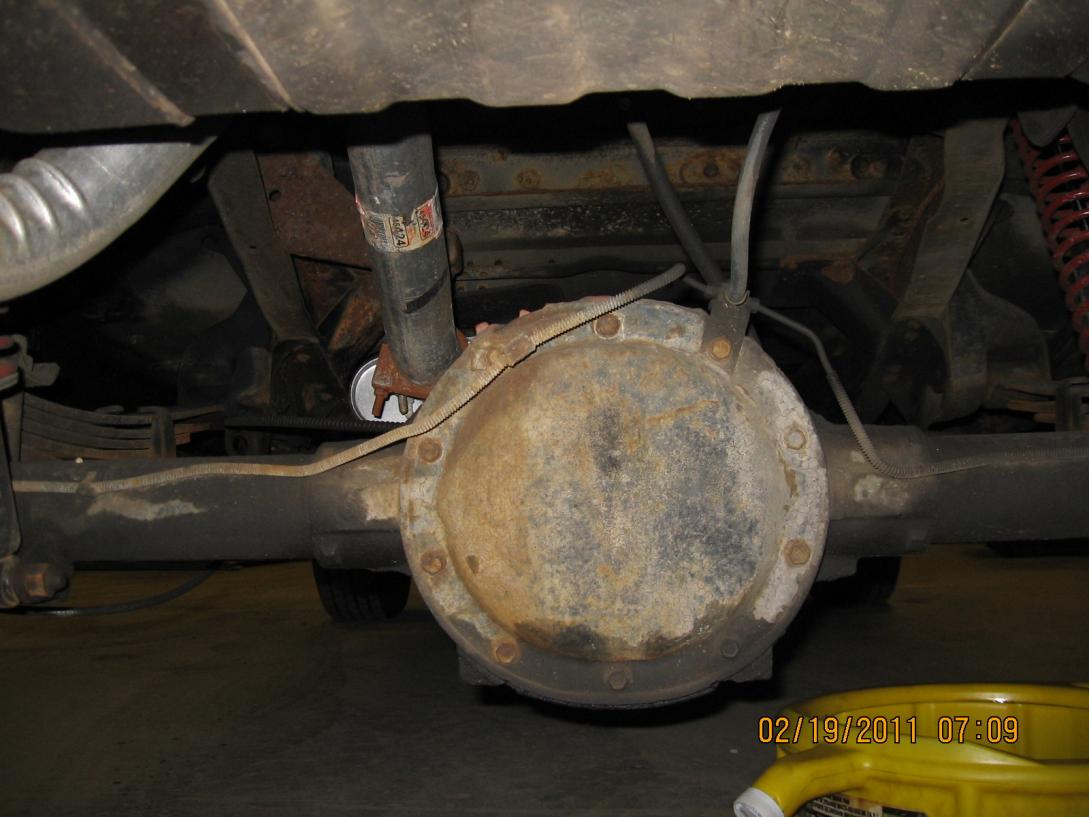

Break the bolts loose on the cover. 1/2" socket needed.....


Attachments

  • IMG_0077.jpg
    89.6 KB · Views: 396
Last edited:

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
They were a REAL BITCH to break loose, made me wish I had my 1/2" drive set with me.

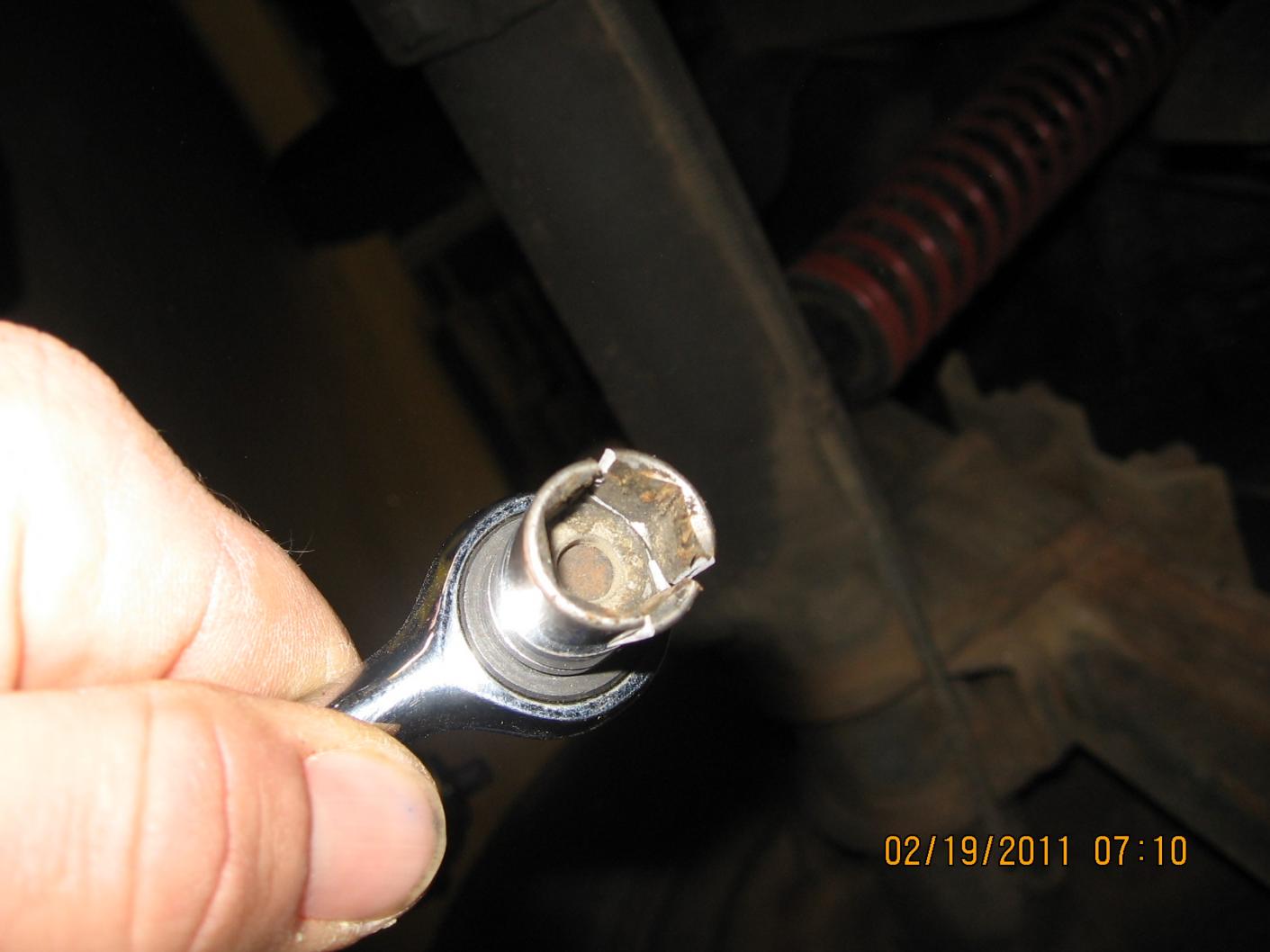

Example of ****** Taiwanese socket that somehow found it's way onto the holy socket holder. :flipthebird:

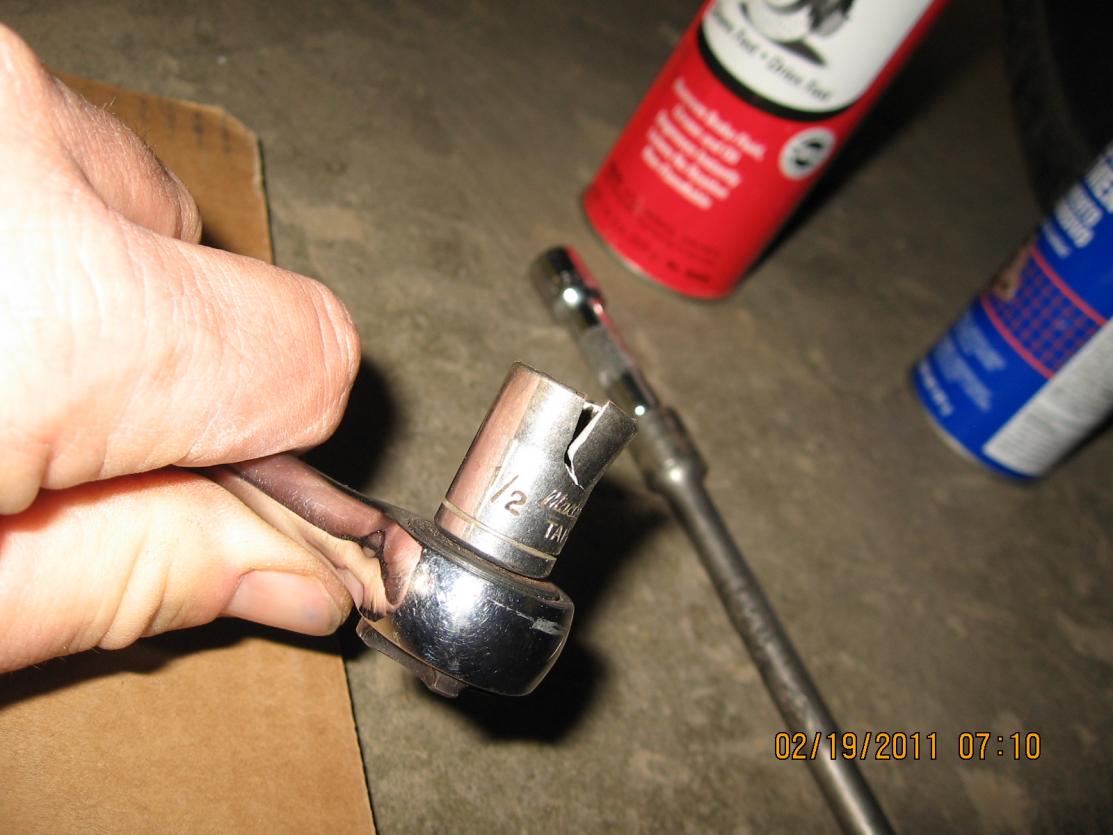

Had to break down and use the deep socket 6 point jawn after this broke, the 12 points weren't cutting it, just rounding it..... :flipthebird:


Attachments

  • IMG_0078.jpg
    82.1 KB · Views: 294
  • IMG_0080.jpg
    85.9 KB · Views: 288
Last edited:

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD

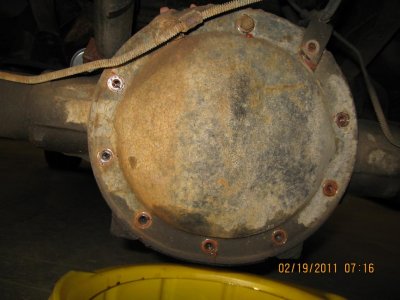

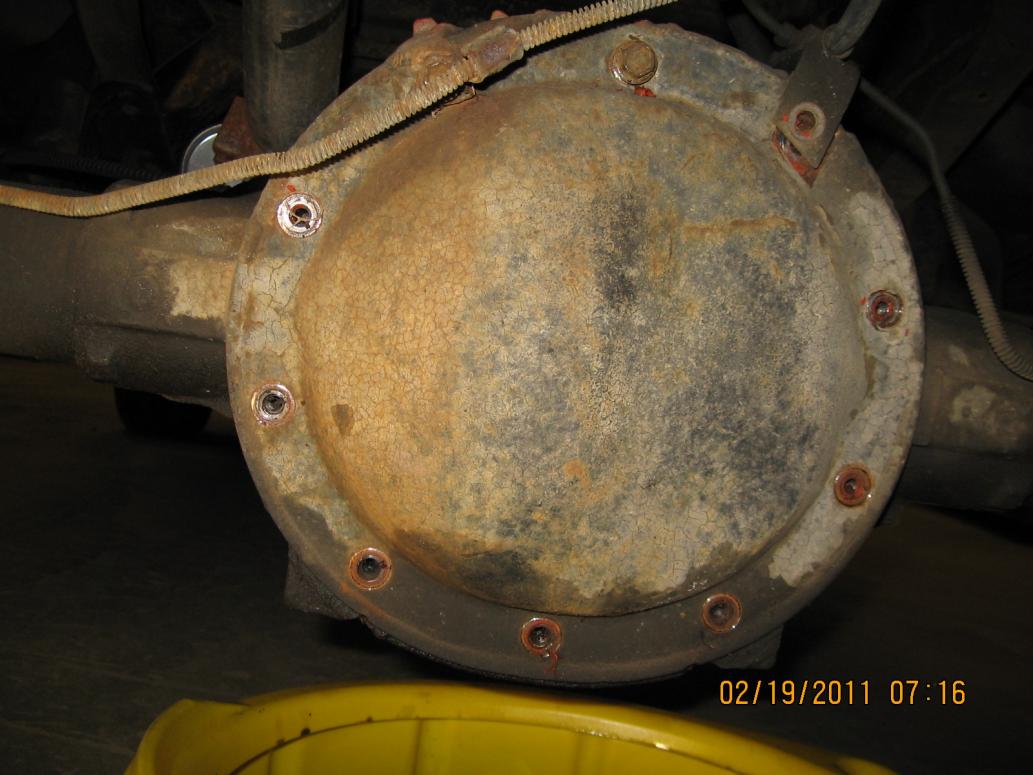

Orange gasket goop in the bolt holes means somebody already had cracked this egg before me. :jawdrop:


Attachments

  • IMG_0081.jpg
    92 KB · Views: 290

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD

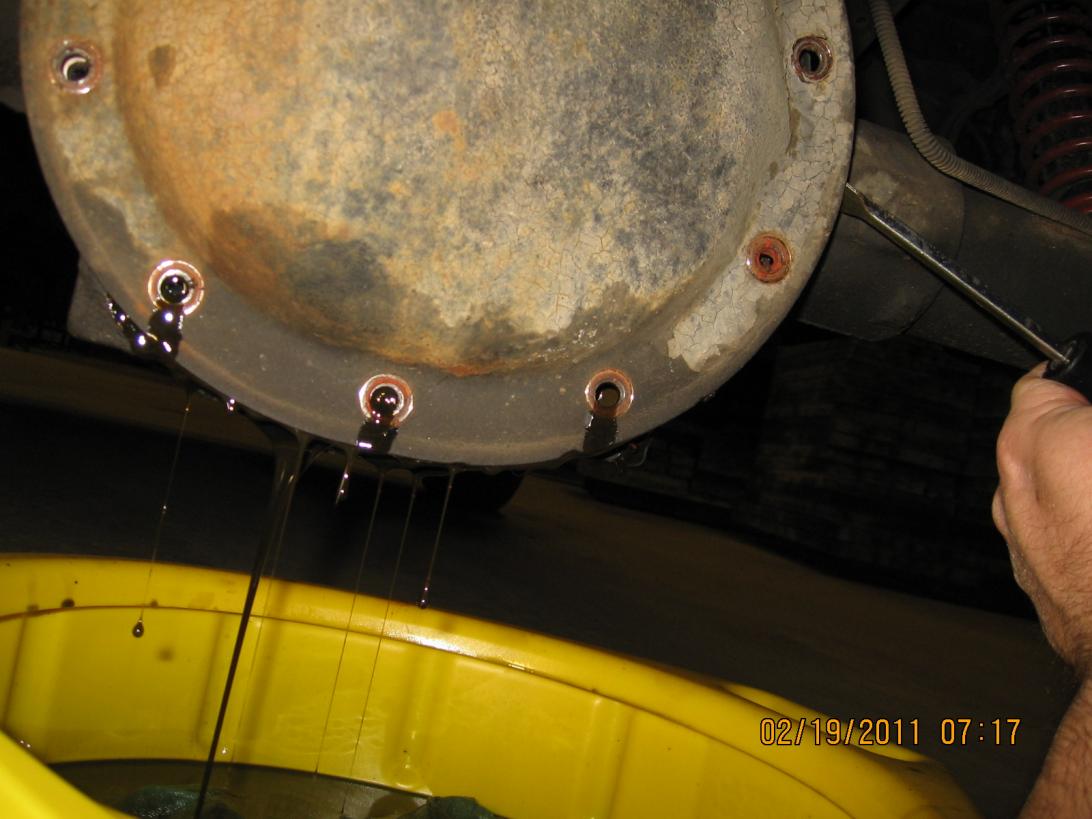

The cover was easier to pop open to drain with the RTV sealant than the gasket job on the front.... :High 5:


Attachments

  • IMG_0082.jpg
    87.6 KB · Views: 275

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
Kick ass L/S diffy baby, looks good!!!!!!!! :banana-mario:

You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach

Last edited:

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
Cleaned up the diff housing mating surface and cover surface.

Also found a factory installed magnet on the cover that I took off and cleaned and reinstalled. :High 5:

You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD

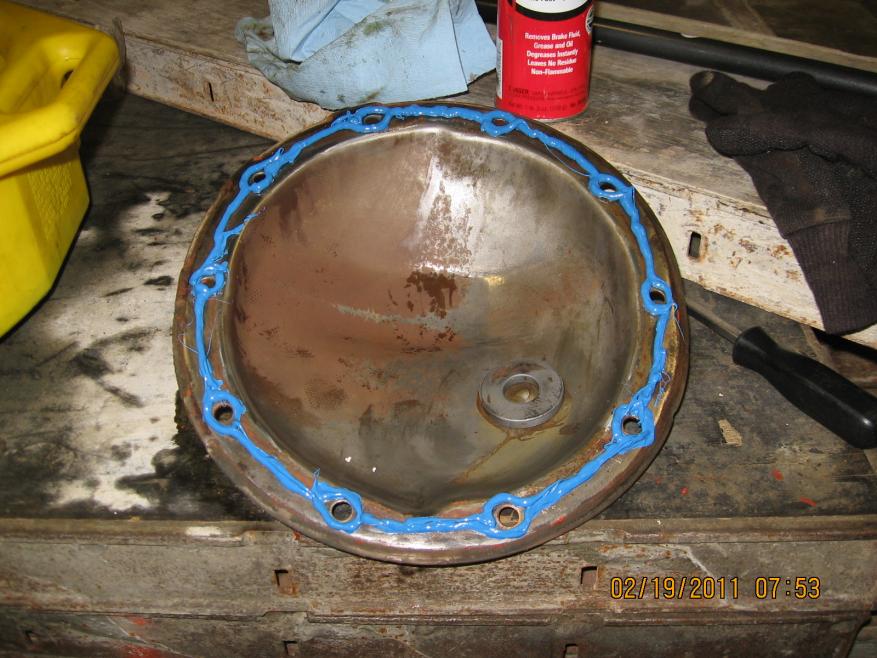

RTV'd the rear cover and let sit to skin up.....


Attachments

  • IMG_0094.jpg
    96 KB · Views: 337

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD

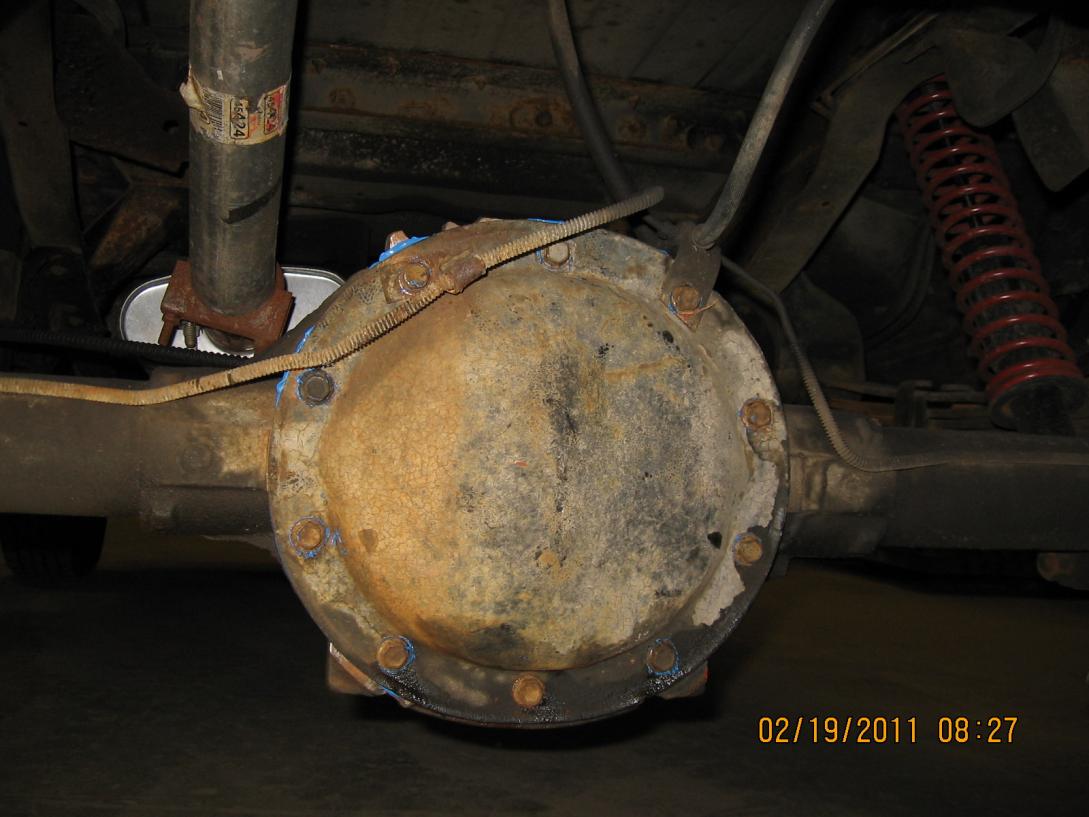

Installed and torqued down, same as the front cover, criss cross pattern, little more tourque at a time, light to heavy.....

*Note the 2 brake line brackes that mount on the ouside of the cover.


Attachments

  • IMG_0095.jpg
    91 KB · Views: 304

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
Time to fill'r up!

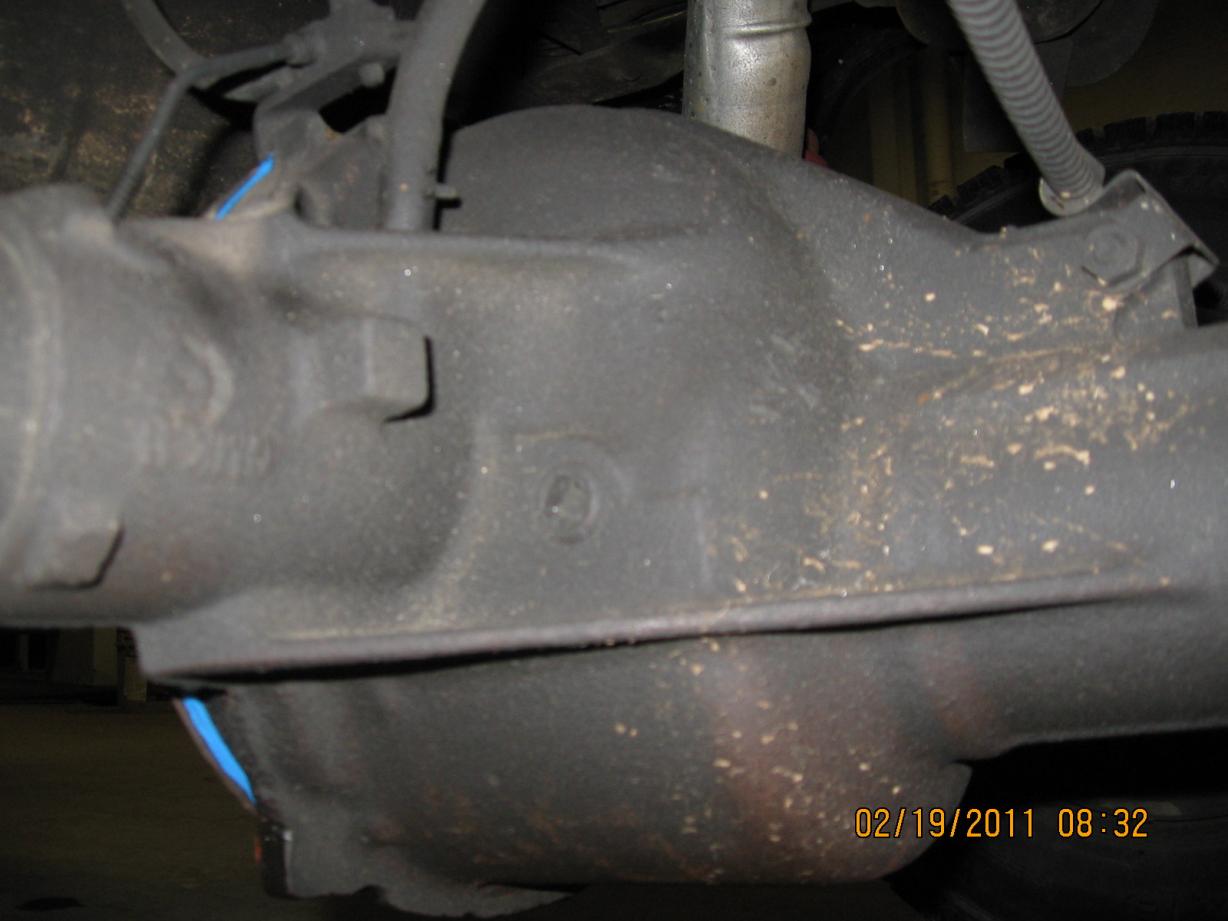

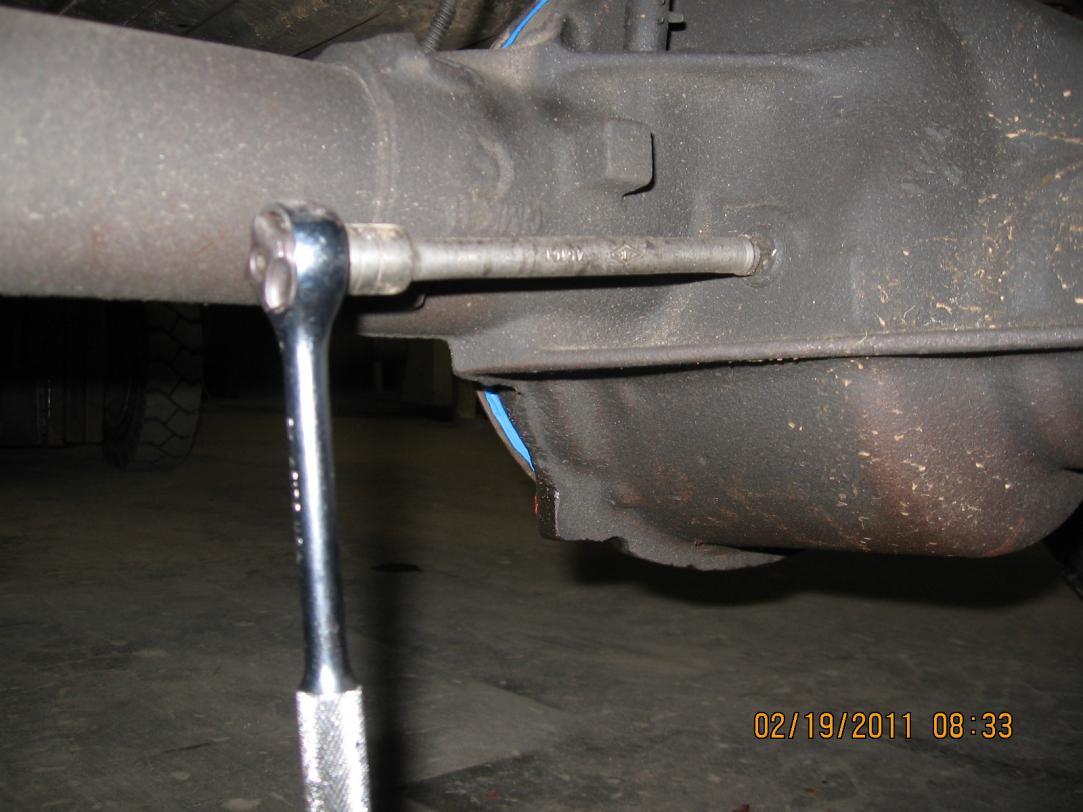

Unlike the front rear, the rear rear fill hole is not in the cover, but in a nook on the front of the axle housing on the passenger side facing towards tho wheel. You will need a 3/8" drive extension or ratchet to fit the hole perfectly and remove the plug......


Attachments

  • IMG_0096.jpg
    82.2 KB · Views: 340
  • IMG_0097.jpg
    91.4 KB · Views: 365

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD

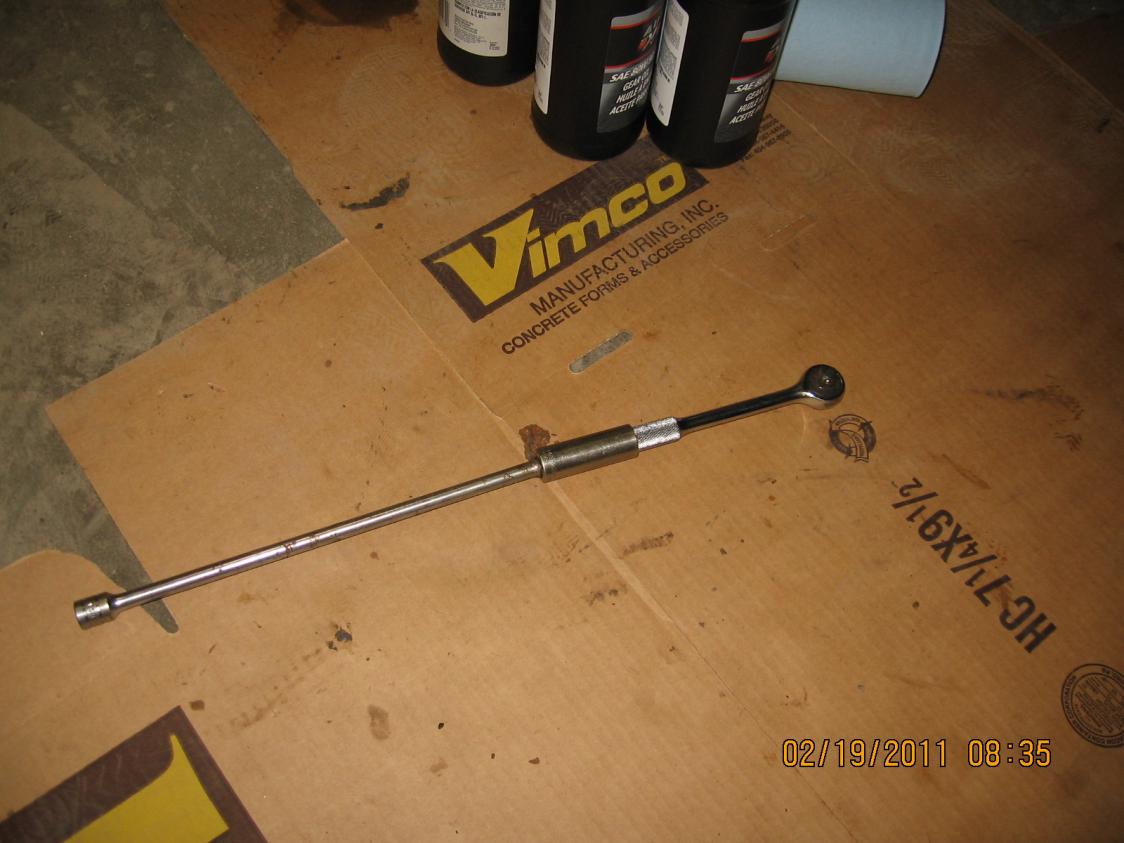

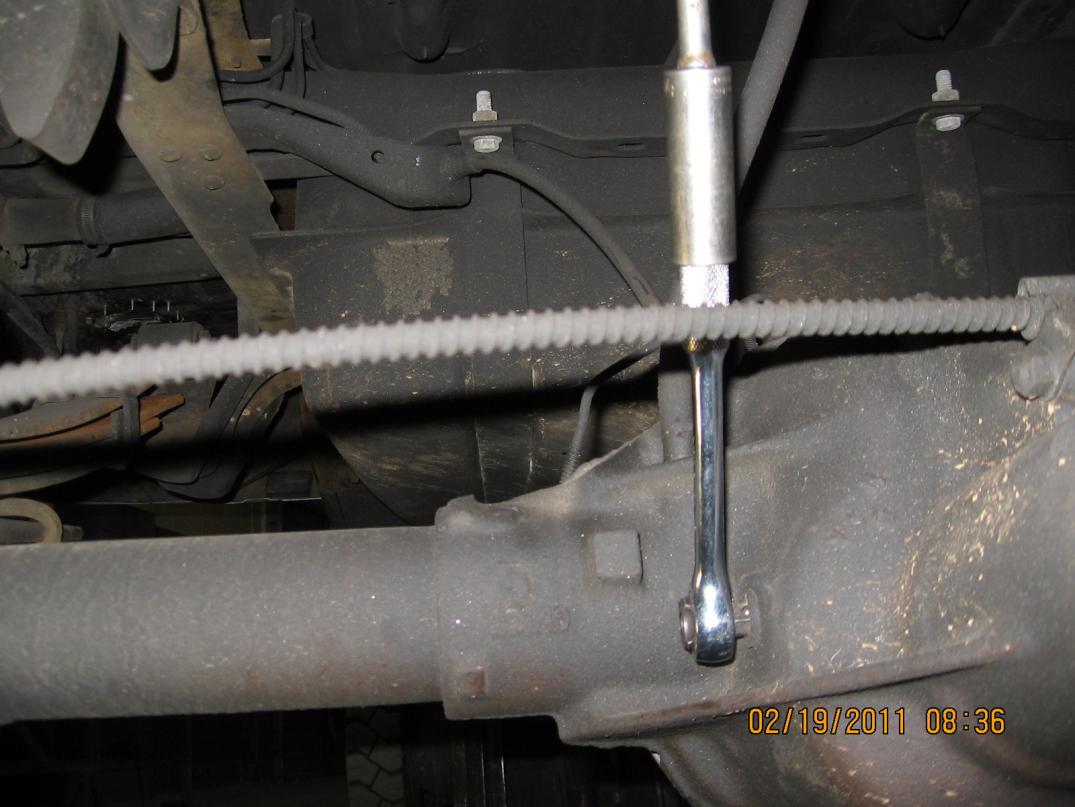

I am 6' 2", 325 LB, and I could not break this fill plug. I had to make a redneck breaker bar for the ratchet handle, loose the extension, and put thE ratchet itself right in the plug. I got to give some credit to that little Craftsman 3/8" drive ratchet for the abuse, it did DAMN GOOD. :High 5:

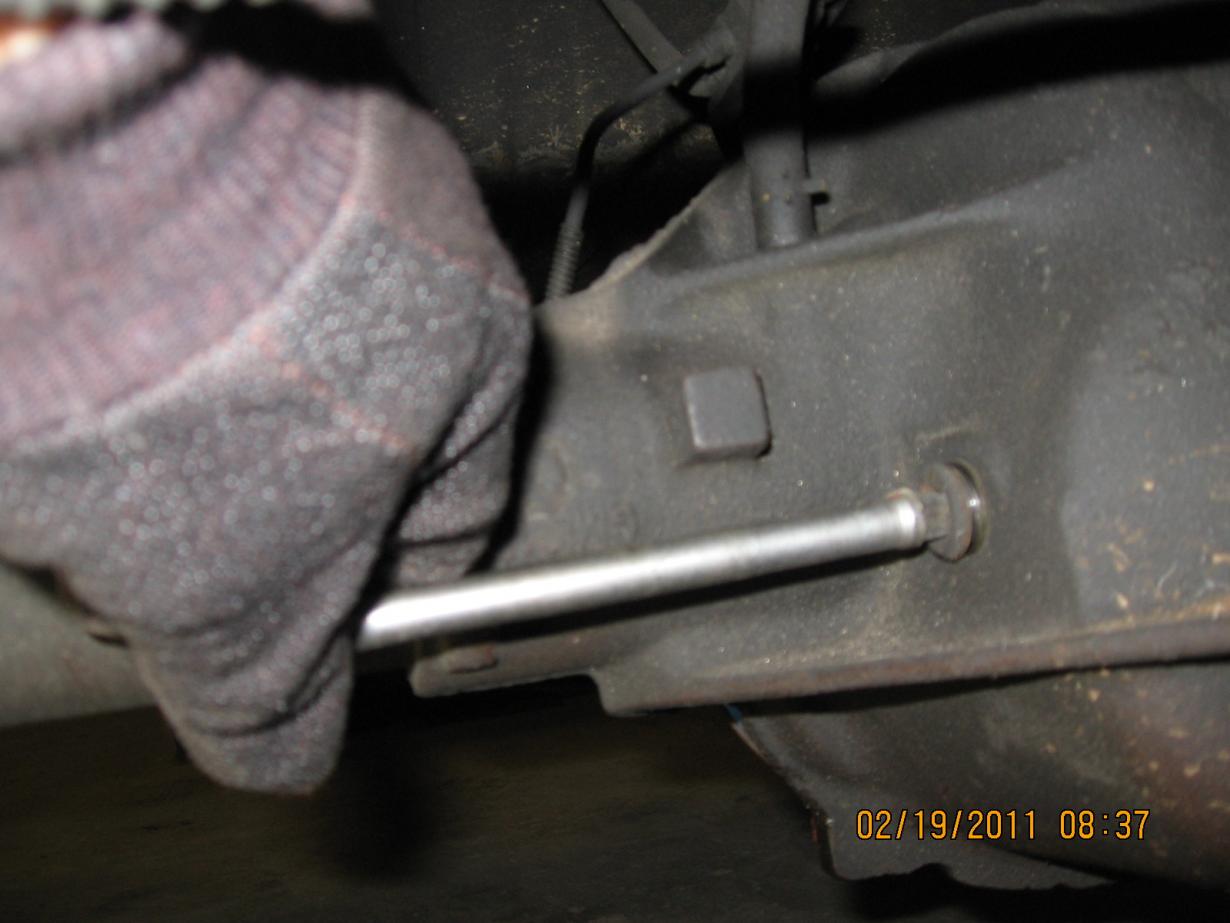

Once I got it broken loose, I used the extension to thread it out.....


Attachments

  • IMG_0098.jpg
    89.5 KB · Views: 296
  • IMG_0099.jpg
    89.9 KB · Views: 321
  • IMG_0100.jpg
    82.8 KB · Views: 327

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,614
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
I am dying, need sleep and rest, to be continued........


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
You sure that's a factory limited slip??? What is your RPO code for that??? That is certainly not a G80 Eaton Gov-Lok, aka Gov Bomb cuz they are junk. That's a better set up there for sure. Maybe even an Auburn unit. Could also be an Eaton system, but its not Gov-Lok. I am thinking that was added after factory and is not OEM.


Swims350

Full Access Member
Joined
Jul 30, 2010
Posts
4,351
Reaction score
811
Location
Logan WV
First Name
Chris
Truck Year
1983
Truck Model
K10
Engine Size
none
did you get the numbers on the ring gear to tell you the ratio?

good LS diff too not a gov lock from the looks of it.

I HATE the fill plugs, they always get stuck and rounded off, dad's 84 had a bolt head plug in it now thanks to it being rounded off.


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
Yep I seen the #'s 41-11 is 3.73. Easy to figure out. 41 / 11 = 3.727272 is 3.73.
