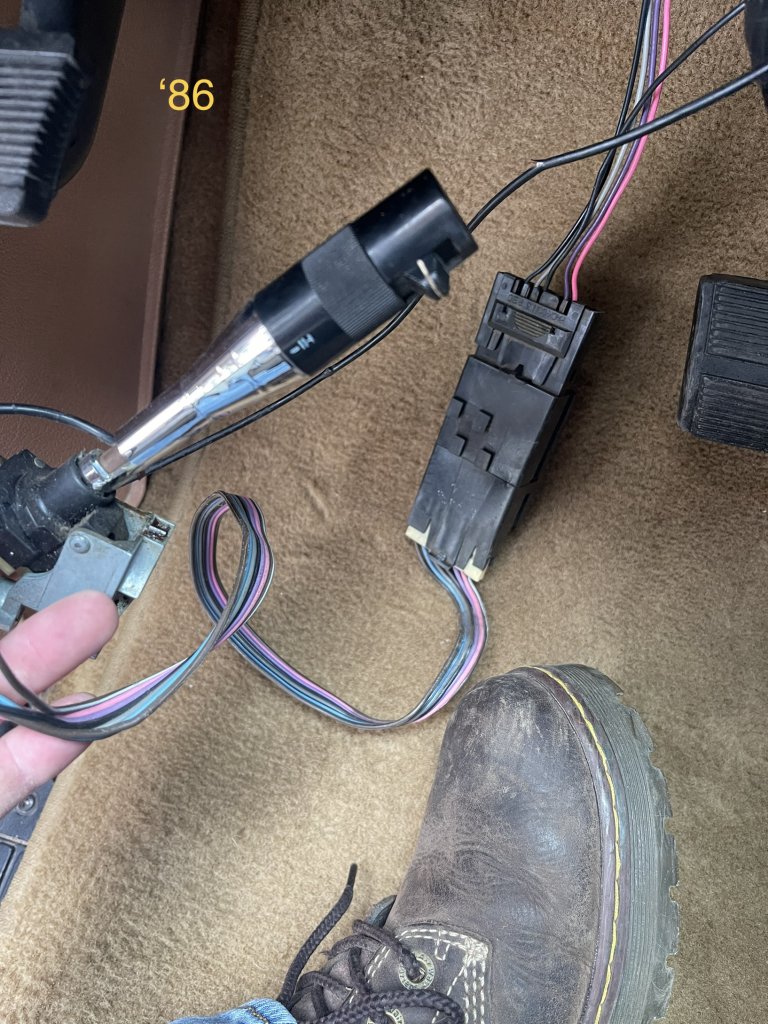

Relocating wiper switch column to dashboard.

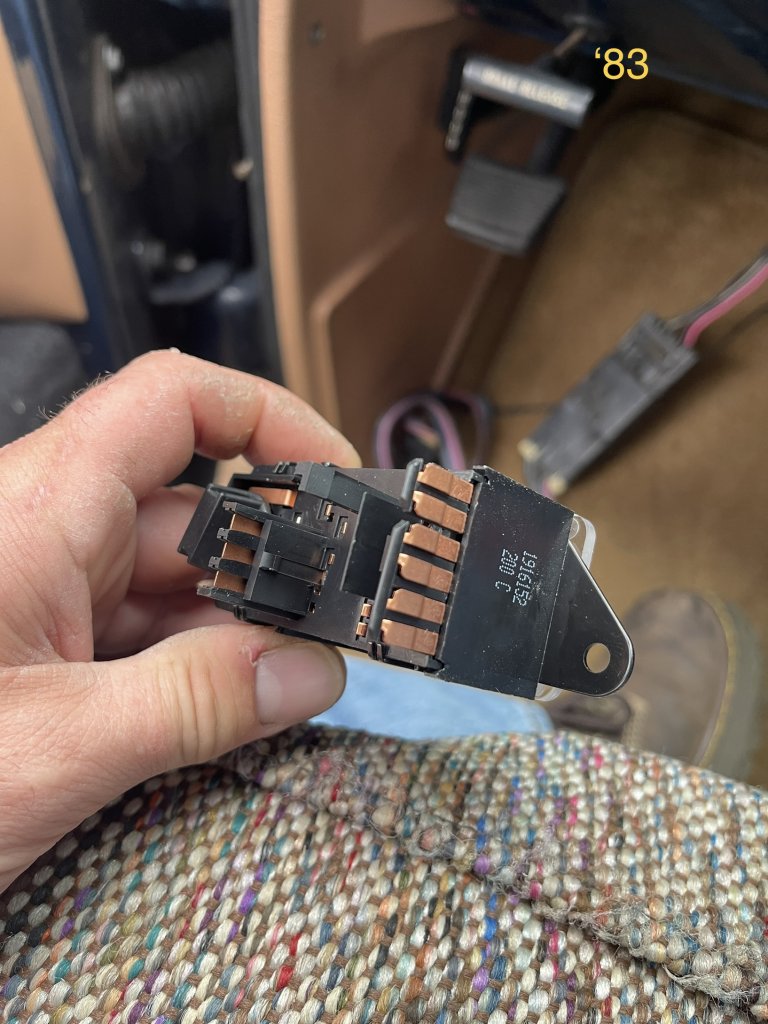

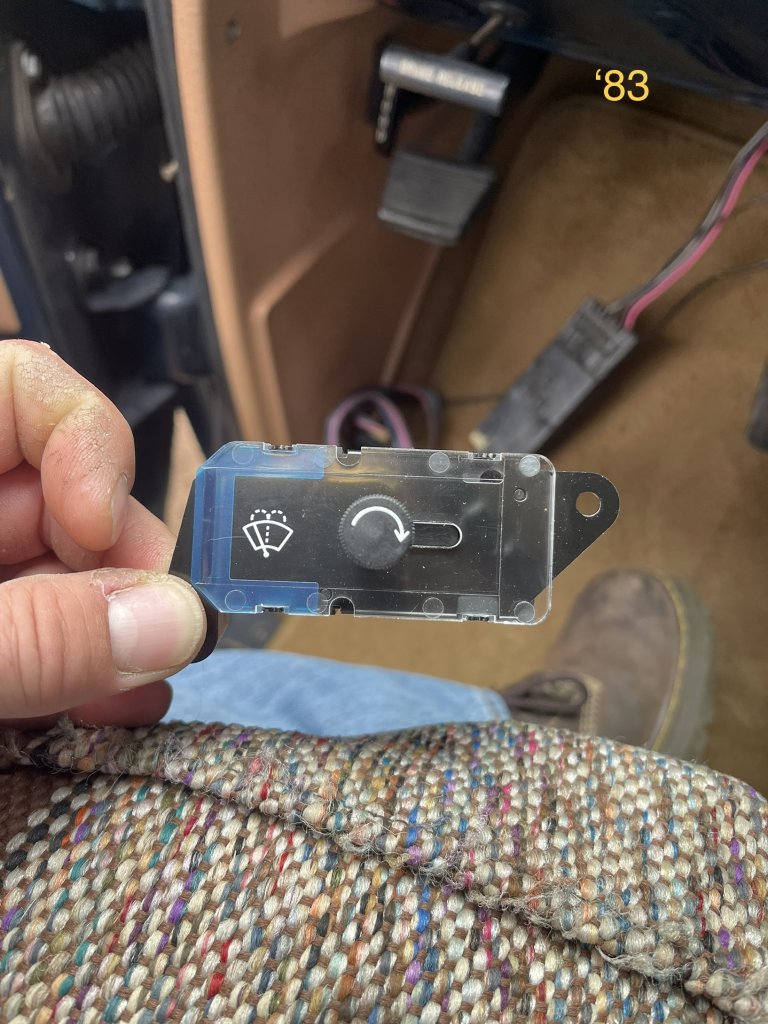

Wanting to use the switch from an ‘83 because they both seem to have the same functions but I don’t have an ‘83 wiring harness that plugs into the back of it. Landing the wires on the new switch isn’t a problem but figuring out what wires to pin where is proving frustrating. Anyone gone through something like this before, is an Electrical Engineer or at least gets more sleep than I do?

Photos attached. Thanks in advance.


Attachments

  • 5E92AC83-388D-4ED8-8F8C-F2D1200AB4C9.jpeg
    140.9 KB · Views: 25
  • 6D6045F2-7593-4810-BAE3-4AE4DE5FFF36.jpeg
    154.4 KB · Views: 29
  • 462285BB-A0DE-45BE-8680-35F18229C546.jpeg
    200.9 KB · Views: 30

AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
7,794
Reaction score
4,431
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
i believe the column wiring plug will have some of the wires you want to instead route to the dash.


MrYams

Junior Member
Joined
Dec 11, 2021
Posts
8
Reaction score
10
Location
Dripping Springs, Texas
First Name
James
Truck Year
1986
Truck Model
C10
Engine Size
305
I’ve pulled the column wires down into the dash at the location I would like to mount the switch. What I need help with is knowing where those column wires land on the switch….The rest of the wiring was so easy I had no idea wipers were going to kick my butt like they have.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
7,794
Reaction score
4,431
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
I’ve pulled the column wires down into the dash at the location I would like to mount the switch. What I need help with is knowing where those column wires land on the switch….The rest of the wiring was so easy I had no idea wipers were going to kick my butt like they have.
If I were you I would look at a 1980 and a 1983 "truck harness" pages for visual pic of the difference and ID the connector which goes to the wiper switch


MrYams

Junior Member
Joined
Dec 11, 2021
Posts
8
Reaction score
10
Location
Dripping Springs, Texas
First Name
James
Truck Year
1986
Truck Model
C10
Engine Size
305
If I were you I would look at a 1980 and a 1983 "truck harness" pages for visual pic of the difference and ID the connector which goes to the wiper switch

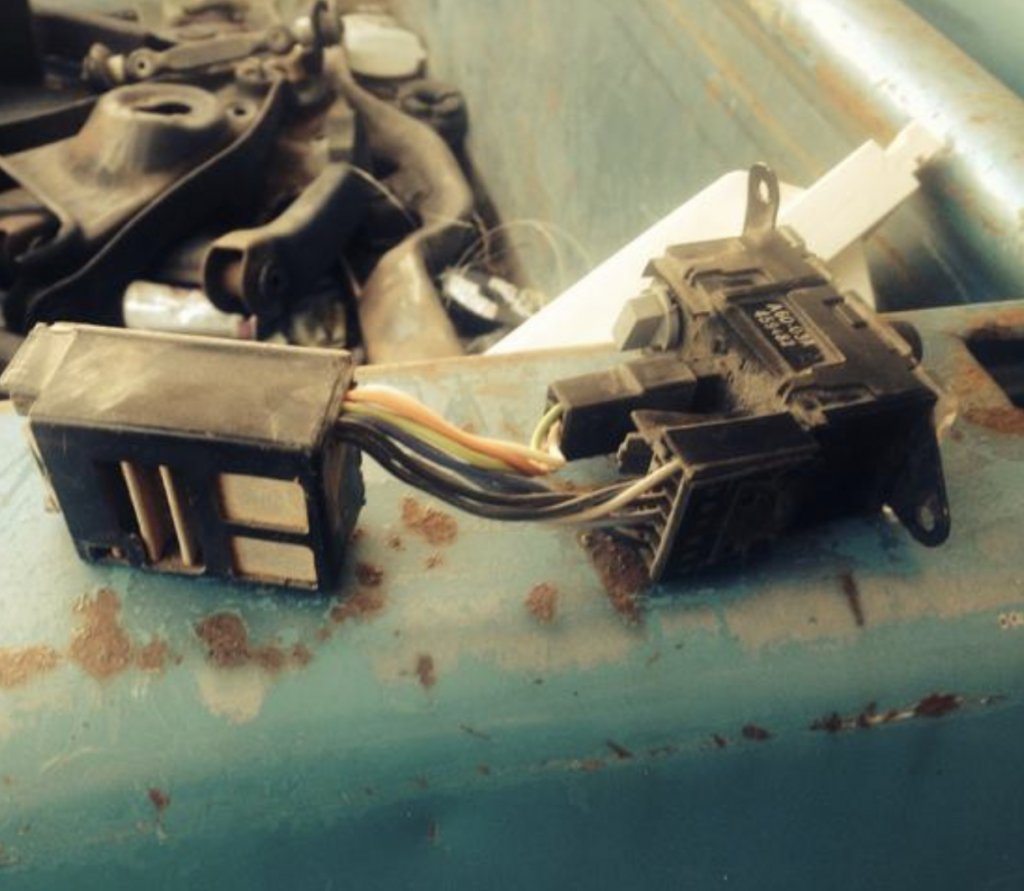

I’ve been able to find wiring diagrams and even came across a pic of the harness (included) it’s actually two connectors, coming off of what I’m guessing is the delay module. So far have had no luck finding anything telling me which pin on the back of the switch does what tho. Haven’t given up yet that’s why I was hoping one of the big square brains in here would know what’s up.


Attachments

  • 857E7460-8500-46DE-A265-37861D8F2F80.jpeg
    99.8 KB · Views: 29

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
25,961
Reaction score
14,619
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
I've not went to the trouble of determining for sure if the older switch can be adapted to a newer delay module. Whether or not it's actually possible, it would be far easier to use the matching '78-'83 delay module. They are a bit hard to find these days though.


Phil 83K20

Full Access Member
Joined
Jul 27, 2021
Posts
80
Reaction score
82
Location
CT
First Name
Philip
Truck Year
1983
Truck Model
K20
Engine Size
350
Did you ever get this figured out?

I’m planning to do the opposite of this to my ‘83; move it up to the column.
I’ll snap a pic of the harness that goes into the switch for you. Maybe we’ll get lucky and the wire colors will be the same…


Phil 83K20

Full Access Member
Joined
Jul 27, 2021
Posts
80
Reaction score
82
Location
CT
First Name
Philip
Truck Year
1983
Truck Model
K20
Engine Size
350

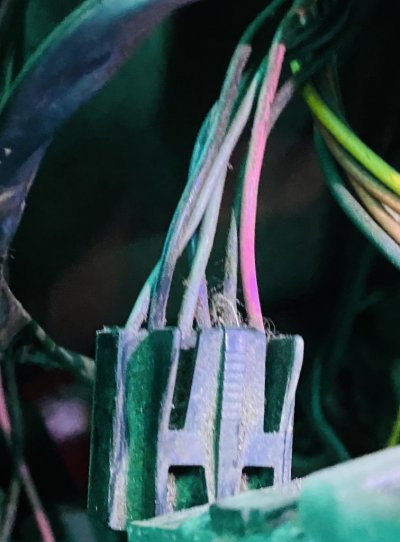

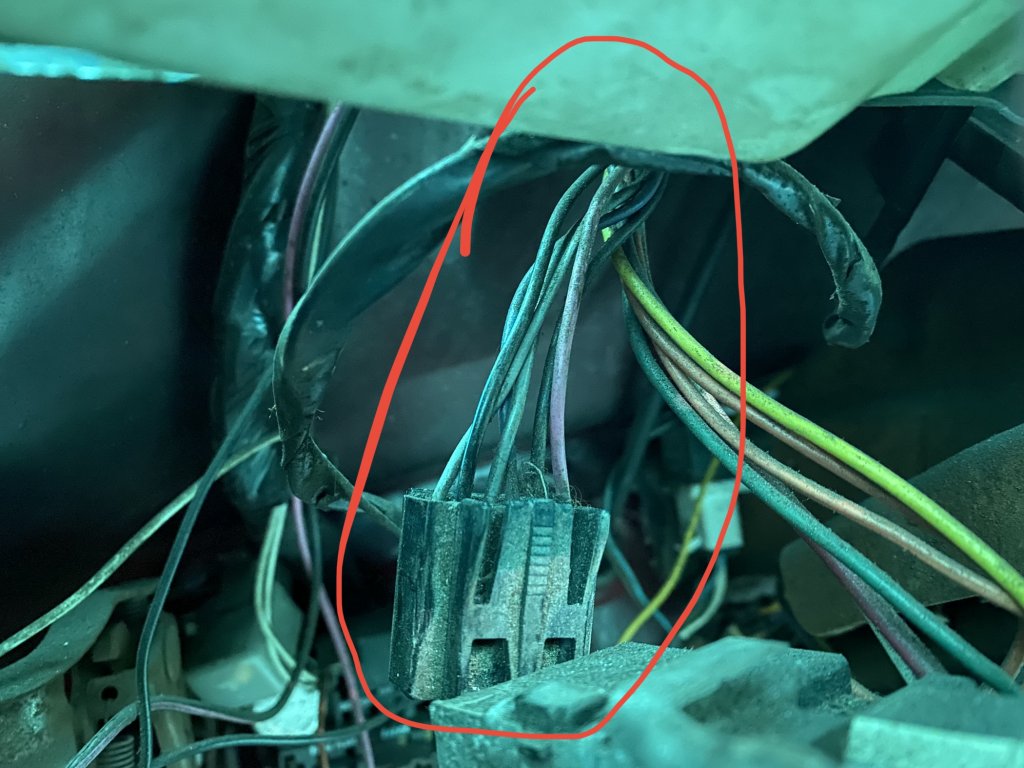

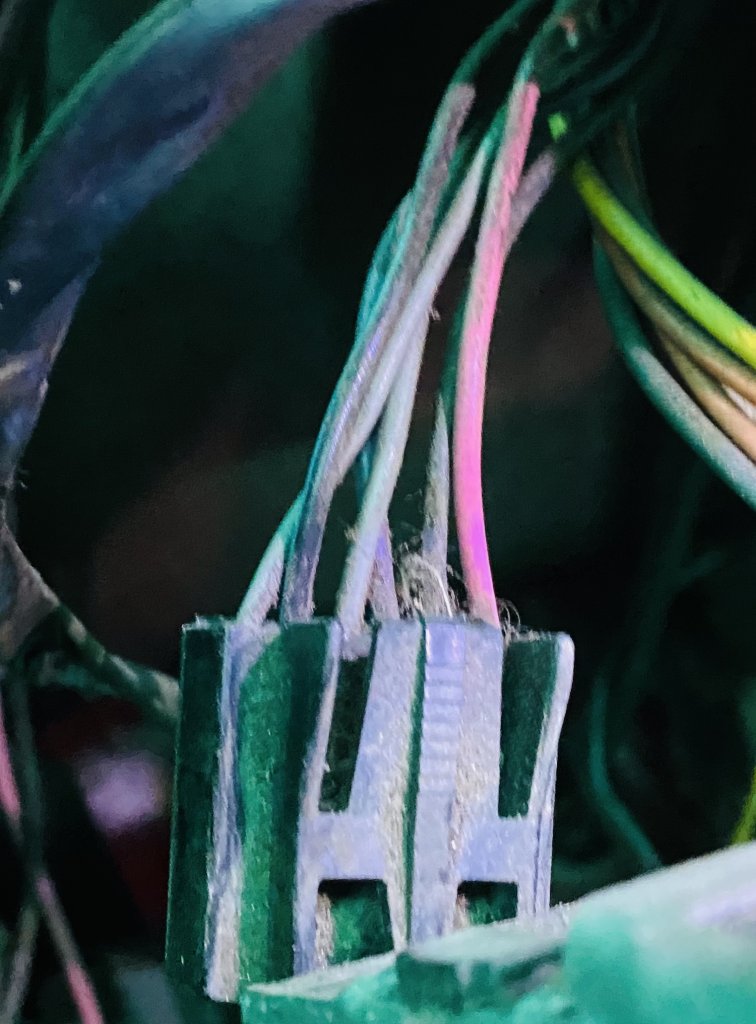

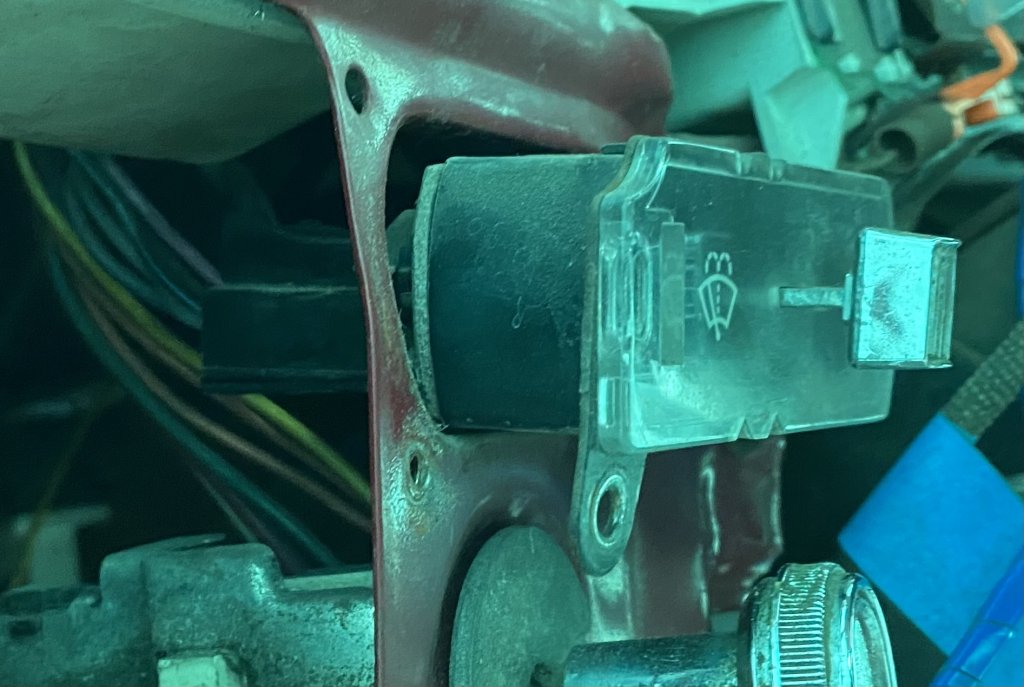

Sorry for the green hue. Truck’s covered with a green tarp right now and it’s too cold to mess with it right now.

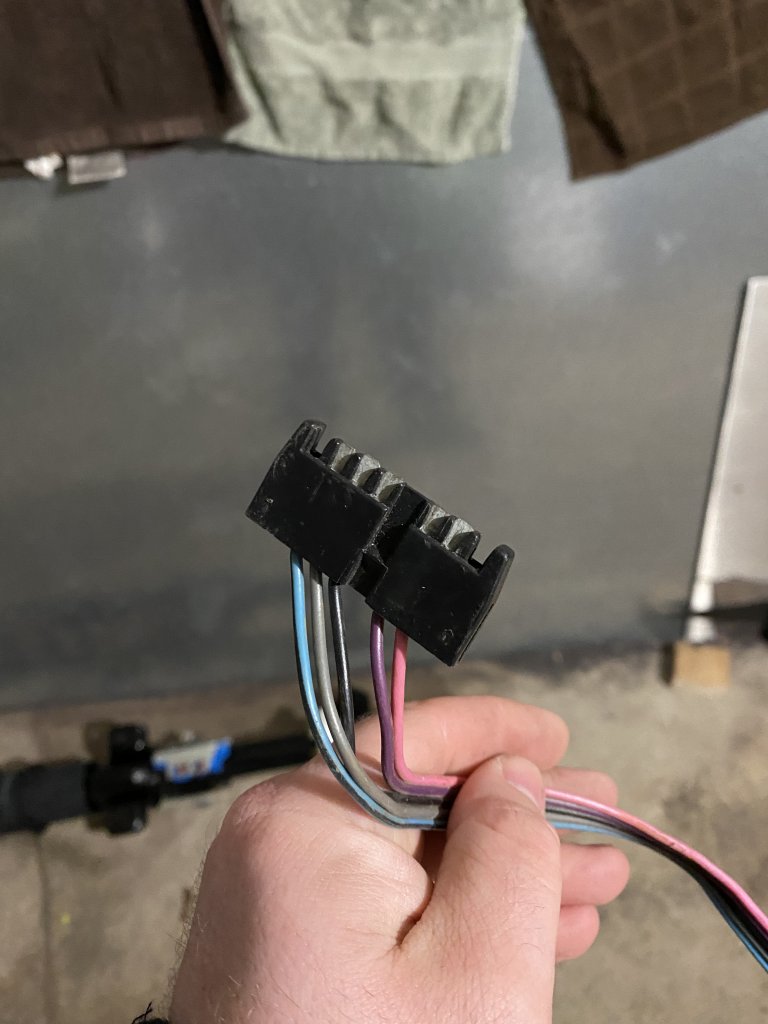

First thing I noticed, the column switch harness I have (w/o intermittent) has one fewer wire than the dash switch. My guess is that extra wire powers the light in the switch itself.

Other than that, the colors are similar, so we might be in luck here…


Attachments

  • 99F81185-3CBF-4E06-BDD1-5C6BBCA63050.jpeg
    108.6 KB · Views: 20
  • 93C5922A-502A-4CCF-8186-EFC3F37D45EA.jpeg
    127.8 KB · Views: 23
  • C26FCF14-3B4B-4C54-9075-AA4BC42CDCAB.jpeg
    109.5 KB · Views: 20
  • 1A77014E-D66B-40EE-B71C-9C37BCE0128F.jpeg
    80 KB · Views: 23

Phil 83K20

Full Access Member
Joined
Jul 27, 2021
Posts
80
Reaction score
82
Location
CT
First Name
Philip
Truck Year
1983
Truck Model
K20
Engine Size
350
I did some tinkering just now.

The switches are compatible and the wiring is about as easy as it can get without being plug and play.

The harness colors match (pink to pink, black to black, etc) and then you’ll have to add one wire to power the backlight on the switch. It should just come from the dash backlight source, so it comes on and dims with the rest, and it connects to the leftmost terminal in the harness (when looking down from the top of the switch). In my truck it’s a light gray or white (can’t tell for sure).

If you’re interested, we could cut and swap the harness connectors; you have the one I need and I have the one you need. I could send my switch if you wanted, as well (though I can’t guarantee it works).


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
7,794
Reaction score
4,431
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
Sorry for the green hue. Truck’s covered with a green tarp right now and it’s too cold to mess with it right now.

First thing I noticed, the column switch harness I have (w/o intermittent) has one fewer wire than the dash switch. My guess is that extra wire powers the light in the switch itself.

Other than that, the colors are similar, so we might be in luck here…
I think the wiper switch uses a bulb that screws in, so you wouldnt illuminate it through that plug unless it is diffierent because the switch I have in a bucket is from earlier type truck.


Phil 83K20

Full Access Member
Joined
Jul 27, 2021
Posts
80
Reaction score
82
Location
CT
First Name
Philip
Truck Year
1983
Truck Model
K20
Engine Size
350
Yeah, it’s a little bulb that uses the common ground and its own hot lead which I’m assuming is on the same circuit at the dash lights, so they all dim together.
