Venturi to increase exhaust?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,124
Reaction score
2,963
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force

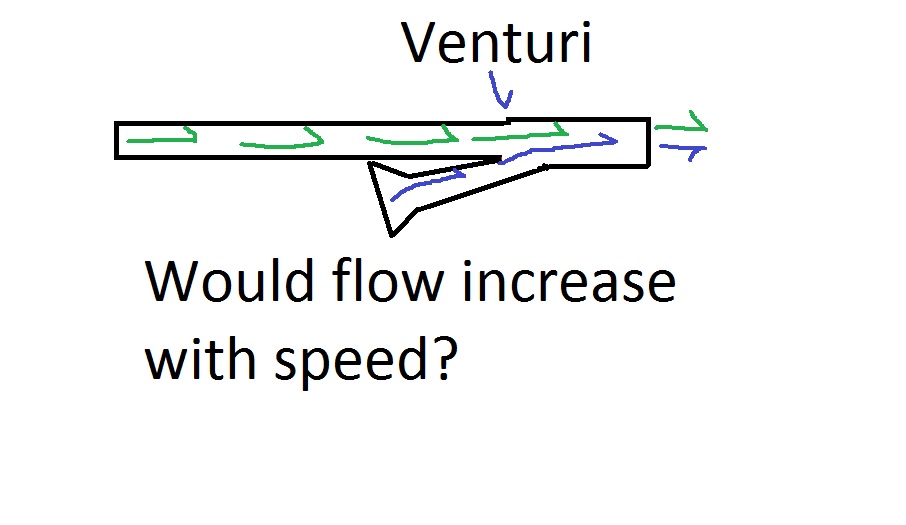

See below. Would such a device increase exhaust flow? Basically it's a funnel forcing air through the end of the exhaust, causing an increase in flow. Might be too much, dunno. If it is too much you could put a gate valve on it thats controlled by speed, throttle positon, MAF signals, etc. Would/Could it be beneficial?

[edit] green is typical exhaust flow, blue is the "funneled" air flow due to speed.

Outside the box again, but I thought of it a few weeks ago and raised a few eyebrows with ford guys at work.


Attachments

  • venturi exhaust.jpg
    venturi exhaust.jpg
    53.6 KB · Views: 131

74 Shortbed

Full Access Member
Joined
Aug 12, 2013
Posts
6,306
Reaction score
1,410
Location
*
First Name
*
Truck Year
*
Truck Model
*
Engine Size
*
One way to find out, try it. :D


Green79Scottsdale

Full Access Member
Joined
Aug 8, 2010
Posts
2,834
Reaction score
7,483
Location
G.R. - MI
First Name
Bob
Truck Year
1979
Truck Model
K20
Engine Size
400
Theoretically, I think it would work. With that said, there are also variables that would need to be considered. The intake part of the venturi would need to be in the airflow path under the truck. The merge would need to be in an appropriate location, and possibly multiple locations to keep the speed of the exhaust up. The next question is how much time are you going to put into it and what will the true end result be? Basically what you are doing is introducing additional scavenging to help move exhaust gas out as effecient as possible. Interesting concept, but in the end probably not worth the time and effort for maybe single digit power gains, depending on your current exhaust situation.


vkh

Full Access Member
Joined
May 21, 2015
Posts
436
Reaction score
138
Location
Western Montana
First Name
Var
Truck Year
1981
Truck Model
C2500
Engine Size
454
I'd be most interested in how it would sound at speed. Far as flow I think you'd want to rest of the exhaust to be as free flowing as possible, if you had to much of a resistance after the Venturi you'd just have a slightly compressed column of air for your engine to push through. Perhaps after the muffler to regenerate some of the lost speed?


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,124
Reaction score
2,963
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
if I had the money and time to do it, I would put that system close to the end of the pipes. Let the venturi draw the exhaust and not push it. Seems like it would be less resistance drawing instead of pushing it down a length of pipe.


GTME94

Full Access Member
Joined
Jan 20, 2013
Posts
441
Reaction score
31
Location
Metro Detroit/Holland, MI
First Name
Terry
Truck Year
86
Truck Model
C2500 C6P Camper Special
Engine Size
454/TH400/14bff 3.73
New GM diesel trucks have a venture device on the end of the tailpipe but that is mainly to cool down the exhaust when the DPF (Diesel Particulate Filter) is in regen, the exhaust gets super hot. Ford doesn't have a venture but they have some tabs in the exhaust to mix in fresh air.


smoothandlow84

I'd rather be draggin' frame
Joined
Jan 4, 2015
Posts
2,121
Reaction score
784
Location
Arizona
First Name
Steve
Truck Year
1984 Frame...87 motor and 700r trans
Truck Model
1500 r10 pavement scraper
Engine Size
350 TBI
I doubt that it would increase exhaust flow enough to make a difference. Like the duramax and superduty, all it would do is cool the exhaust gasses exiting the tailpipe. Instslling a chambered muffler or similar would probably have the same effect as the venturi.....less back pressure. If anyhting....the exhaust might whistle at highway speed.


theblindchicken

Full Access Member
Joined
Oct 24, 2013
Posts
1,518
Reaction score
265
Location
SoCal
First Name
Christian
Truck Year
1974
Truck Model
K10 5" lift + 2" BL
Engine Size
350-4, 0.030" over
For anything with o2 sensors you'd have to place it way after that. Otherwise you'll skew the readings into appearing that its running extremely lean, then ecm will dump fuel into it to counter the "lean" mixture, thus running extremely rich.

You'd also probably have to determine what the maximum CFM's your muffler(s) could realistically handle. Would also have to determine the cfms of the exhaust piping as well and calculate the average velocity through the pipe too.

So, run true duals, throw in an x-pipe, and throw in your venturi idea in there somewhere and see how it goes. Could easily make it all bolt together while testing. Use a Y-pipe with a wide scoop to grab the air flowing under the truck.

Last edited:

Honky Kong jr

Super Sarcastic Man
Joined
Jun 14, 2016
Posts
14,968
Reaction score
9,789
Location
Denver,PA
First Name
J-me
Truck Year
87
Truck Model
V10
Engine Size
Lil BB 407
For anything with o2 sensors you'd have to place it way after that. Otherwise you'll skew the readings into appearing that its running extremely lean, then ecm will dump fuel into it to counter the "lean" mixture, thus running extremely rich.

You'd also probably have to determine what the maximum CFM's your muffler(s) could realistically handle. Would also have to determine the cfms of the exhaust piping as well and calculate the average velocity through the pipe too.

So, run true duals, throw in an x-pipe, and throw in your venturi idea in there somewhere and see how it goes. Could easily make it all bolt together while testing. Use a Y-pipe with a wide scoop to grab the air flowing under the truck.

And you would be plagued with an eternal rich code. I it would definitely need to be regulated. You could run cut outs threw a VSS before a restriction (muffler) so at town speeds the exhaust would be full system and at highway would be free flowing.


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,124
Reaction score
2,963
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
And you would be plagued with an eternal rich code. I it would definitely need to be regulated. You could run cut outs threw a VSS before a restriction (muffler) so at town speeds the exhaust would be full system and at highway would be free flowing.

I've thought of that also. All this was an idea that popped in my head after reading a few articles. When I was done, I thought.....so who's right and who's wrong? Why is it such a science? Is it really a science? lol for that matter make your super charger a "dual" super charger.......push intake and exhaust.

lol here's one for ya...

After any sensors you have, put a variable size exhaust.....like a fighter jet has. Have that enclosed in a 4" pipe. Within that 4" pipe there is a 3.5, 3, 2.5, and a 2.25 pipe.....right at the edge of that variable exhaust. Run that the full length of your exhaust (pricey I'm sure as it would be super custom). Tune it to your throttle on the carb or computer.

Man I swear i think outside of the box too much lol.

Last edited:

Honky Kong jr

Super Sarcastic Man
Joined
Jun 14, 2016
Posts
14,968
Reaction score
9,789
Location
Denver,PA
First Name
J-me
Truck Year
87
Truck Model
V10
Engine Size
Lil BB 407
I've thought of that also. All this was an idea that popped in my head after reading a few articles. When I was done, I thought.....so who's right and who's wrong? Why is it such a science? Is it really a science? lol for that matter make your super charger a "dual" super charger.......push intake and exhaust.

lol here's one for ya...

After any sensors you have, put a variable size exhaust.....like a fighter jet has. Have that enclosed in a 4" pipe. Within that 4" pipe there is a 3.5, 3, 2.5, and a 2.25 pipe.....right at the edge of that variable exhaust. Run that the full length of your exhaust (pricey I'm sure as it would be super custom). Tune it to your throttle on the carb or computer.

Man I swear i think outside of the box too much lol.
There are cars that run variable discharge mufflers kinda work like variable displacement intake manifolds actuate via switched vacuum threw the ECM. And it's that little voice that don't stfu. I believe we discussed this little bastard before.lol


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,124
Reaction score
2,963
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
lol yeh when I saw a reply, a little light came on before I clicked. Guess I need to come up with something and test it out....or shut up LOL. Was hoping other people had stuff laying around with free access to a dyno to possibly test.


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,124
Reaction score
2,963
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
seriously....did I break 1,000 posts? Wow....do I yap that much LMAO.


chengny

Full Access Member
Joined
Feb 22, 2012
Posts
4,086
Reaction score
1,008
Location
NH
First Name
Jerry
Truck Year
1986
Truck Model
K3500
Engine Size
350/5.7
See below. Would such a device increase exhaust flow? Basically it's a funnel forcing air through the end of the exhaust, causing an increase in flow. Might be too much, dunno. Would/Could it be beneficial?

IMHO you shouldn't make this modification. Rather gaining an increase in the flow of exhaust gases from the engine, it's actually more likely to reduce it.

Introducing an external supply of pressurized air - as indicated in the sketch - won't create a venturi effect. Most likely, all it will do is cause an elevated pressure to develop between the point of injection and the tail pipe. Consequently, the flow rate in the entire exhaust system will be slowed - due to increased back pressure.

I think I can see what you are attempting to do. The idea is to induce a greater flow rate in the system using a pressurized "motive media/liquid" to propel the exhaust gases through the tailpipe and out to atmosphere.

There are devices called "eductors" that are used to create low pressure zones (i.e. suction) in the piping systems they serve. The eductor pulls the "suction media" up from it's original system and into the flow of motive media. Then the mixed motive & suction fluids are expelled - together - from the eductor outlet.


But, looking at the sketch above, there appears to be several fundamental issues:

1. There is no nozzle at the end of the motive media (i.e. the outside air stream) pipe.

2. Even if a nozzle were installed at the exit of the outside air pipe, no increase in flow would result because a second nozzle is required downstream of the motive fluid nozzle. IIRC it's called a convergent/divergent nozzle.

3. The direction of the fluid flows are backwards. The flow of the motive media should be straight through - in line with both of the nozzles and into the outlet piping. This effectively requires that the suction fluid has to be introduced perpendicular to the motive flow.

4. The motive media must be at a significantly higher pressure than the area of discharge into the convergent nozzle (the exhaust gas). Unless you go like 800 mph, no motive force will be developed.

You must be registered for see images attach
You must be registered for see images attach


BTW - this area of study is called Fluid Mechanics. I had to take that class a long, long time ago and have forgotten most of what they taught me. But, one thing I do know for sure is that I raised the flag on that class (got a big fat F)... so as always consider the source.
