Transfer Case Crossmembers & Skid Plates

Discussion in 'Transfer Case' started by adamj, Dec 31, 2016.

  1. adamj

    adamj Full Access Member

    Posts:
    310
    Likes Received:
    3
    Joined:
    Apr 17, 2015
    Location:
    Colorado
    First Name:
    Terrence
    Truck Year:
    1987
    Truck Model:
    V20 Suburban
    Engine Size:
    5.7L TBI

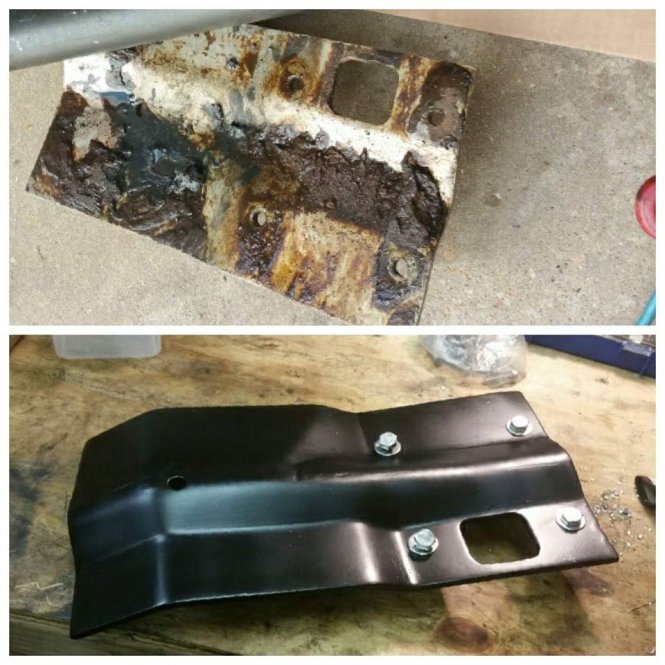

    I picked up a transfer case skid plate that I thought would fit, and went through all the trouble of cracking the bolts, and bringing it home, scrubbing it down to get all the dirt off, and then find out it doesn't fit... It came from an 80s suburban. I guess there are different transmission cross members because the holes just didn't line up. I have a sb350 + NP208 + SM465. Can anybody tell me which transfer case skid plates will fit? I have the wavy transmission crossmember and no rear cross member. That is another style I have seen, but I believe it is only for 73-79? vehicles with that style of skid plate.

    If anyone wants this one, I will send it out, just pay for shipping, it has the bolts too.

    [​IMG]


    [​IMG]


    [​IMG]

    [​IMG]

  2. ajdemello

    ajdemello Member

    Posts:
    37
    Likes Received:
    1
    Joined:
    Nov 30, 2016
    Location:
    US
    First Name:
    andrew
    Truck Year:
    87
    Truck Model:
    k10
    Engine Size:
    350
    I had the same issue! I had a skid plate on my 86 v6 sm456 208. I sold that crossmember but kept the skid plate then I tried to put the plate on a crossmember from a 87 v8 700r4 208 truck and it don't fit right either

    Sent from my SPH-L720T using Tapatalk

  3. yevgenievich

    yevgenievich Full Access Member

    Posts:
    1,477
    Likes Received:
    10
    Joined:
    Mar 1, 2014
    Location:
    Texas
    First Name:
    Viktor
    Truck Year:
    1991
    Truck Model:
    V2500 burb
    Engine Size:
    5.7
    Interested in giving it a try on 241 tc. How much shipped to 77802?

  4. bucket

    bucket Super Moderator Staff Member

    Posts:
    12,972
    Likes Received:
    68
    Joined:
    Aug 3, 2010
    Location:
    Usually not in Ohio
    First Name:
    Andy
    Truck Year:
    '77, '79, '84, '88
    Truck Model:
    K5, K30, C10, K20 Burb
    Engine Size:
    350-454
    Looks like it's for the style of crossmember that dips down on on both sides, rather than one. I think it was used in '85-'86.

  5. adamj

    adamj Full Access Member

    Posts:
    310
    Likes Received:
    3
    Joined:
    Apr 17, 2015
    Location:
    Colorado
    First Name:
    Terrence
    Truck Year:
    1987
    Truck Model:
    V20 Suburban
    Engine Size:
    5.7L TBI
    Is there a thread on the different crossmembers that were used? Through the years, with what transmissions, the different GVWR's, C vs K, etc.

  6. adamj

    adamj Full Access Member

    Posts:
    310
    Likes Received:
    3
    Joined:
    Apr 17, 2015
    Location:
    Colorado
    First Name:
    Terrence
    Truck Year:
    1987
    Truck Model:
    V20 Suburban
    Engine Size:
    5.7L TBI
    I think it can fit in a large flat rate box from USPS, and it would be $18.75 to 77802, but I need to measure first to confirm.

  7. bucket

    bucket Super Moderator Staff Member

    Posts:
    12,972
    Likes Received:
    68
    Joined:
    Aug 3, 2010
    Location:
    Usually not in Ohio
    First Name:
    Andy
    Truck Year:
    '77, '79, '84, '88
    Truck Model:
    K5, K30, C10, K20 Burb
    Engine Size:
    350-454
    I don't think so, but it didn't start getting confusing until the 80's, when concerning the K series. Earlier crossmembers were basically the same, with the K30 part being more flat than the 10-20.

    I think the C series were all the same, except probably the C30 (again, taller rails than 10-20 trucks).

  8. yevgenievich

    yevgenievich Full Access Member

    Posts:
    1,477
    Likes Received:
    10
    Joined:
    Mar 1, 2014
    Location:
    Texas
    First Name:
    Viktor
    Truck Year:
    1991
    Truck Model:
    V2500 burb
    Engine Size:
    5.7
    I have been looking under the suburban and can't see where the center bolt would go? The outer ones look like they should line up with the cross member. How does it not fit on yours?

  9. skysurfer

    skysurfer Full Access Member

    Posts:
    1,934
    Likes Received:
    44
    Joined:
    Oct 23, 2010
    Location:
    west coast
    First Name:
    John
    Truck Year:
    1989 Suburban
    Truck Model:
    V2500
    Engine Size:
    5.7/TH400/NP241C

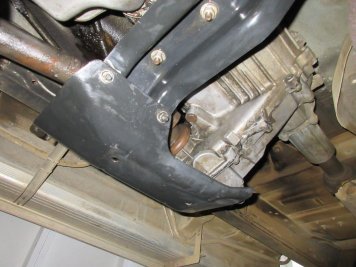

    The one on my '89 has a similar shape to the one above but isn't exactly the same. It has two drain holes in the bottom and mounts with just the four bolts on the crossmember.


    Attached Files:

    Last edited: Jan 6, 2017
  10. 1low4x4

    1low4x4 Full Access Member

    Age:
    31
    Posts:
    2,256
    Likes Received:
    10
    Joined:
    Feb 14, 2011
    Location:
    Texas
    First Name:
    Nick
    Truck Year:
    1984
    Truck Model:
    K10
    Engine Size:
    5.7
    Here is the one on my truck


    Attached Files:

  11. adamj

    adamj Full Access Member

    Posts:
    310
    Likes Received:
    3
    Joined:
    Apr 17, 2015
    Location:
    Colorado
    First Name:
    Terrence
    Truck Year:
    1987
    Truck Model:
    V20 Suburban
    Engine Size:
    5.7L TBI
    My apologies, I should have mentioned this, but I just put an extra bolt that I had in that hole - it doesn't do anything, just a drain hole. It mounts just like skysurfer posted, the 4 bolts and nuts that mount to the crossmember.

  12. yevgenievich

    yevgenievich Full Access Member

    Posts:
    1,477
    Likes Received:
    10
    Joined:
    Mar 1, 2014
    Location:
    Texas
    First Name:
    Viktor
    Truck Year:
    1991
    Truck Model:
    V2500 burb
    Engine Size:
    5.7
    I will take it if can be $20-$25 shipped. You can also just send it without a box with corners wrapped a bit if that comes out cheaper.

  13. adamj

    adamj Full Access Member

    Posts:
    310
    Likes Received:
    3
    Joined:
    Apr 17, 2015
    Location:
    Colorado
    First Name:
    Terrence
    Truck Year:
    1987
    Truck Model:
    V20 Suburban
    Engine Size:
    5.7L TBI
    Let me know if you got it and if it fit your crossmember and the 241, I'm interested to know.

  14. yevgenievich

    yevgenievich Full Access Member

    Posts:
    1,477
    Likes Received:
    10
    Joined:
    Mar 1, 2014
    Location:
    Texas
    First Name:
    Viktor
    Truck Year:
    1991
    Truck Model:
    V2500 burb
    Engine Size:
    5.7
    Looks like same as yours. I might give a shot at modifying it to fit at a later time.

  15. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    39,016
    Likes Received:
    177
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85
    Truck Model:
    Silverado K10 to K20 Conversion
    Engine Size:
    6.2 to Gas???
    Here's 2 of the 3 different 4x4 crossmembers I'm aware of. I can't find my pic of the other older style but I have it also, as well as skid plates for all 3 different types. At least I think I do, I do not believe I had yet bolted the skid plate to the W crossmember I let get away with my K1500 when I sold it. I have plenty of the wavy crossmembers. I should have swapped that into the K1500 before I sold it, and kept the W member. Shit happens. :shrug:


    Attached Files:
