Power Window Relay Mod on Rear Window

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2
A thought came to me while looking at the relay mod for the power windows in our square trucks. Could that same mod be applied to a power rear motor? It has an up, down, and off position on the switch just like the side power windows. You could pull 12V right off the junction block and splice the relays in right where the wiring exits into the engine compartment. If you use weather pack connectors the system can be used with or without relays in case you're in the middle of nowhere with a relay that went bad you can just unhook the relays and connect the system back to factory.


Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2

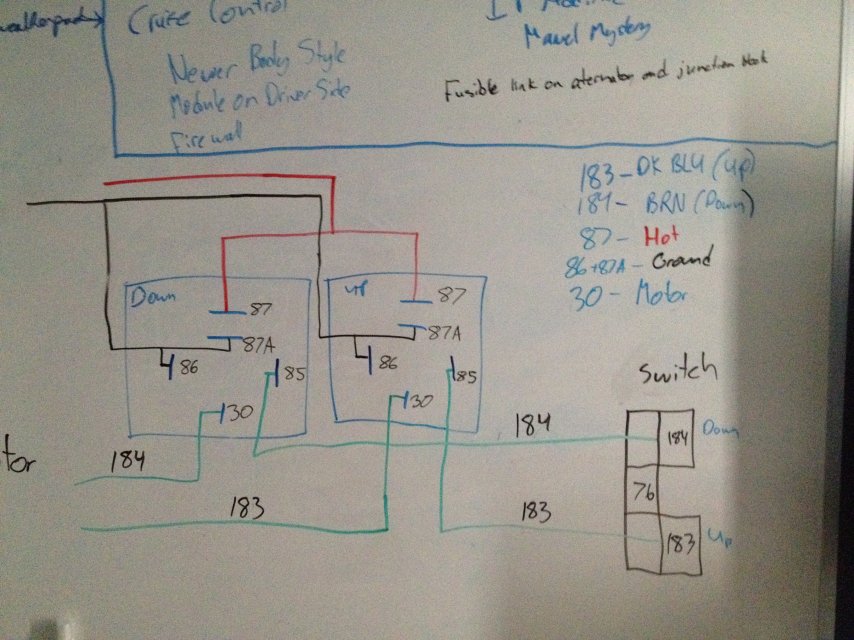

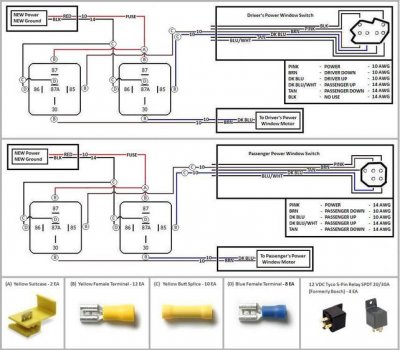

Here's my pic that I made following a picture I found on the net


Attachments

  • photo (15).jpg
    photo (15).jpg
    99.2 KB · Views: 1,115
  • PowerWindowMod.jpg
    59.6 KB · Views: 3,102

89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,450
Reaction score
5,606
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
:popcorn:


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,956
Reaction score
23,466
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
Hey, that's a swell idea!


Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2
Well I built a harness to splice into the factory wiring and I didnt reverse the wires. From my drawing numbers 85 and 86 need to be swapped to work correctly which is why I guess the fusible link I put on burned up. I'll rebuild the the harness and try again as some as some new connectors get here.


Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2
Replaced the pieces of the harness that got all melty and tried again after swapping pins 85 and 86 in the relay mount. Fusible link burnt up again. Glad I added some quick disconnects this time in case the link burned up again. This time it was only one wire that got hot and melted the relay mount. It was the ground 87A. I'm going to look at the wiring schematics again. Maybe the motors are grounded differently.


Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2

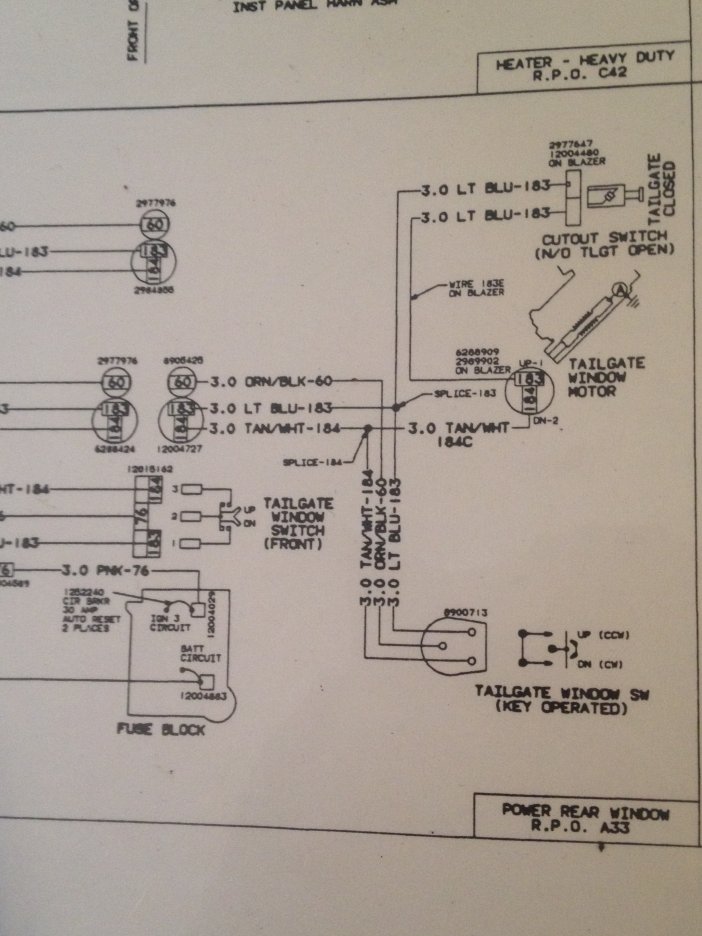

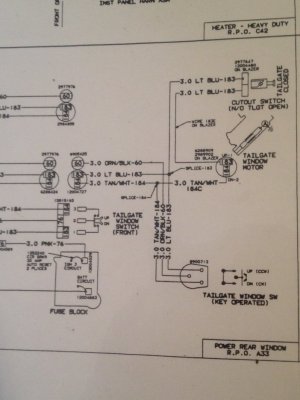

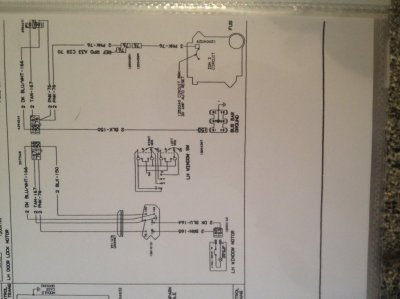

Ok, I think I have this figured out. If you look on the wiring for the door power windows you'll see that each switch has a ground wire that connects to the main power window harness which is grounded to the bus bar under the dash. On the rear power motor the switch is not grounded. The only ground I can see is where the motor bolts to the tailgate which is why sometimes adding a ground from the tailgate to the body can make your tailgate window work again. Soooo what does this mean? By adding a ground anywhere in the rear power window system that isn't directly connected to the motor/tailgate will cause the system to become inoperable. Not knowing a damn thing about relays I'm not sure if they need a ground or not to function but if they do I'm going to have to run one all the way to the tailgate or possibly remove them if they are not required. Does this sound right?


Attachments

  • photo 1 (12).jpg
    photo 1 (12).jpg
    96.4 KB · Views: 471
  • photo 2 (12).jpg
    photo 2 (12).jpg
    93.6 KB · Views: 436

Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2
Maybe my pins are not correct


Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2
So this should be how things are wired up

Pin 30 12V source in (junction block)
Pin 85 Ground
Pin 86 12V from the switch (up or down from the window switch)
Pin 87 12V to the window motor (up or down)
Pin 87a Ground


Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2
Well with re-arranging my pins to the above wiring I am able to get the harness installed and properly grounded and hooked up to power without burning up any fusible link! Progress is progress. Ok, so now that nothing is smoking right away I turn the key and still no smoke. I'm 2 for 2! I push the button to make the window go up and the dash lights dim and no window going up...crap. Dimming lights and warm fusible link is making me think power is going through one of the grounds when the switch is pushed. I'm thinking I should get rid of the connection at 87A


Milblazer

Full Access Member
Joined
Mar 21, 2013
Posts
268
Reaction score
5
Location
Colorado
First Name
MilBlazer
Truck Year
1984
Truck Model
K5
Engine Size
6.2
Got rid of the ground at 87a on both relays and everything works perfectly. I can say the window does go up and down faster but not by much. I'm talking only fractions of a second faster. I am using junk yard parts too so maybe the motor is all worn out. I'll have to see if a newer motor performs the same.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,956
Reaction score
23,466
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
Ah yes, forgot about that. The motor is self grounded and then one terminal is up and the other is down.


jamba

Junior Member
Joined
Feb 21, 2017
Posts
15
Reaction score
12
Location
Ruhtinansalmi, Finland
First Name
Jarmo
Truck Year
1982
Truck Model
Blazer K5 Silverado
Engine Size
6,2 Diesel
Thanks

I was struggling with my K5 rear window, searched internet, found this.
Thanks a lot guys!
Seems like a lot of chevy knowhow here :)


gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
287
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350
I've built a few harnesses for the rear gate glass motors-you HAVE to run big heavy gauge wiring to the back as well as a stout ground to body and motor housing. Mounting the relays in the rear is ideal and recently I've added auto down to my rear gate glass harnesses-no more holding the damn switch lol.
