Power Steering Belt Adjustment

Discussion in 'Suspension, Steering & Brakes' started by McCSquare, Feb 16, 2013.

  1. McCSquare

    McCSquare Full Access Member

    Posts:
    94
    Likes Received:
    0
    Joined:
    Dec 23, 2012
    Location:
    Champaign, IL
    First Name:
    David
    Truck Year:
    1984
    Truck Model:
    K10
    Engine Size:
    350
    I've got an 84 K10 that was a 305 and the PO put in a 350 SBC. The main belt looks tight, but the power steering belt is sagging. How do I adjust it?

  2. marks86

    marks86 Full Access Member

    Age:
    25
    Posts:
    1,392
    Likes Received:
    8
    Joined:
    Feb 2, 2011
    Location:
    Latham, NY
    First Name:
    Mark
    Truck Year:
    1986
    Truck Model:
    K30
    Engine Size:
    12v Cummins
    There are two bolts on eaither side of the power steering pump, you can tell what bolts Im talking about because they both has an adjuster built into the bracket, losen them and take a pry bar and pry I honestly cant remeber if its up or done, that should tighten it up

  3. chengny

    chengny Full Access Member

    Posts:
    3,222
    Likes Received:
    100
    Joined:
    Feb 22, 2012
    Location:
    NH
    First Name:
    Jerry
    Truck Year:
    1986
    Truck Model:
    K3500
    Engine Size:
    350/5.7
    [​IMG]

    The top mounting bolt on the inboard side is the pivot. Loosen that just enough to allow the frame to move but also kind of hold your set point while tightening the others.

    To tighten the belt, move the bolt (the one that can slide up and down the slot) in the direction indicated by the red arrow. The bottom inboard bolt is also in a slot and will move inward in the slot.

    Be advised however, even with the bracket fully adjusted up and out, the belt that is currently driving the P/S pump may need to be changed to a shorter one.

    Last edited: Feb 17, 2013
  4. McCSquare

    McCSquare Full Access Member

    Posts:
    94
    Likes Received:
    0
    Joined:
    Dec 23, 2012
    Location:
    Champaign, IL
    First Name:
    David
    Truck Year:
    1984
    Truck Model:
    K10
    Engine Size:
    350

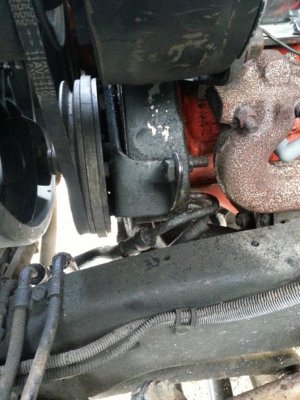

    Thanks for the diagram... But I think my engine is missing the adjustment bracket. Or do I have it wrong?


    Attached Files:

  5. MrMarty51

    MrMarty51 Full Access Member

    Age:
    65
    Posts:
    2,628
    Likes Received:
    21
    Joined:
    Oct 25, 2012
    Location:
    Eastern Montana
    First Name:
    Martin
    Truck Year:
    1978
    Truck Model:
    K20
    Engine Size:
    400
    It is missing a bracket.
    There should be two studs in the two forwards boltsw of the exhaust manifold,the bracket bolts under nuts screwed onto those studs.The bracket then has a 90* bend in it and there is a slotted hole that the stud of the PS pump goes through.
    It wont be complete without that bracket and probably will not hold tension.
    What was said about the shorter belt,in a couple of posts before,well,I usually go to a sshort enough belt that I have to stretch it and cheat a bit to get it around trhe pulley,then,after a couple of adjustments it is "Just RIIIIIggght".

  6. McCSquare

    McCSquare Full Access Member

    Posts:
    94
    Likes Received:
    0
    Joined:
    Dec 23, 2012
    Location:
    Champaign, IL
    First Name:
    David
    Truck Year:
    1984
    Truck Model:
    K10
    Engine Size:
    350
    Anybody know where I can get this bracket? I didn't see it on RockAuto. I can call some salvage yards I guess.

  7. chengny

    chengny Full Access Member

    Posts:
    3,222
    Likes Received:
    100
    Joined:
    Feb 22, 2012
    Location:
    NH
    First Name:
    Jerry
    Truck Year:
    1986
    Truck Model:
    K3500
    Engine Size:
    350/5.7
    BRACKET. Power Brake Booster. Steering Pump Mounting. .

    Stock Code 14101199
    Manufacturer VPI
    Categories Suspension > Power Steering Pump
    Assemblies A/C COMPRESSOR MOUNTING-5.0L V8 (
    ); STEERING PUMP MOUNTING & LINES (

    ); STEERING PUMP MOUNTING (
    ); STEERING PUMP MOUNTING (


    ); STEERING PUMP MOUNTING-5.0L V8 (
    ); STEERING PUMP MOUNTING-5.0L V8 (

    )


    Your Price $ 36.16


    [​IMG]



    Not well described but that's it - item 3 in the upper image.

  8. McCSquare

    McCSquare Full Access Member

    Posts:
    94
    Likes Received:
    0
    Joined:
    Dec 23, 2012
    Location:
    Champaign, IL
    First Name:
    David
    Truck Year:
    1984
    Truck Model:
    K10
    Engine Size:
    350
    Thanks for the info!
    Where are you getting this stuff from?

    Also I was having trouble finding that part, but I think LMC has it here:
    http://www.lmctruck.com/icatalog/cc/full.aspx?Page=138

    I think the kit with all the hardware might be handy, even if it is a bit more expensive.

  9. chengny

    chengny Full Access Member

    Posts:
    3,222
    Likes Received:
    100
    Joined:
    Feb 22, 2012
    Location:
    NH
    First Name:
    Jerry
    Truck Year:
    1986
    Truck Model:
    K3500
    Engine Size:
    350/5.7
    I would strongly recommend using the OEM brace. There is very little wiggle room between the exhaust manifold and P/S pump, so exact fit is extremely important.

    Also, while you are tightening the belt, keep a close eye on sheave/pulley alignment (both angular and offset and on 3 pulleys pump. fan and crank) is critical to belt life. Changing the P/S pump drive belt sucks - so you do not want to do it to often.

    Buying that particular part as OEM would be money well spent even if it cost more than the aftermarket assembly. Lots of hardware does not indicate ease of installation or a better final set-up. It's usually the opposite.

    And from my experience LMC is fine for some things but not the big and heavy stuff.

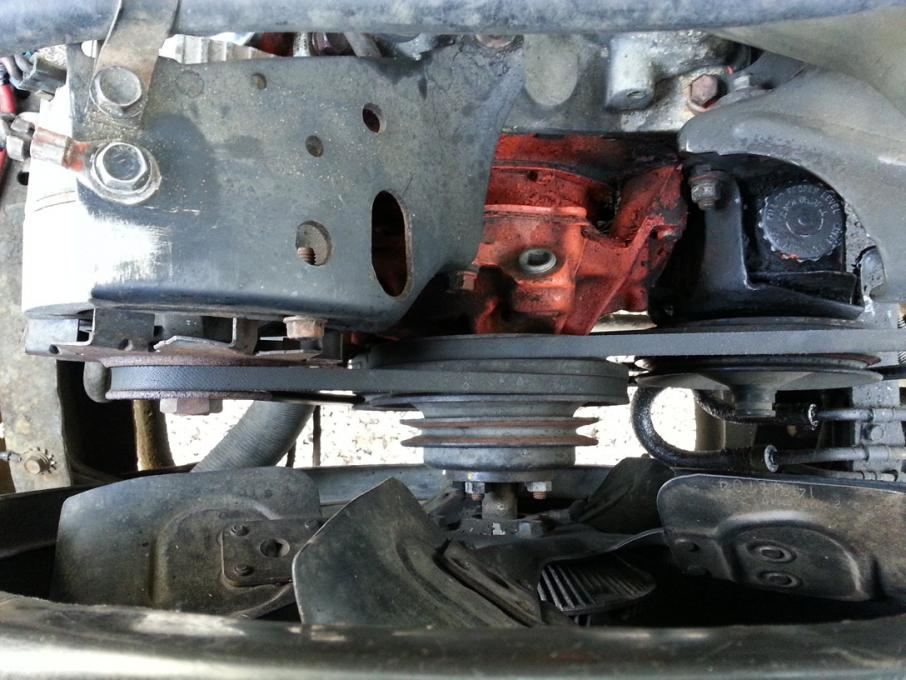

    I just did a rebuild that included a switchover of all the auxiliaries. I spent about 4 hours bending/twisting the brace and elongating bolt holes with a file before it was done. I still wasn't really satisfied with pulley alignment - and this was all OEM.

    [​IMG] [​IMG]

    Last edited: Feb 18, 2013
  10. McCSquare

    McCSquare Full Access Member

    Posts:
    94
    Likes Received:
    0
    Joined:
    Dec 23, 2012
    Location:
    Champaign, IL
    First Name:
    David
    Truck Year:
    1984
    Truck Model:
    K10
    Engine Size:
    350
    Ok. I'm sold on OEM parts. I'm looking at the first diagram and I believe that I want the brackets in the lower image. My power steering has two belts on it's pully.

    Where do you order yours? A Chevy dealer?
