Hard start when cold. No start once warm.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Georgeb

Full Access Member
Joined
Apr 30, 2015
Posts
3,259
Reaction score
214
Location
Wisconsin
First Name
George
Truck Year
2003
Truck Model
K10 Burb Z71
Engine Size
5.3
That would come directly from the distributor.
You must be registered for see images attach

The Reference High signal #430 correct?

Shouldn't there be a trouble code? Perhaps the OP should jump A-B on the OBD port and check for one.


yevgenievich

Full Access Member
Joined
Mar 1, 2014
Posts
4,781
Reaction score
3,299
Location
Texas
First Name
Viktor
Truck Year
sad
Truck Model
very sad
Engine Size
less sad
It should trigger a check engine light and throw code 42 or 41. But if it runs with fuel pump wire jumped it would not be an issue as ECM will not fire injectors if it sees no rpm signal.

Main thing that would make it clear is if the fuel pump runs when jumped in no start condition and will the vehicle run in that configuration after the fuel pump is running


Georgeb

Full Access Member
Joined
Apr 30, 2015
Posts
3,259
Reaction score
214
Location
Wisconsin
First Name
George
Truck Year
2003
Truck Model
K10 Burb Z71
Engine Size
5.3
It should trigger a check engine light and throw code 42 or 41. But if it runs with fuel pump wire jumped it would not be an issue as ECM will not fire injectors if it sees no rpm signal.

Main thing that would make it clear is if the fuel pump runs when jumped in no start condition and will the vehicle run in that configuration after the fuel pump is running

According to the OP yes it will run. He has indicated that if he applies power to the test lead on the plug for the relay the truck starts and runs. It will also start and run with the oil pressure switch jumped.


Mbyoung424

Junior Member
Joined
Feb 13, 2016
Posts
13
Reaction score
0
Location
Alexandria, VA
First Name
Matt
Truck Year
1987
Truck Model
V1500
Engine Size
305
As of my last testing the green/white wire goes from 12v with key on to 0v with key in start position. Just doesn't make sense when looking at the wiring diagrams. Shouldn't it be 0v with key on and 12v with key in start to close the relay and allow the orange wire to provide power to the pump? This makes me think ECM issue, but I had not error codes when last tested.

I don't believe there is a heat soak issue with the ignition components as it'll run all day once started, but the fuel pump won't run once it's turned off and still warm unless you run power to the test lead or jump the oil pressure switch connector.

I was beginning to think there was an oil pressure issue as when you crank when cold the oil pressure gauge will start to increase then, presumably, the oil pressure switch kicks on power to the pump and it starts. Once warmed up the oil pressure gauge doesn't register anything and no power ever makes it to the fuel pump. Granted the oil pressure sensor feeds the oil pressure gauge with a signal and doesn't directly affect the oil pressure switch, but it's something I noticed.


yevgenievich

Full Access Member
Joined
Mar 1, 2014
Posts
4,781
Reaction score
3,299
Location
Texas
First Name
Viktor
Truck Year
sad
Truck Model
very sad
Engine Size
less sad
Check the green/white wire for 12V while running, while hot, while in the jumper bypass mode.
If it is not hot, then check it at the ecm. If dead there, then check all the power and ground terminals at the ecm with key in the run position. If that is all good, then with no other issues being present, ecm is likely at fault.


Attachments

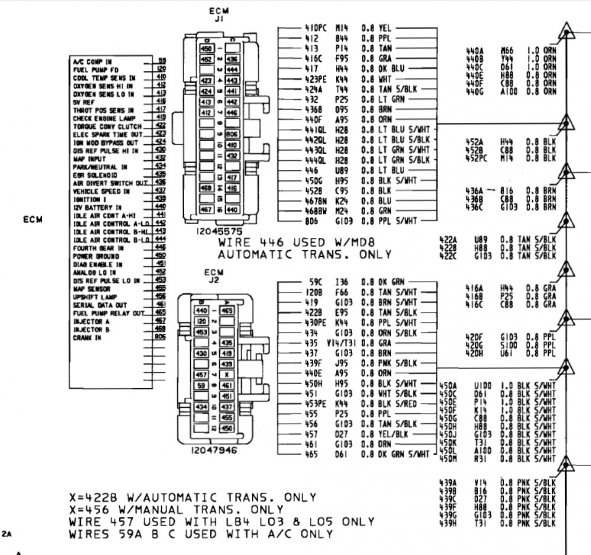

  • ecm.jpg
