'89 350 TBI Motor Accesory Bracket Mounting Bolt Locations

Discussion in 'TBI & EFI Conversions' started by 89Suburban, Feb 22, 2011.

  1. 89Suburban

    89Suburban Full Access Member

    Age:
    43
    Posts:
    22,545
    Likes Received:
    73
    Joined:
    Dec 7, 2010
    Location:
    Southeast PA
    First Name:
    Paw Paw
    Truck Year:
    1990 Chevy Suburban
    Truck Model:
    R-1500
    Engine Size:
    5.7L TBI/700R4/3.73 10 Bolt Auburn L-S /Cat-Back
    While I had the water pump out and the fan, I decided to take advantage of the situation and see how these damn accessory brackets are installed on the motor and where the bolts are hidden using the digital camera.

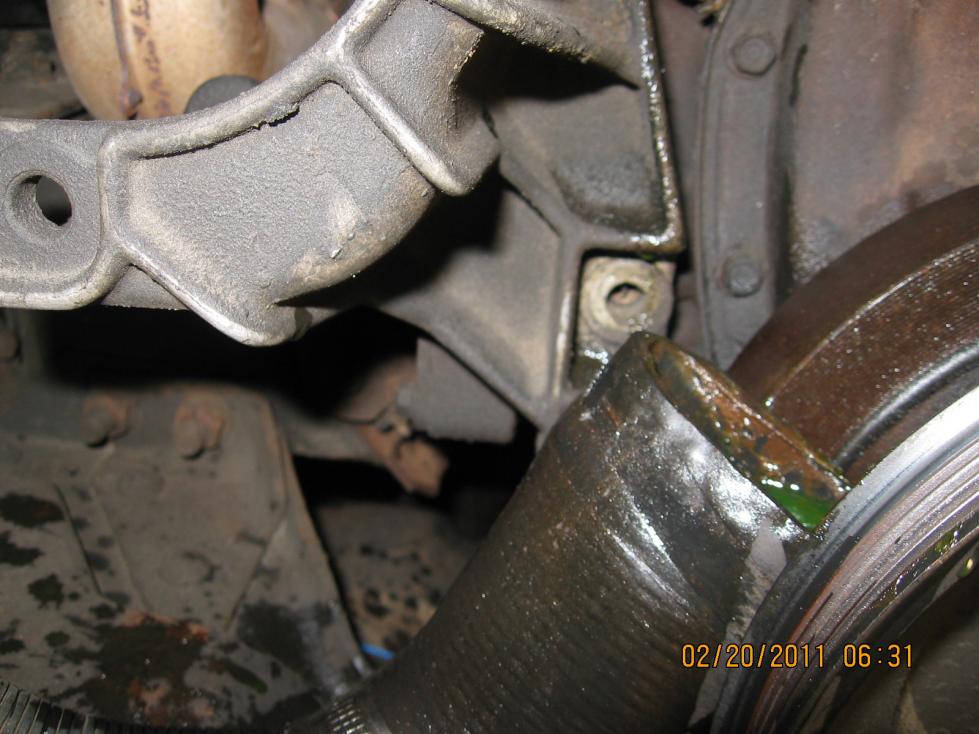

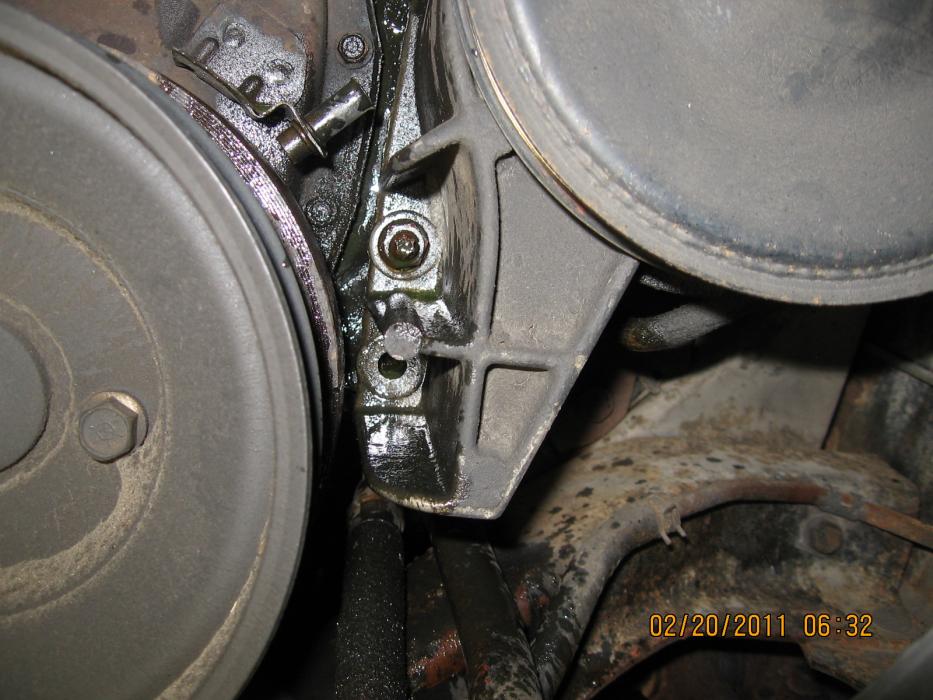

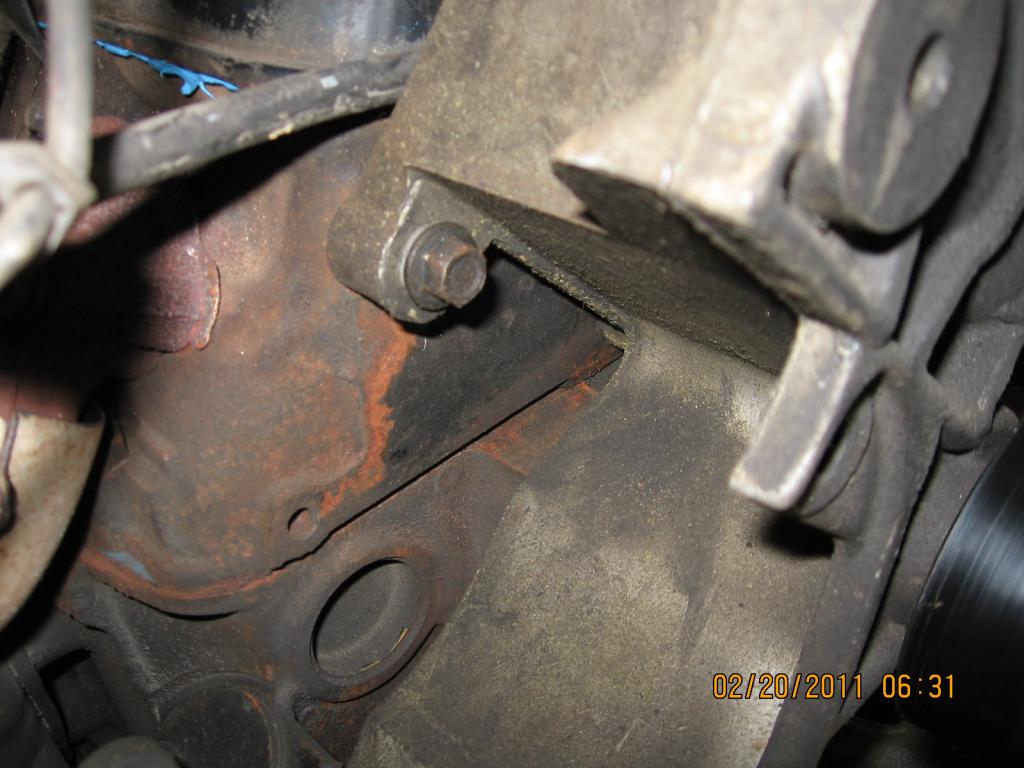

    Here is the pass side bracket that holds the A/C compressor. Looks like two on head and one on the bottom of the block. You can see the one on the head on the right side is a stud with a nut. These all looked like 9/16" to me.


    Attached Files:

    Last edited: Feb 22, 2011
  2. 89Suburban

    89Suburban Full Access Member

    Age:
    43
    Posts:
    22,545
    Likes Received:
    73
    Joined:
    Dec 7, 2010
    Location:
    Southeast PA
    First Name:
    Paw Paw
    Truck Year:
    1990 Chevy Suburban
    Truck Model:
    R-1500
    Engine Size:
    5.7L TBI/700R4/3.73 10 Bolt Auburn L-S /Cat-Back

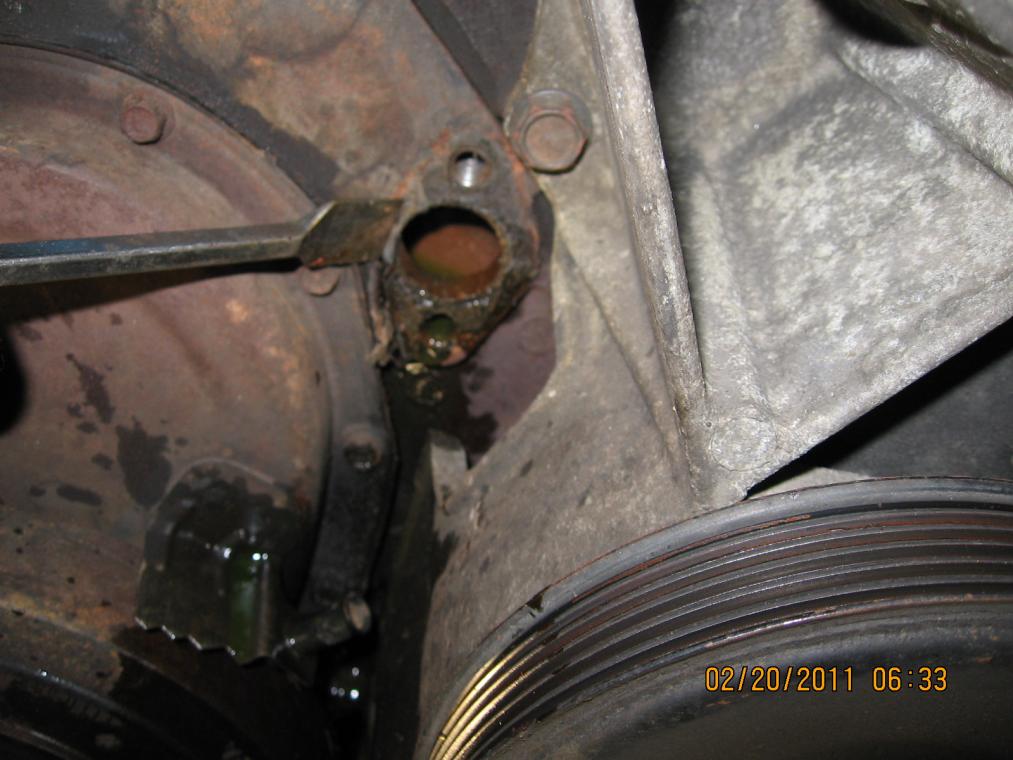

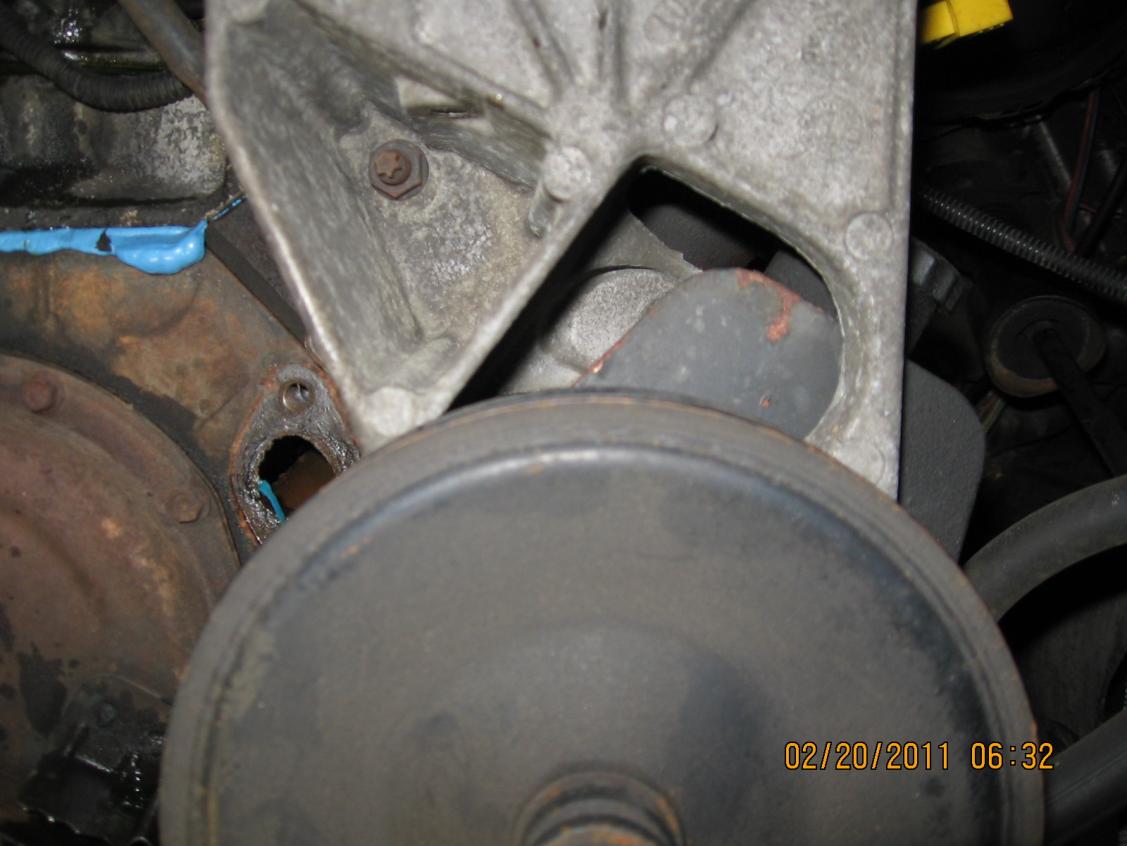

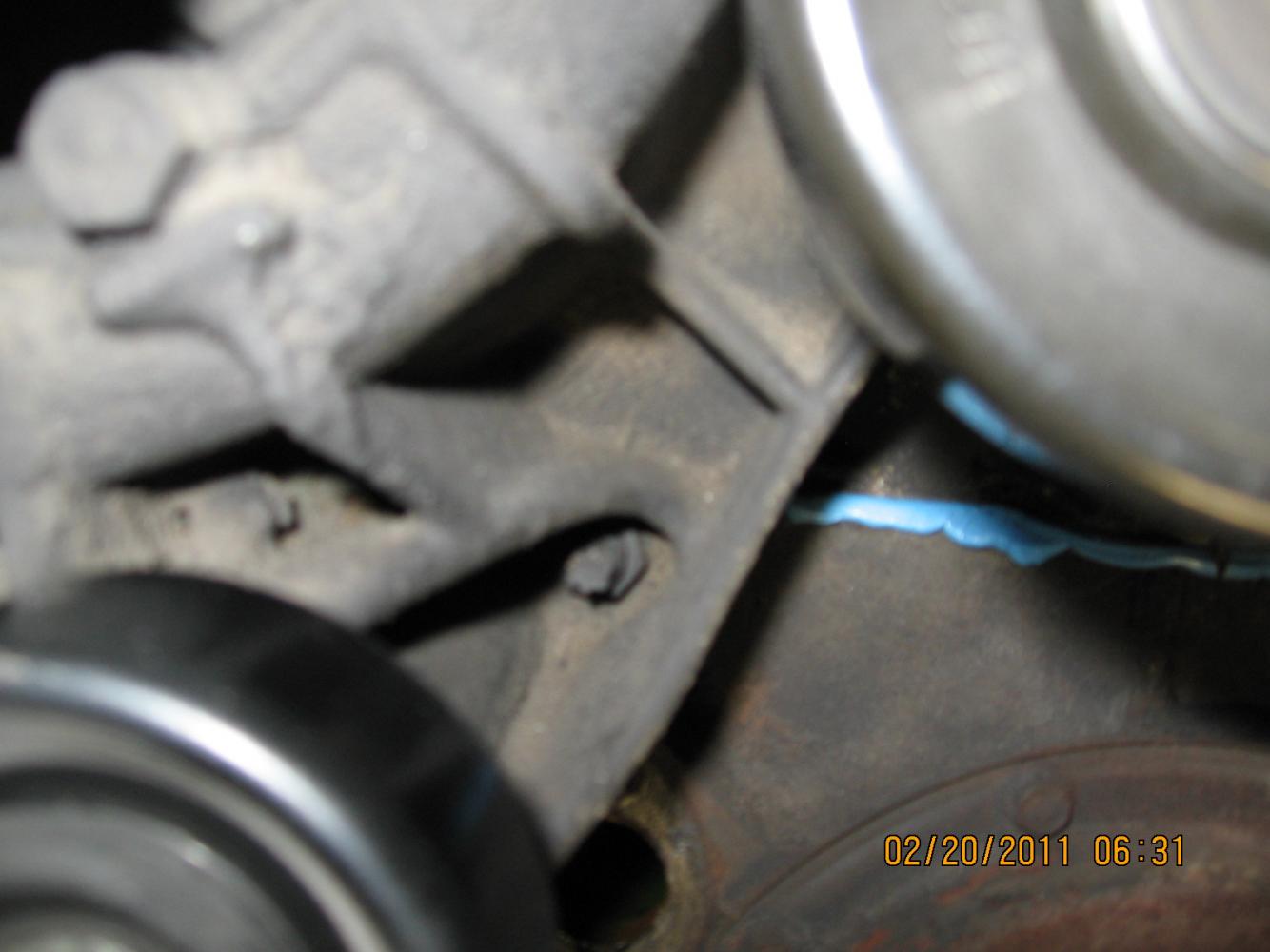

    Here is the drivers side bracket that holds the alternator and P/S pump.

    This looks like it has 3 bolts going into the head and one on the bottom of the block.

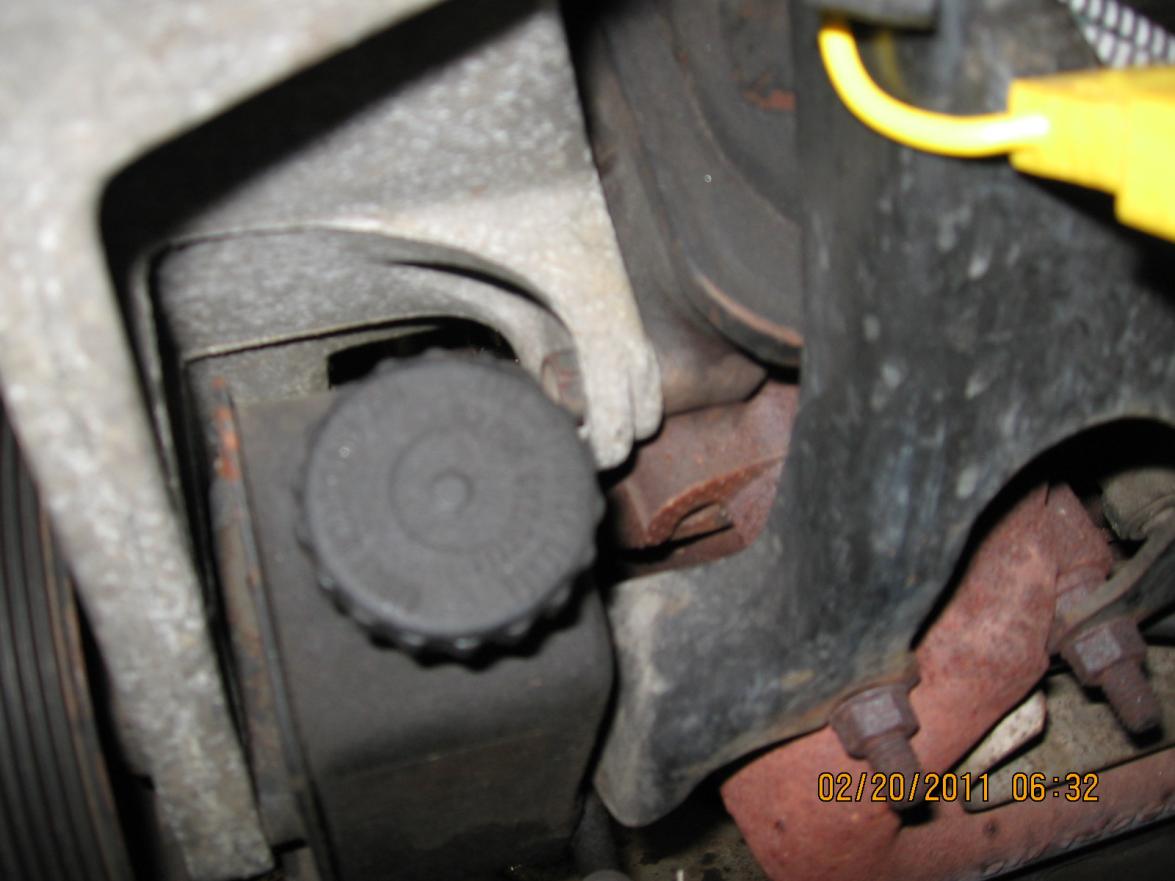

    Note the one behind the power steering pump. :flipthebird:


    Attached Files:

  3. Swims350

    Swims350 Full Access Member

    Posts:
    3,464
    Likes Received:
    16
    Joined:
    Jul 30, 2010
    Location:
    Logan WV
    First Name:
    Chris
    Truck Year:
    1983
    Truck Model:
    K10
    Engine Size:
    none
    wow you got the alum. brackets on yours. My 88 tbi newer body style truck has the steel horseshoe bracket. it weighs a ton and was only on 88-90 or so I heard, and I guesssome 89 and 90's got the alum. ones.

    Mine has about the same amount of bolts, 2 on each side on bottom, 2 in each head maybe more, some are studs and some are bolts in the heads, then a bracket behind the PS pump, several support bars up to, and that's about it I think.

  4. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    39,016
    Likes Received:
    177
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85
    Truck Model:
    Silverado K10 to K20 Conversion
    Engine Size:
    6.2 to Gas???
    Nice to know info for when and if the time comes . Thanks Dawg !!!

  5. 4x4chvy

    4x4chvy Junior Member

    Posts:
    2
    Likes Received:
    0
    Joined:
    Jul 12, 2011
    Location:
    SWFL
    First Name:
    Lee
    Truck Year:
    1987
    Truck Model:
    K5
    Engine Size:
    350
    '87 K5 TBI Engine Bracket Pics (Steel brackets)

    My truck is a little different. 1987, TBI 350, with ac and steel brackets.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Jul 27, 2011
  6. 89Suburban

    89Suburban Full Access Member

    Age:
    43
    Posts:
    22,545
    Likes Received:
    73
    Joined:
    Dec 7, 2010
    Location:
    Southeast PA
    First Name:
    Paw Paw
    Truck Year:
    1990 Chevy Suburban
    Truck Model:
    R-1500
    Engine Size:
    5.7L TBI/700R4/3.73 10 Bolt Auburn L-S /Cat-Back
    Plus your alternator and compressor are on oppisite sides that mine are.

  7. 89Suburban

    89Suburban Full Access Member

    Age:
    43
    Posts:
    22,545
    Likes Received:
    73
    Joined:
    Dec 7, 2010
    Location:
    Southeast PA
    First Name:
    Paw Paw
    Truck Year:
    1990 Chevy Suburban
    Truck Model:
    R-1500
    Engine Size:
    5.7L TBI/700R4/3.73 10 Bolt Auburn L-S /Cat-Back
    And you don;t have the reverse rotation water pump.

  8. Swims350

    Swims350 Full Access Member

    Posts:
    3,464
    Likes Received:
    16
    Joined:
    Jul 30, 2010
    Location:
    Logan WV
    First Name:
    Chris
    Truck Year:
    1983
    Truck Model:
    K10
    Engine Size:
    none
    the steel horseshoe setu didn't show up along with reverse rotation water pumps to match and serp. setups til 88, then in 89 or 90 they changed to burbs style, all alum. my 88 tbi truck has the steel horseshow bracket setup for serp.

  9. Mryantibbz

    Mryantibbz Junior Member

    Age:
    26
    Posts:
    1
    Likes Received:
    0
    Joined:
    Aug 3, 2011
    Location:
    Iowa
    First Name:
    Mitch
    Truck Year:
    1988
    Truck Model:
    1500
    Engine Size:
    5.7
    What would i be able to replace the air conditioning bracket with? i took the air conditioning out and the bracket has the tentioner and i cant just completely eliminate it. Or what kind of belt could i use without the tentioner. Any help would be appreciated.

  10. f1shman

    f1shman Full Access Member

    Posts:
    349
    Likes Received:
    0
    Joined:
    Aug 2, 2010
    Location:
    .
    First Name:
    .
    Truck Year:
    .
    Truck Model:
    .
    Engine Size:
    .
    Welcome to the site Mitch. I'm going to assume you are talking about the aluminum bracket serpentine system that 89Sub posted pictures of originally.

    Dorman #34152

    You can get it online or thru most parts stores.

  11. Swims350

    Swims350 Full Access Member

    Posts:
    3,464
    Likes Received:
    16
    Joined:
    Jul 30, 2010
    Location:
    Logan WV
    First Name:
    Chris
    Truck Year:
    1983
    Truck Model:
    K10
    Engine Size:
    none
    yes either an a/c bypass pulley, or if you have the steel horseshoe bracket like mine, they have a different bracket you use to eliminate a/c but it's hard to find, meaning junkyards or online from a person who has one only.

  12. 89Suburban

    89Suburban Full Access Member

    Age:
    43
    Posts:
    22,545
    Likes Received:
    73
    Joined:
    Dec 7, 2010
    Location:
    Southeast PA
    First Name:
    Paw Paw
    Truck Year:
    1990 Chevy Suburban
    Truck Model:
    R-1500
    Engine Size:
    5.7L TBI/700R4/3.73 10 Bolt Auburn L-S /Cat-Back
    Sorry I didn;t reply Mitch, but I had no info to give, and it is also a mod I want to do to my truck to eliminate the compressor. Thanks for the help fishman. What about the belt size? Does it stay the same? :popcorn:

  13. 89Suburban

    89Suburban Full Access Member

    Age:
    43
    Posts:
    22,545
    Likes Received:
    73
    Joined:
    Dec 7, 2010
    Location:
    Southeast PA
    First Name:
    Paw Paw
    Truck Year:
    1990 Chevy Suburban
    Truck Model:
    R-1500
    Engine Size:
    5.7L TBI/700R4/3.73 10 Bolt Auburn L-S /Cat-Back
  14. f1shman

    f1shman Full Access Member

    Posts:
    349
    Likes Received:
    0
    Joined:
    Aug 2, 2010
    Location:
    .
    First Name:
    .
    Truck Year:
    .
    Truck Model:
    .
    Engine Size:
    .
    Belt size and routing remains the same as long as you are just swapping out the compressor for the pulley. If you are making other changes at the same time (deleting a smog pump for example) then you would have to change things up.

    Going thru your link, Amazon has it for $27.49 with free shipping. Might be cheaper in the long run.

    Last edited: Aug 4, 2011
  15. 89Suburban

    89Suburban Full Access Member

    Age:
    43
    Posts:
    22,545
    Likes Received:
    73
    Joined:
    Dec 7, 2010
    Location:
    Southeast PA
    First Name:
    Paw Paw
    Truck Year:
    1990 Chevy Suburban
    Truck Model:
    R-1500
    Engine Size:
    5.7L TBI/700R4/3.73 10 Bolt Auburn L-S /Cat-Back
    Yah, I forgot about the shipping, good point. :)

    I am glad about the belt, this is one mod I will absoloutley be doing over in the fall. :waytogo:
